Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Suspension Control >> DTC 11 >> Electric Parking Brake System Malfunction

Electric Parking Brake System Malfunction

DTC C13AF/11 Electric Parking Brake System Malfunction

DESCRIPTION

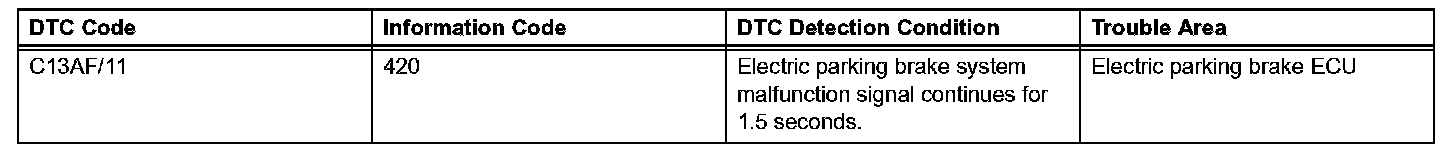

DTC Detection Condition:




The skid control ECU is connected to the electric parking brake ECU via CAN communication. If an electric parking brake system malfunction occurs, this code is output.

Step 1:

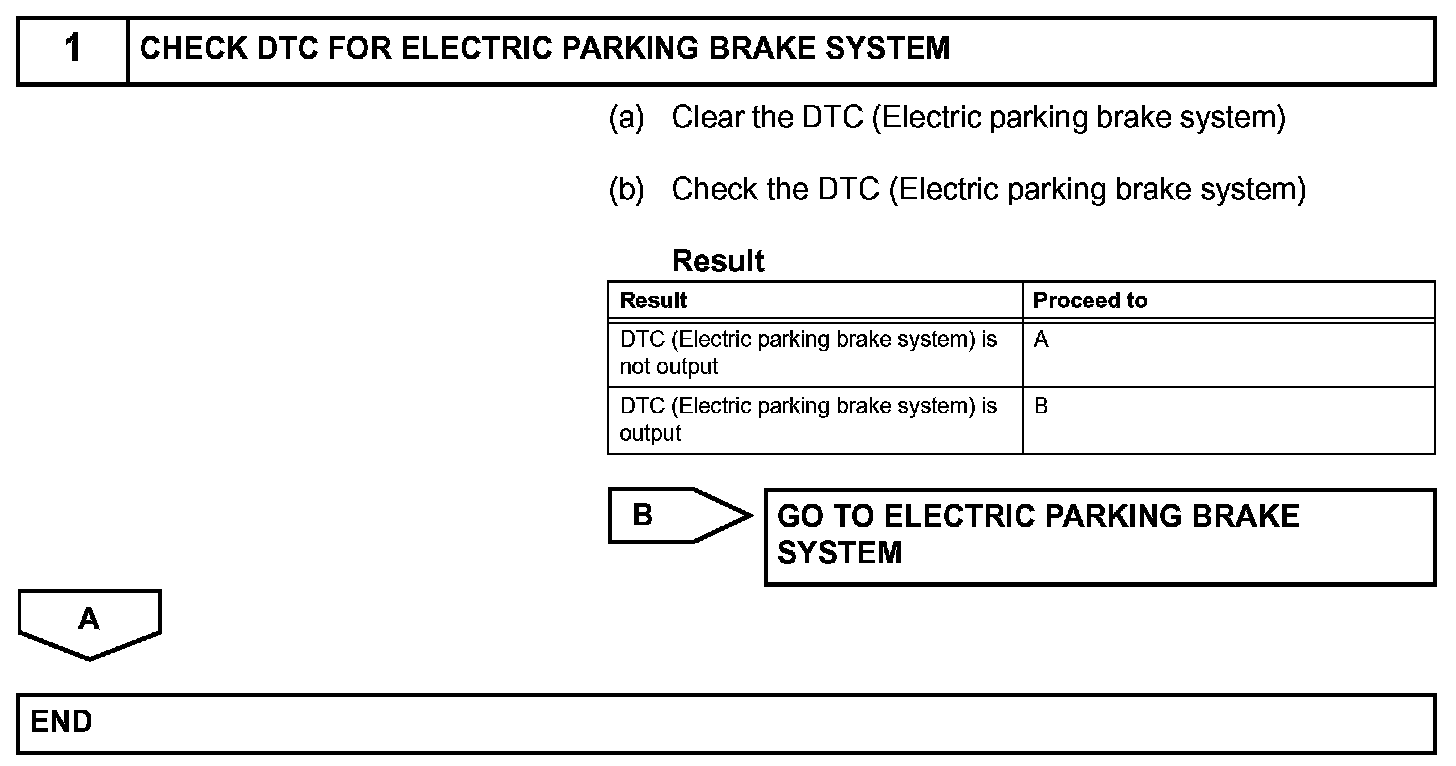

INSPECTION PROCEDURE
