Navigation System (For HDD)

DTC 01-DC Transmission Error

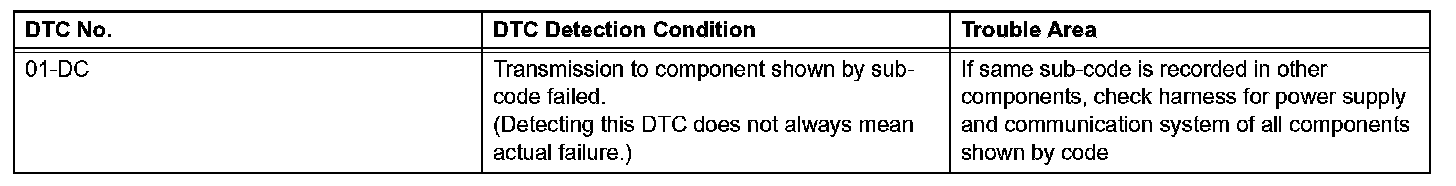

DTC Detection Condition:

DESCRIPTION

NOTE:
- The display and navigation assembly is the master unit.
- Be sure to clear and recheck DTCs after the inspection is completed to confirm that no DTCs are output.

Step 1:

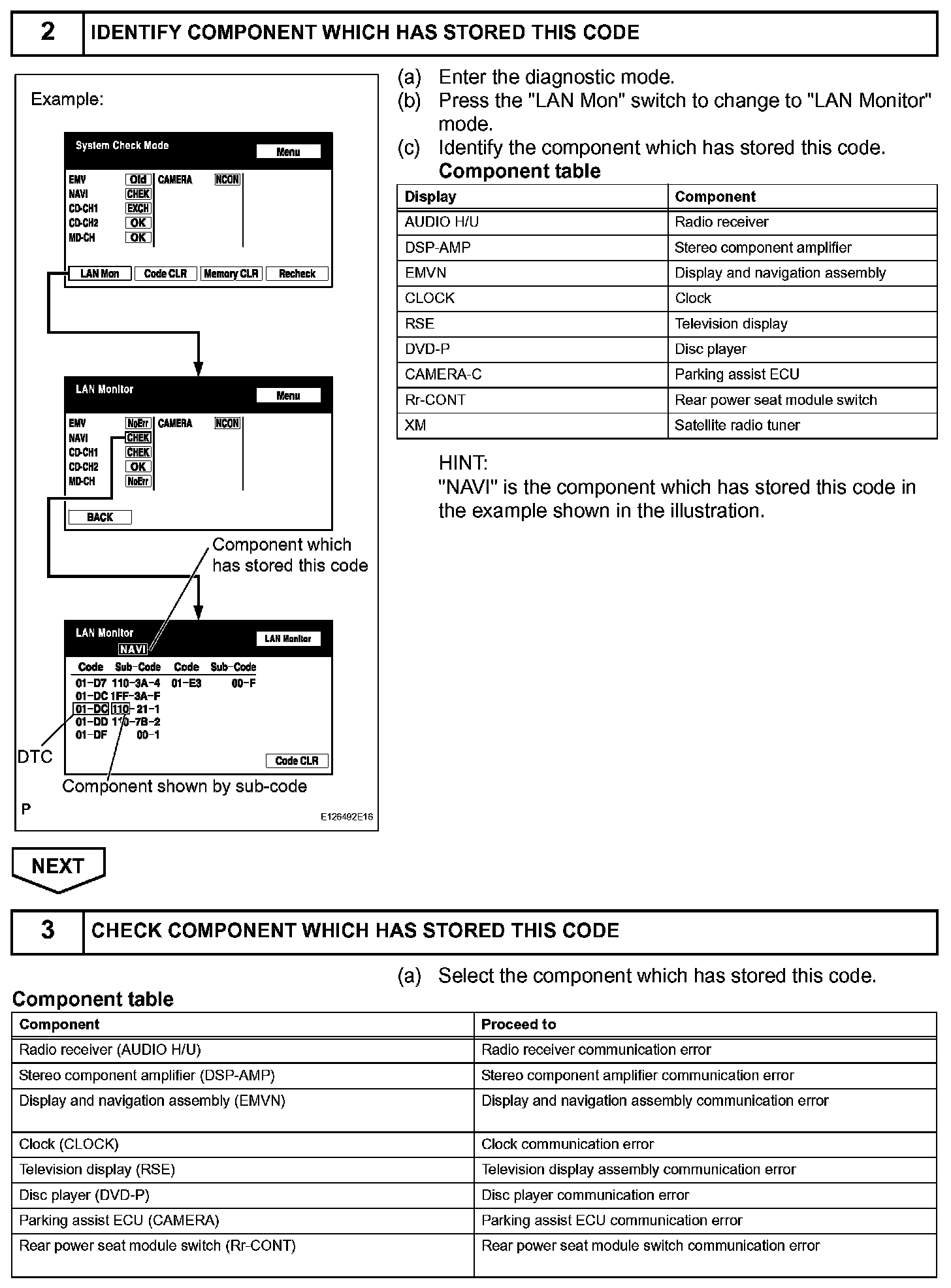

Step 2-3:

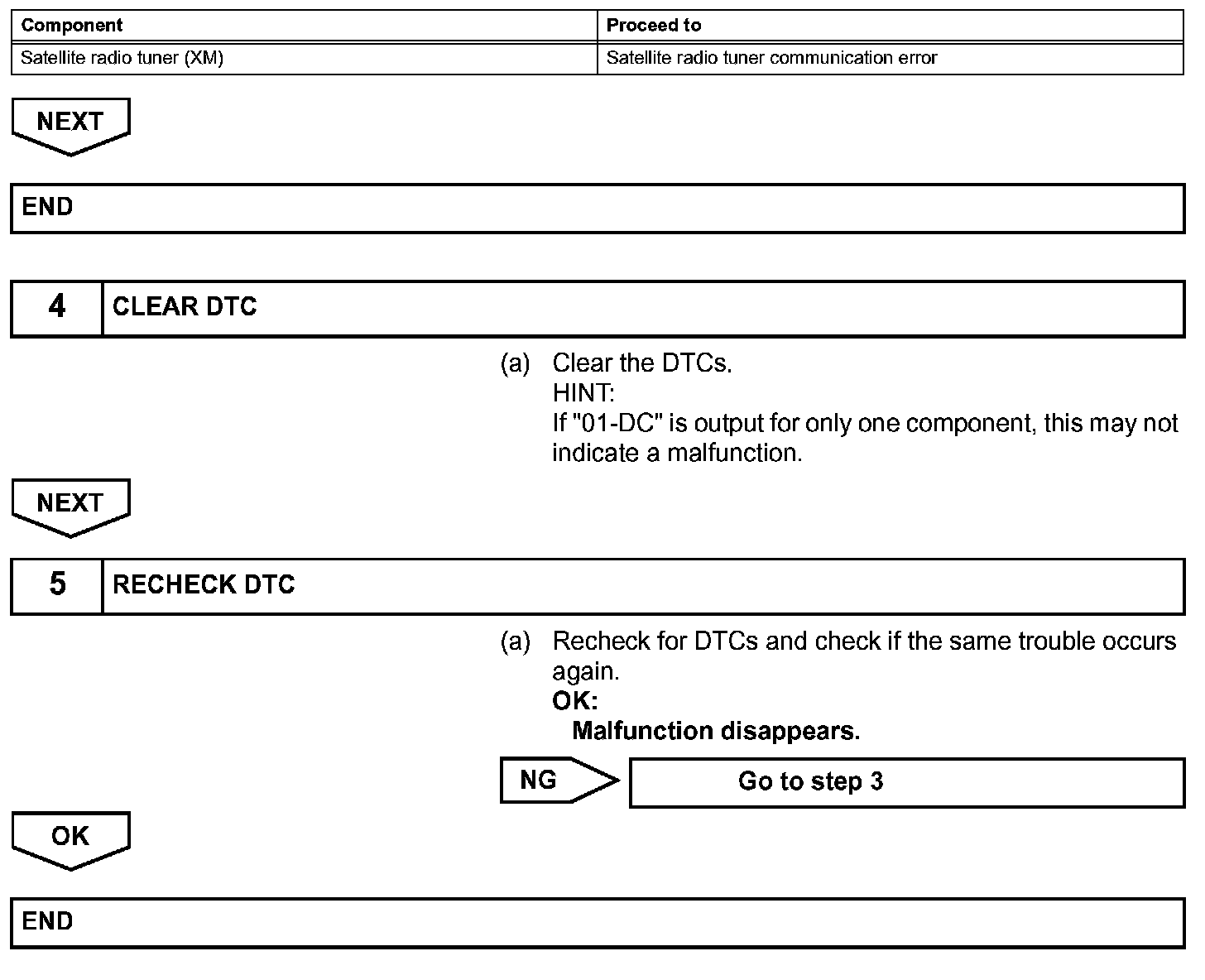

Step 3 (Continued)-5:

INSPECTION PROCEDURE

NOTE: Be sure to read DESCRIPTION before performing the following procedures.
