DTC 71

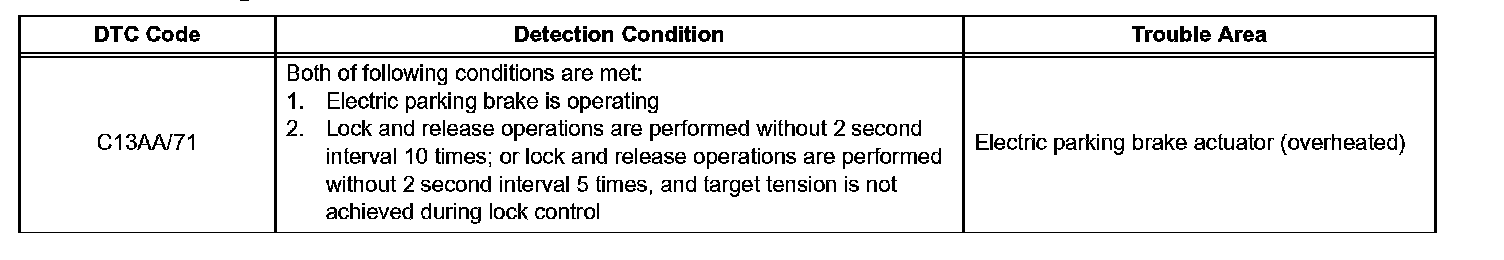

DTC C13AA/71 Electric Parking Brake High Temperature

DESCRIPTION
If the electric parking brake is used continuously, the actuator overheat prevention stops the system. If this occurs, the parking brake indicator light (RED) blinks and the multi-information display shows the overheat warning.





INSPECTION PROCEDURE

Step 1:
