DTC 42

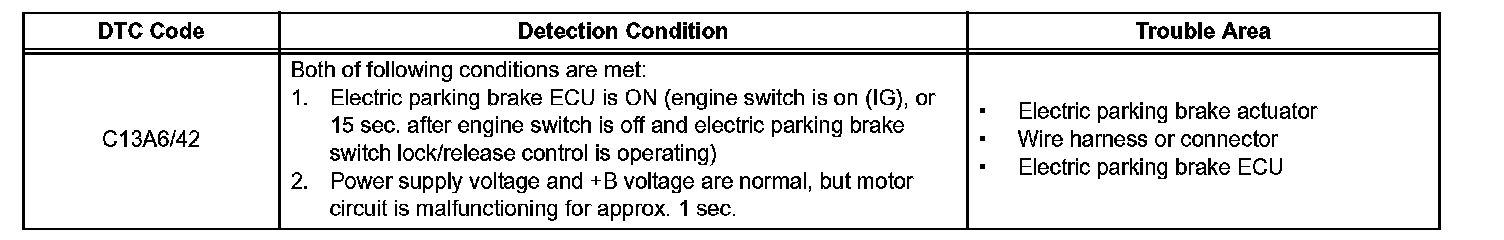

DTC C13A6/42 Open or Short in Circuit of Motor

DESCRIPTION
The parking brake cable tightening/loosening operation is performed by the parking brake actuator's motor.

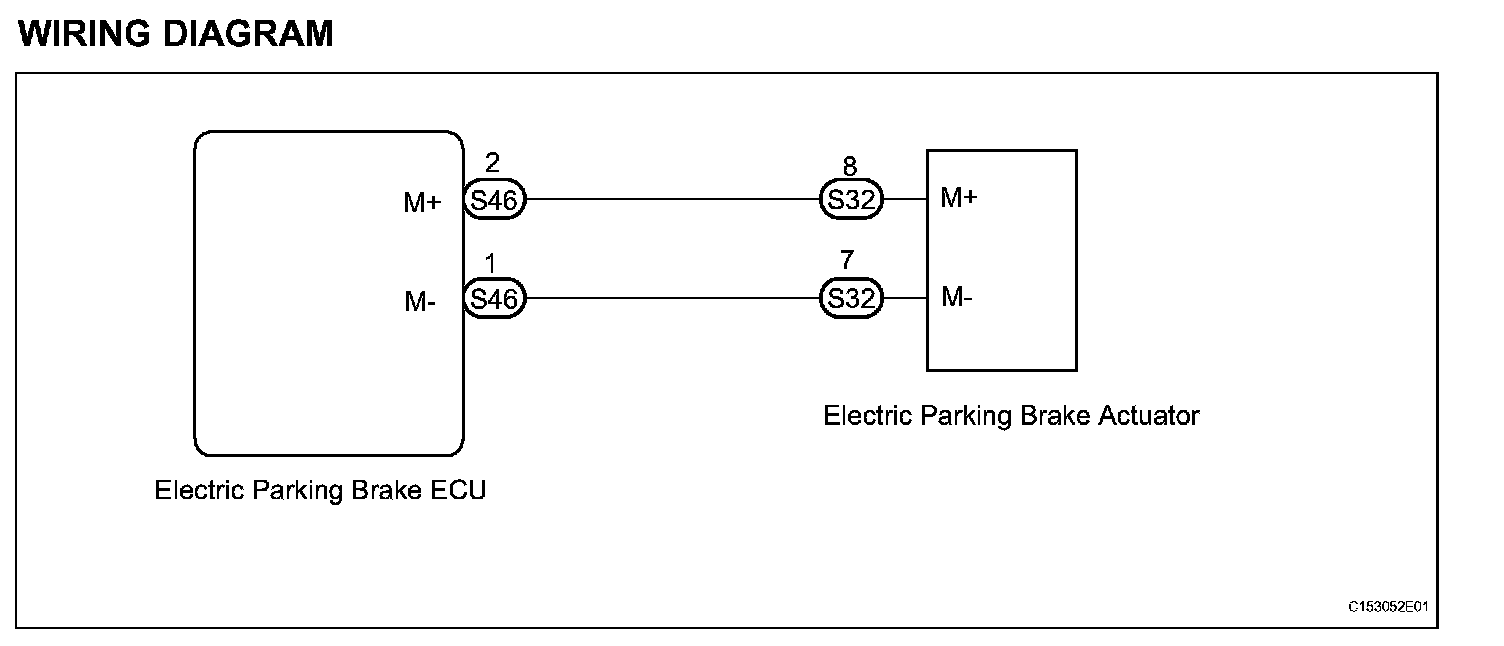

WIRING DIAGRAM:

INSPECTION PROCEDURE

NOTICE:
^ If the electric parking brake ECU or electric parking brake actuator is replaced, perform the "RESET MEMORY" and "ACQUIRE TENSION SENSOR ZERO POINT" procedures.
^ Before disconnecting connectors or fuses, turn the engine switch off and wait 20 seconds or more.

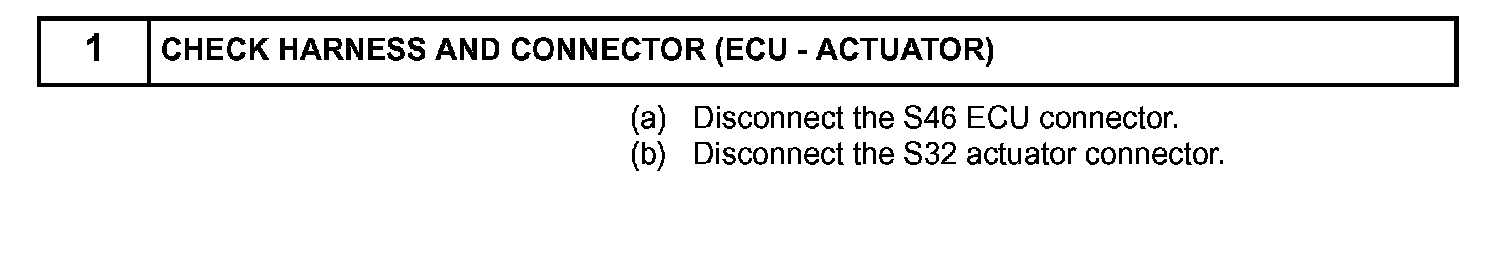

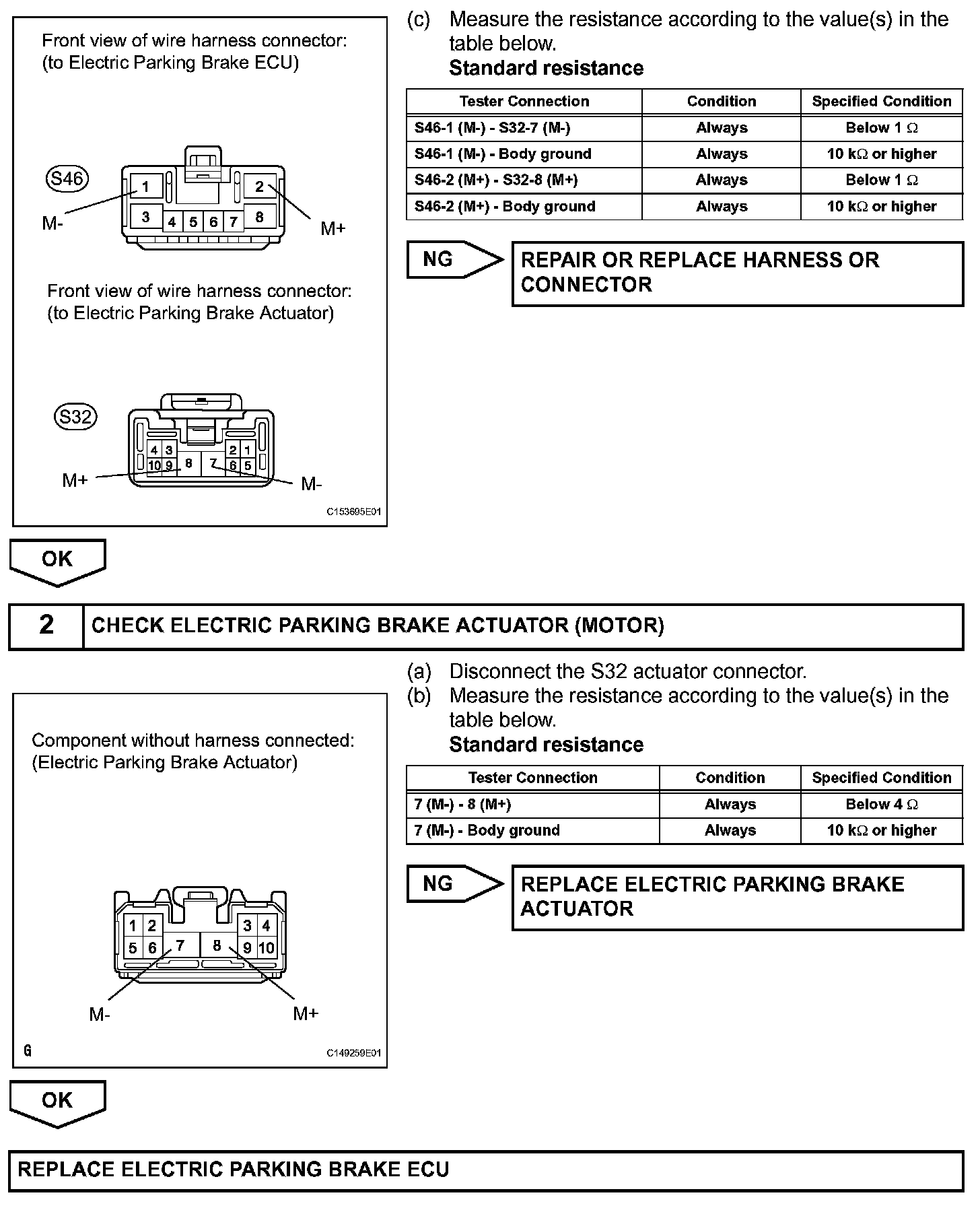

Step 1:
