DTC 23

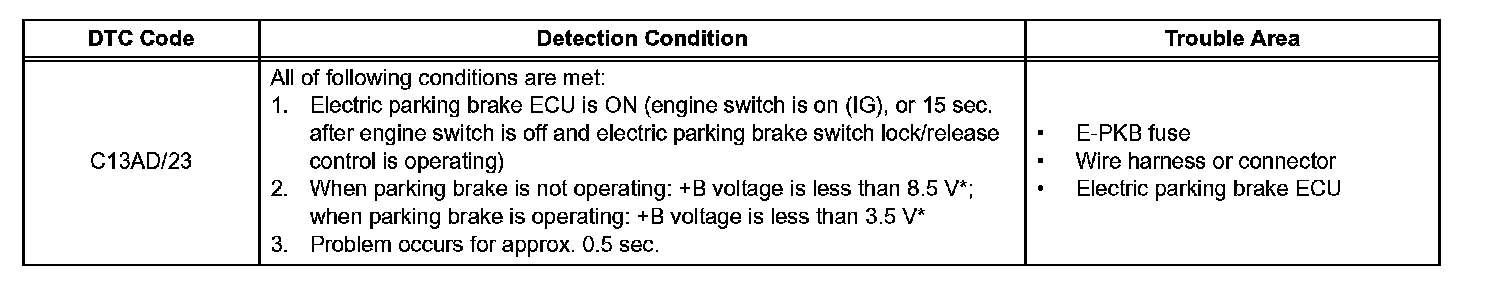

DTC C13AD/23 Open in +B Circuit

DESCRIPTION





HINT:
*: This value is based on the assumption that the battery voltage is 12 V.

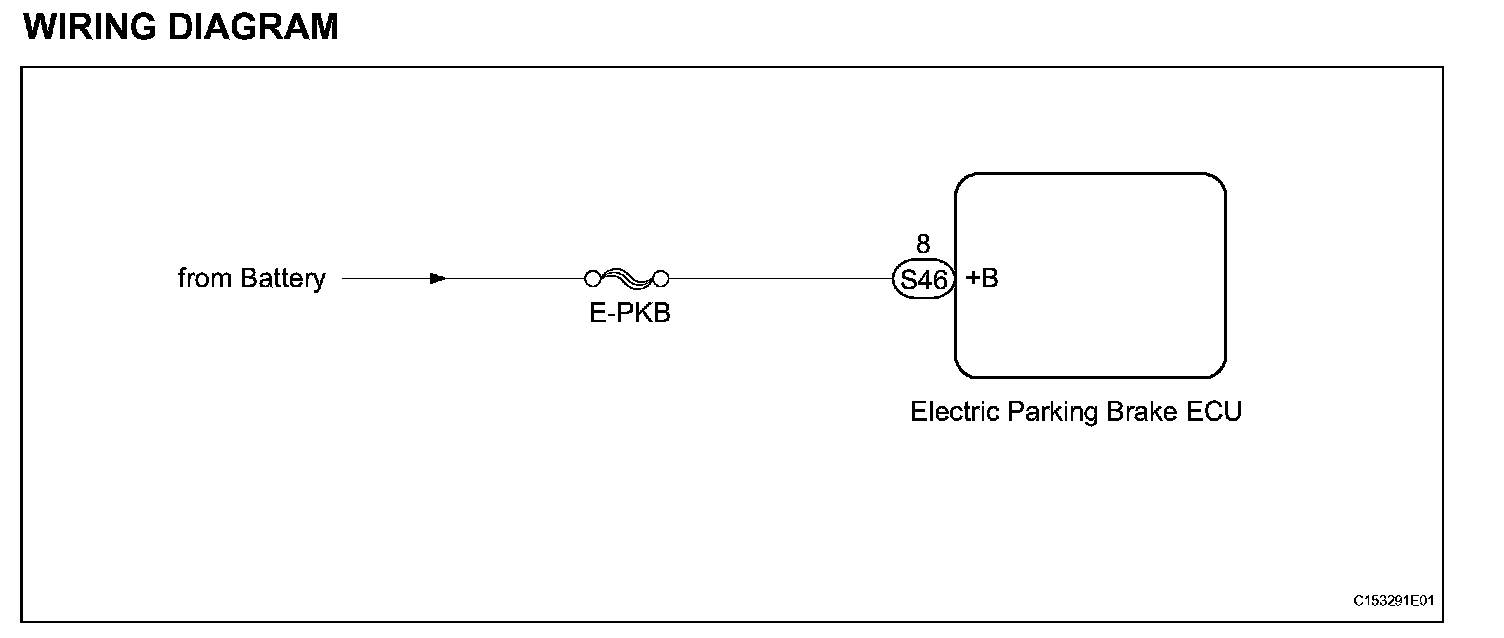

WIRING DIAGRAM:

INSPECTION PROCEDURE

NOTICE:
^ If the electric parking brake ECU or electric parking brake actuator is replaced, perform the "RESET MEMORY" and "ACQUIRE TENSION SENSOR ZERO POINT" procedures.
^ Before disconnecting connectors or fuses, turn the engine switch off and wait 20 seconds or more.

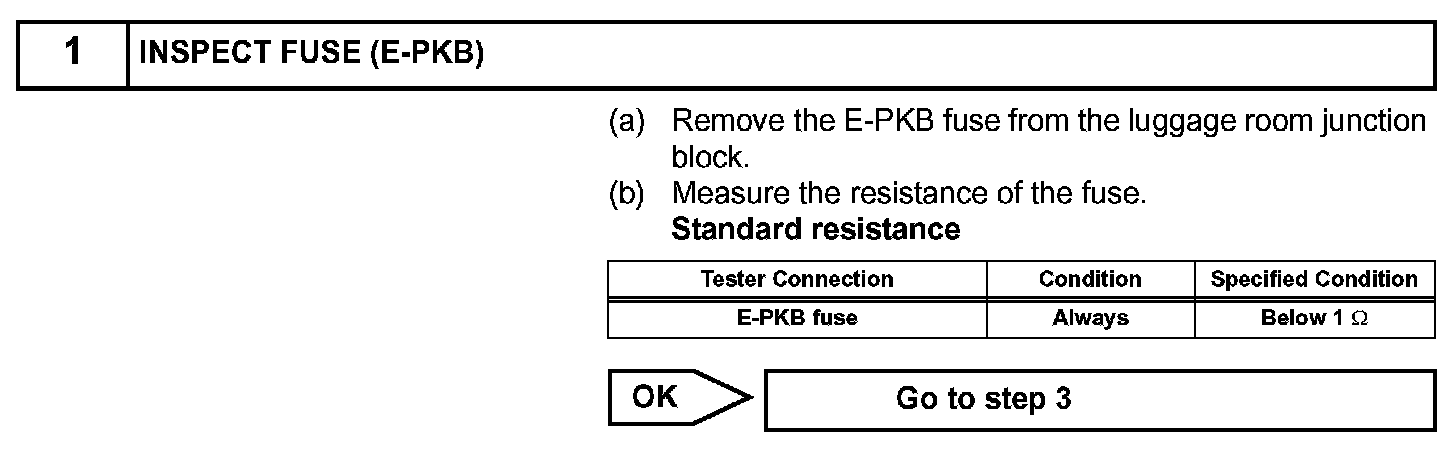

Step 1:

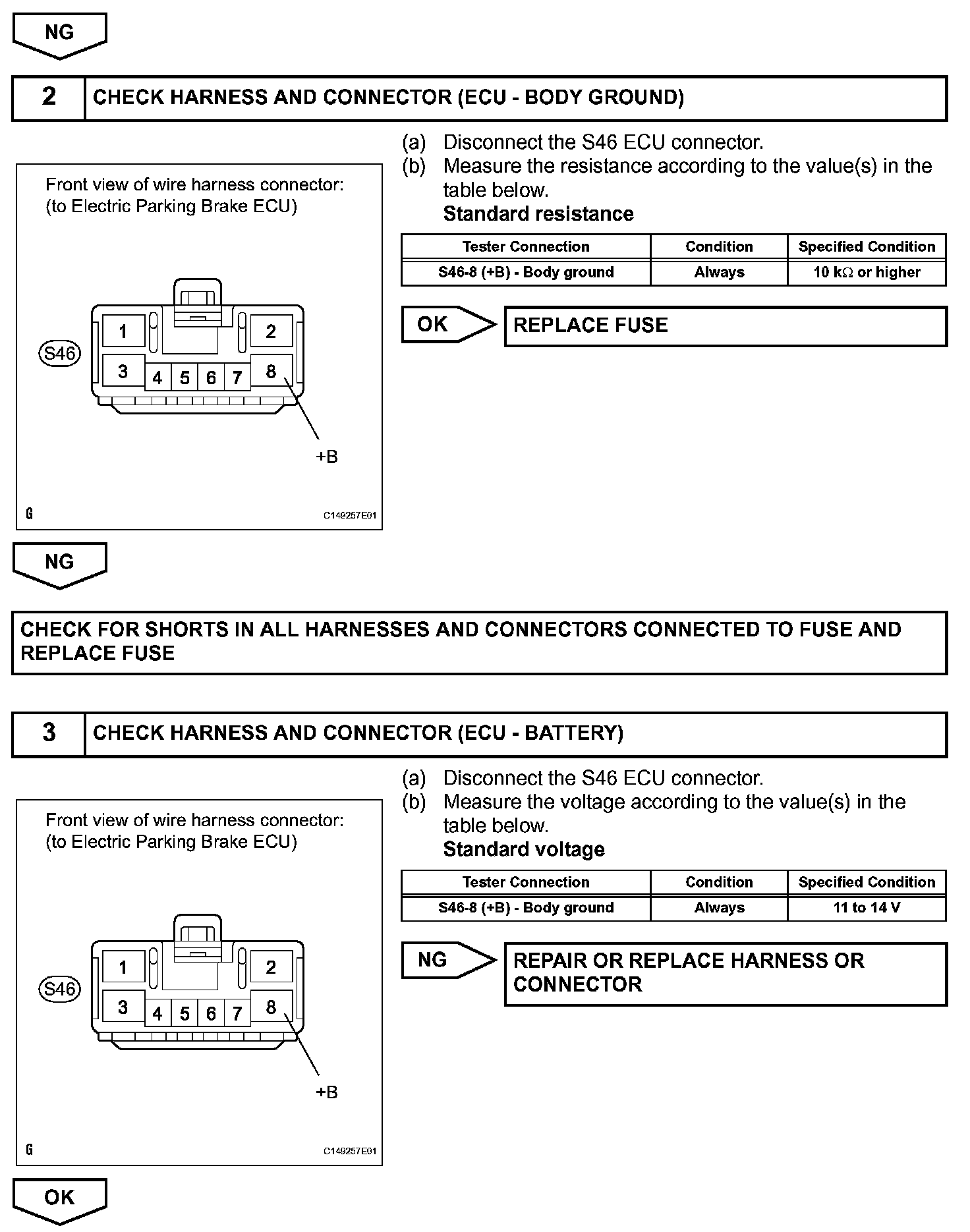

Step 1 Continued, Step 2-3:

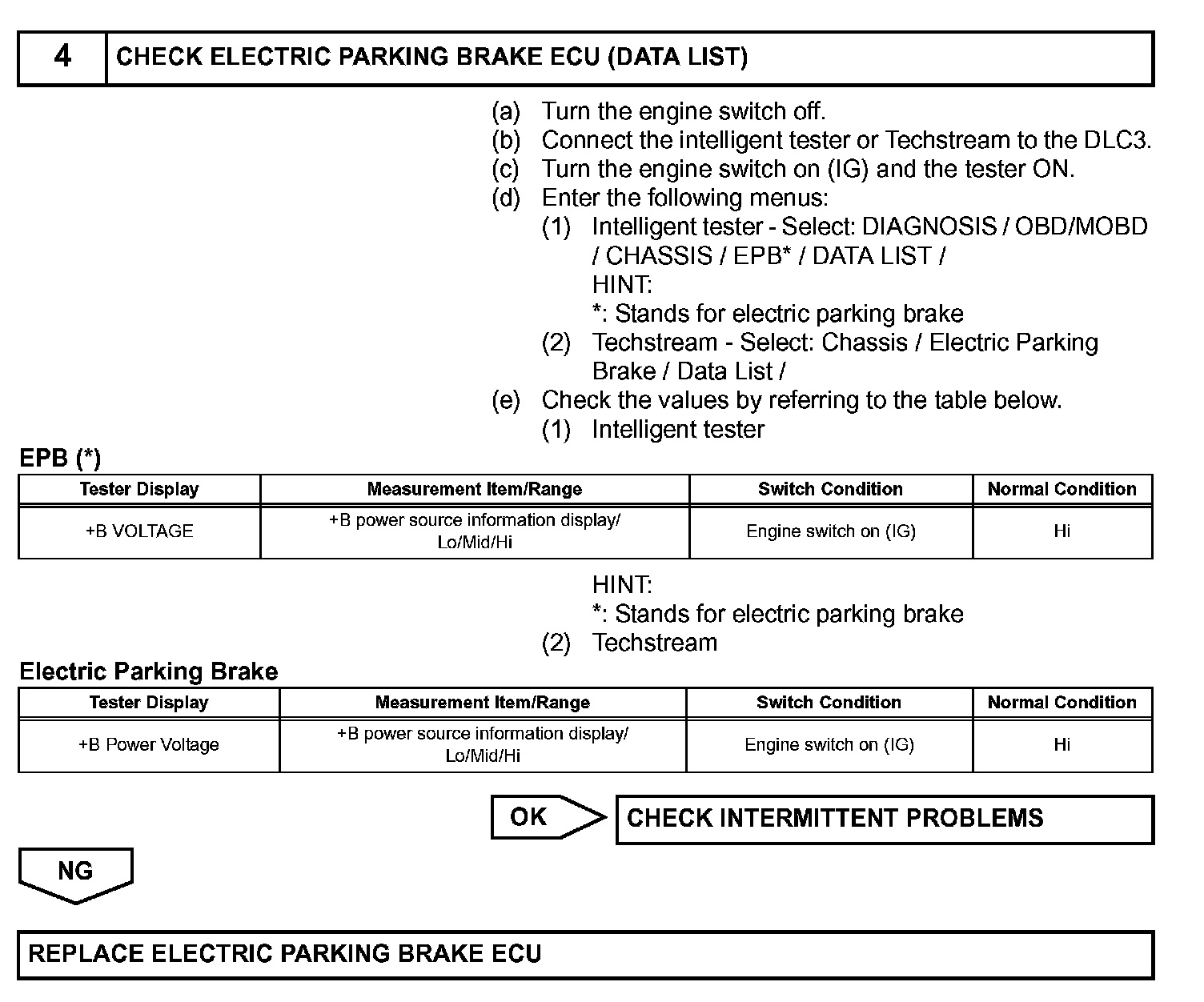

Step 4:
