Audio and Visual System (W/O Multi-Display)

DTC 74-40 Short in Speaker Circuit

DESCRIPTION

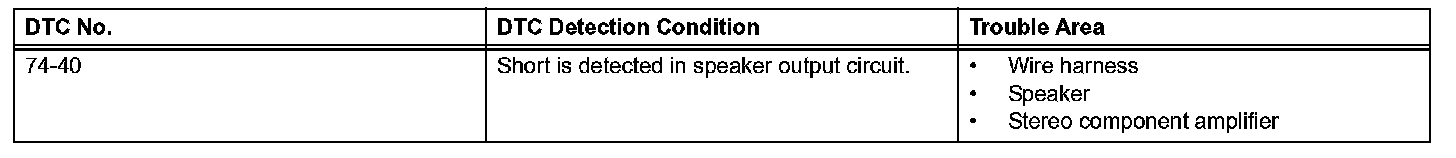

DTC Detection Condition:

The speaker circuit has a fail-safe function. When a short in the circuit is detected, all sound output is stopped.

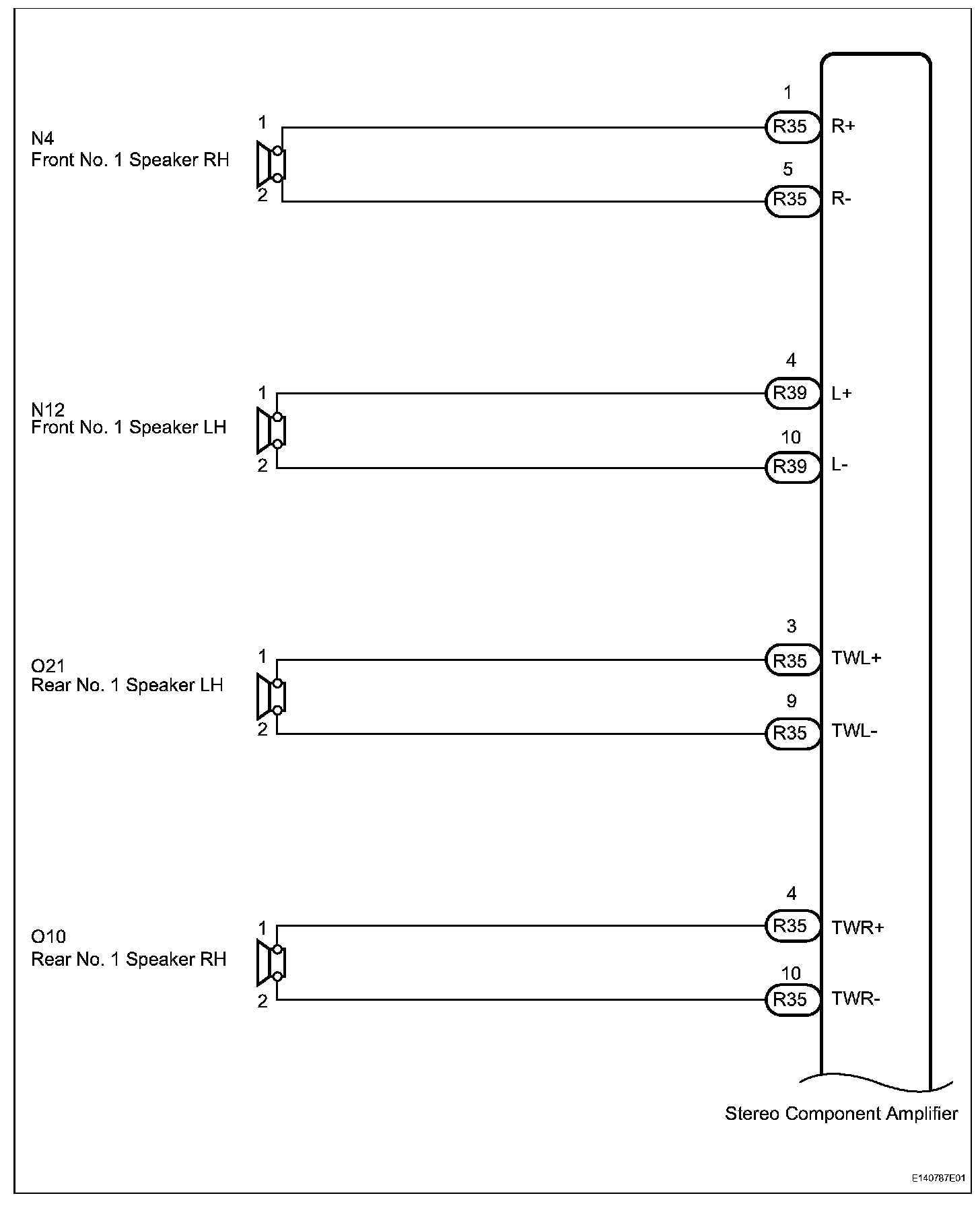

Wiring Diagram (Part 1):

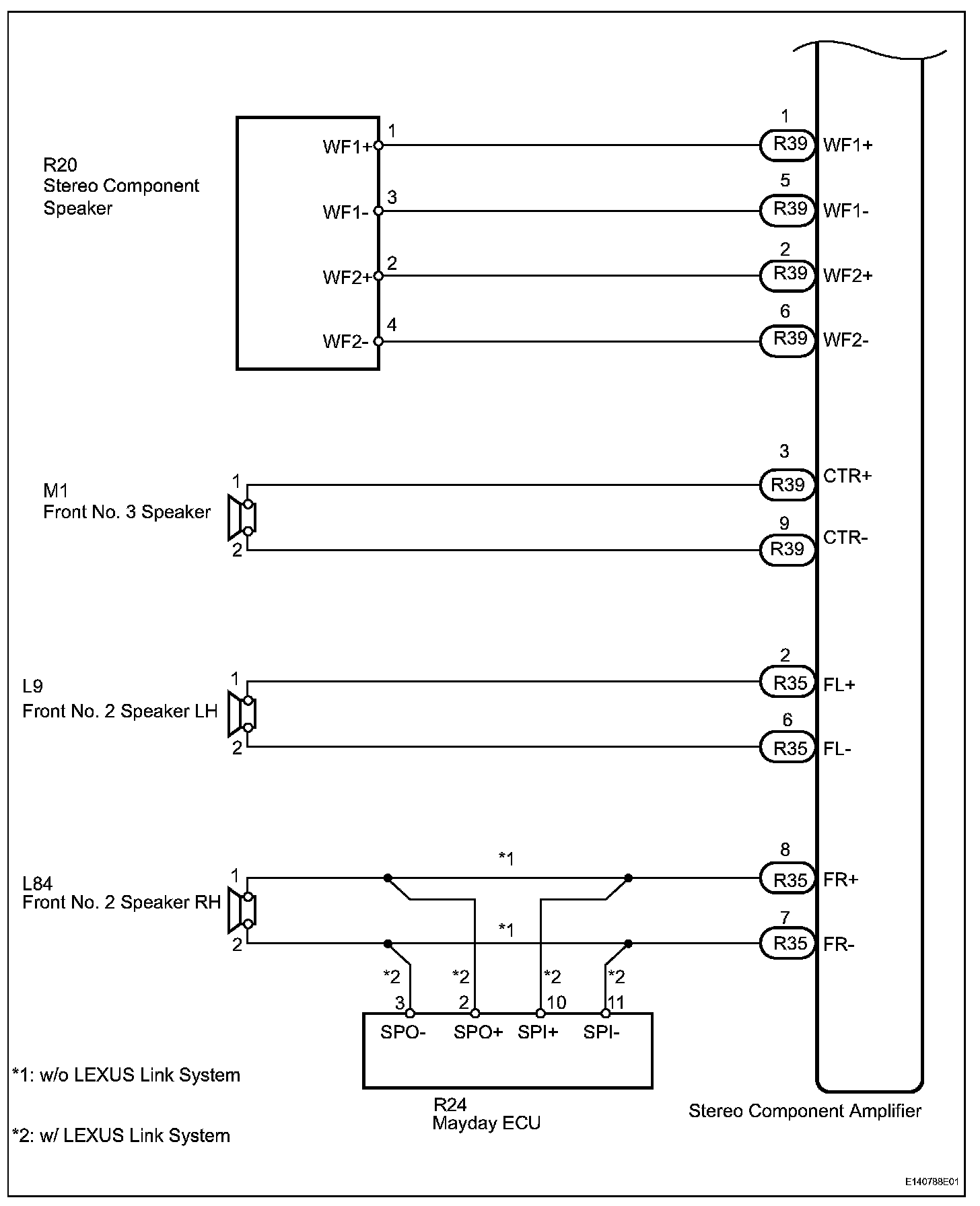

Wiring Diagram (Part 2):

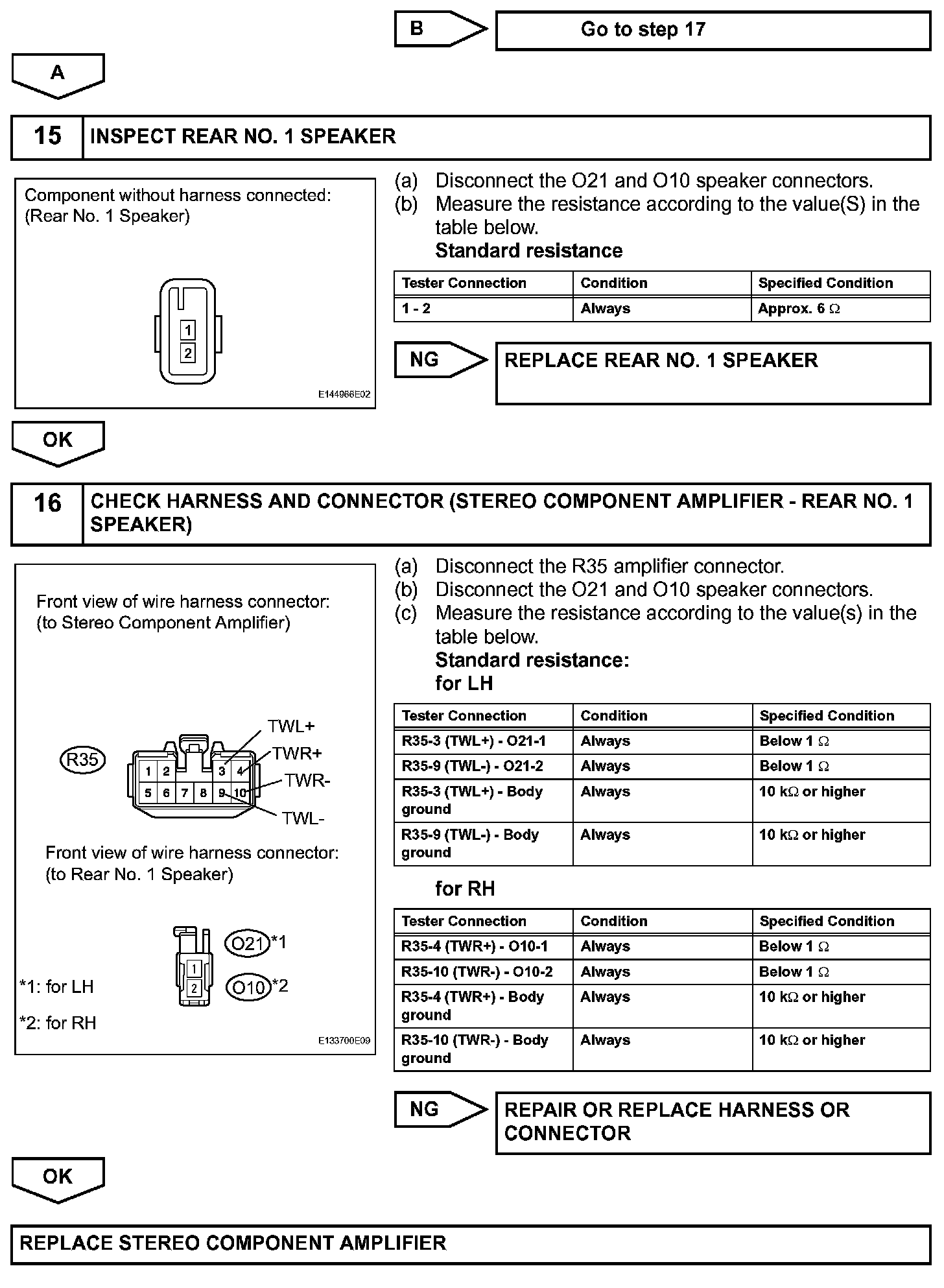

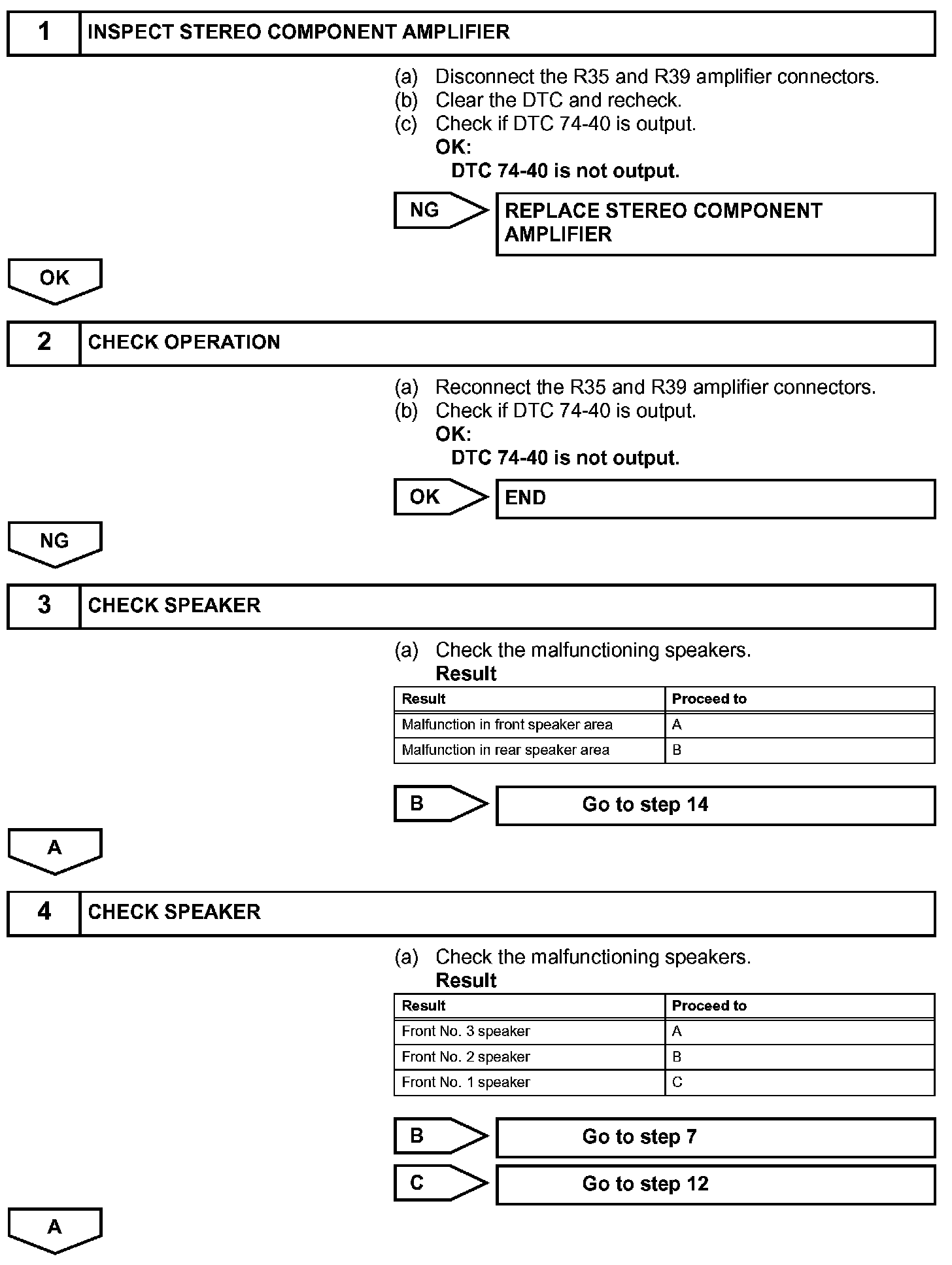

Step 1-4:

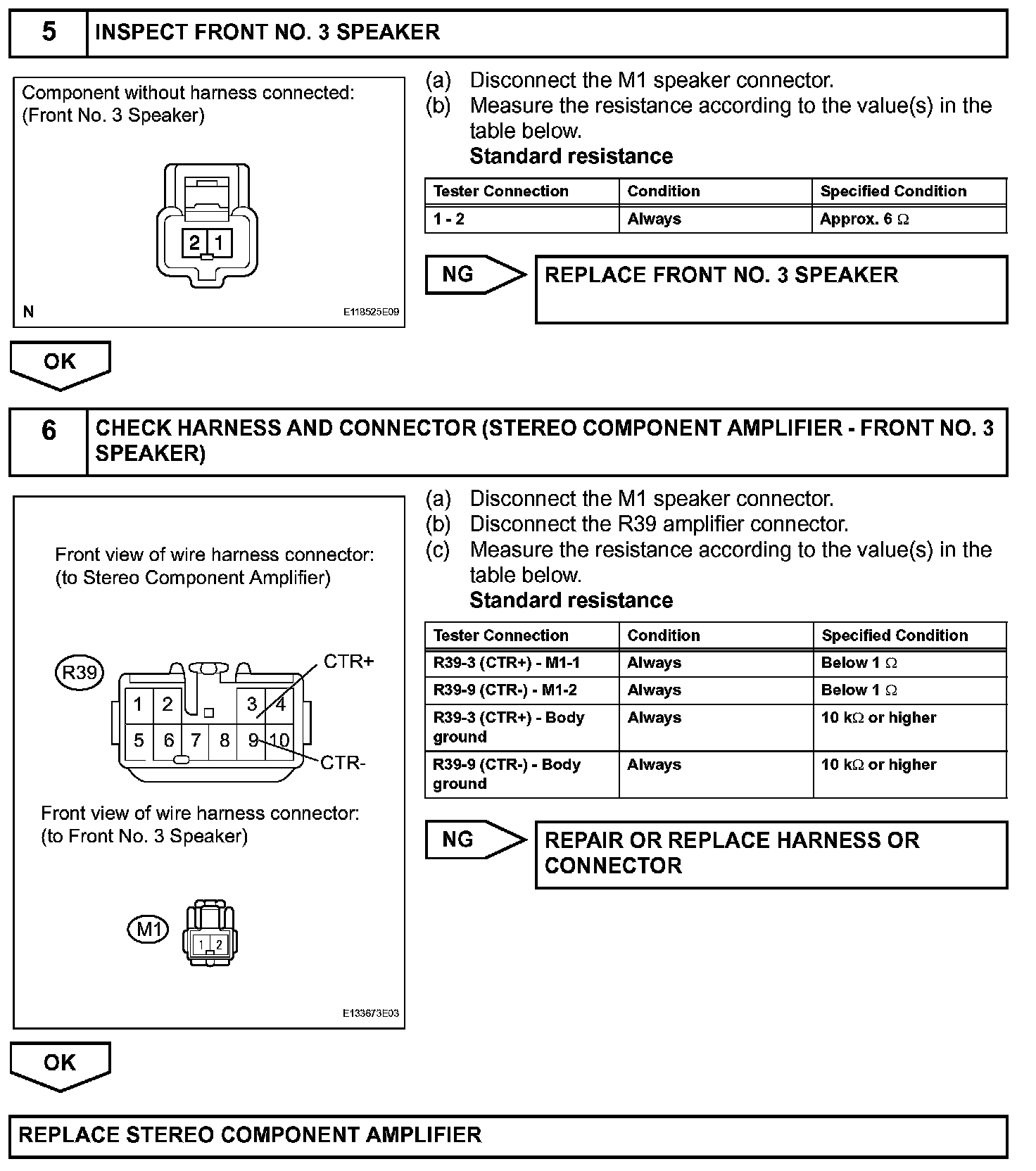

Step 5-6:

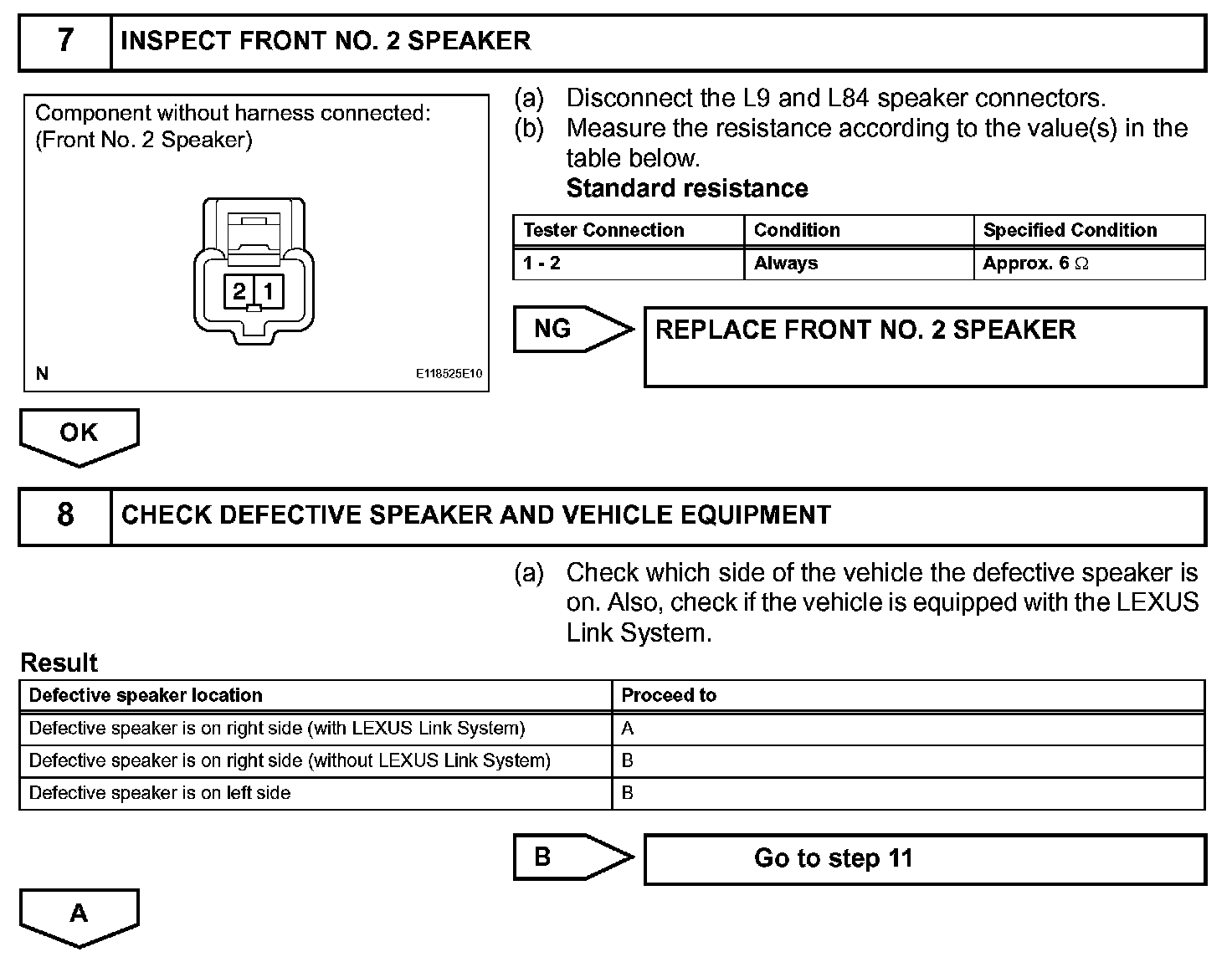

Step 7-8:

Step 9-10:

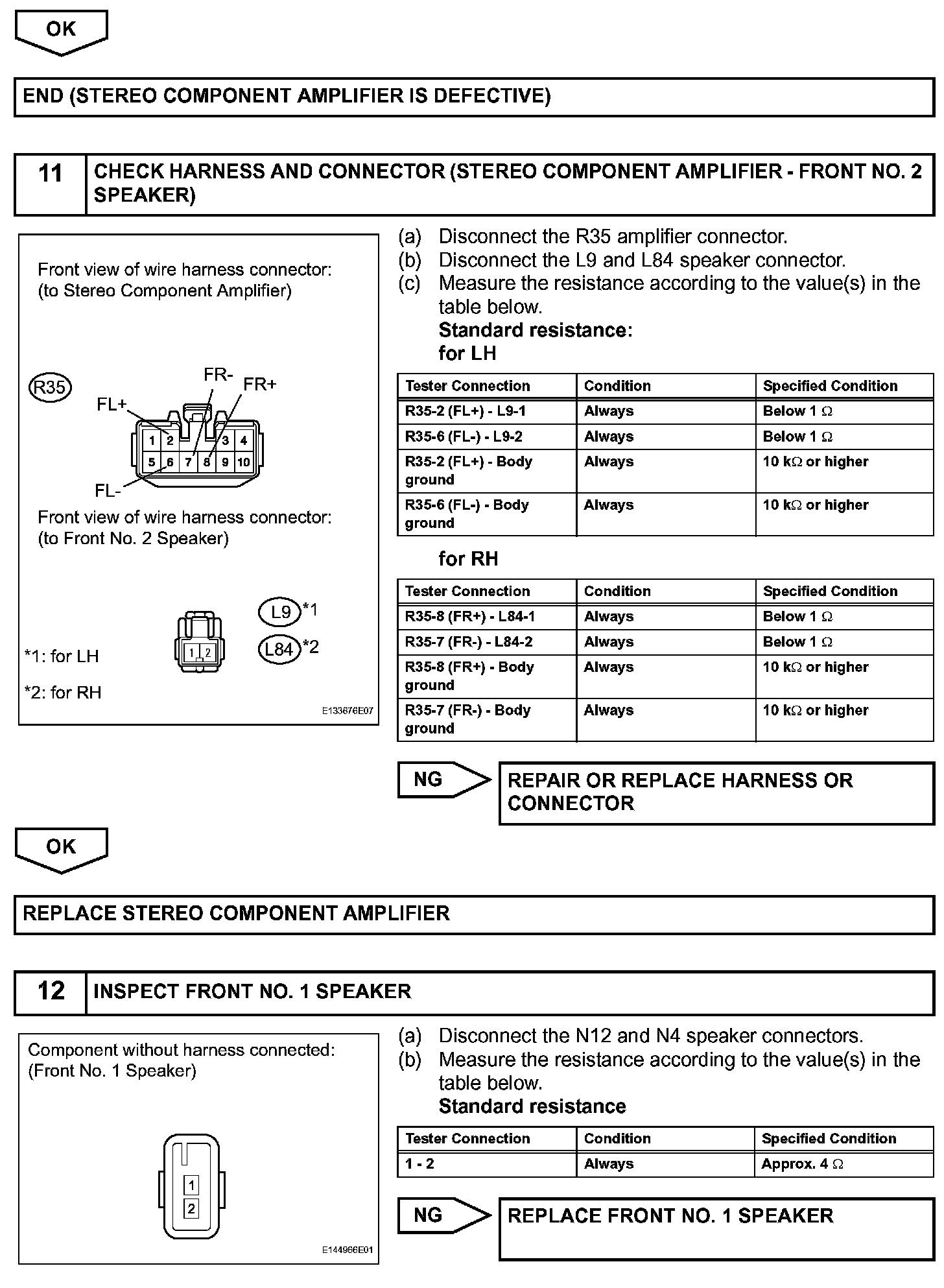

Step 10 (Continued)-12:

Step 12 (Continued)-14:

Step 14 (Continued)-16:

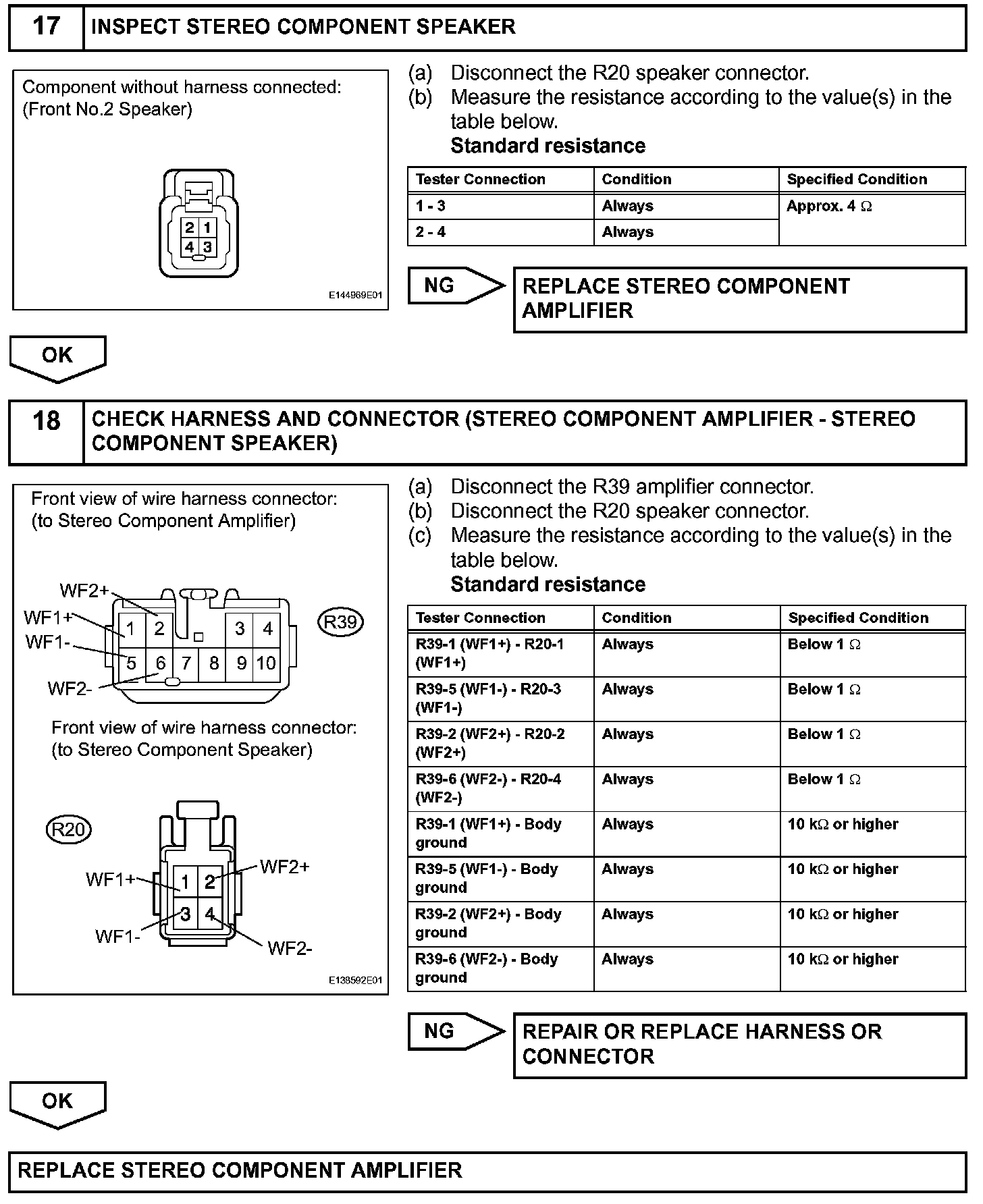

Step 17-18:

INSPECTION PROCEDURE

HINT: After the inspection is completed, clear the DTCs.
