Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Audio and Visual System >> DTC 63-48 >> Audio and Visual System (W/ Multi-Display)

Audio and Visual System (W/ Multi-Display)

DTC 63-44 CD Abnormal
DTC 63-48 Excess Current
DTC 63-50 Tray Insertion / Ejection Error

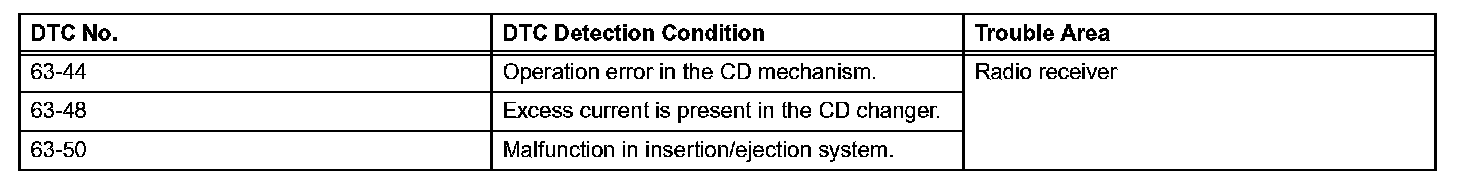

DTC Detection Condition:




DESCRIPTION

Step 1-2:

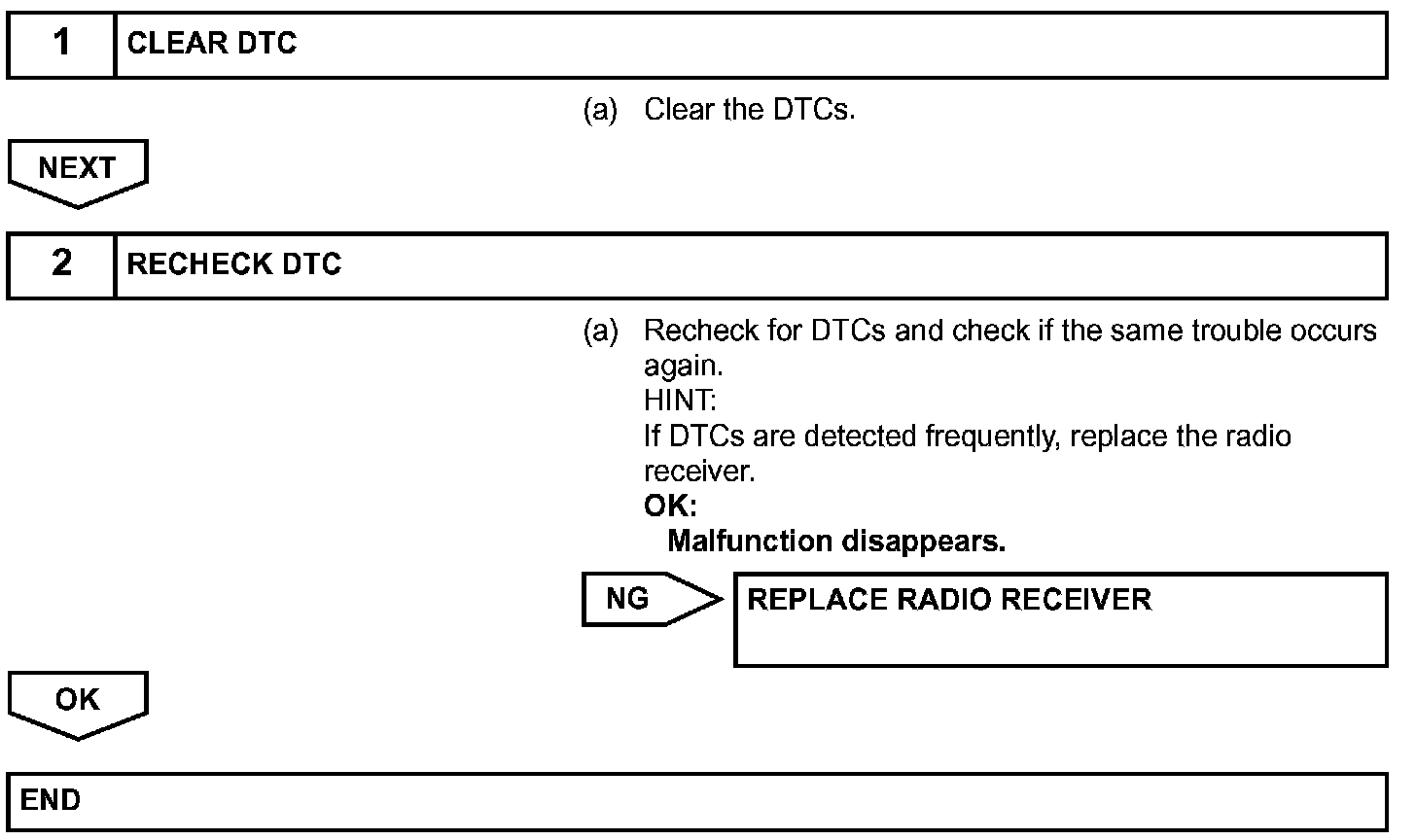

INSPECTION PROCEDURE

HINT: After the inspection is completed, clear the DTCs.
