Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Audio and Visual System >> DTC 63-46 >> Audio and Visual System (W/O Multi-Display)

Audio and Visual System (W/O Multi-Display)

DTC 62-46 Scratched / Reversed Disc
DTC 63-46 Scratched / Reversed Disc

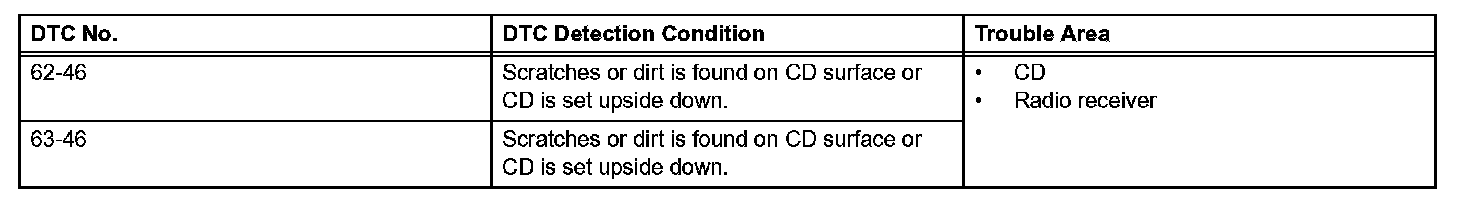

DTC Detection Condition:




DESCRIPTION

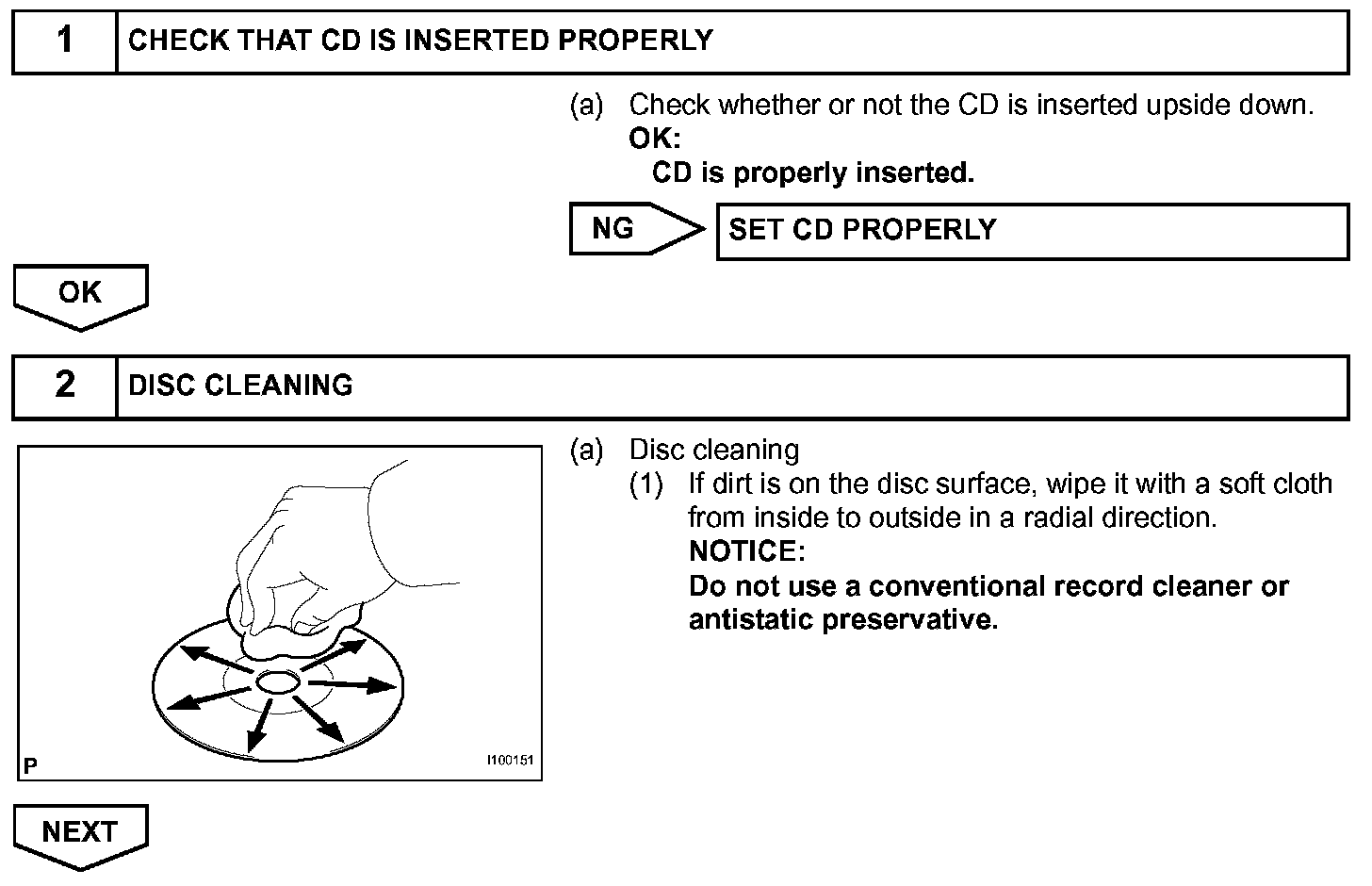

Step 1-2:

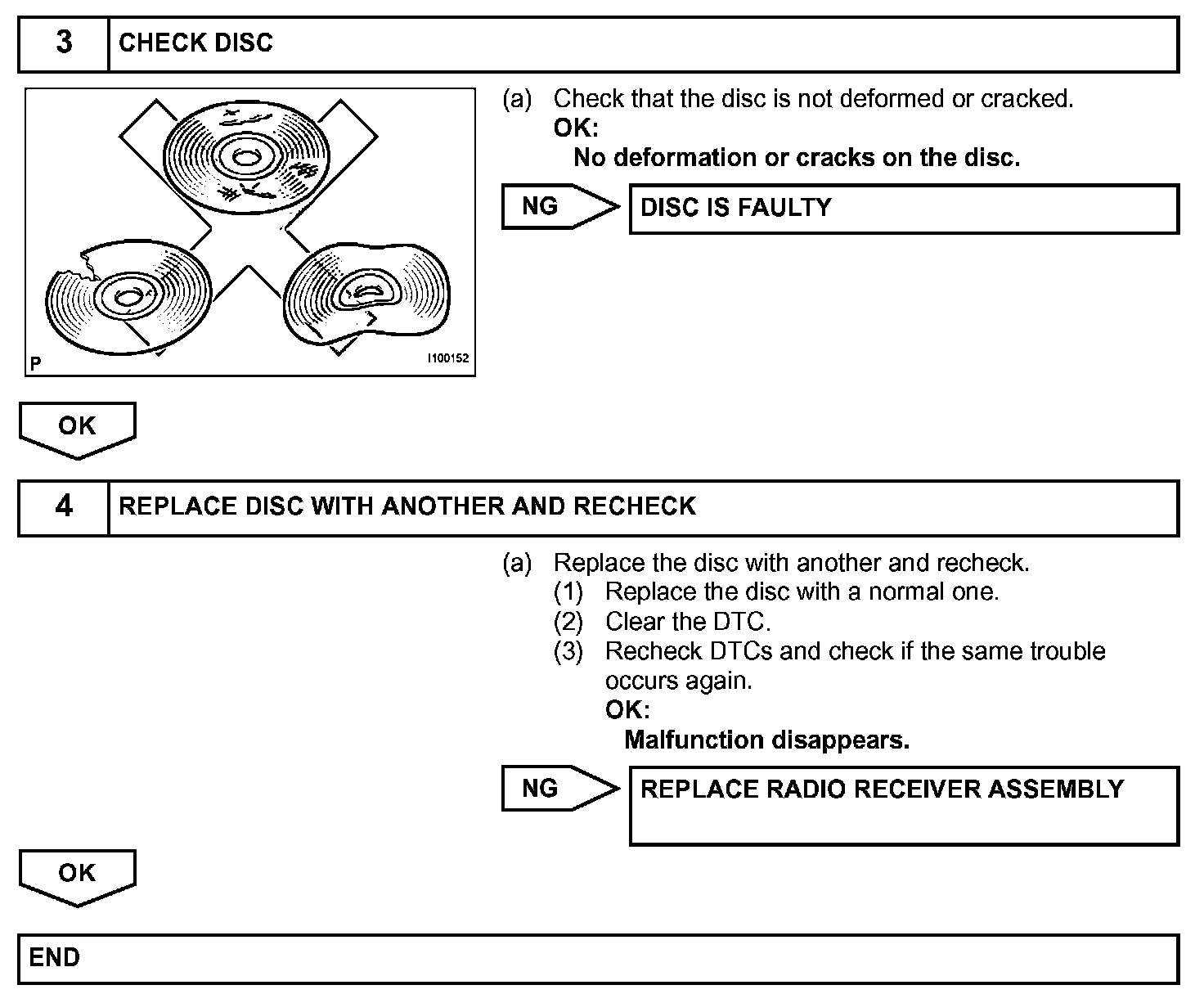

Step 3-4:




INSPECTION PROCEDURE

HINT: After the inspection is completed, clear the DTCs.
