Front Airbag Sensor RH Initialization Incomplete
DTC B1613/83 Front Airbag Sensor RH Initialization IncompleteDESCRIPTION

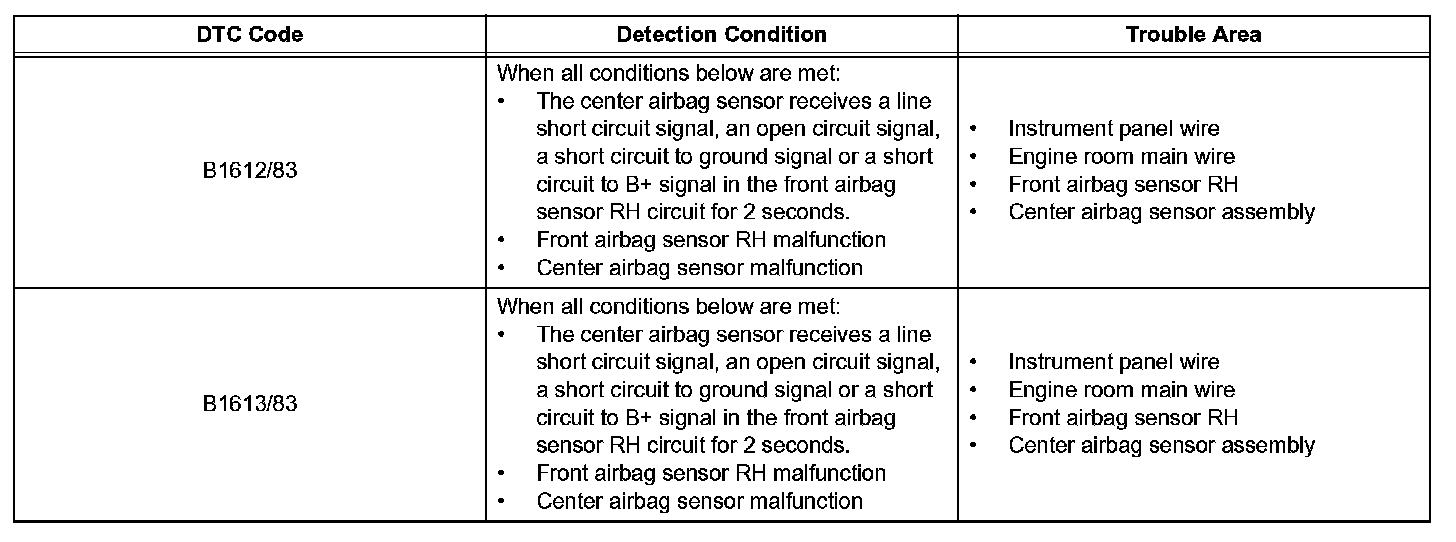

Detection Condition:
The front airbag sensor RH circuit consists of the center airbag sensor and front airbag sensor RH. The front airbag sensor RH detects impacts to the vehicle and sends signals to the center airbag sensor to determine if the airbag should be deployed.
DTC B1612/83 or B1613/83 is recorded when a malfunction is detected in the front airbag sensor RH circuit.

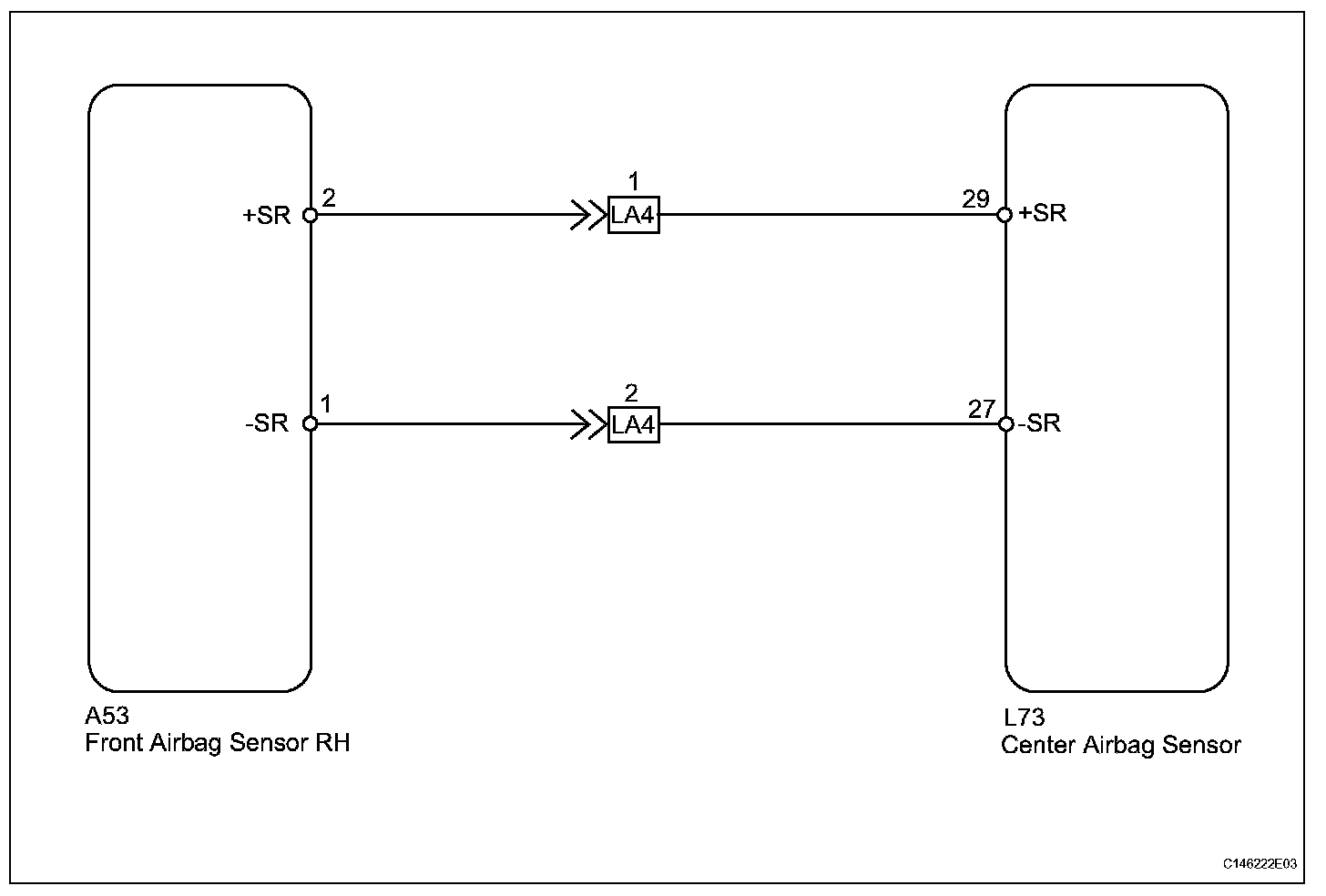

Wiring Diagram:

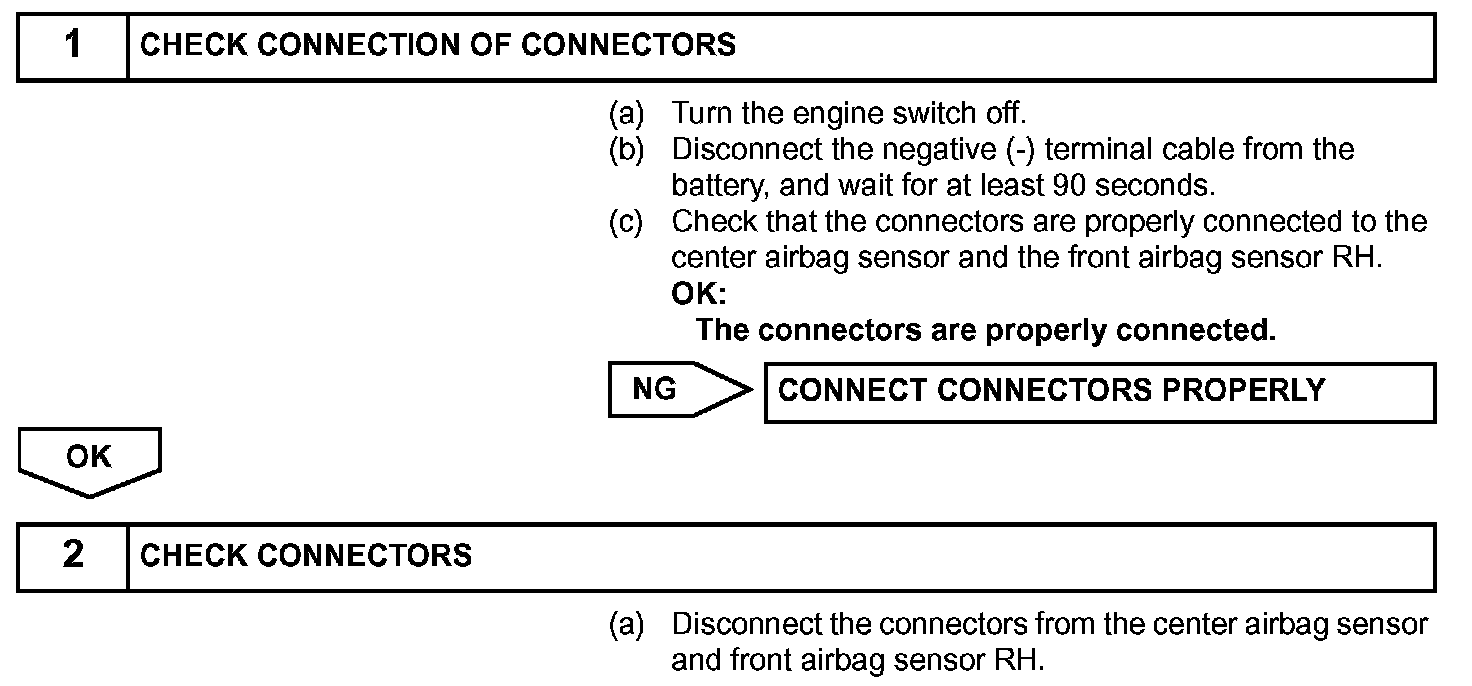

Step 1-2:

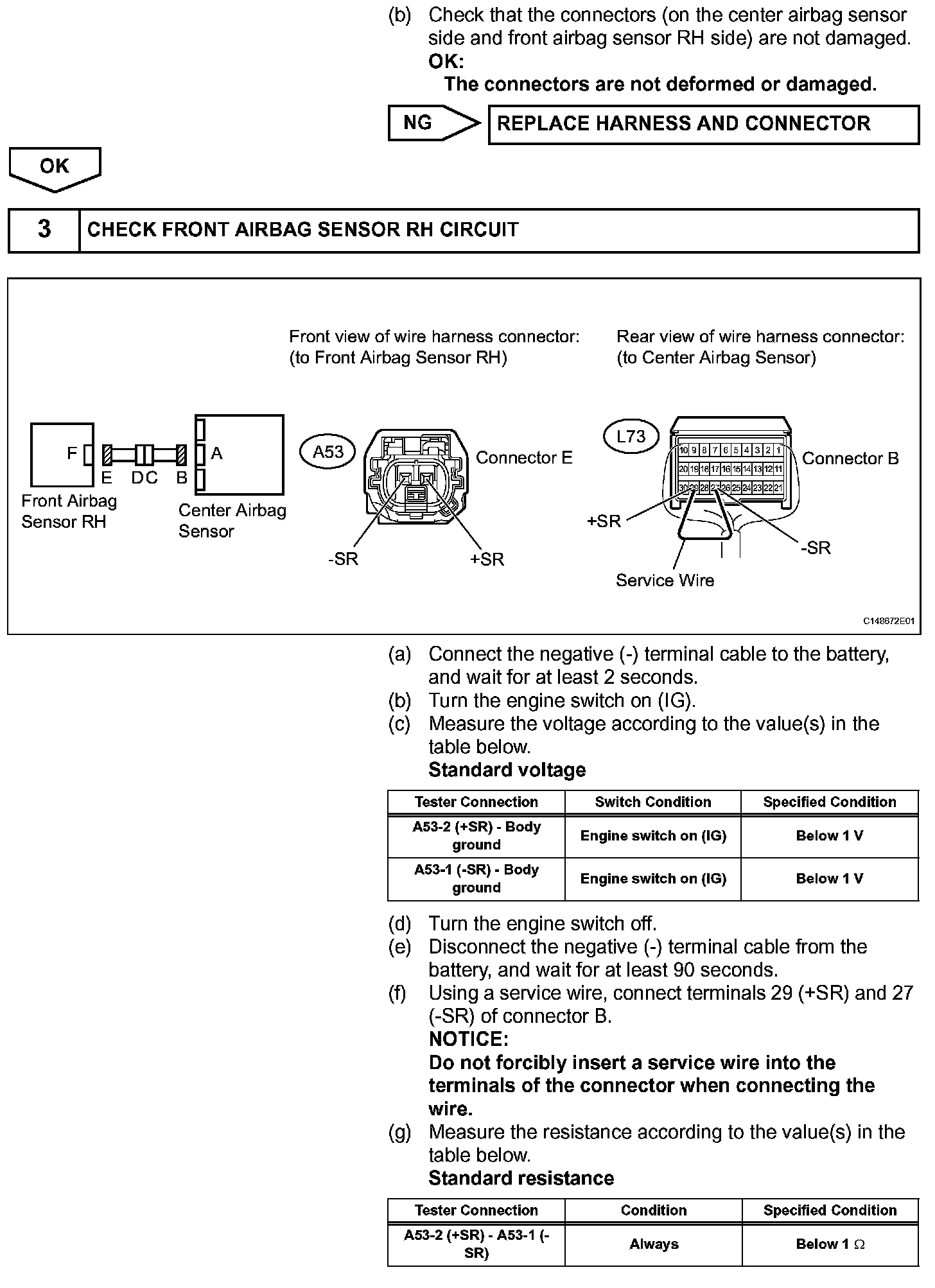

Step 2 (Continued)-3:

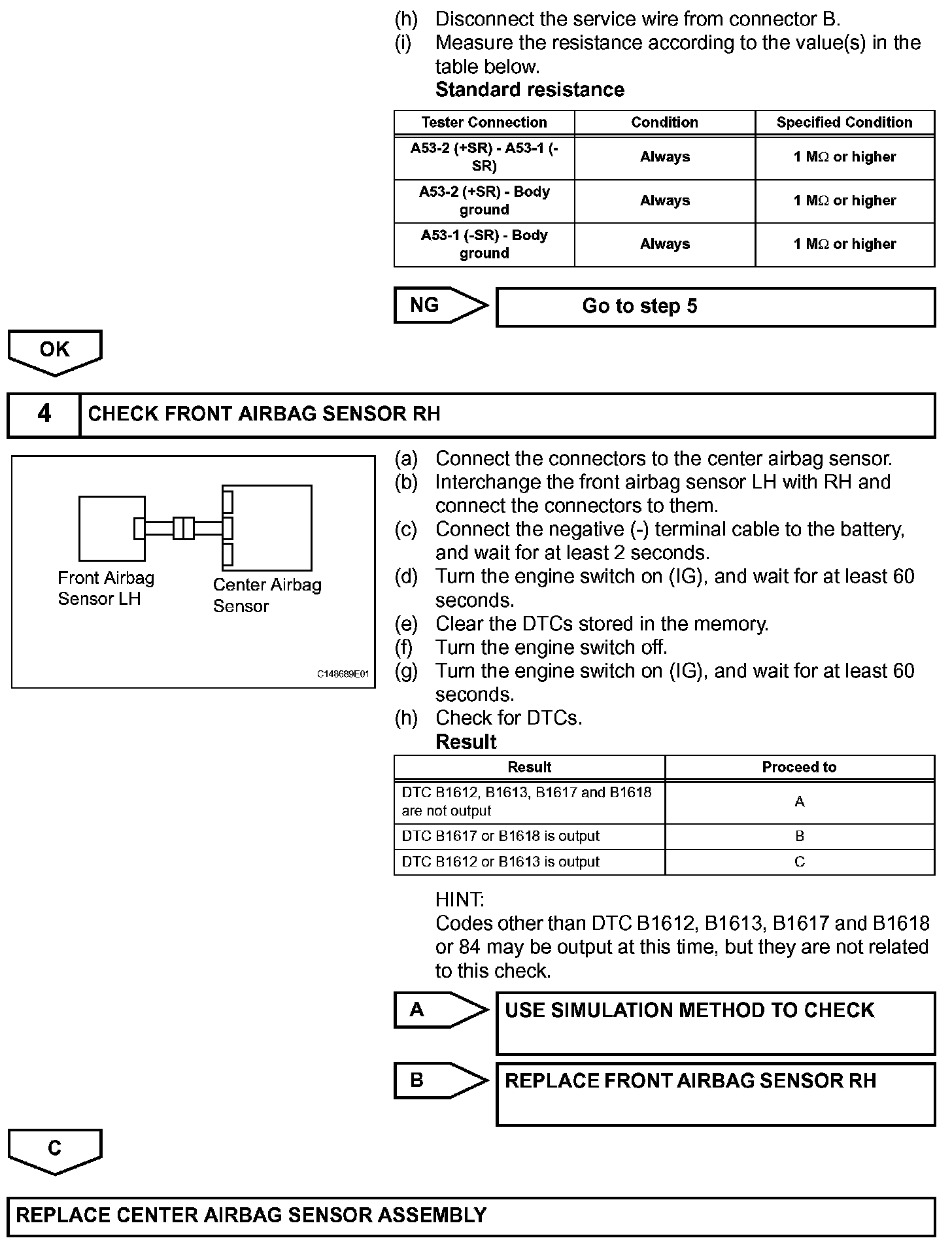

Step 3 (Continued)-4:

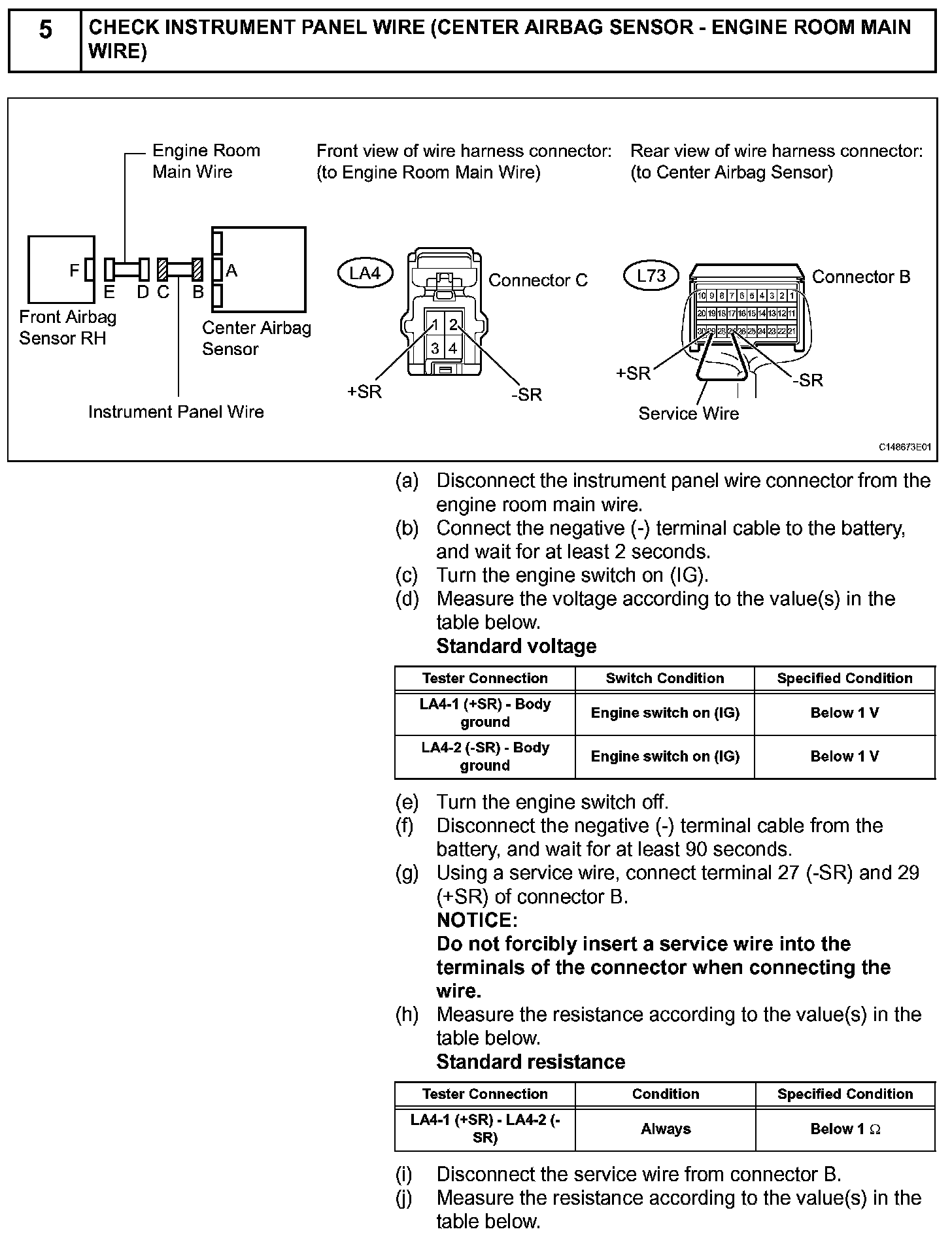

Step 5:

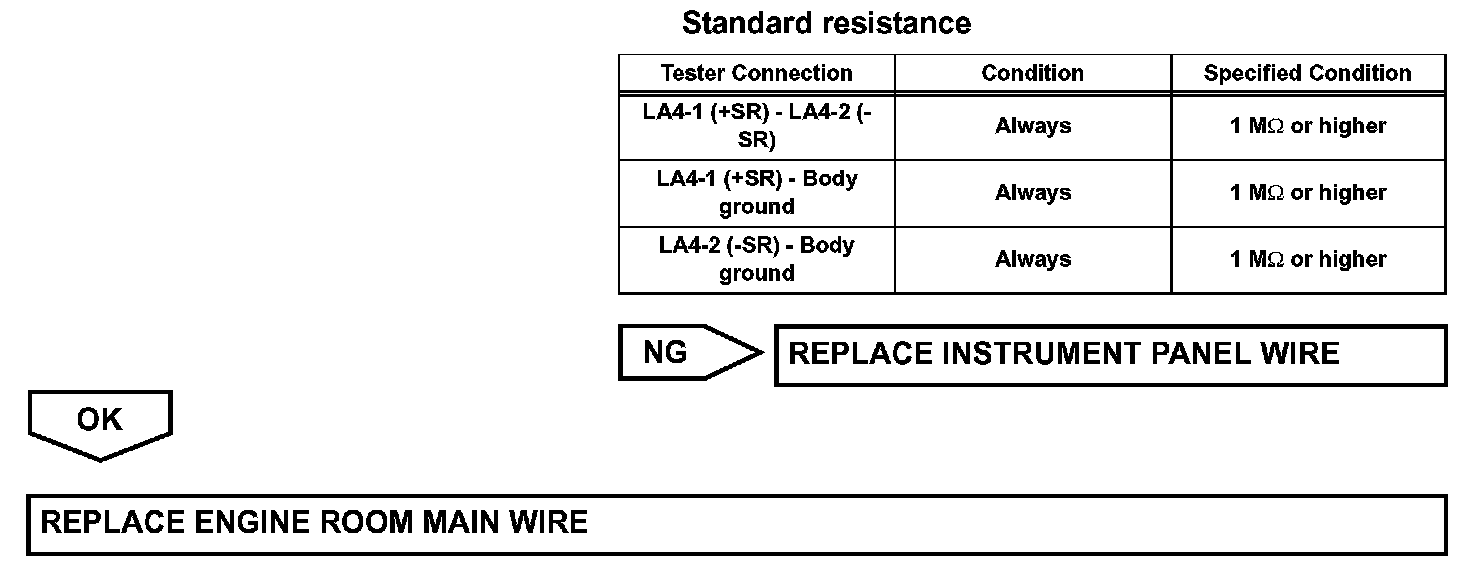

Step 5 (Continued):
INSPECTION PROCEDURE
NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
