DTC 13

DTC B1610/13 Front Airbag Sensor RH Malfunction

DESCRIPTION

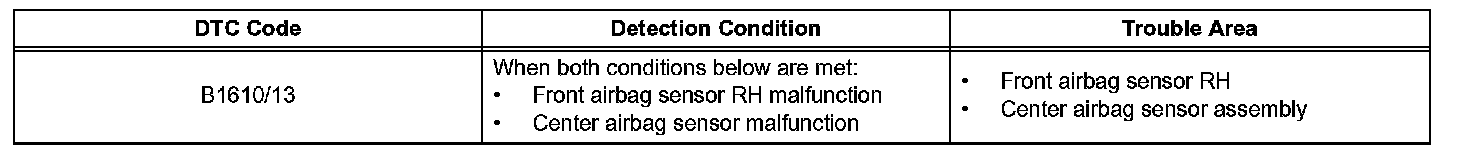

Detection Condition:

The front airbag sensor RH consists of the diagnostic circuit, the frontal deceleration sensor, etc.

If the center airbag sensor receives signals from the frontal deceleration sensor, it determines whether the SRS should be activated.

DTC B1610/13 is recorded when a malfunction is detected in the front airbag sensor RH circuit.

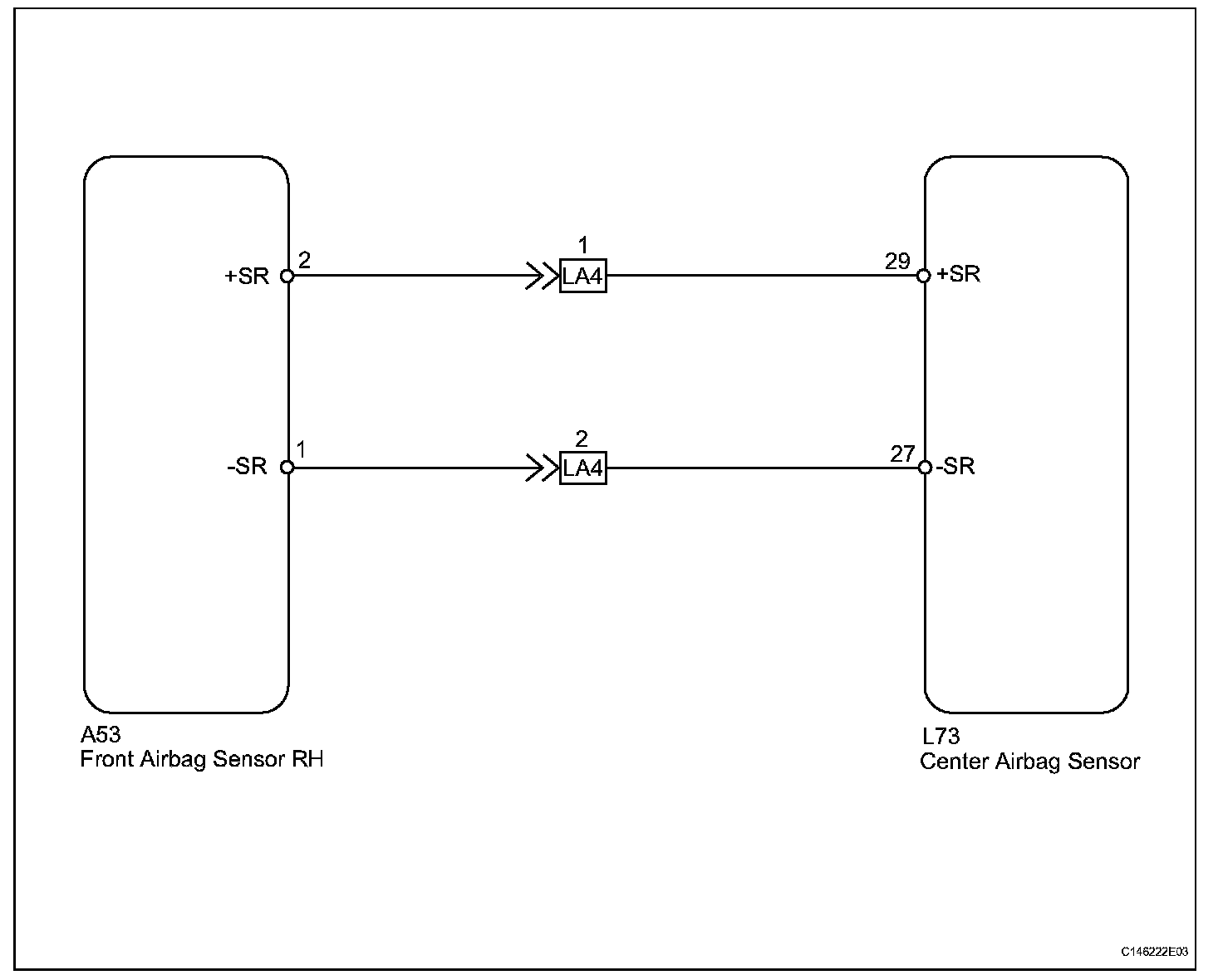

Wiring Diagram:

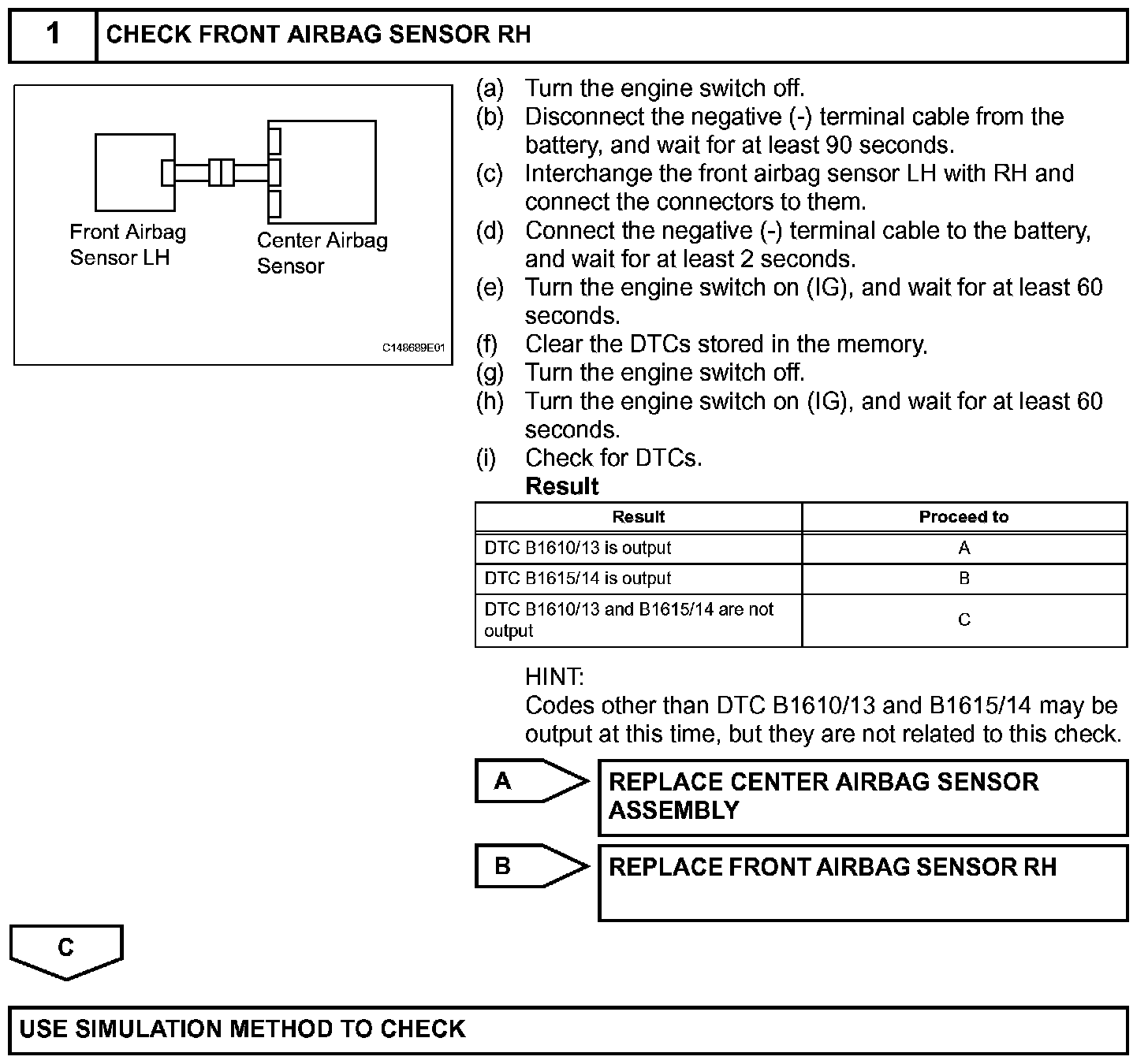

Step 1:

INSPECTION PROCEDURE

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
