DTC 24

DTC B1424/24 Solar Sensor Circuit (Driver Side)

DESCRIPTION

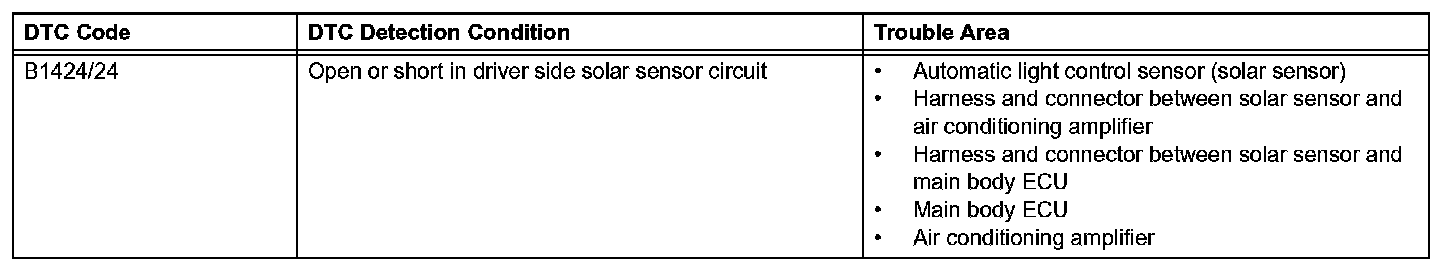

DTC Detection Condition:

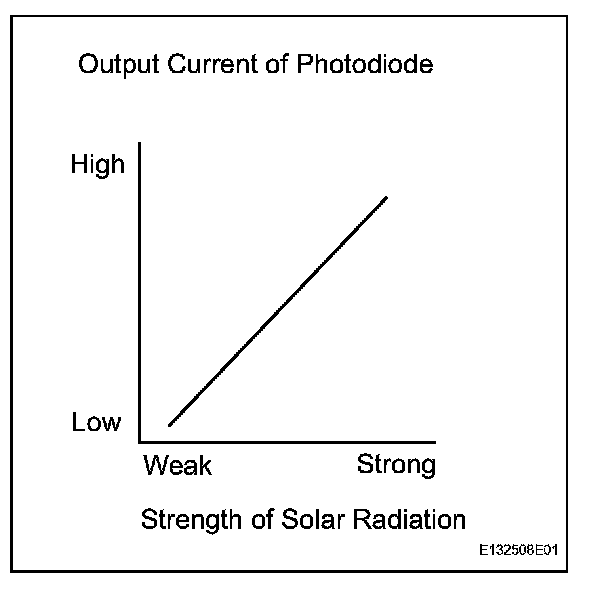

The solar sensor, which is installed on the upper side of the instrument panel, detects sunlight and controls the air conditioning in AUTO mode. The output current from the solar sensor varies according to the amount of sunlight. When the sunlight increases, the output current increases. As the sunlight decreases, the output current decreases. The A/C amplifier detects output current from the solar sensor.

HINT: If DTC B1244 is output at the same time, troubleshoot DTC B1244 first.

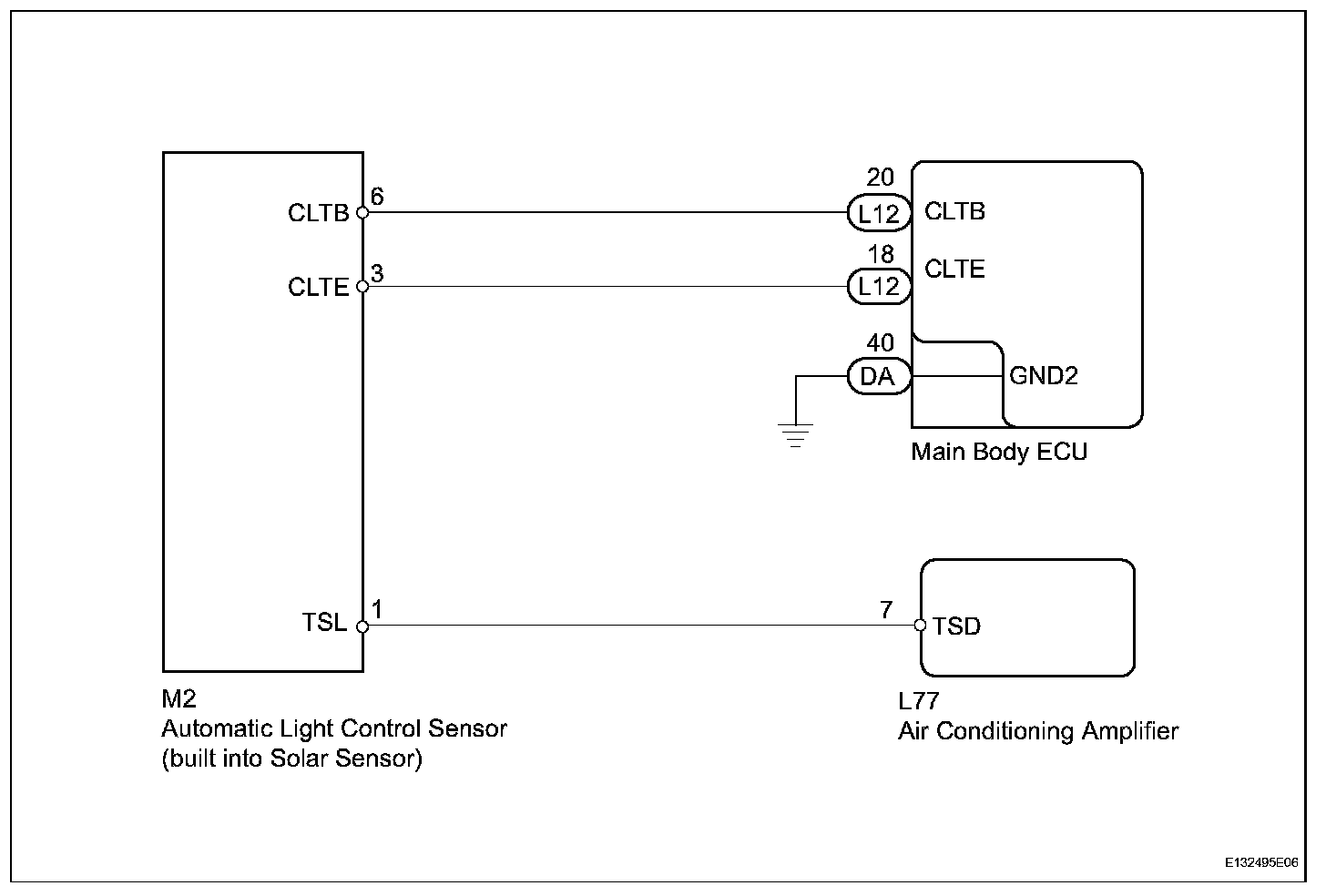

Wiring Diagram:

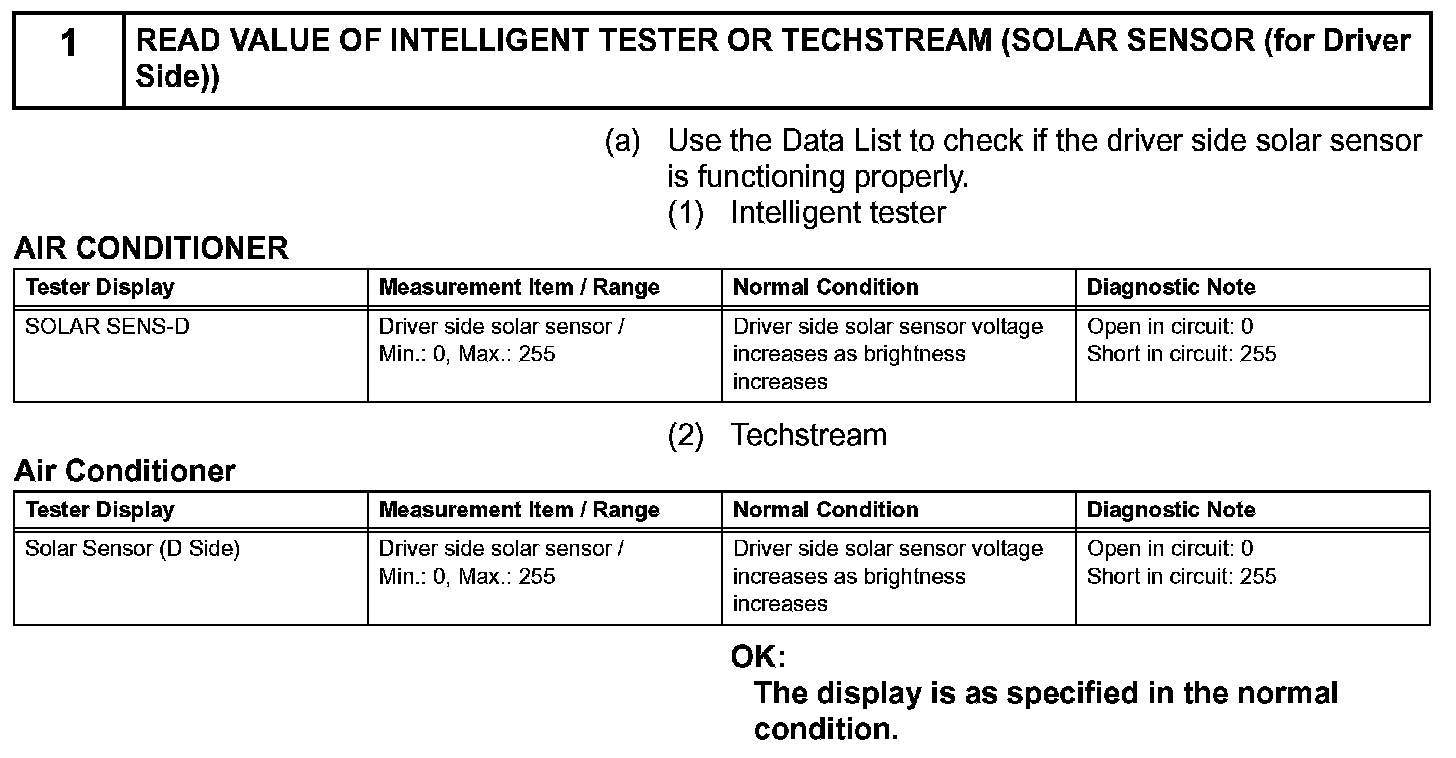

Step 1:

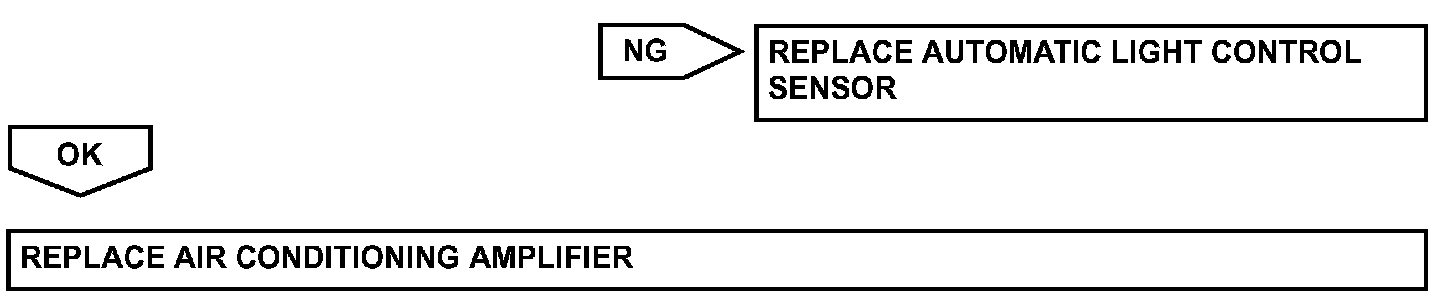

Step 1 (Continued)-2:

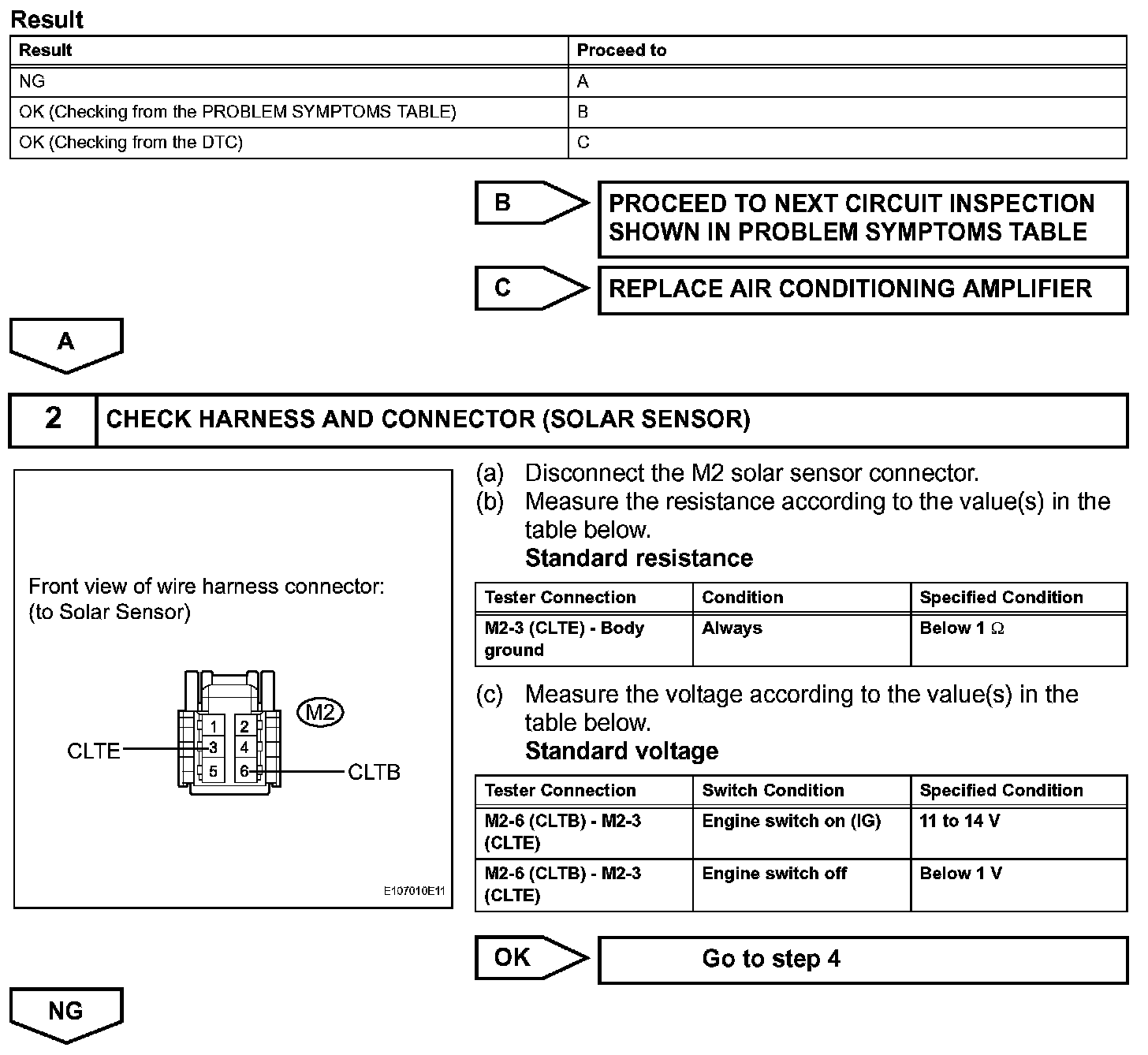

Step 3:

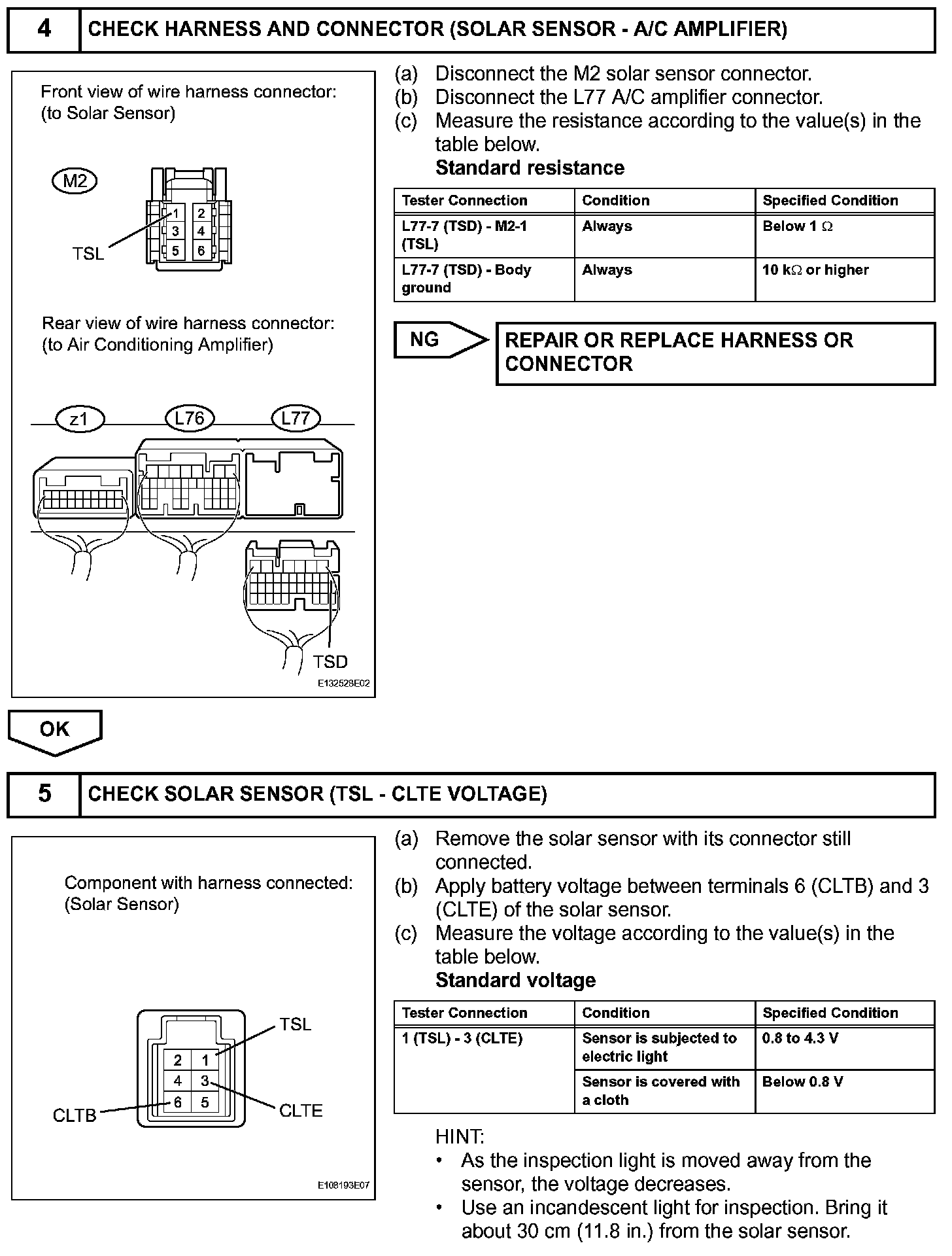

Step 4-5:

Step 5 (Continued):

INSPECTION PROCEDURE
