DTC 16
DTC B1416/16 Passenger Side Duct SensorDESCRIPTION

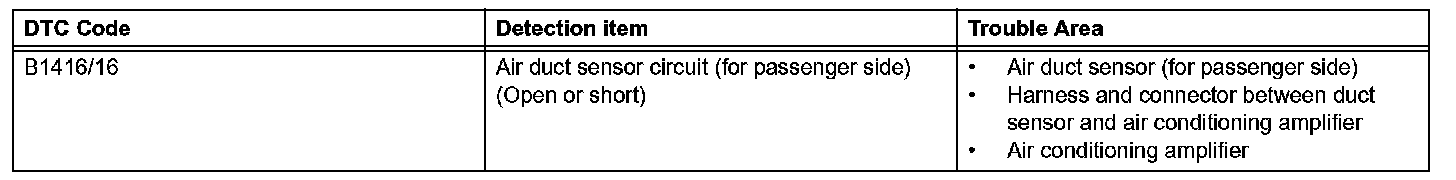

Detection Item:
The air duct sensor (for passenger side) detects the register temperature and sends the appropriate signals to the air conditioning amplifier.

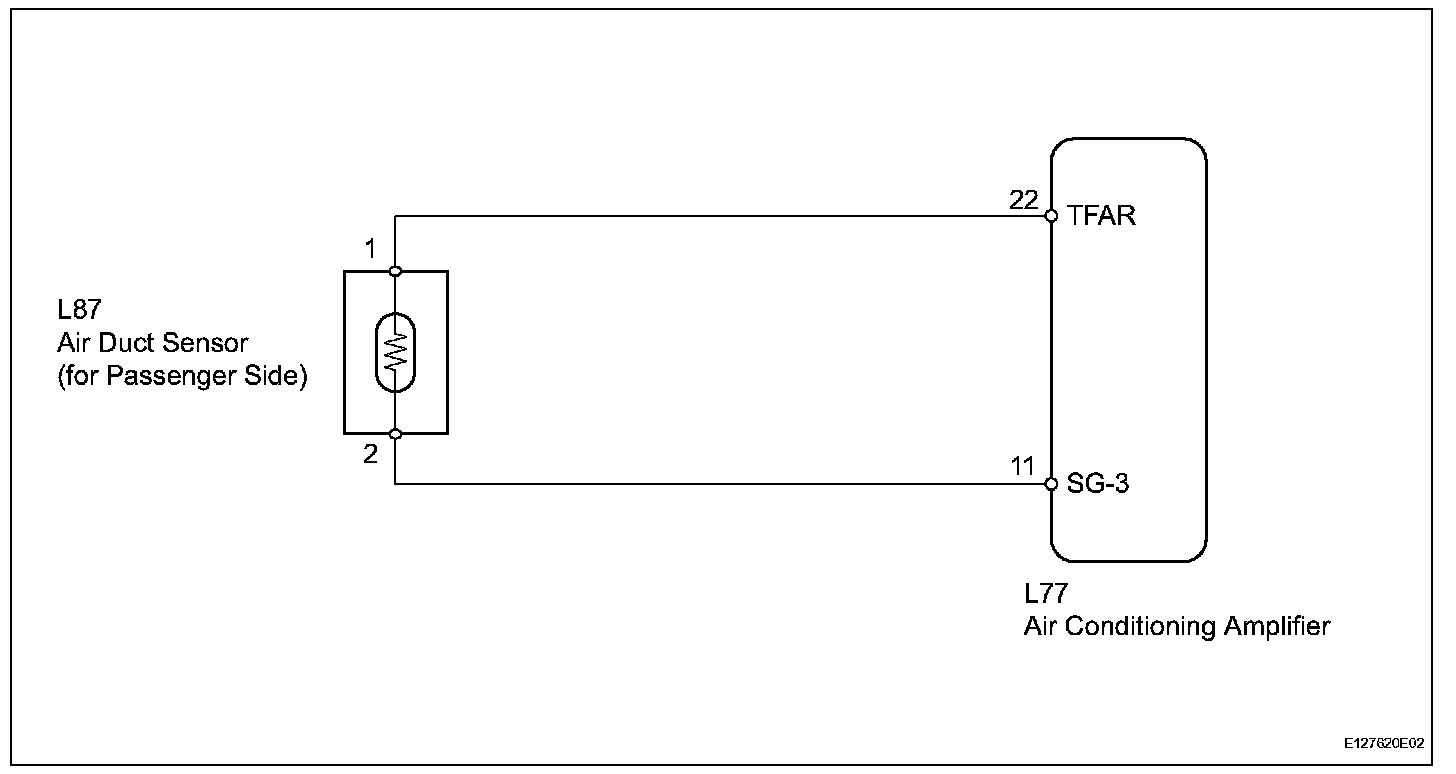

Wiring Diagram:

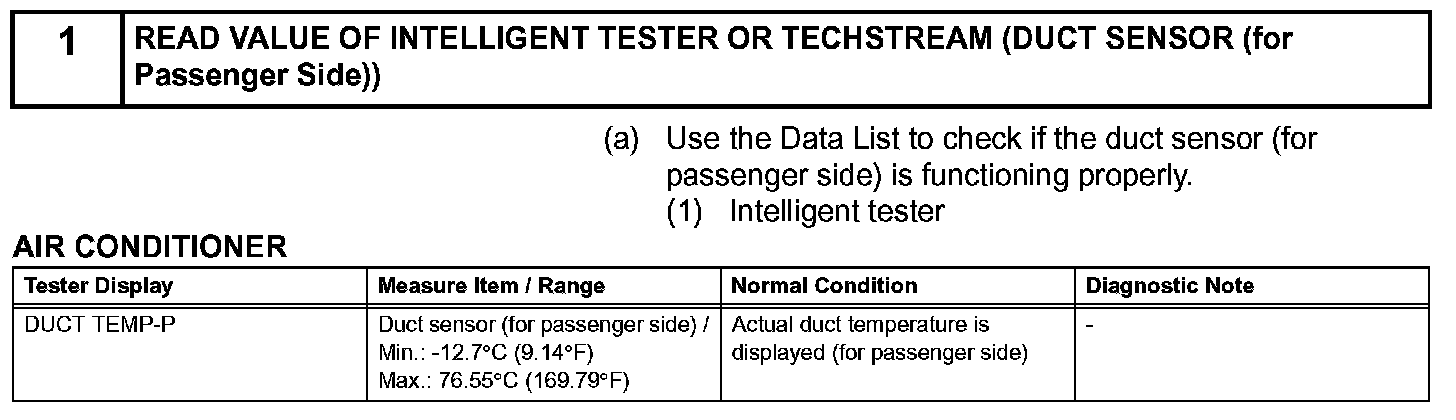

Step 1:

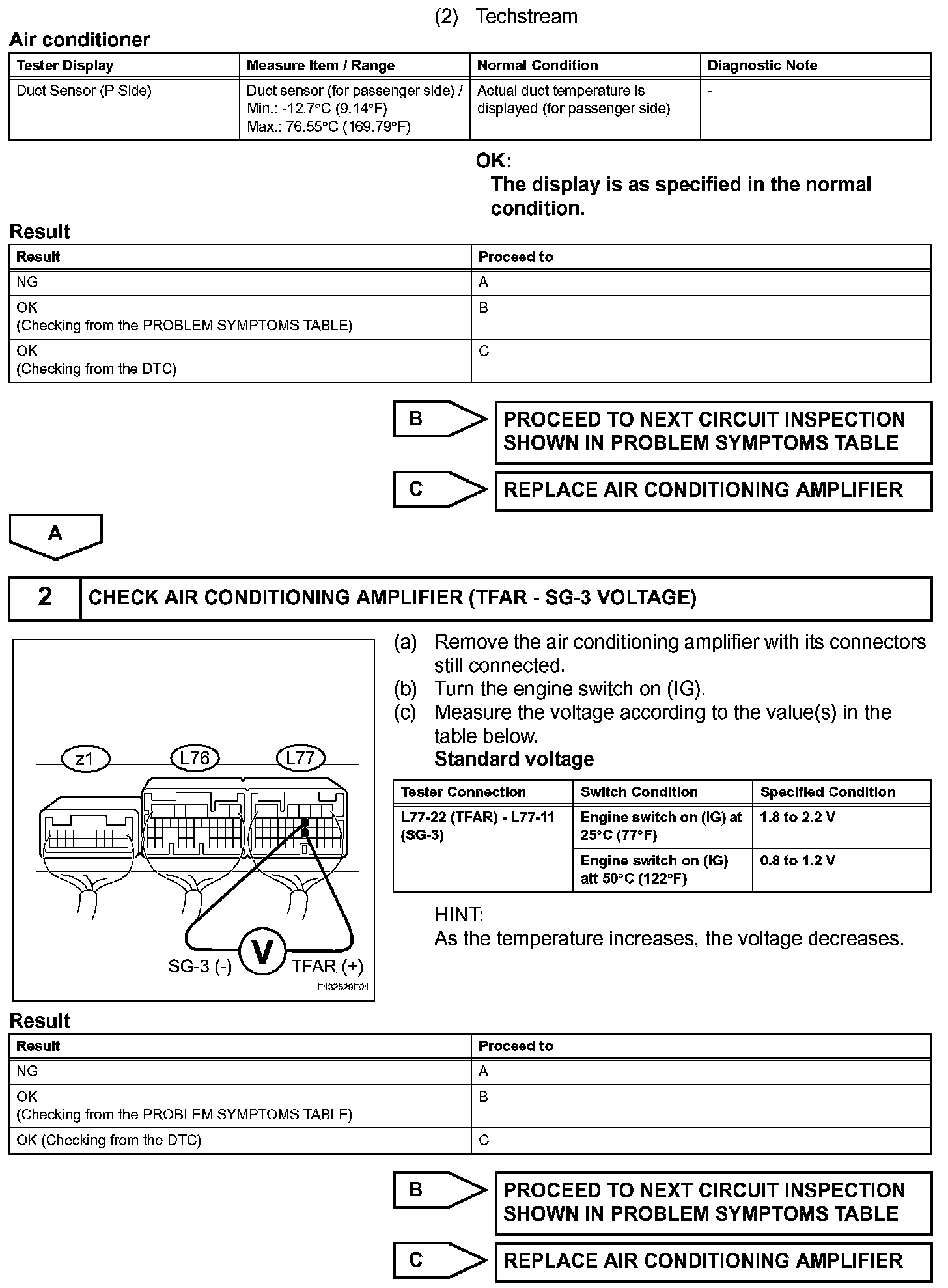

Step 1 (Continued)-2:

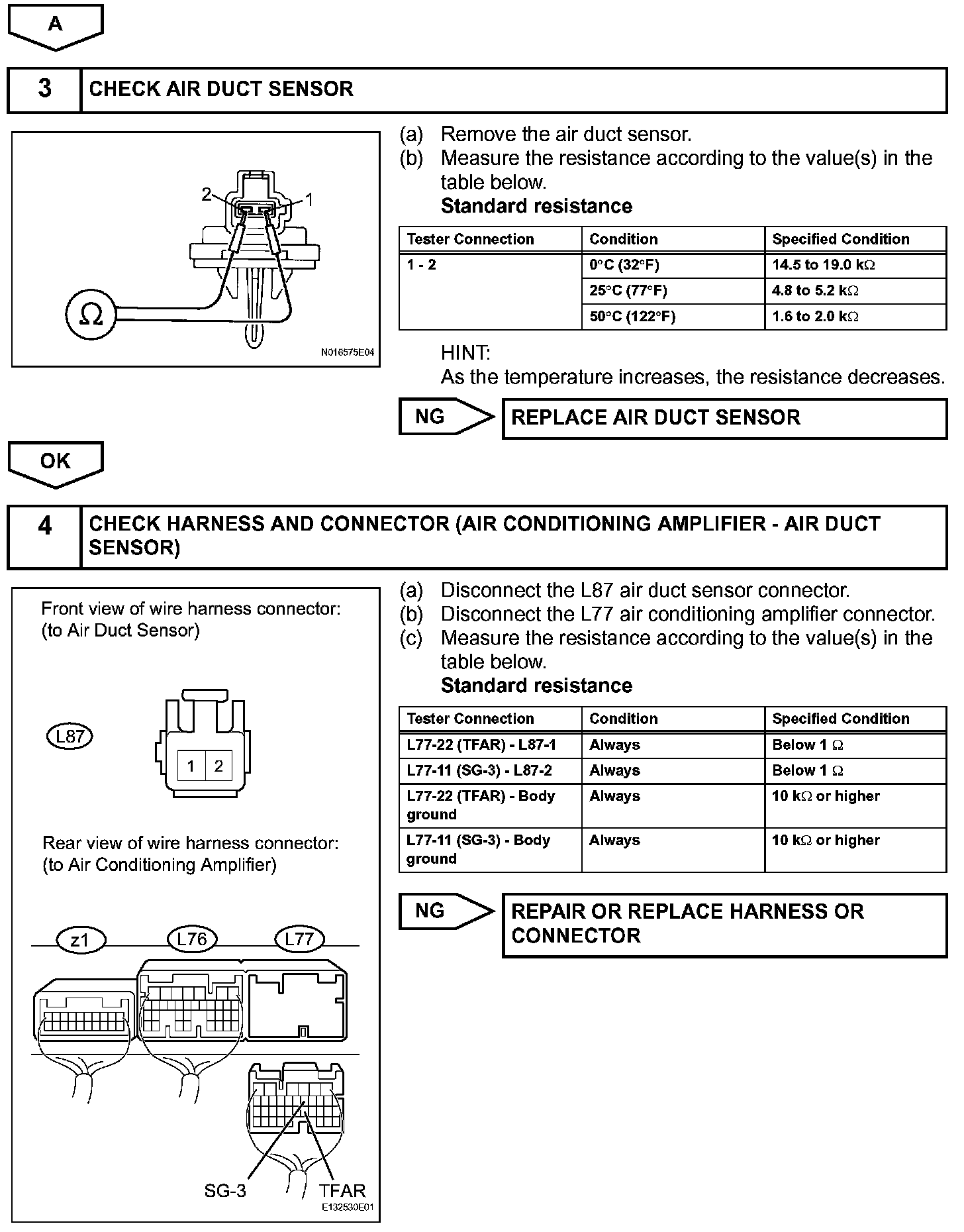

Step 2 (Continued)-4:

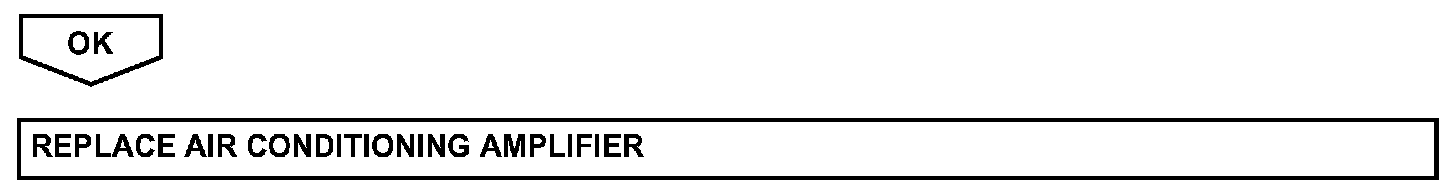

Step 4 (Continued):
INSPECTION PROCEDURE
