Lost Communication With Lateral Acceleration Sensor Module

DTC U0124/71 Lost Communication with Lateral Acceleration Sensor Module

DESCRIPTION

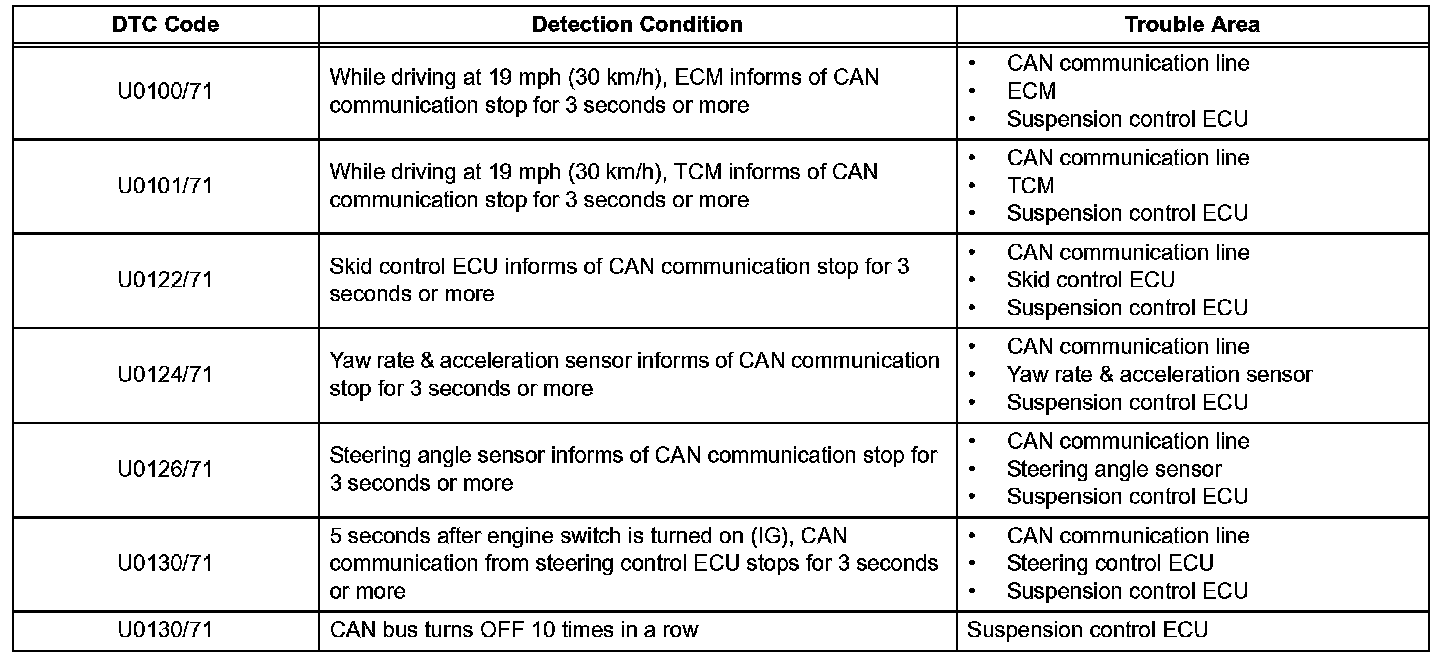

DTC Detection Condition:

The suspension control ECU inputs signals from the skid control ECU, steering control ECU, steering angle sensor, yaw rate & acceleration sensor, ECM and TCM via CAN communication. When DTCs indicating a CAN communication system malfunction are output, repair the CAN communication system first.

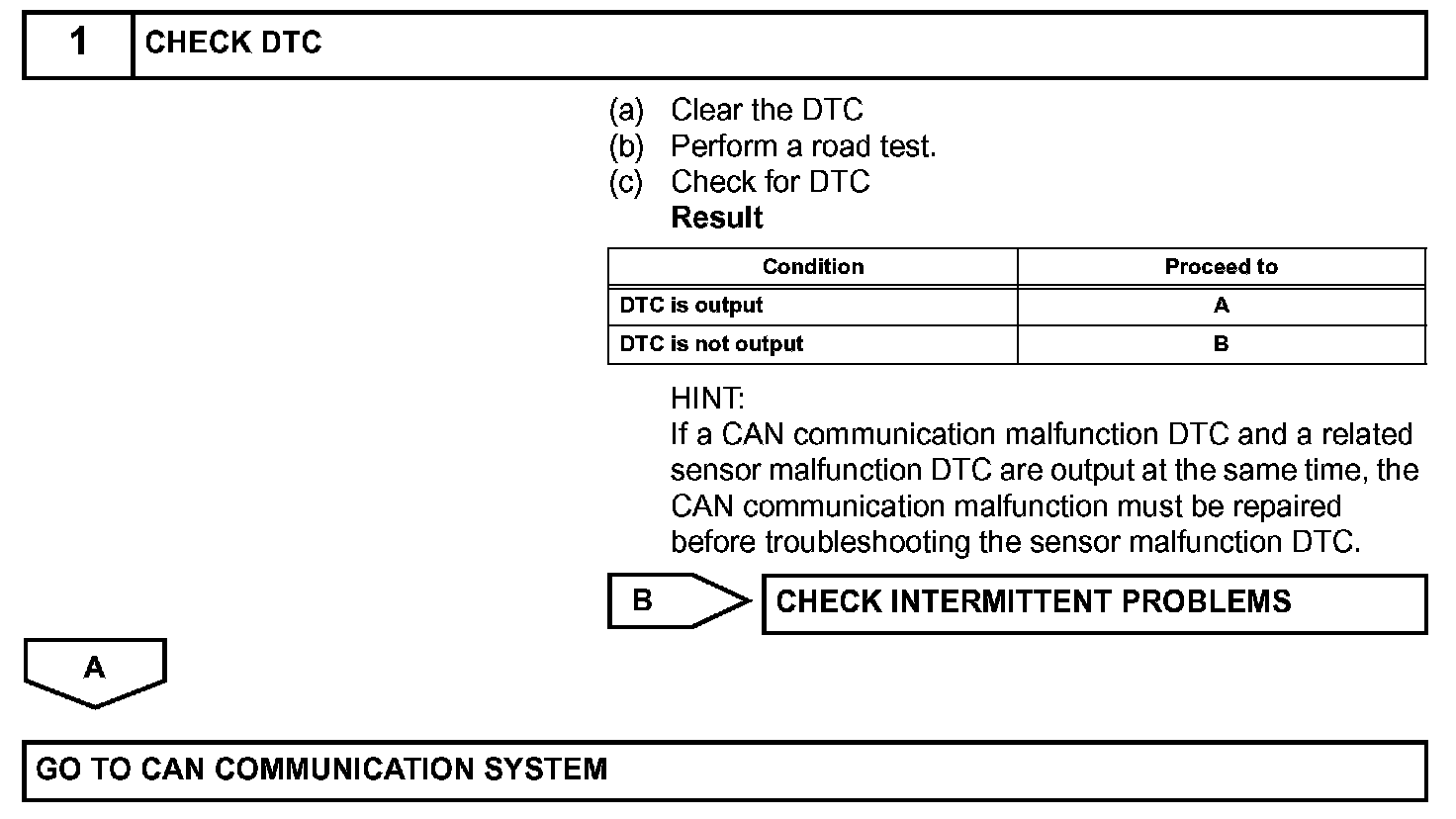

Step 1:

INSPECTION PROCEDURE
