Automatic Transmission System
DIAGNOSTIC TROUBLE CODE CHARTHINT:
^ If a DTC is displayed during the DTC check, check the parts listed in the table and proceed to the page given.
^ *1: "Comes on" means the Malfunction Indicator Lamp (MIL) illuminates.
^ *2: "DTC stored" means the TCM memorizes the malfunction code if the TCM detects the DTC detection condition.
^ These DTCs may be output when the clutch, brake, gear components, etc., inside the automatic transmission are damaged.

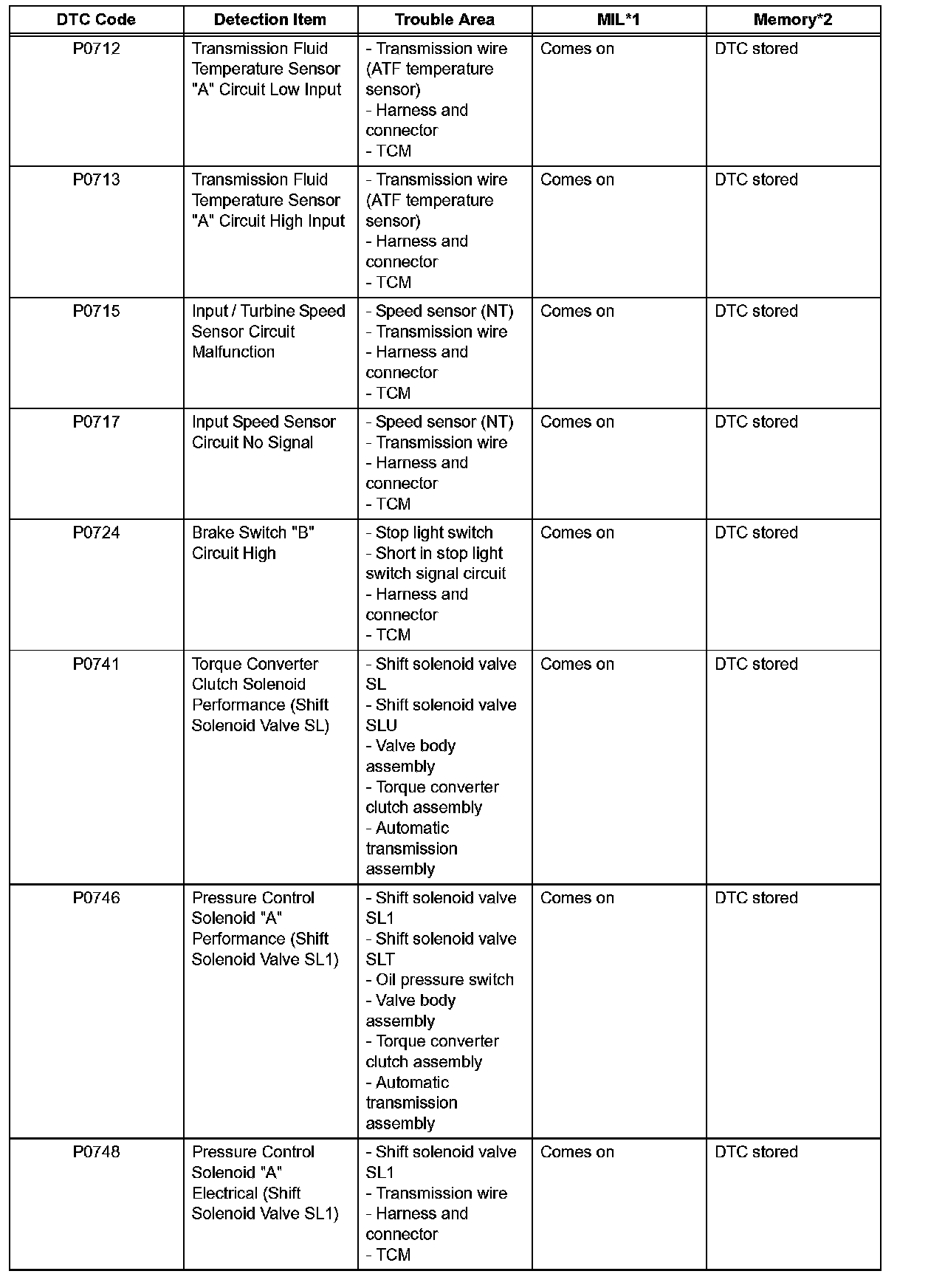

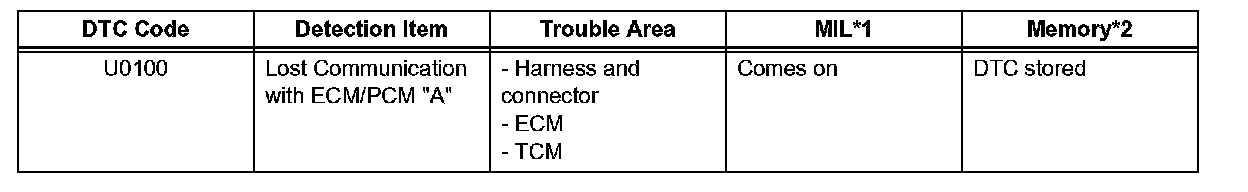

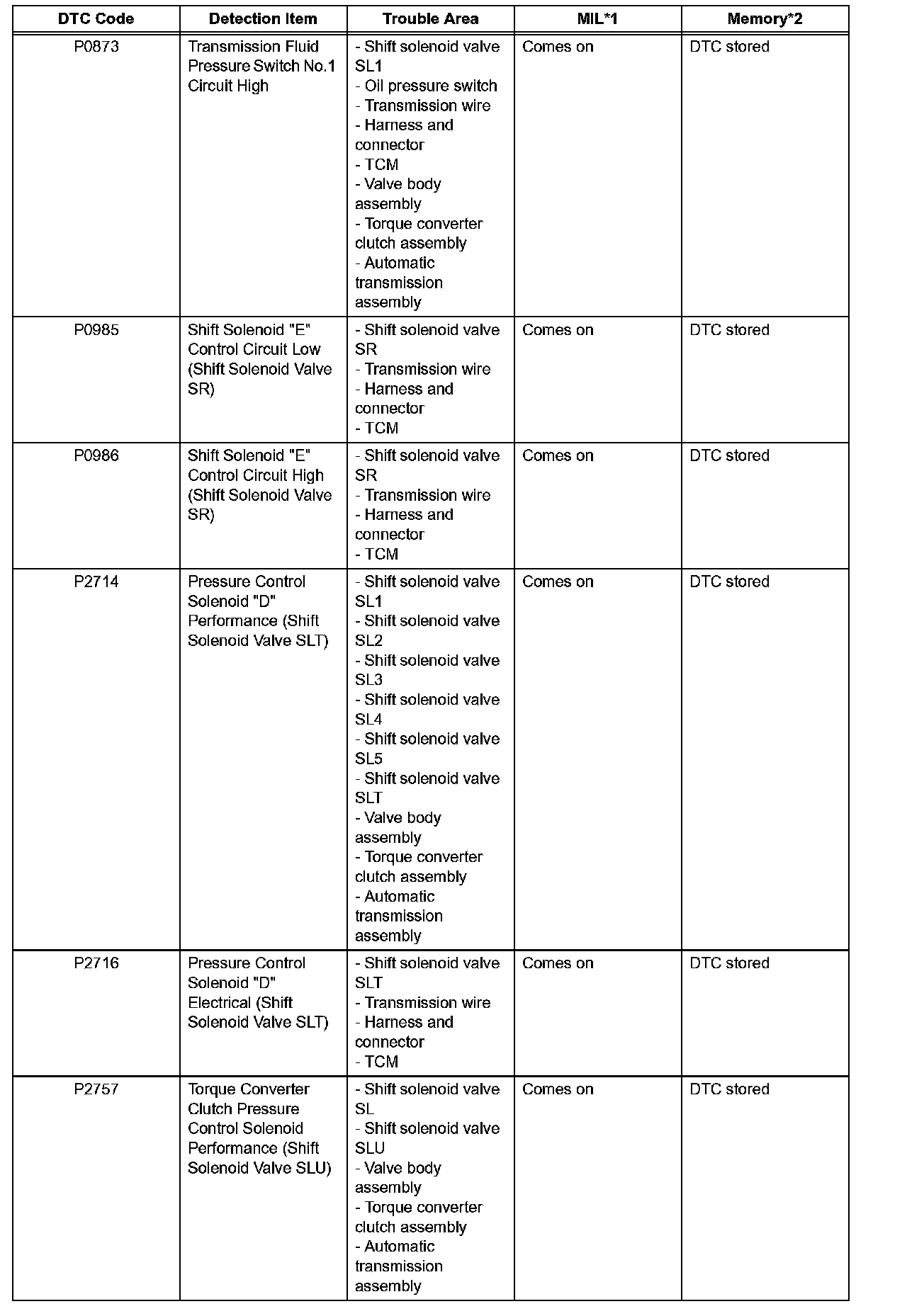

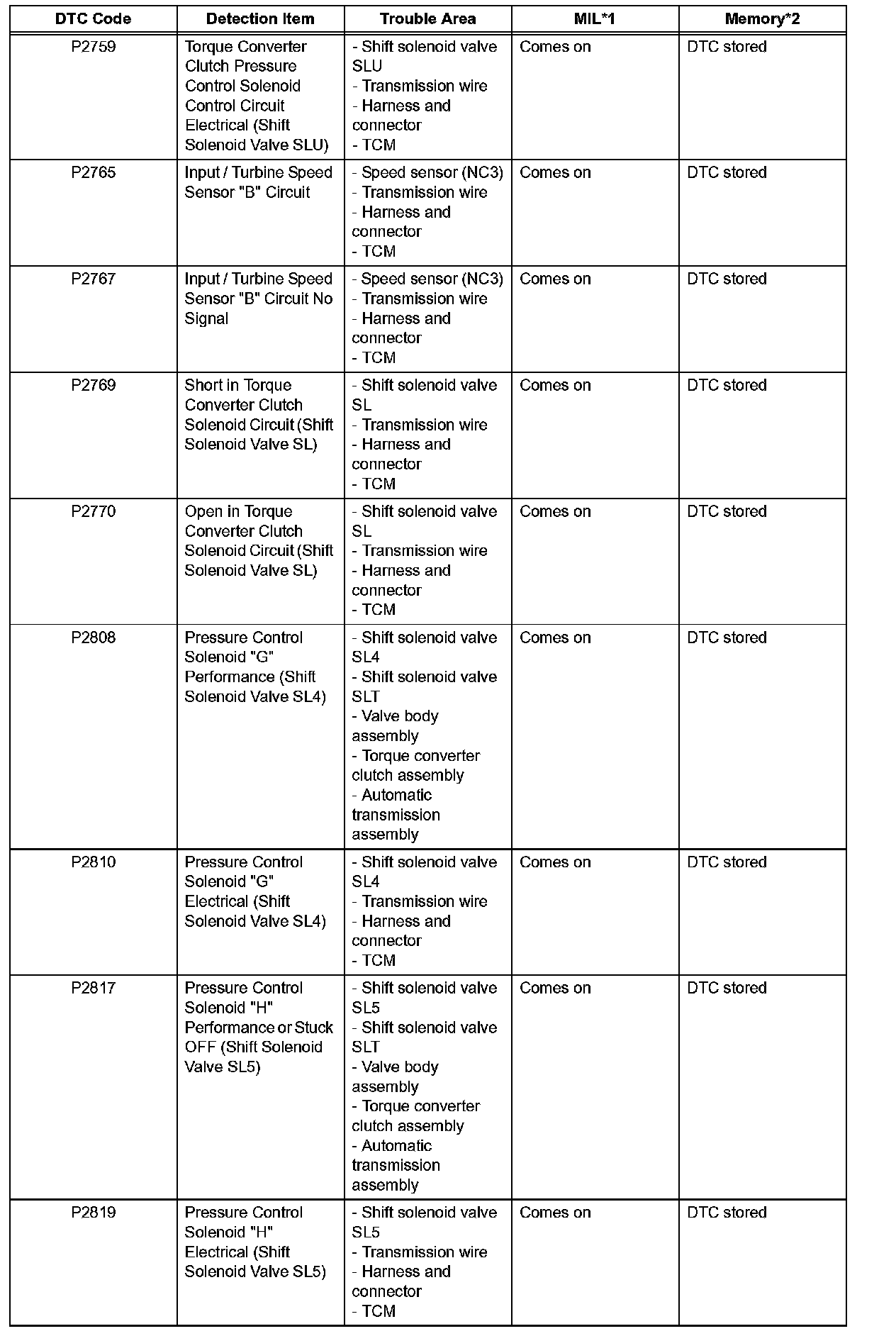

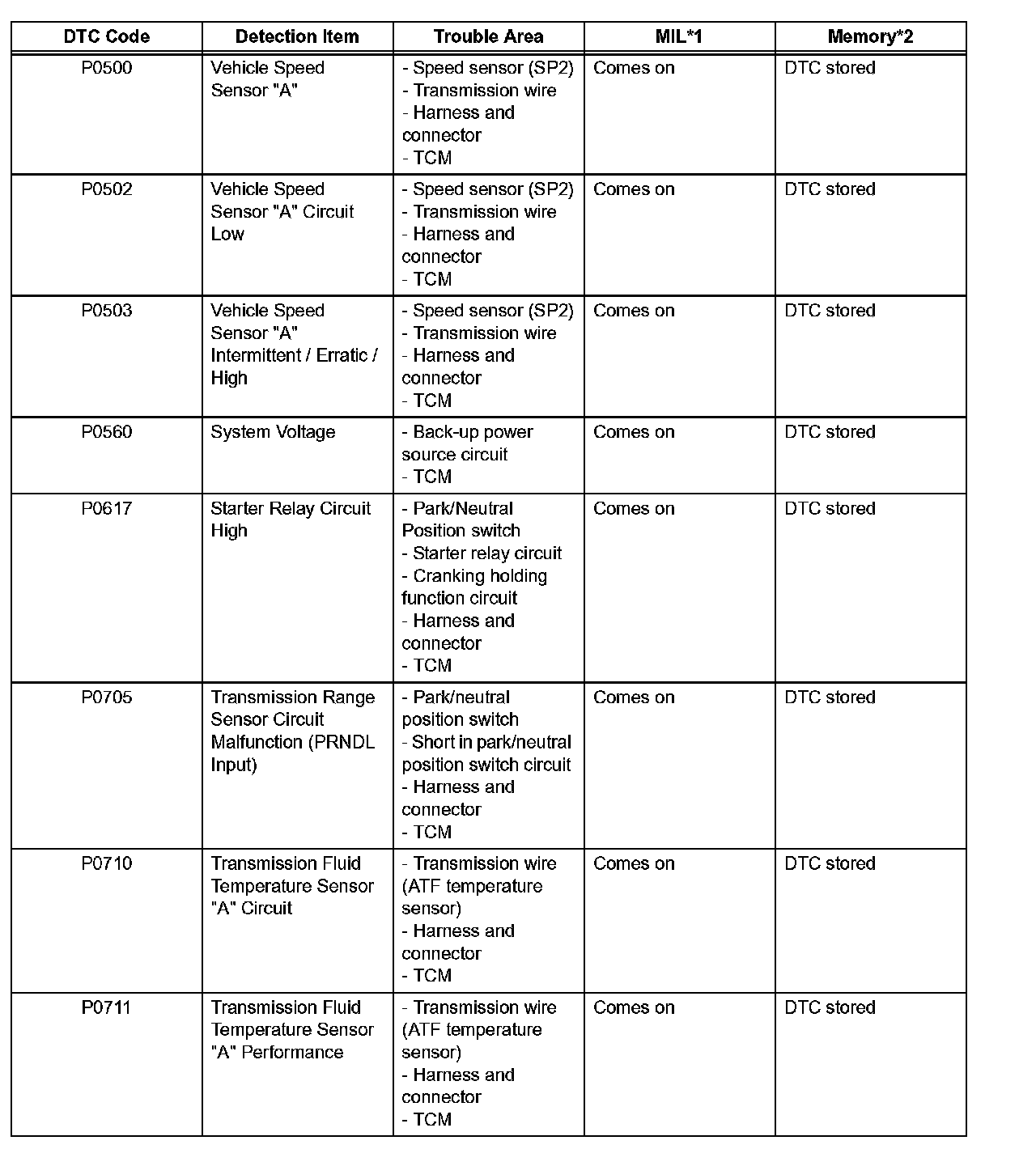

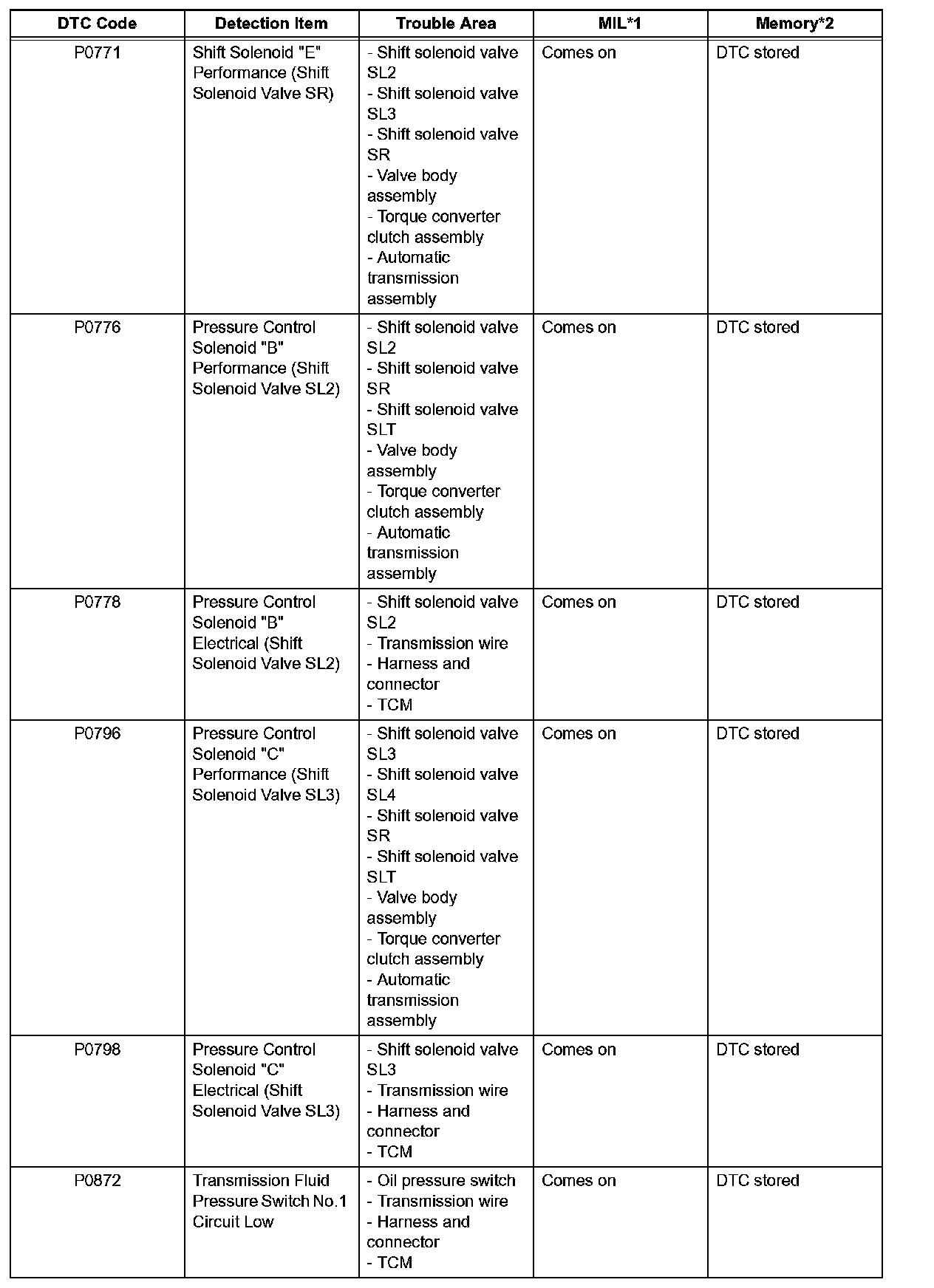

Automatic transmission system:
