C1A46
DTC C1A46 Yaw Rate SensorDESCRIPTION

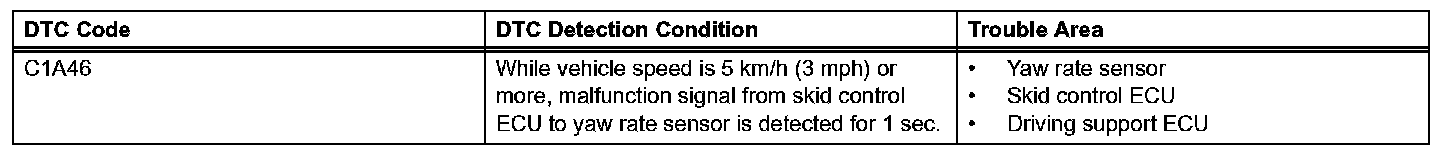

DTC Detection Condition:
The skid control ECU receives vehicle stability signals from the yaw rate sensor and sends the signals to the driving support ECU and ECM. If the skid control ECU detects that the yaw rate sensor is malfunctioning, the skid control ECU sends a malfunction signal to the driving support ECU and outputs DTC C1A46. Also, when DTC C1A46 is output, the skid control ECU outputs DTC C1234 at the same time.
When DTC C1A46 is detected, DTC C1234 is also output from the "ABS/VSC/TRAC".

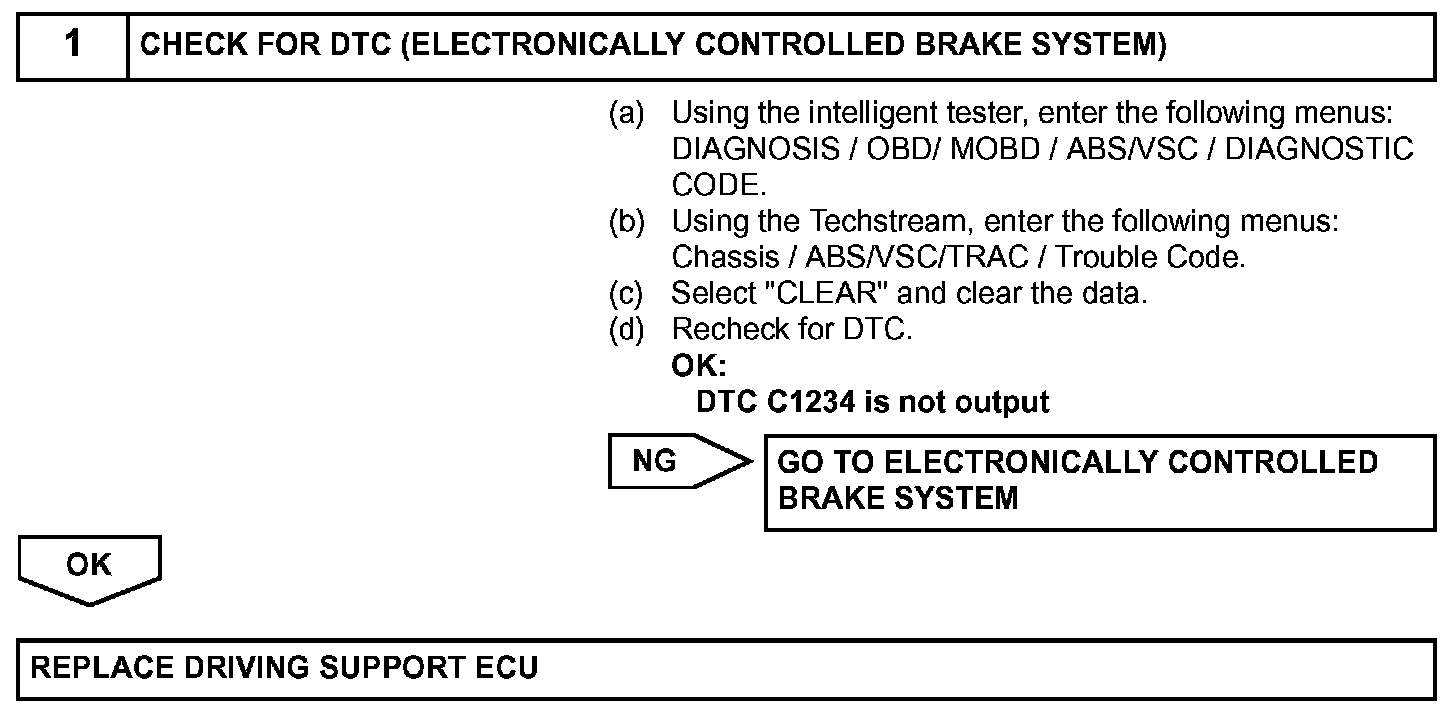

Step 1:
INSPECTION PROCEDURE
