C1A41 - Cruise Control System
DTC C1A41 Brake Request Value Mismatch between ENG / EHV and Driving Support ECUDESCRIPTION

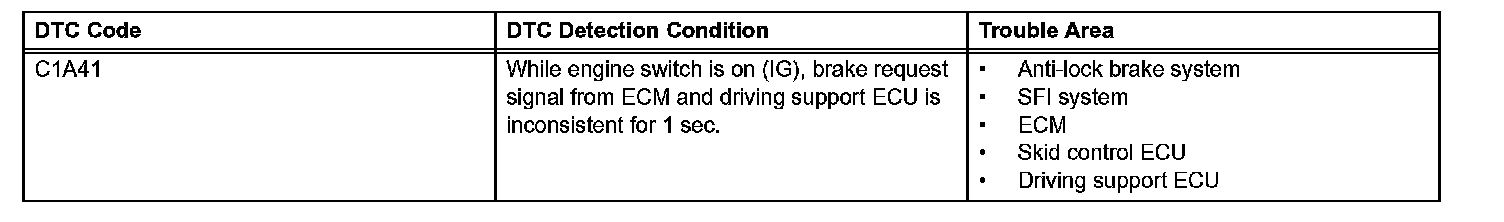

DTC Detection Condition:
The skid control ECU receives brake control request signals from the ECM and driving support ECU.
When the request signals received from the ECM and driving support ECU are not consistent, the control ECU determines that a malfunction has occurred and sends a malfunction signal to the driving support ECU.

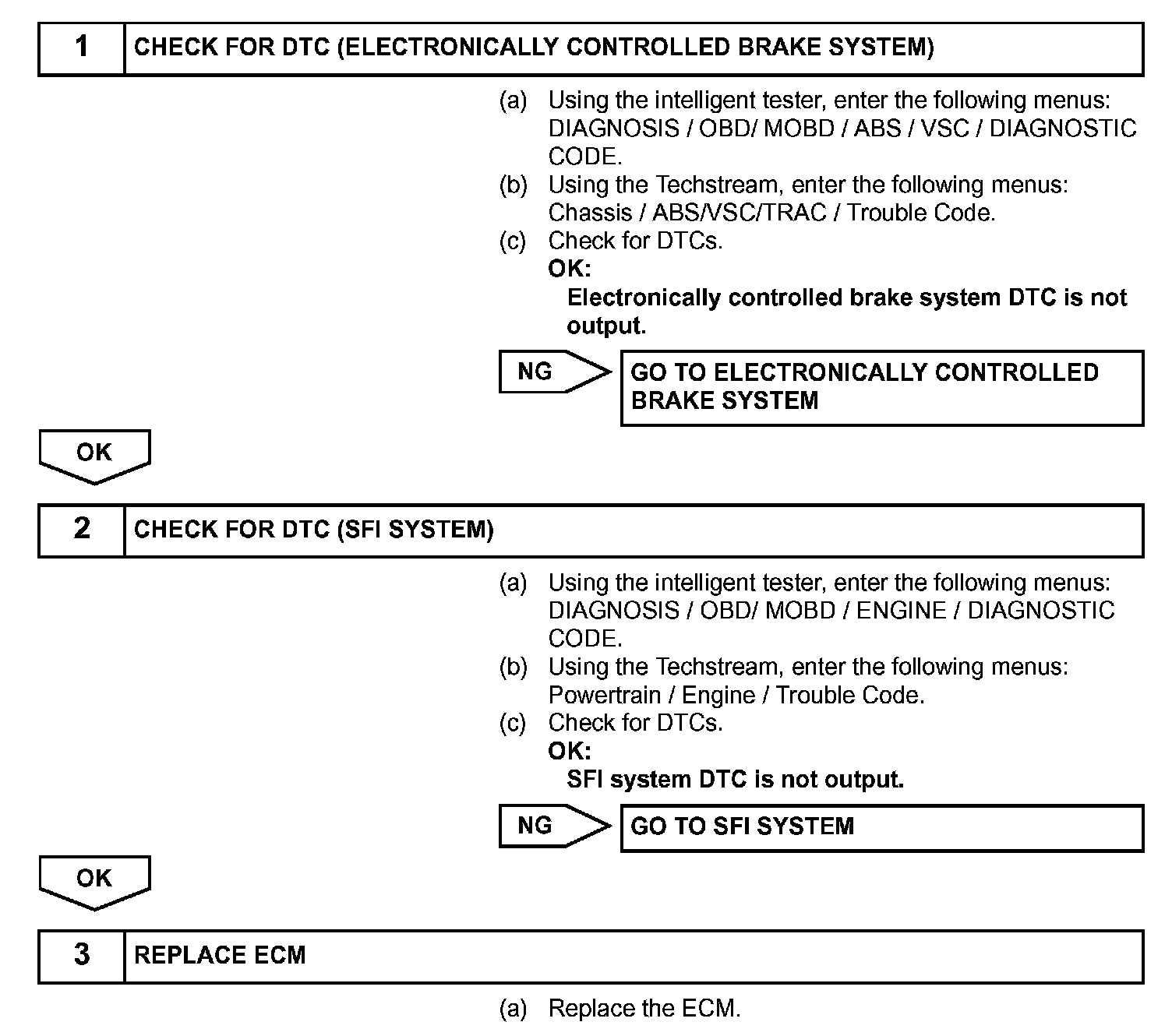

Step 1-3:

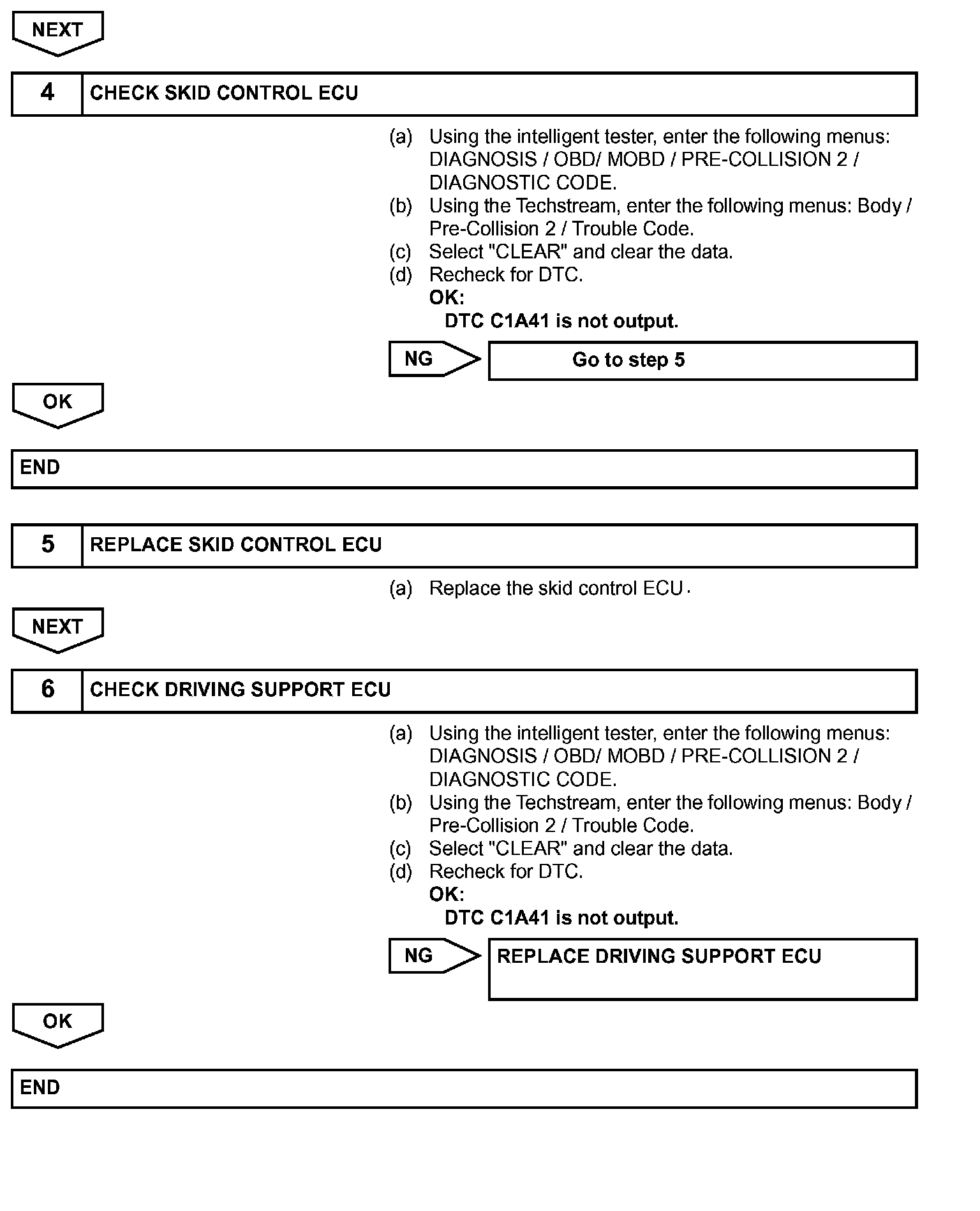

Step 3 (Continued)-6:
INSPECTION PROCEDURE
