C1A10 - Cruise Control System

DTC C1A10 Front Radar Sensor

DESCRIPTION

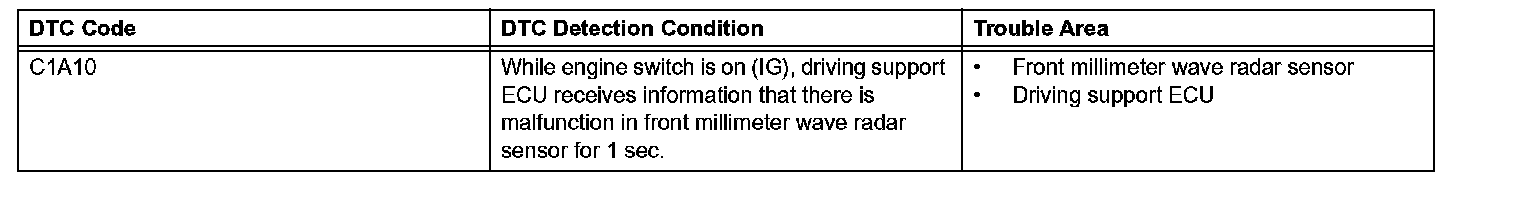

DTC Detection Condition:

When the driving support ECU receives information that there is a malfunction in the front millimeter wave radar sensor, DTC C1A10 is output.

Step 1-3:

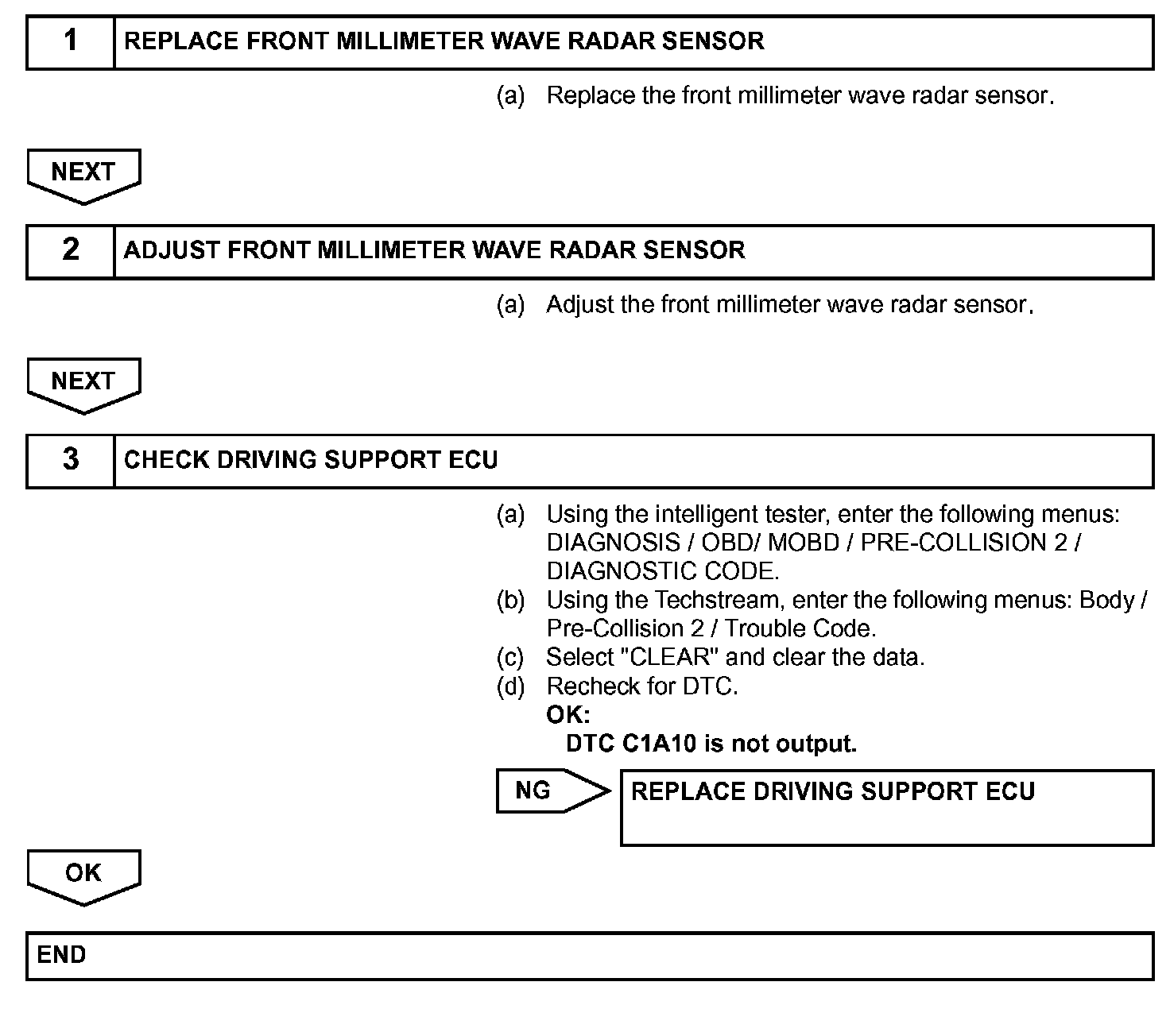

INSPECTION PROCEDURE

NOTE: When the front millimeter wave radar sensor is replaced with a new one, adjustment of the front sensor beam axis must be performed.
