C1A0A - Cruise Control System
DTC C1A0A Front Radar Sensor Region Code MismatchDESCRIPTION

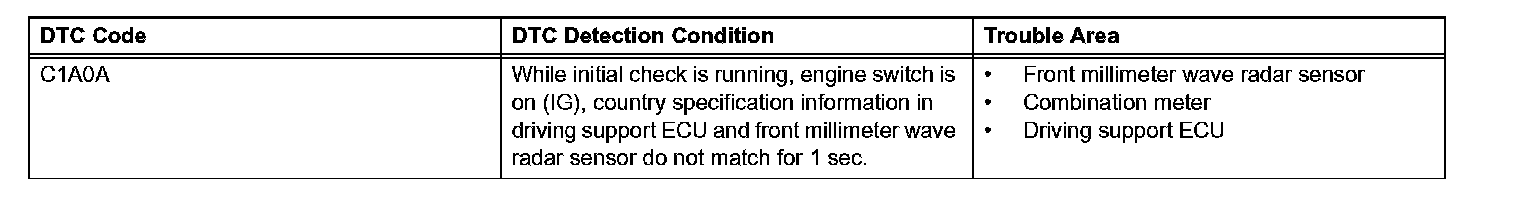

DTC Detection Condition:
When the front millimeter wave radar sensor is replaced with a new one, it acquires the country specification information from the driving support ECU. Also, when the driving support ECU is replaced with a new one, it receives the country specification information from the combination meter. When the country specification information in the sensor and ECU do not match, DTC C1A0A is output.

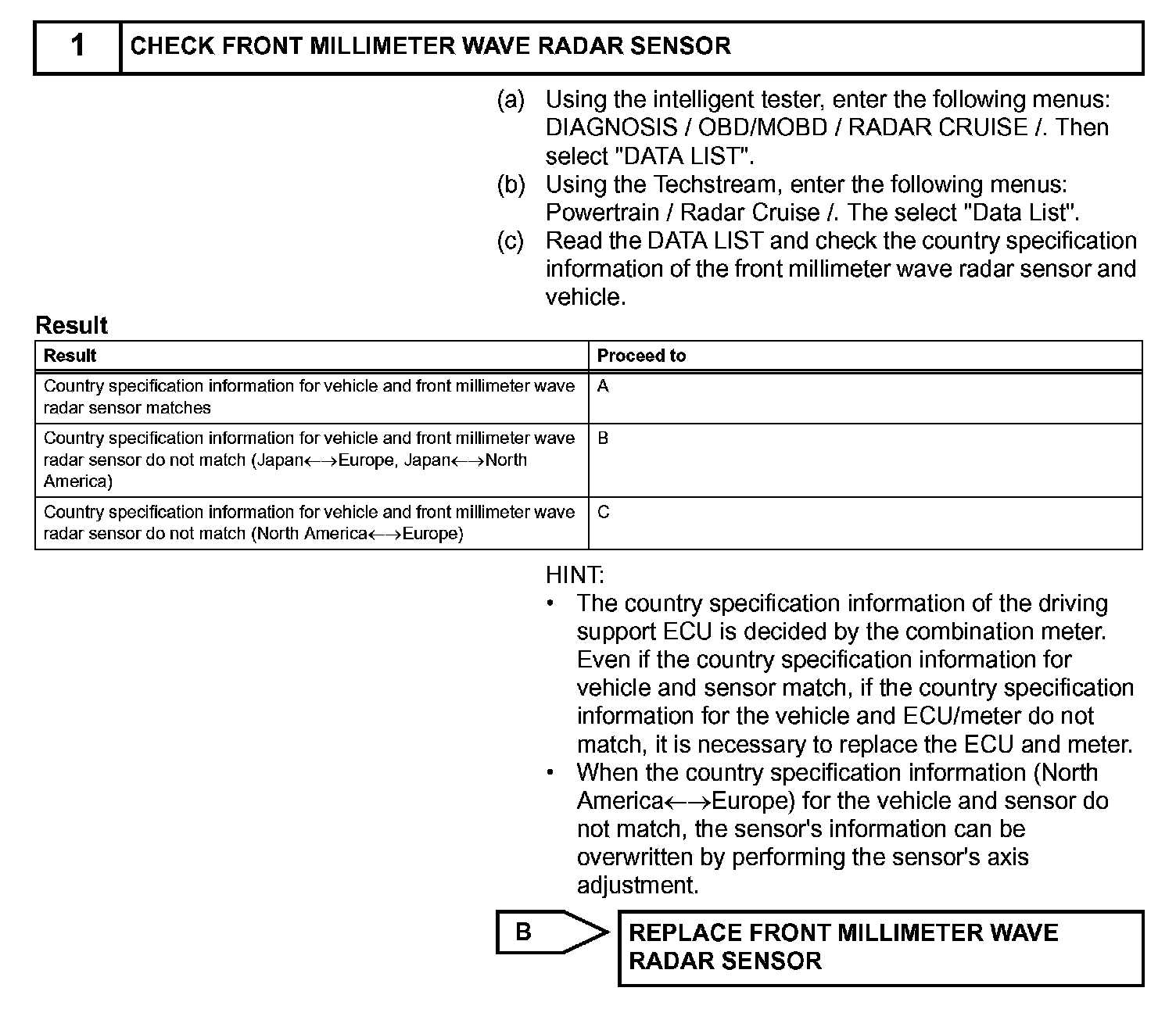

Step 1:

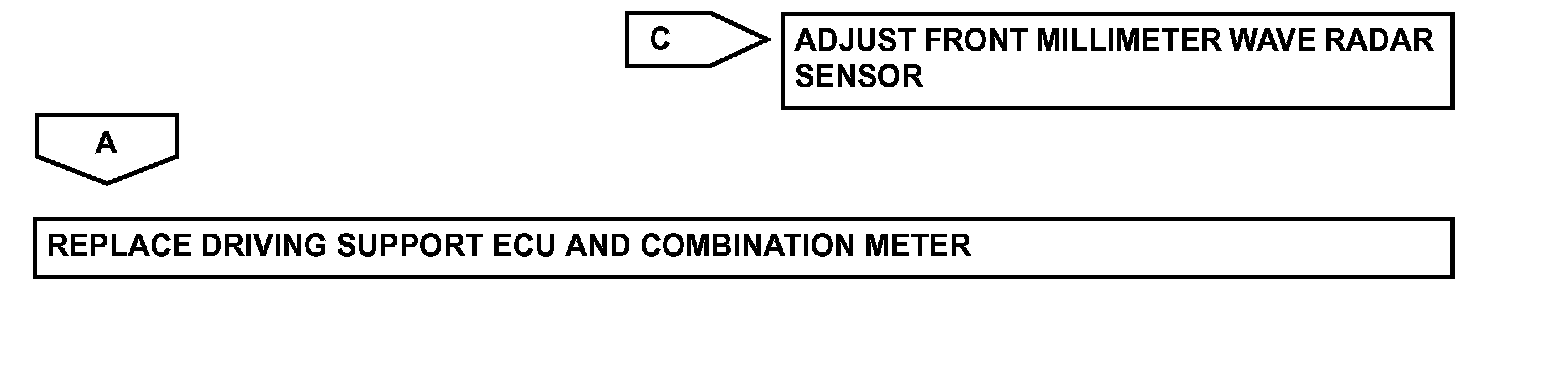

Step 1 (Continued):
INSPECTION PROCEDURE
NOTE: When the front millimeter wave radar sensor is replaced with a new one, adjustment of the radar sensor beam axis must be performed.
