C1A02

DTC C1A02 Vehicle Information Not Obtained

DESCRIPTION

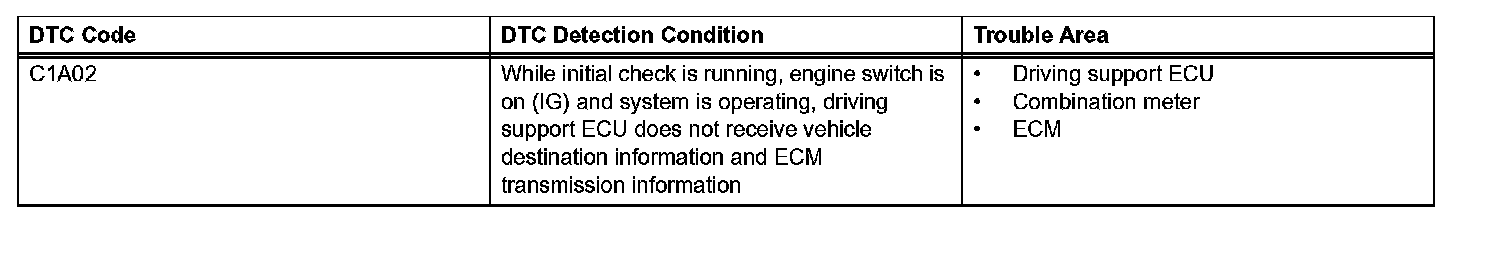

DTC Detection Condition:

When the driving support ECU is replaced with a new one, it acquires the country specification information from the combination meter. When the country specification information in the ECU and meter do not match, DTC C1A02 is output.

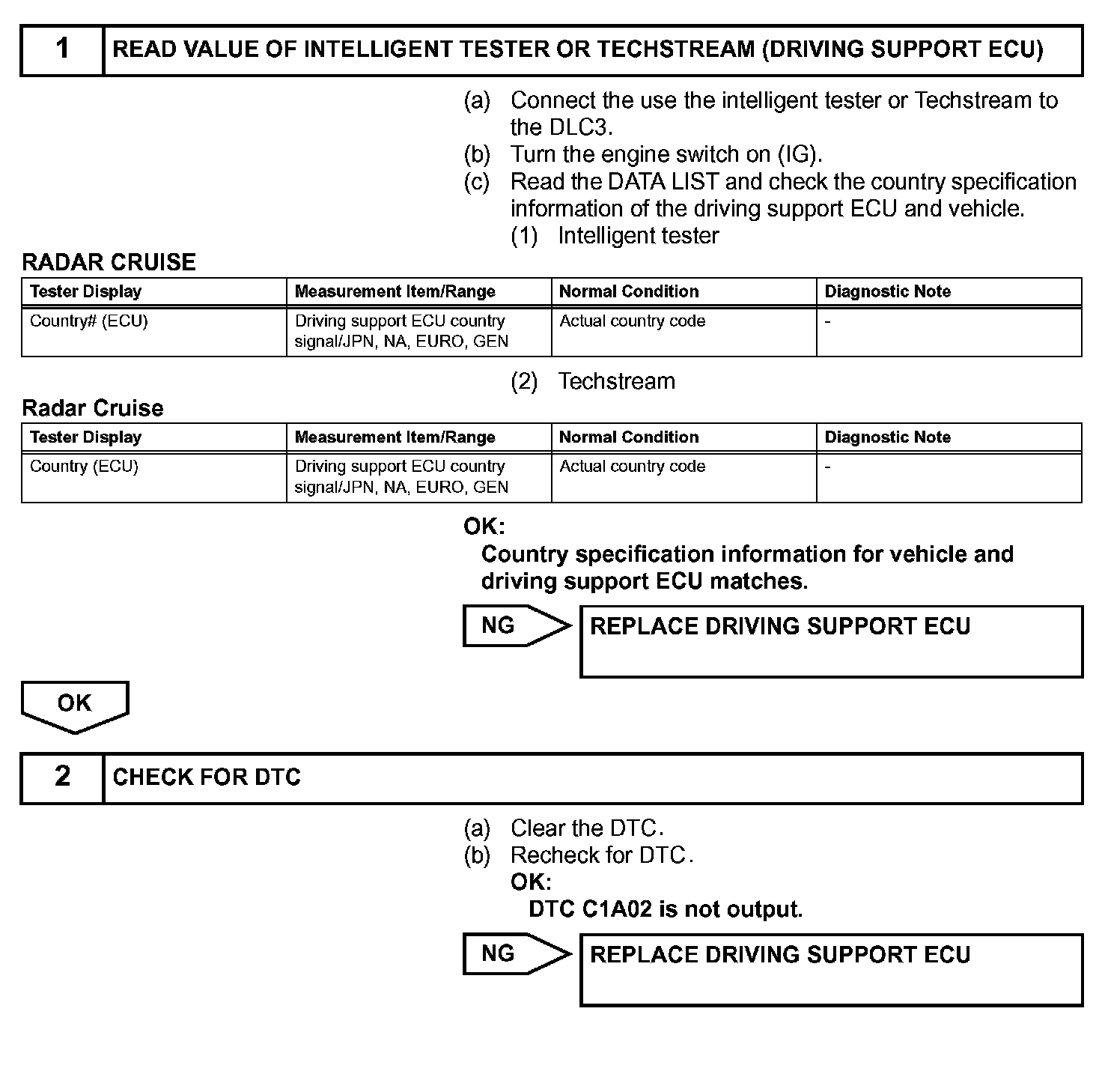

Step 1-2:

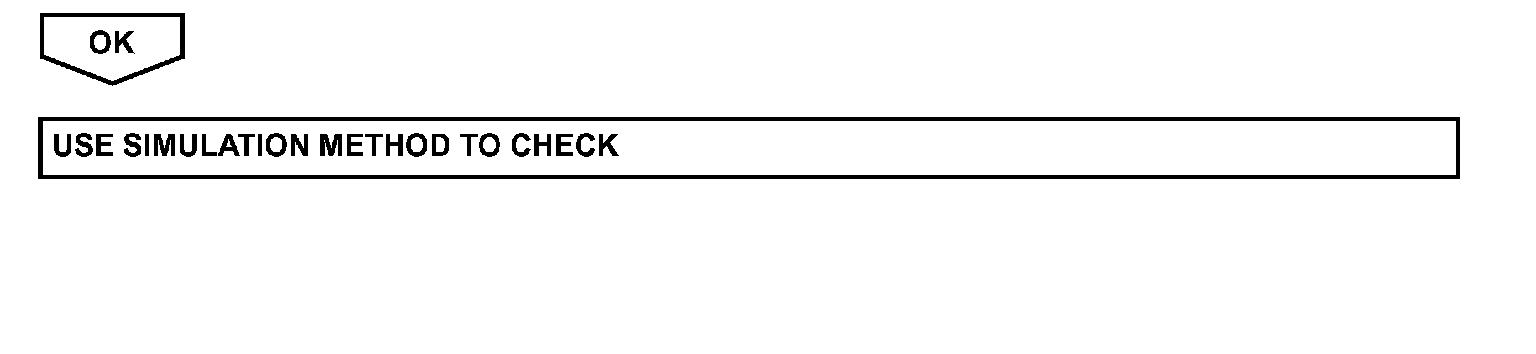

Step 2 (Continued):

INSPECTION PROCEDURE
