C1761

DTC C1761/61 Continuous Electric Current to Height Control Compressor Motor

DESCRIPTION

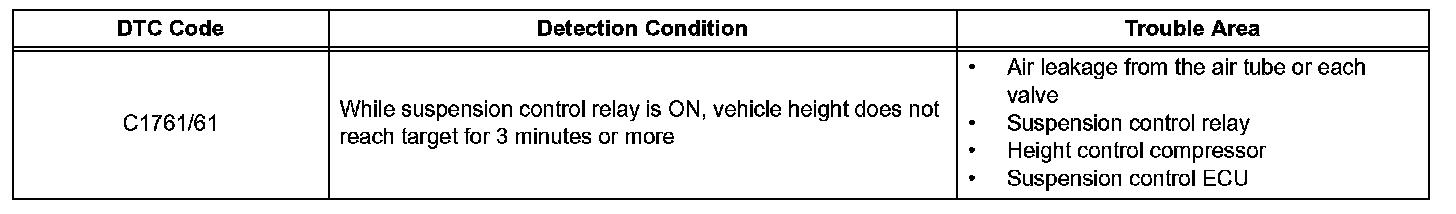

DTC Detection Condition:

The signal from the suspension control ECU operates the suspension control relay and the height control compressor motor starts. The height control compressor motor operates until the targeted vehicle height is reached. Then the height control sensor sends the signal to the suspension control ECU, and stops the height control compressor motor.

Step 1-3:

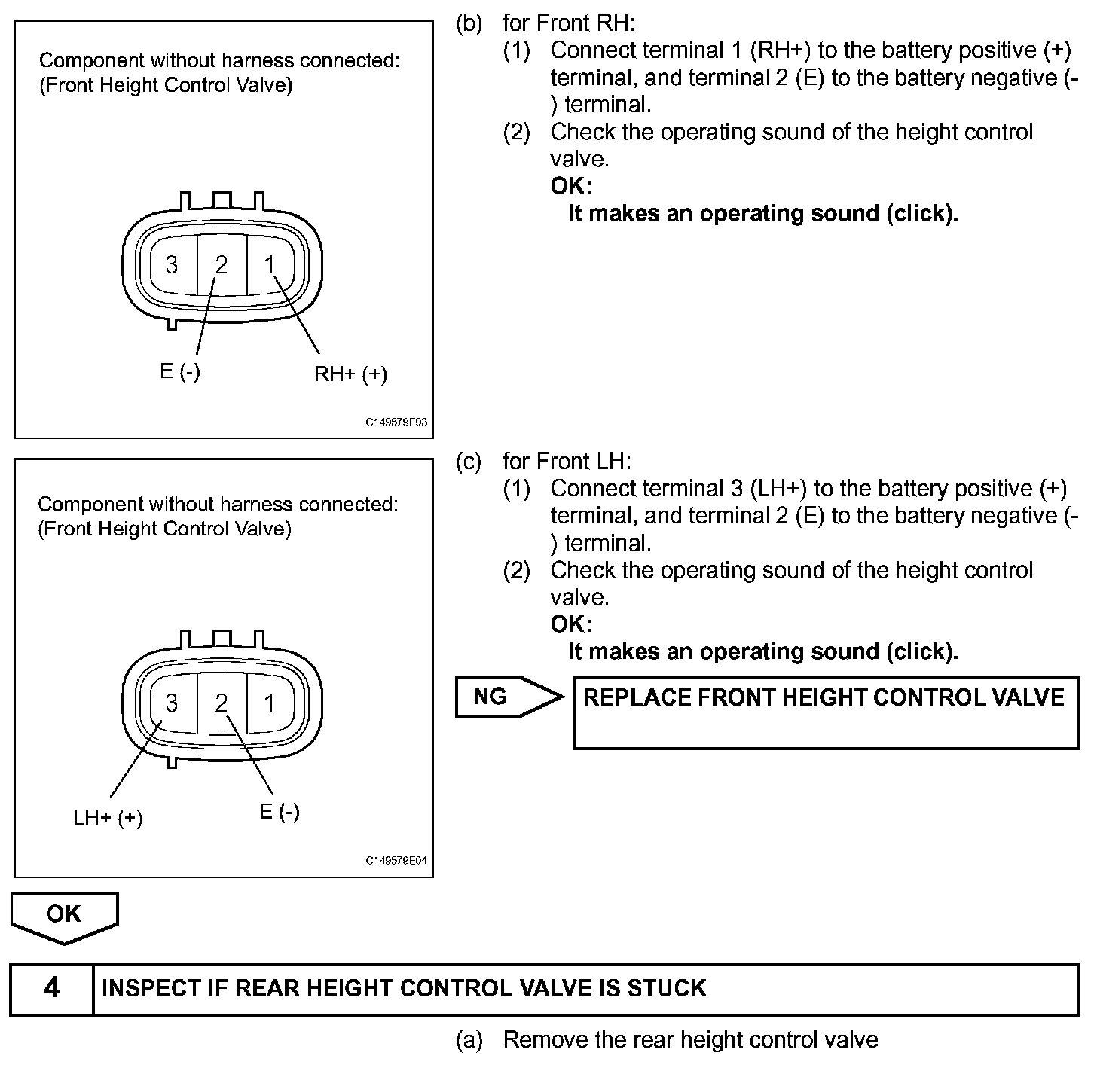

Step 3(Continued)-4:

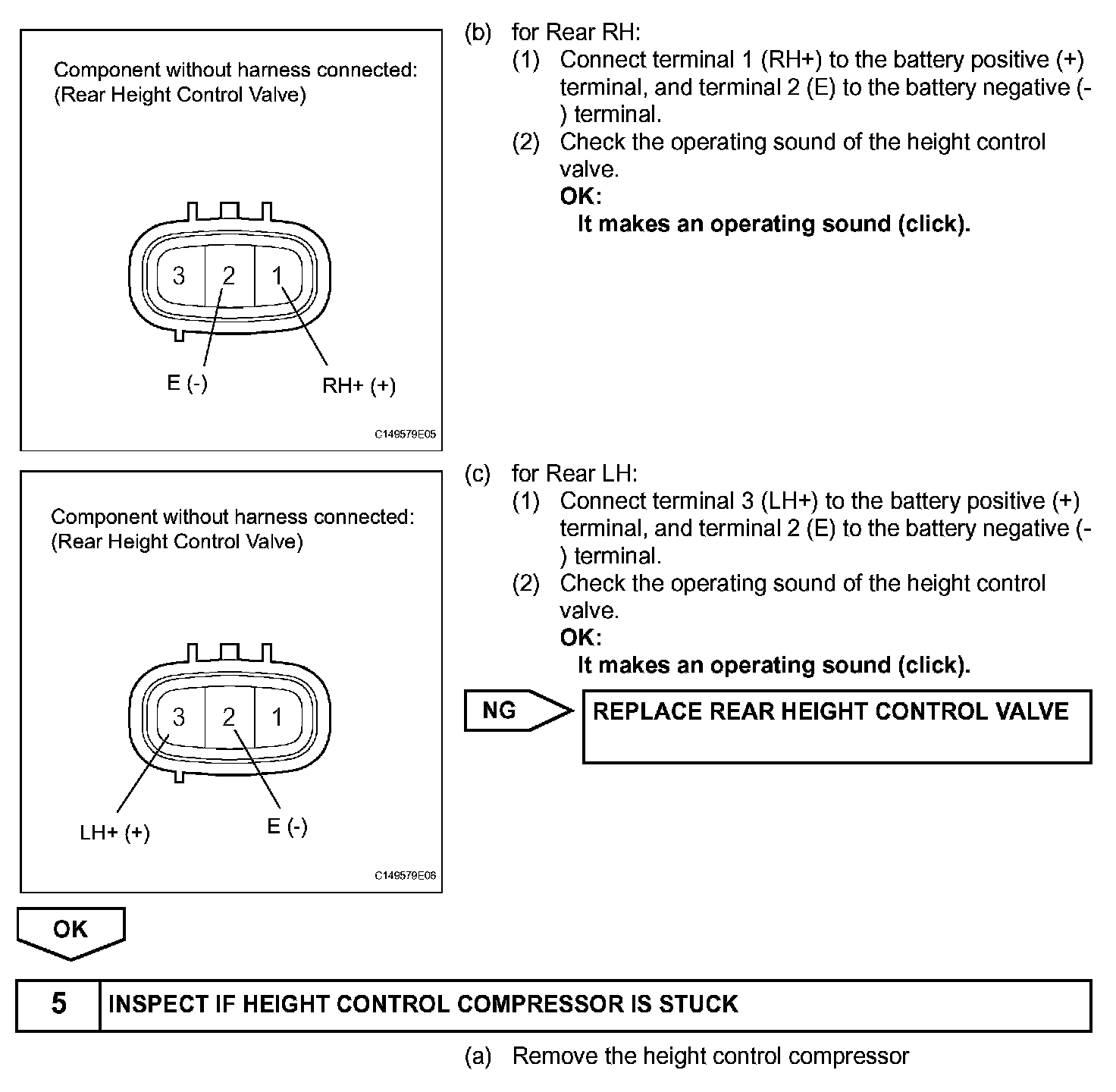

Step 4(Continued)-5:

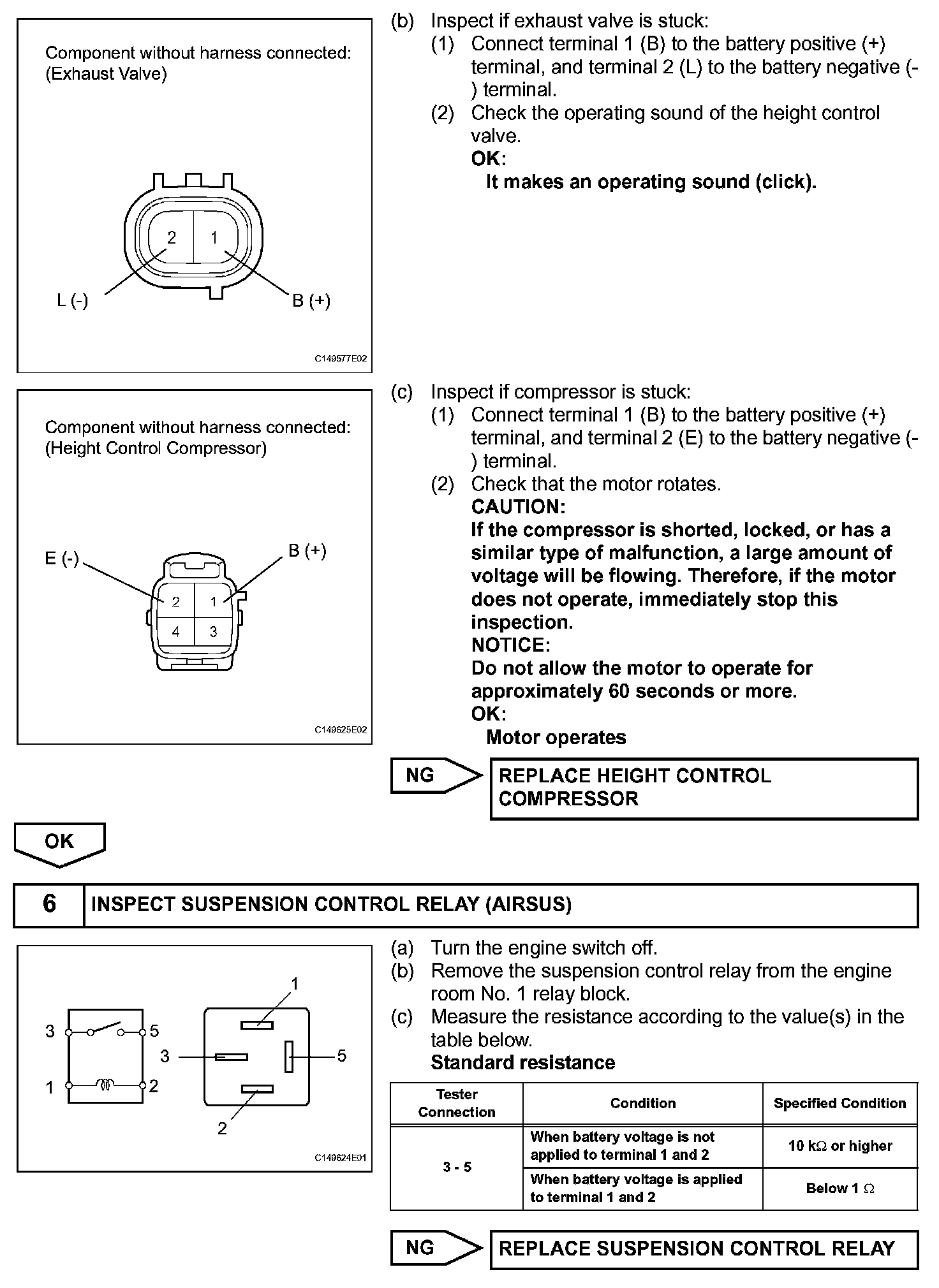

Step 5(Continued)-6:

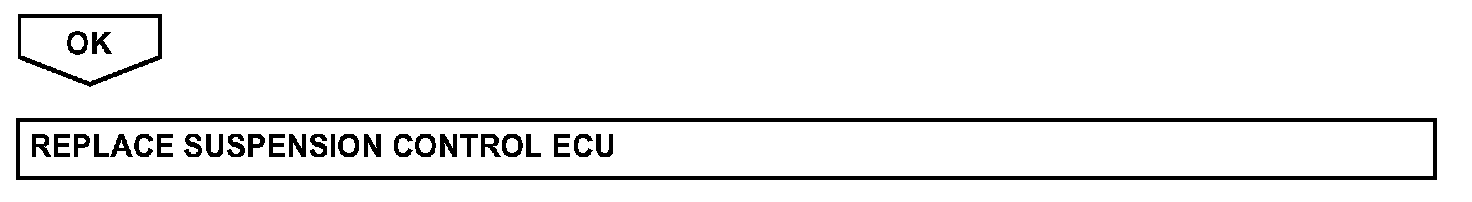

Step 6(Continued):

INSPECTION PROCEDURE

NOTE:
- Before performing troubleshooting, inspect the connectors of related circuits.
- Before replacing the suspension control ECU, perform all of the following again: 1) symptom simulation; 2) DTC inspection; and 3) intelligent tester or Techstream inspection (Data List or Active Test). If no malfunctions are found in other areas, replace the suspension control ECU.
- If the suspension control ECU or height control sensor is replaced, the vehicle height offset calibration must be performed.
- The system may output DTC C1761/61 even when the system is normal if one of the following occurs: 1) the vehicle is full of passengers and the luggage compartment is full; 2) the vehicle is being driven or is stopped on an irregular surface; or 3) the air ducts are frozen.
