C1569

DTC C1569 Battery Power Supply Voltage Malfunction

DESCRIPTION
As a fail-safe function, when the battery power supply voltage is malfunctioning, power assistance stops.

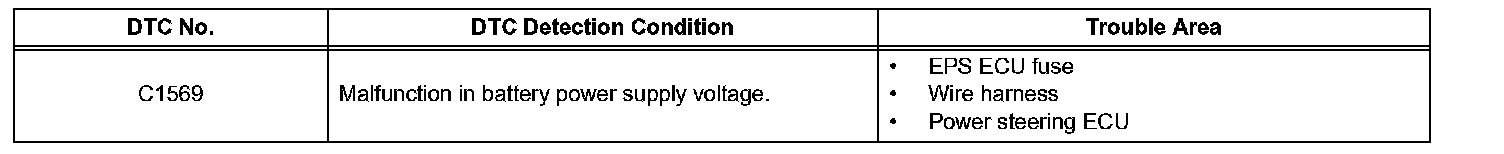

C1569:

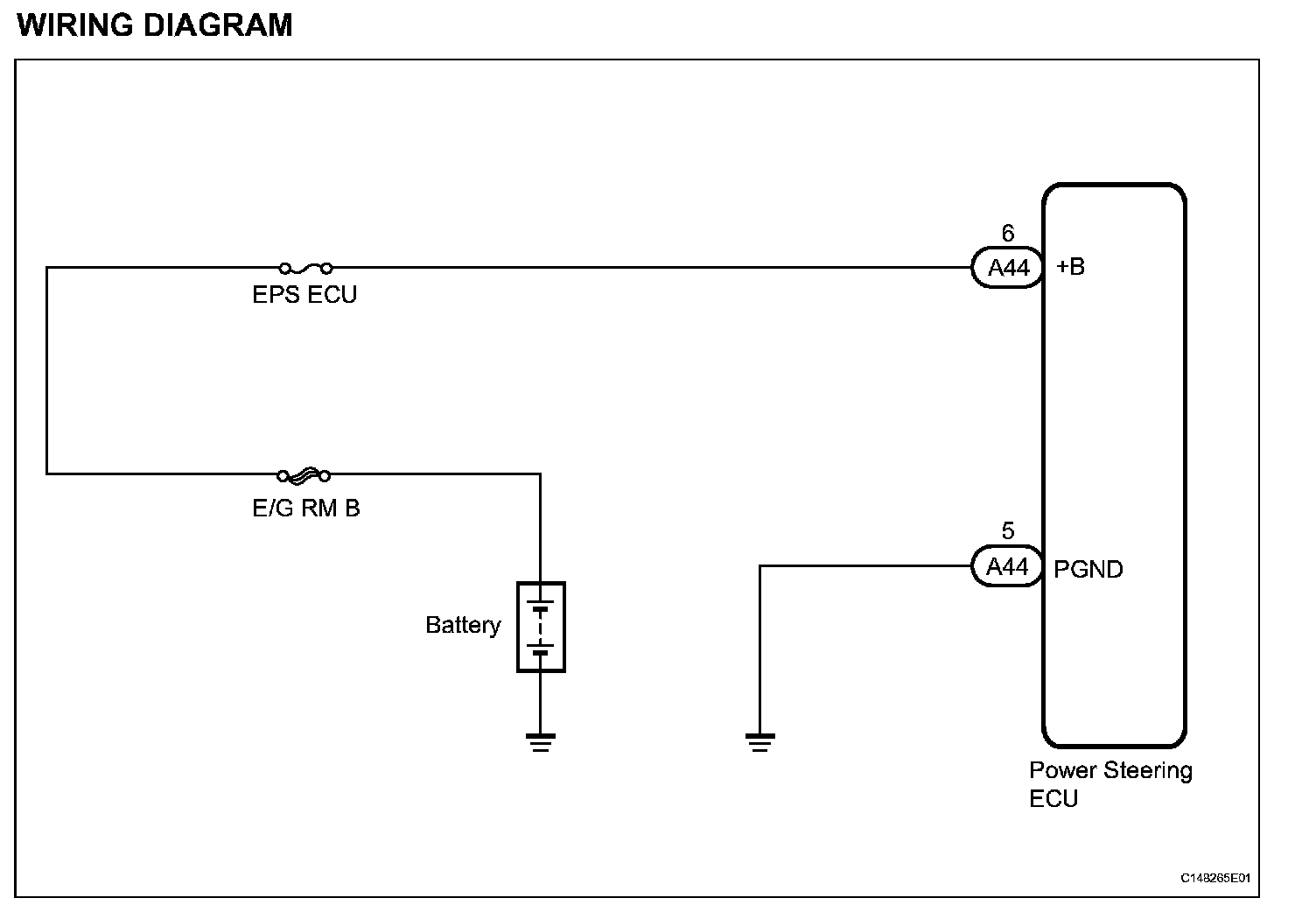

WIRING DIAGRAM:

INSPECTION PROCEDURE

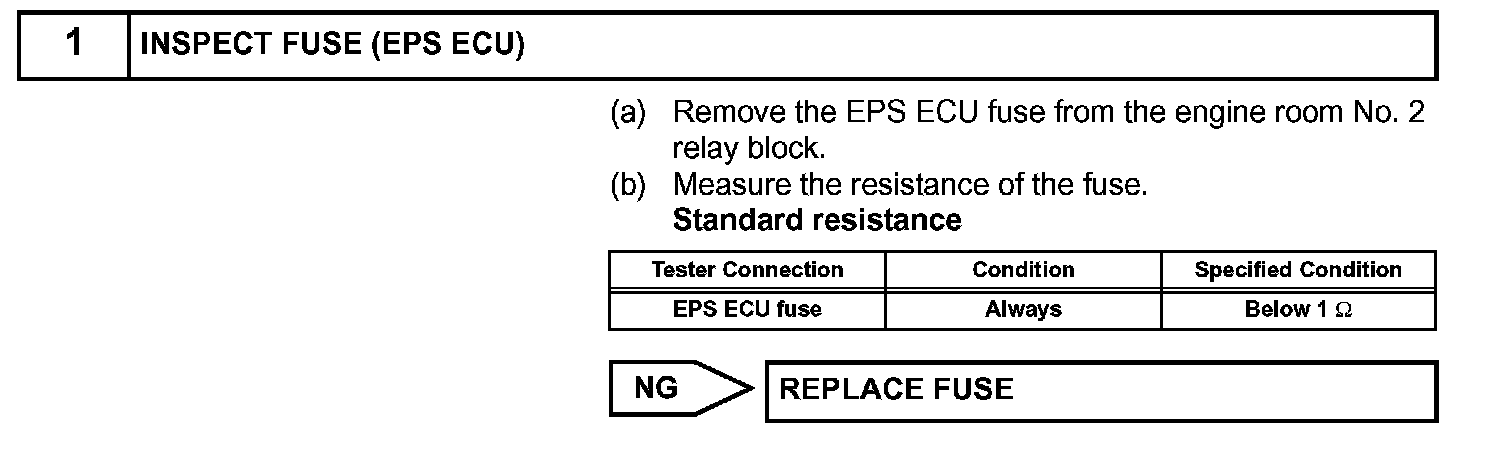

Step 1(Part 1):

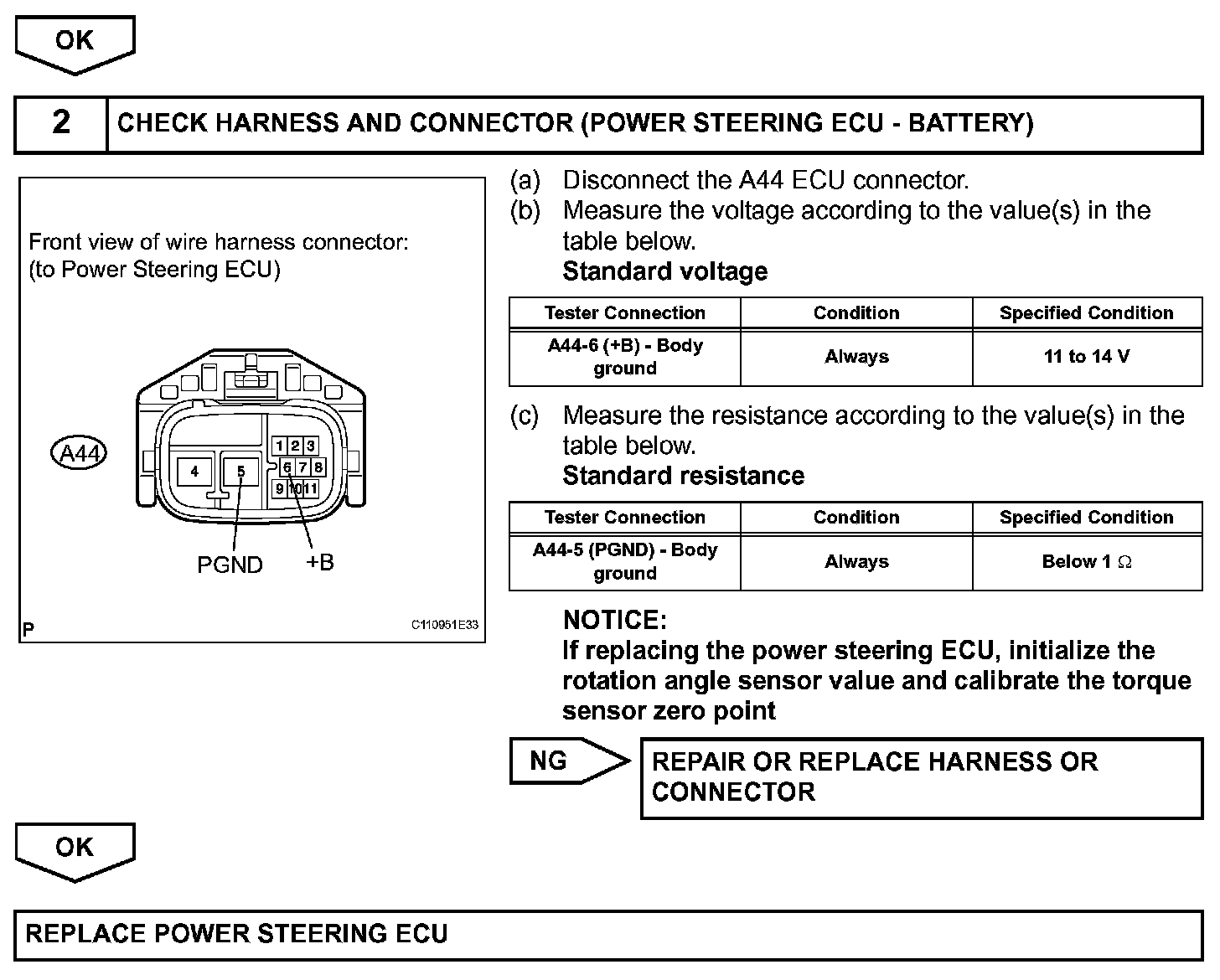

Steps 1(Part 2)-2:
