C1568

DTC C1568 DC-DC Converter Malfunction

DESCRIPTION
As a fail-safe function, when the power steering converter assembly is malfunctioning, power assistance stops.

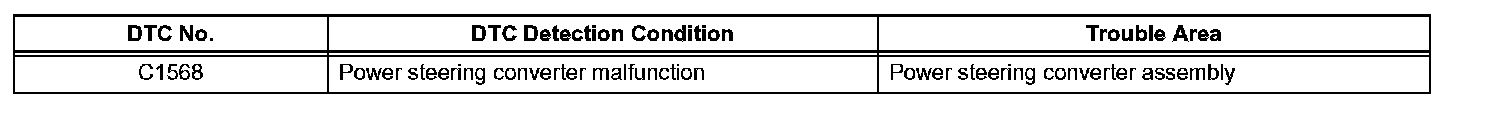

C1568:

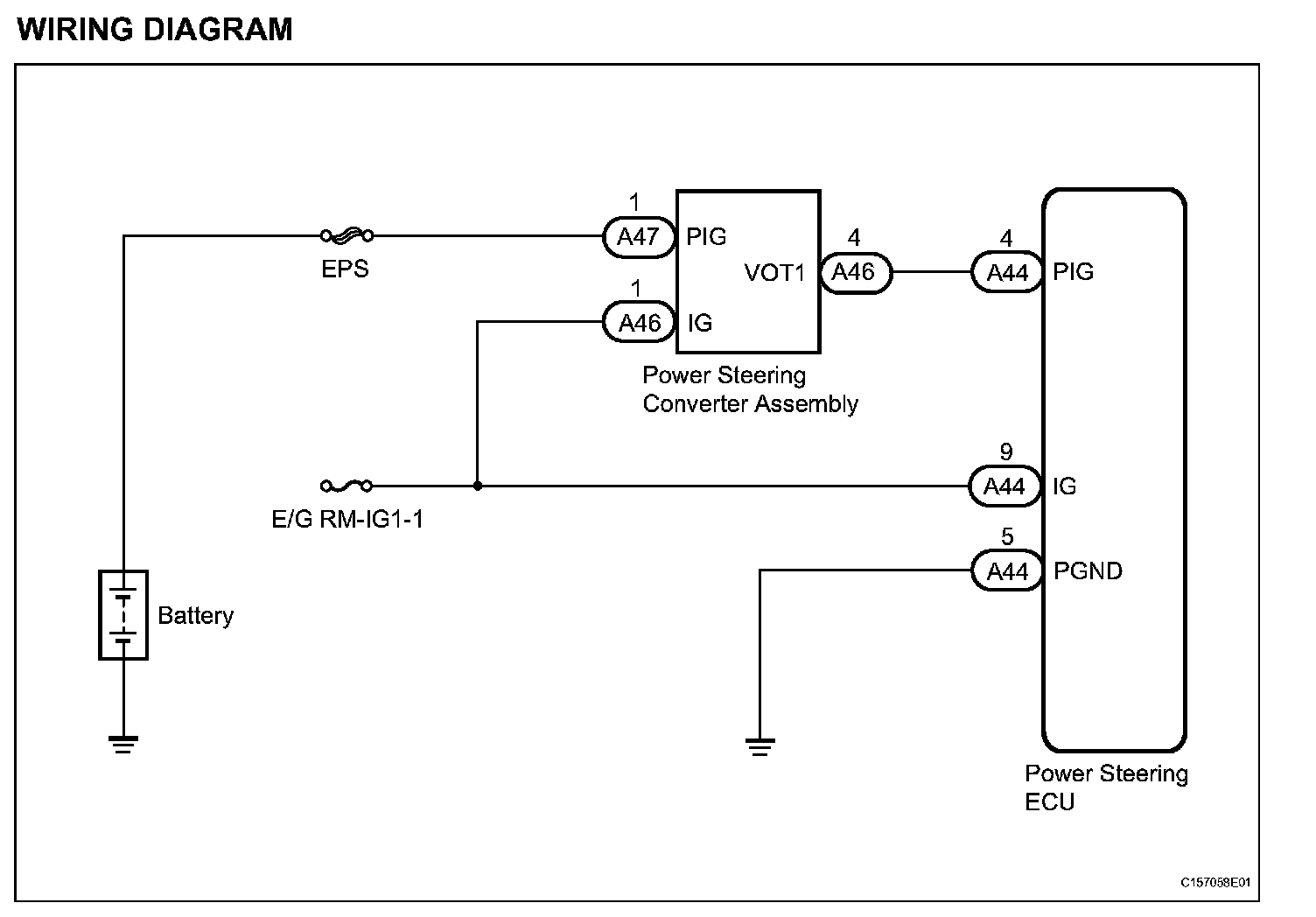

WIRING DIAGRAM:

INSPECTION PROCEDURE

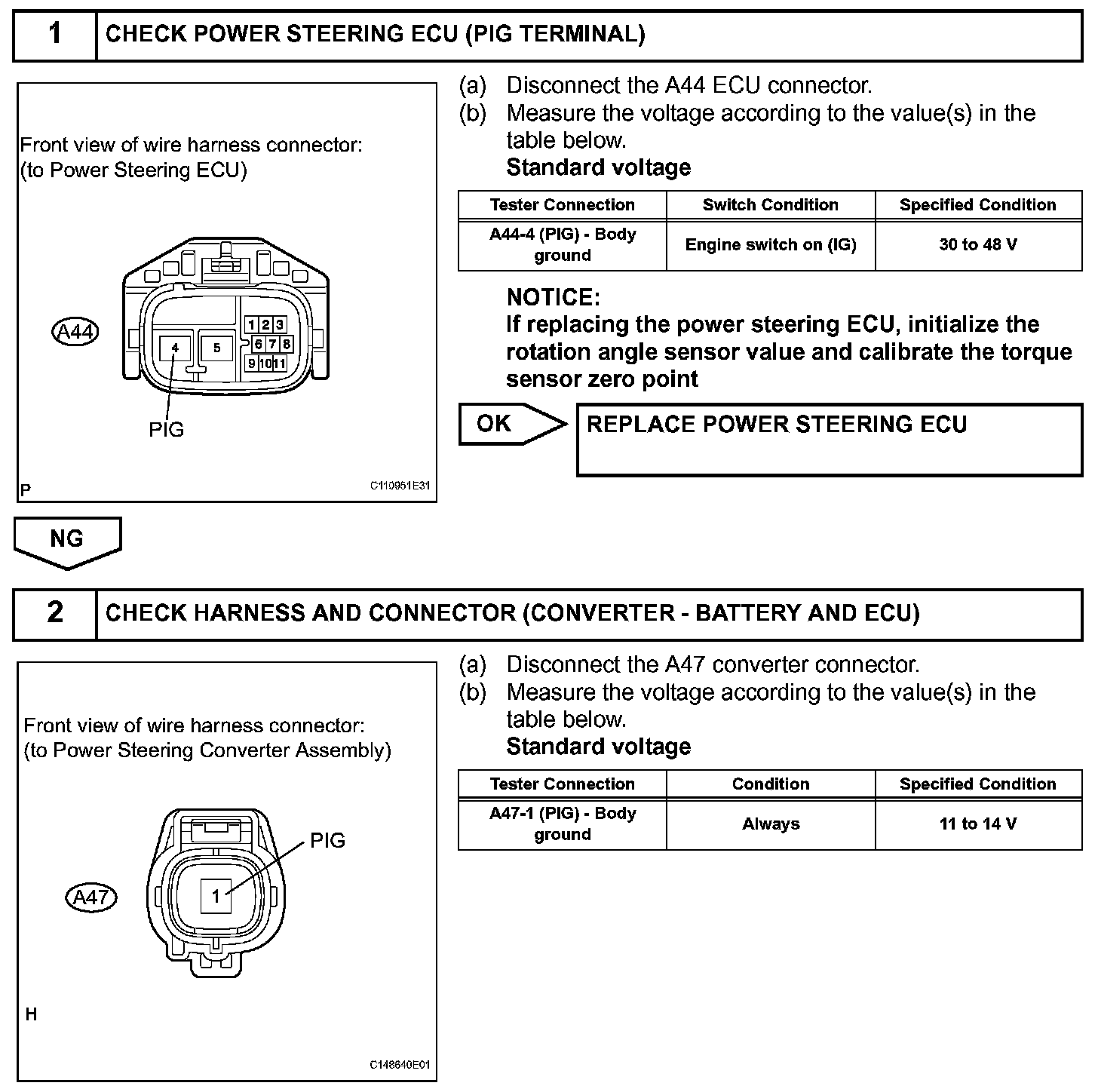

Steps 1-2(Part 1):

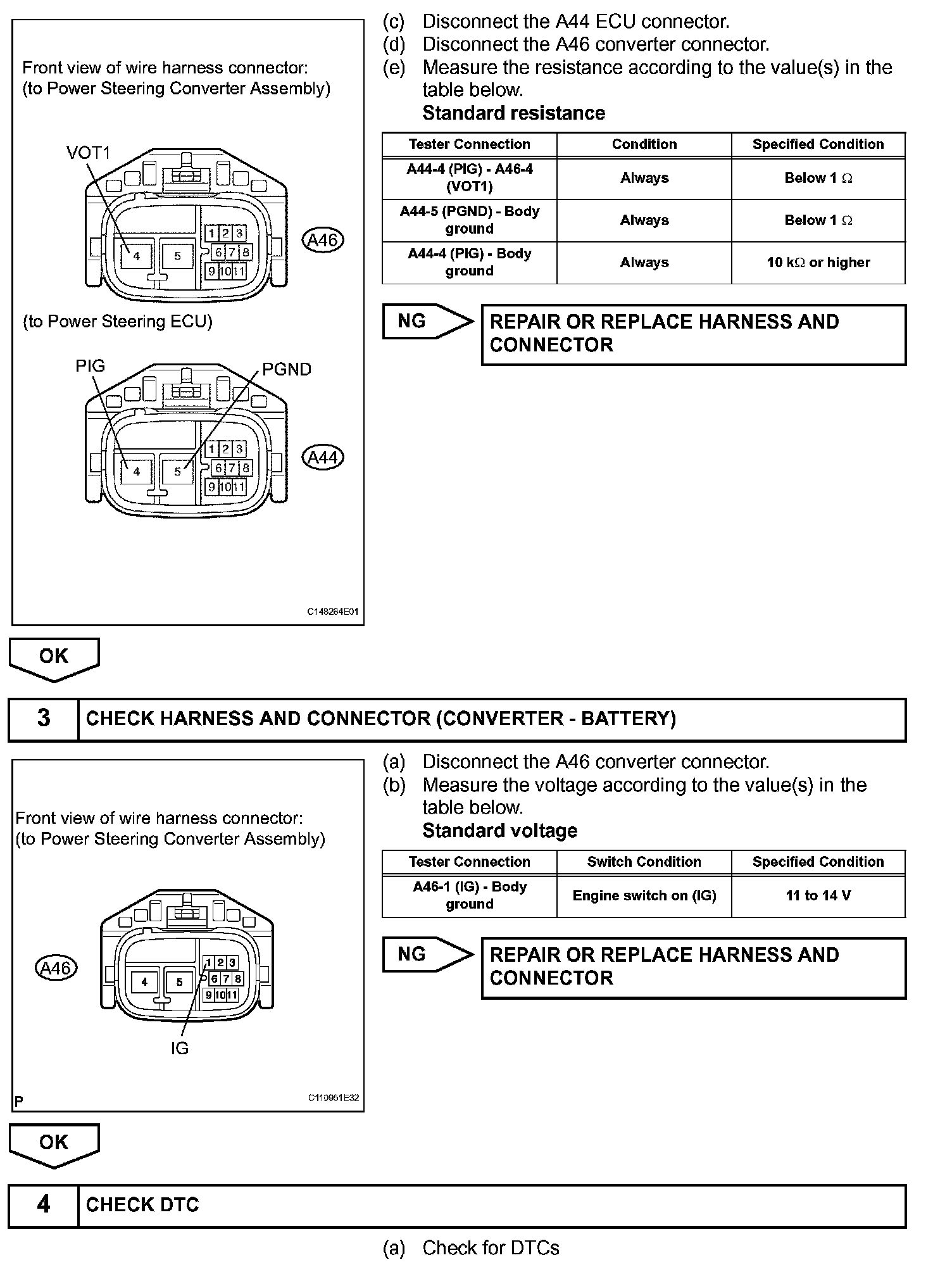

Steps 2(Part 2)-4(Part 1):

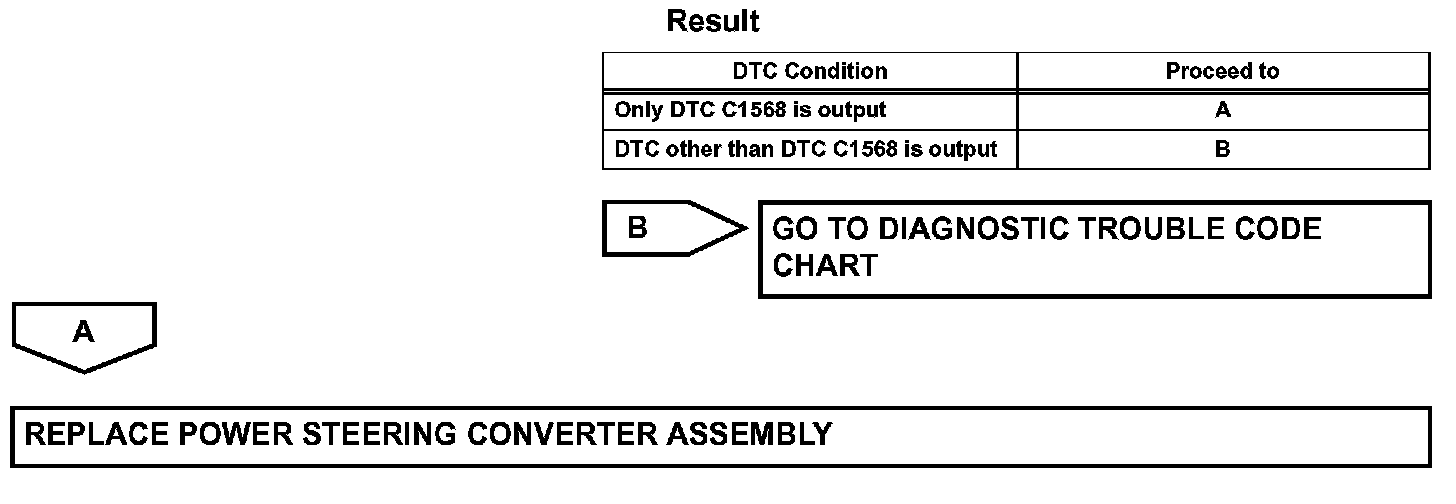

Step 4(Part 2):
