DTC C1567 Lost Communication between EPS ECU and VGRS ECU
DESCRIPTION
Based on the steering sensor's signal, the power steering ECU determines if the correct type of steering angle sensor is installed.

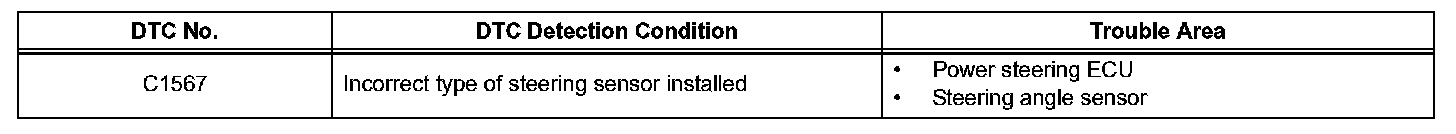

C1567:

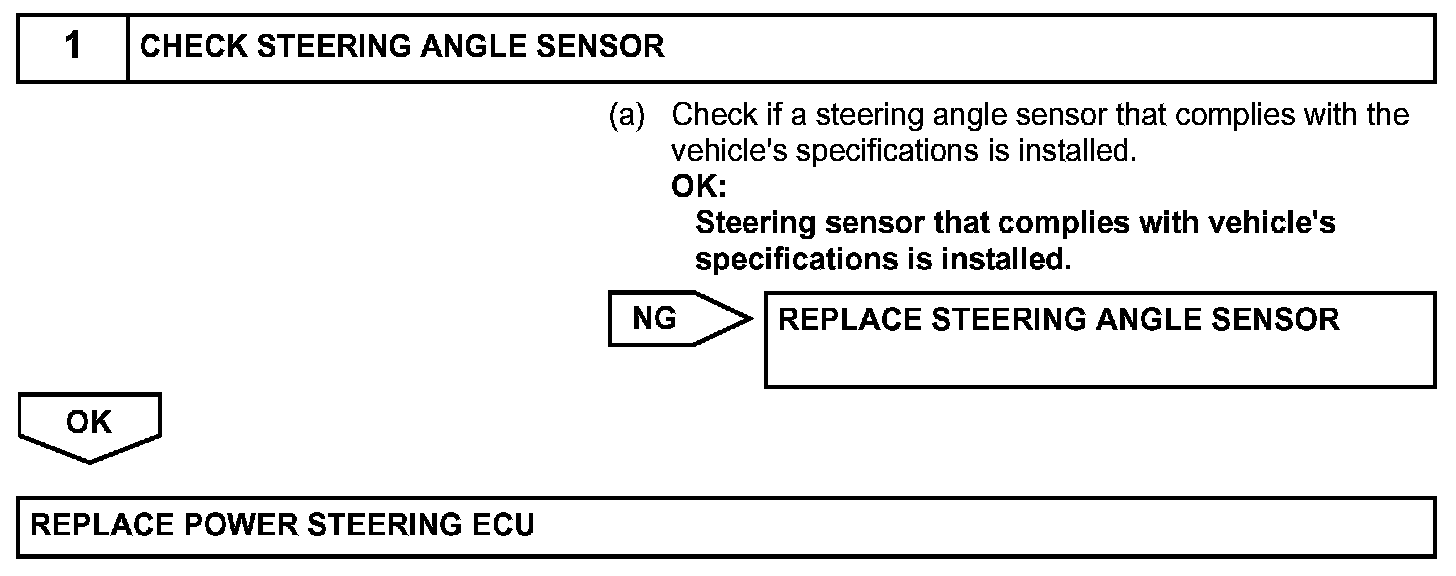

INSPECTION PROCEDURE
Step 1:
