C13A9

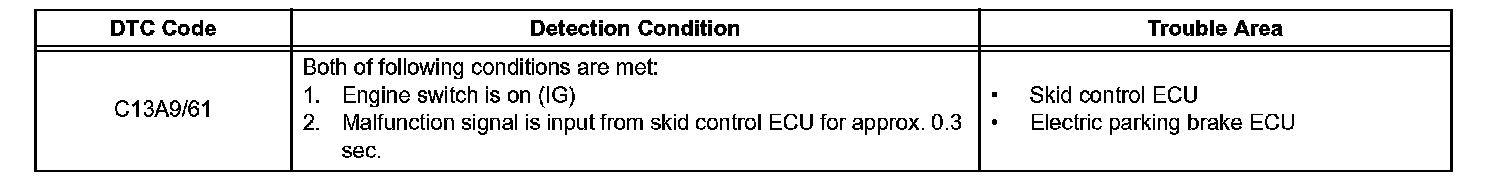

DTC C13A9/61 Brake Control System Malfunction

DESCRIPTION
The electric parking brake ECU receives vehicle wheel speed information from the skid control ECU via CAN communication.





INSPECTION PROCEDURE

NOTICE: If the electric parking brake ECU or electric parking brake actuator is replaced, perform the "RESET MEMORY" and "ACQUIRE TENSION SENSOR ZERO POINT" procedures.

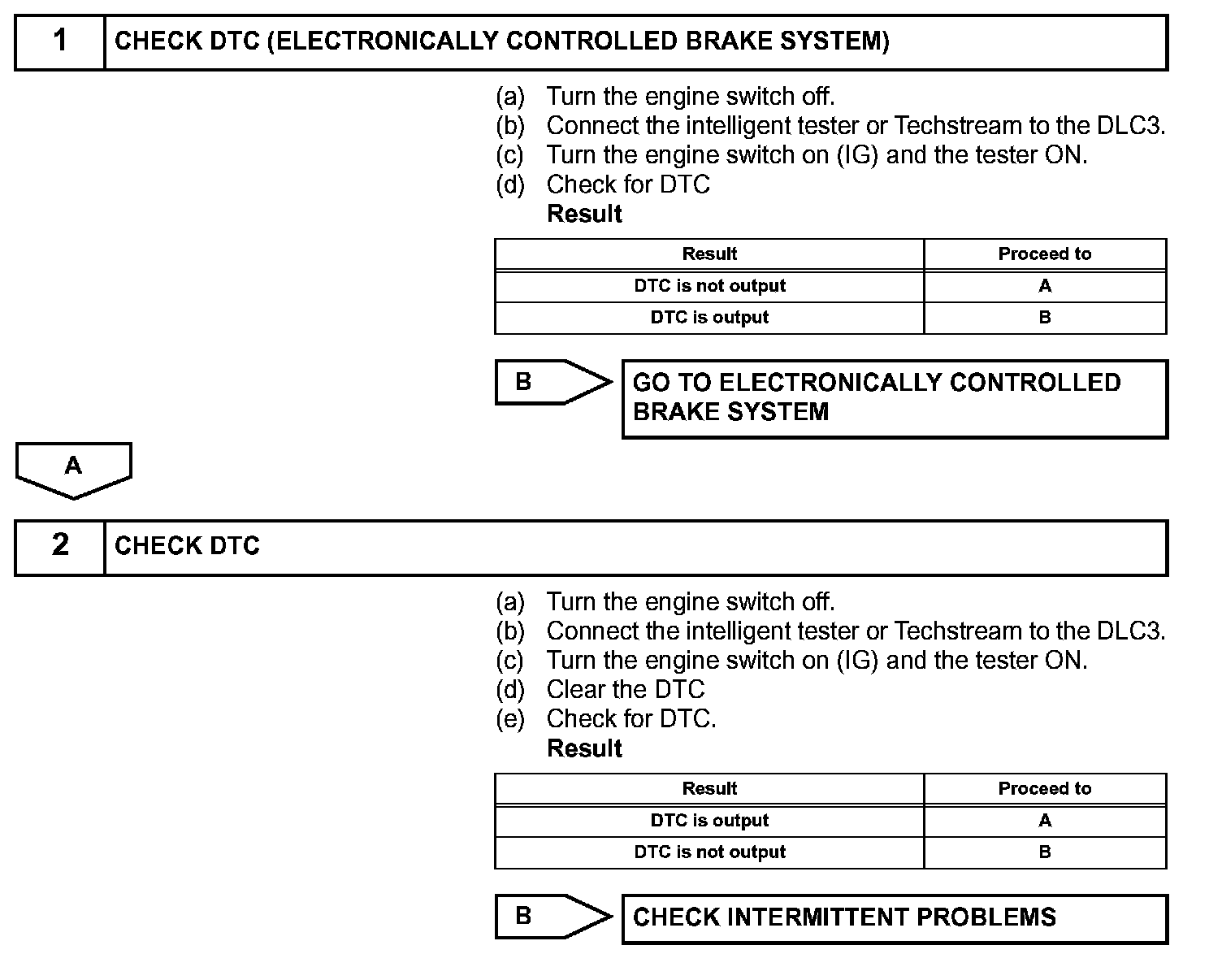

Step 1-2:

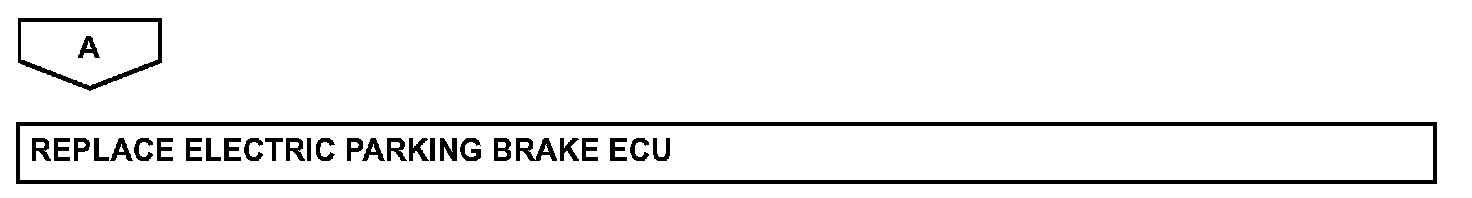

Step 2 Continued:
