C13A8

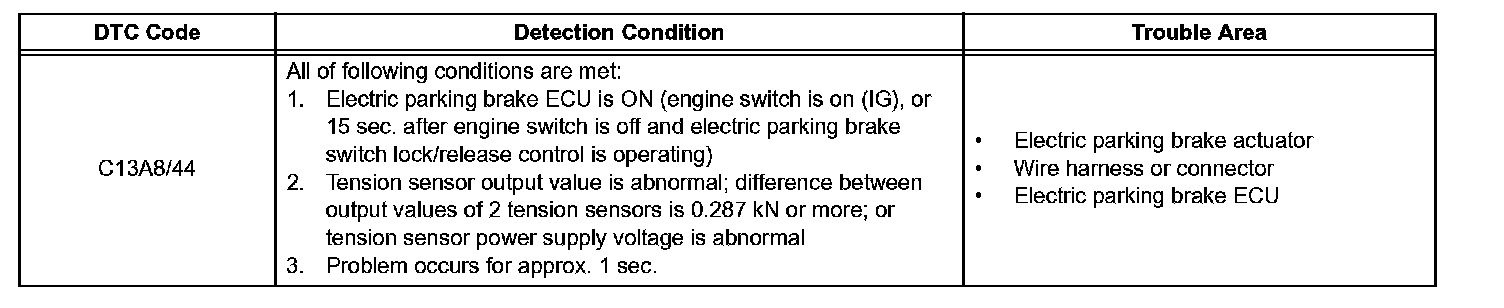

DTC C13A8/44 Tension Sensor Malfunction

DESCRIPTION
The tension sensor is built into the electric parking brake actuator. It detects the tension value of the parking brake cable and outputs the value to the electric parking brake ECU.

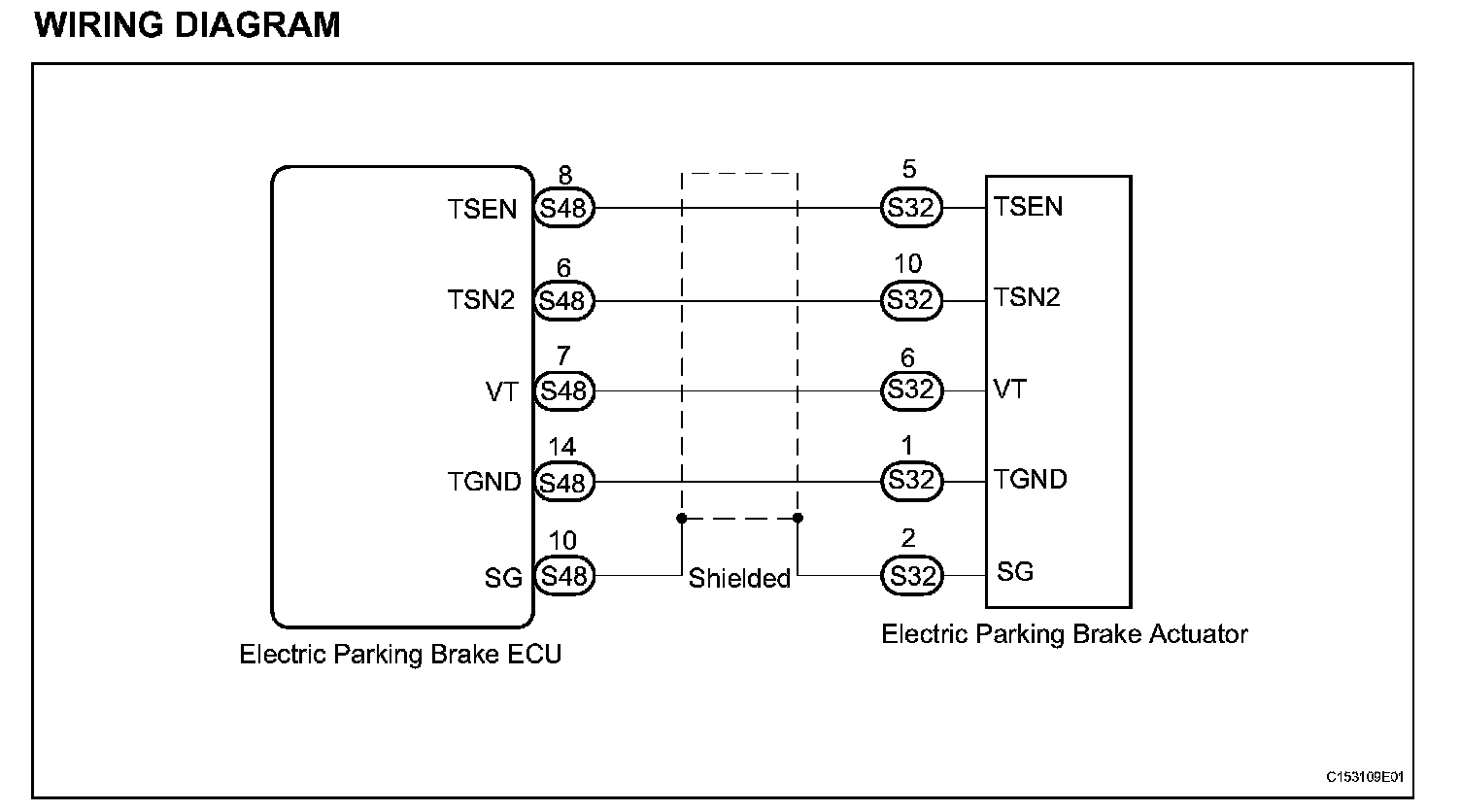

WIRING DIAGRAM:

INSPECTION PROCEDURE

NOTICE:
^ If the electric parking brake ECU or electric parking brake actuator is replaced, perform the "RESET MEMORY" and "ACQUIRE TENSION SENSOR ZERO POINT" procedures.
^ Before disconnecting connectors or fuses, turn the engine switch off and wait 20 seconds or more.
^ This DTC may be output if a manual release cable is used. There is no malfunction. Perform the "RESET MEMORY" and "ACQUIRE TENSION SENSOR ZERO POINT" procedures.

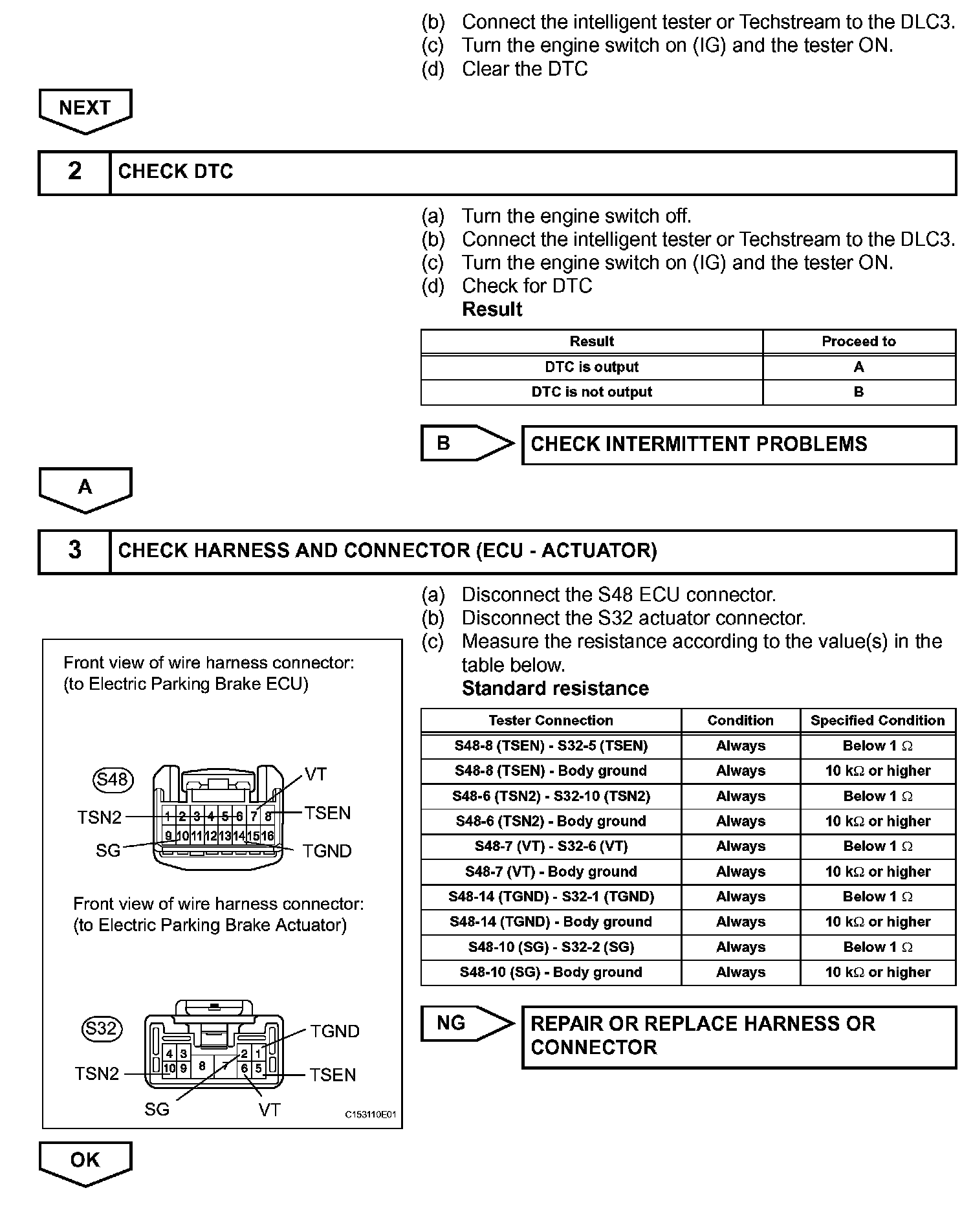

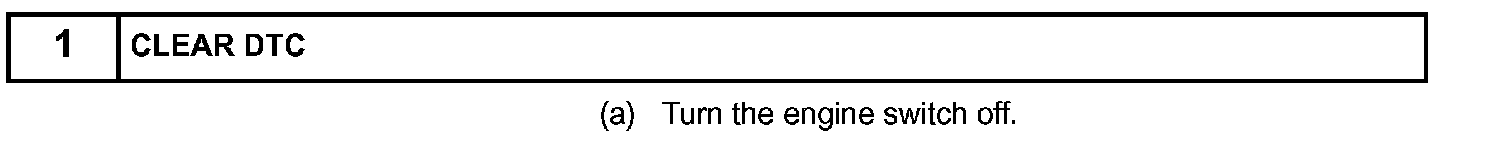

Step 1:

Step 1 Continued, Step 2-3:

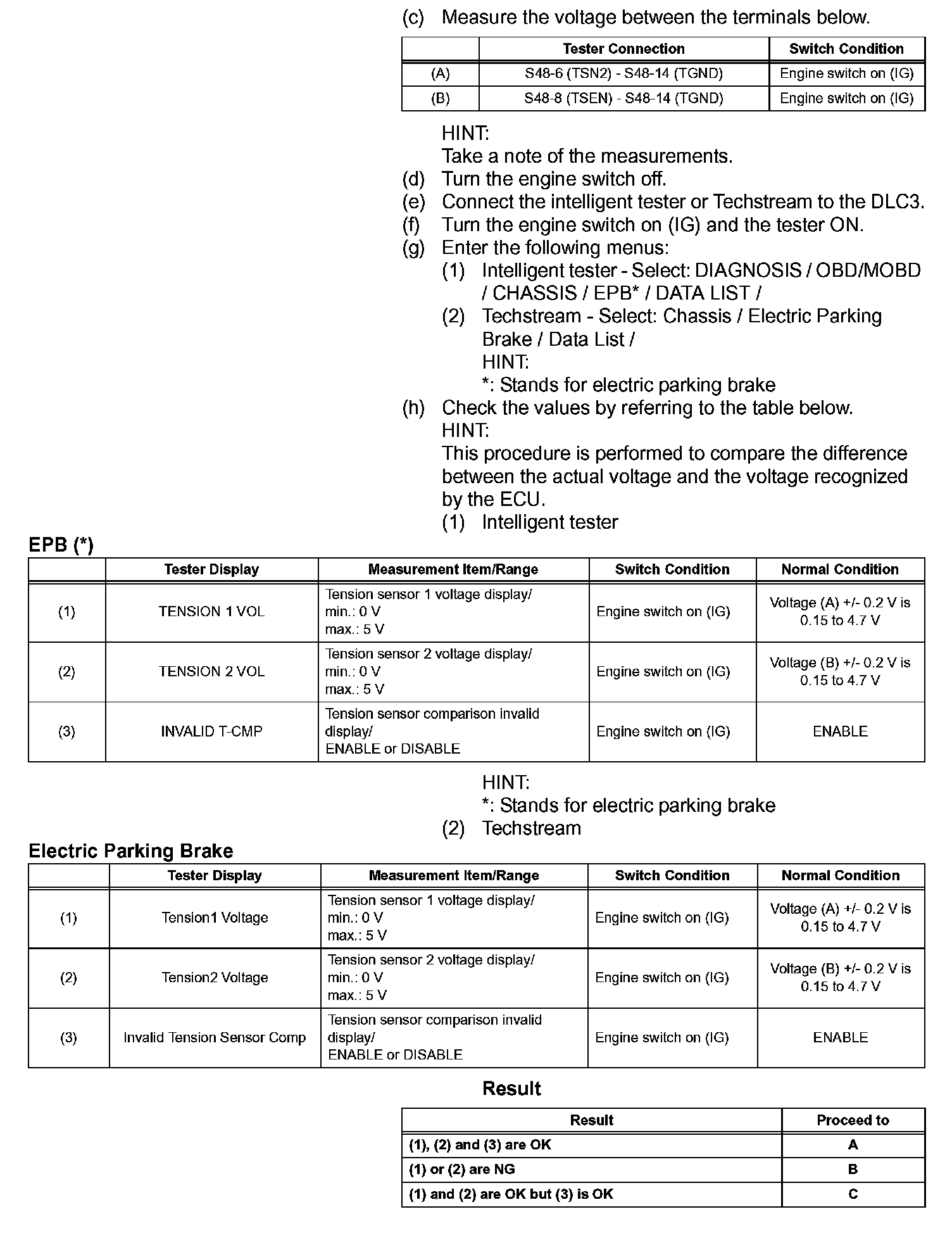

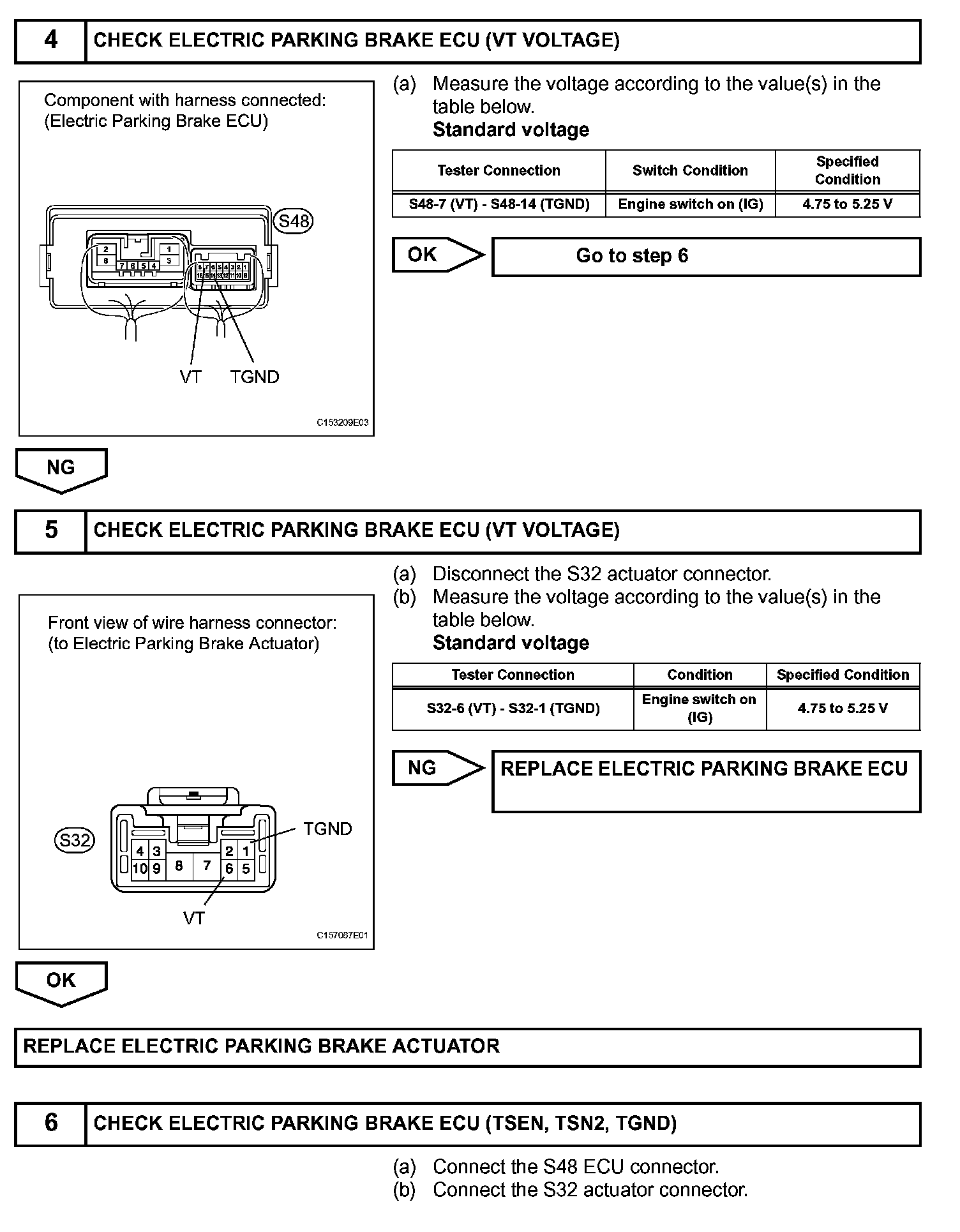

Step 4-6:

Step 6 Continued:

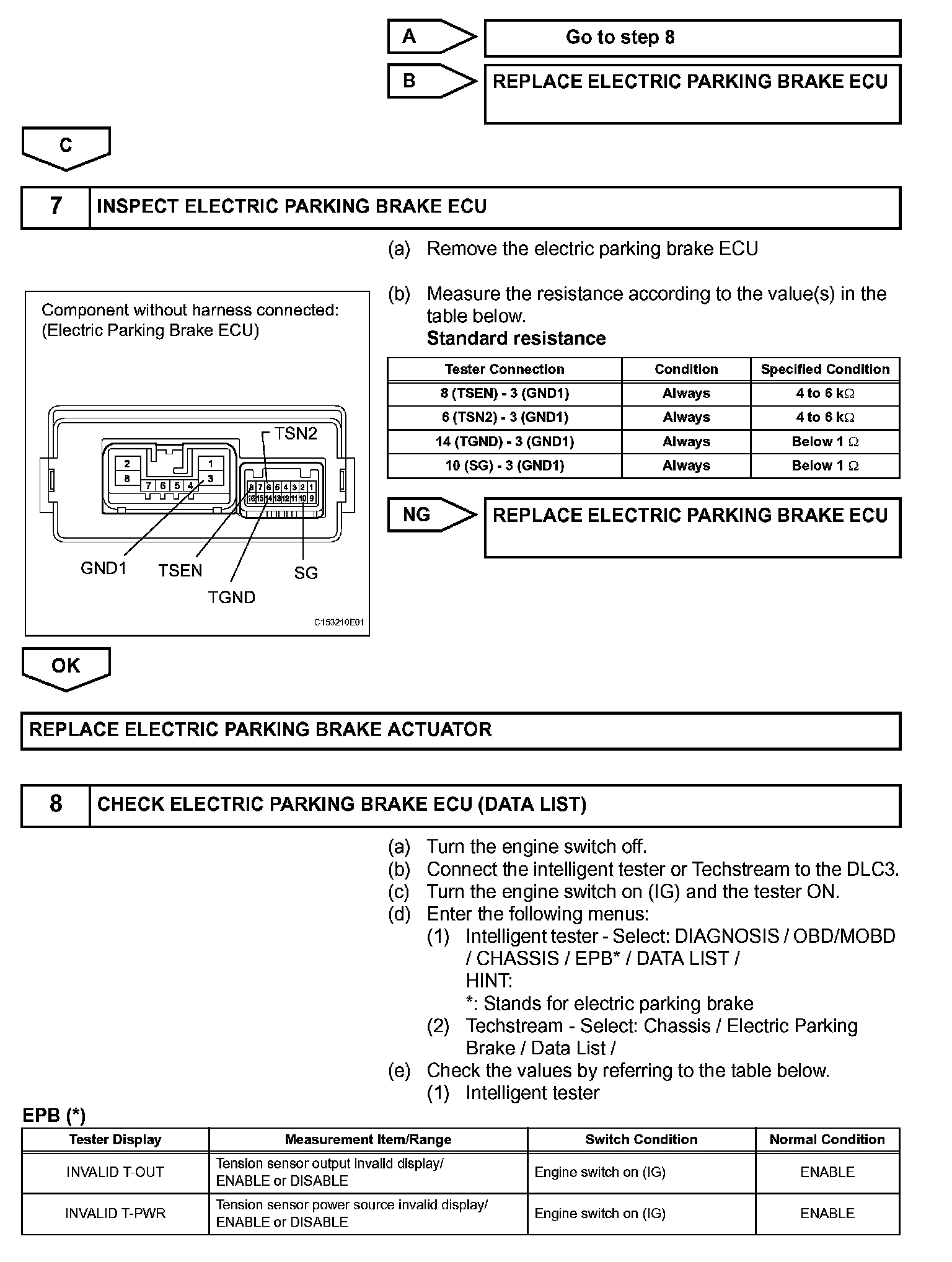

Step 6 Continued, Step 7-8:

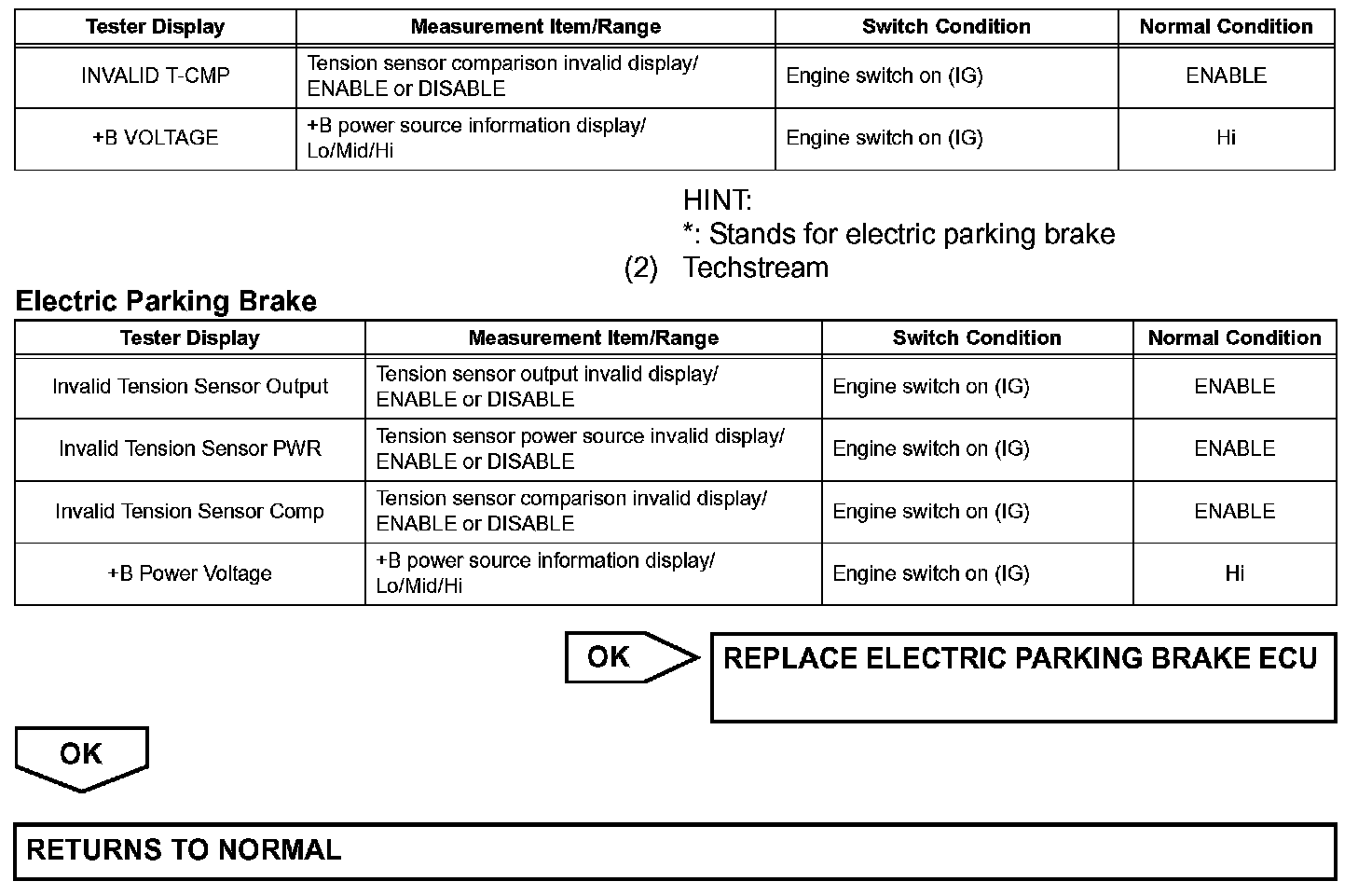

Step 8 Continued:
