C1365

DTC C1365/54 Accumulator Pressure Sensor Malfunction

DESCRIPTION

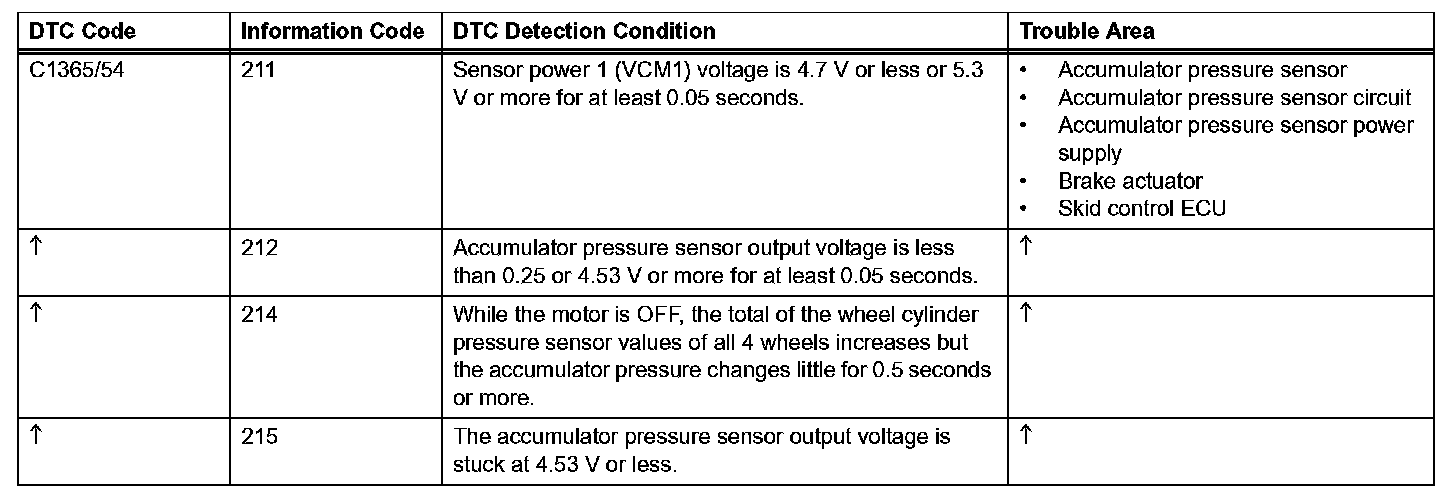

DTC Detection Condition:

The accumulator pressure sensor is built into the brake actuator.

The skid control ECU detects the accumulator pressure based on the data sent from the accumulator pressure sensor, and then runs and stops the pump motor by operating the motor relay.

Wiring Diagram:

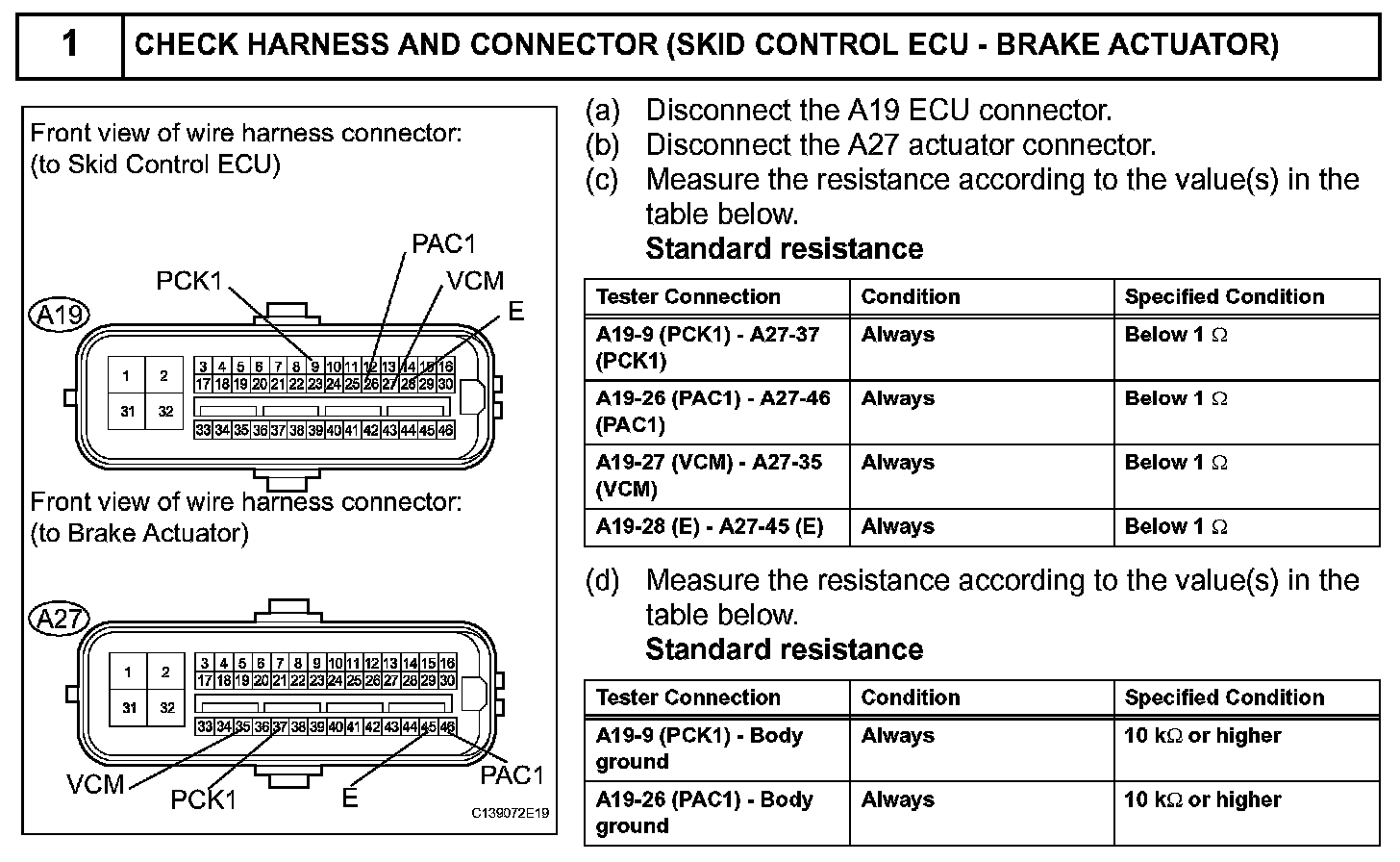

Step 1:

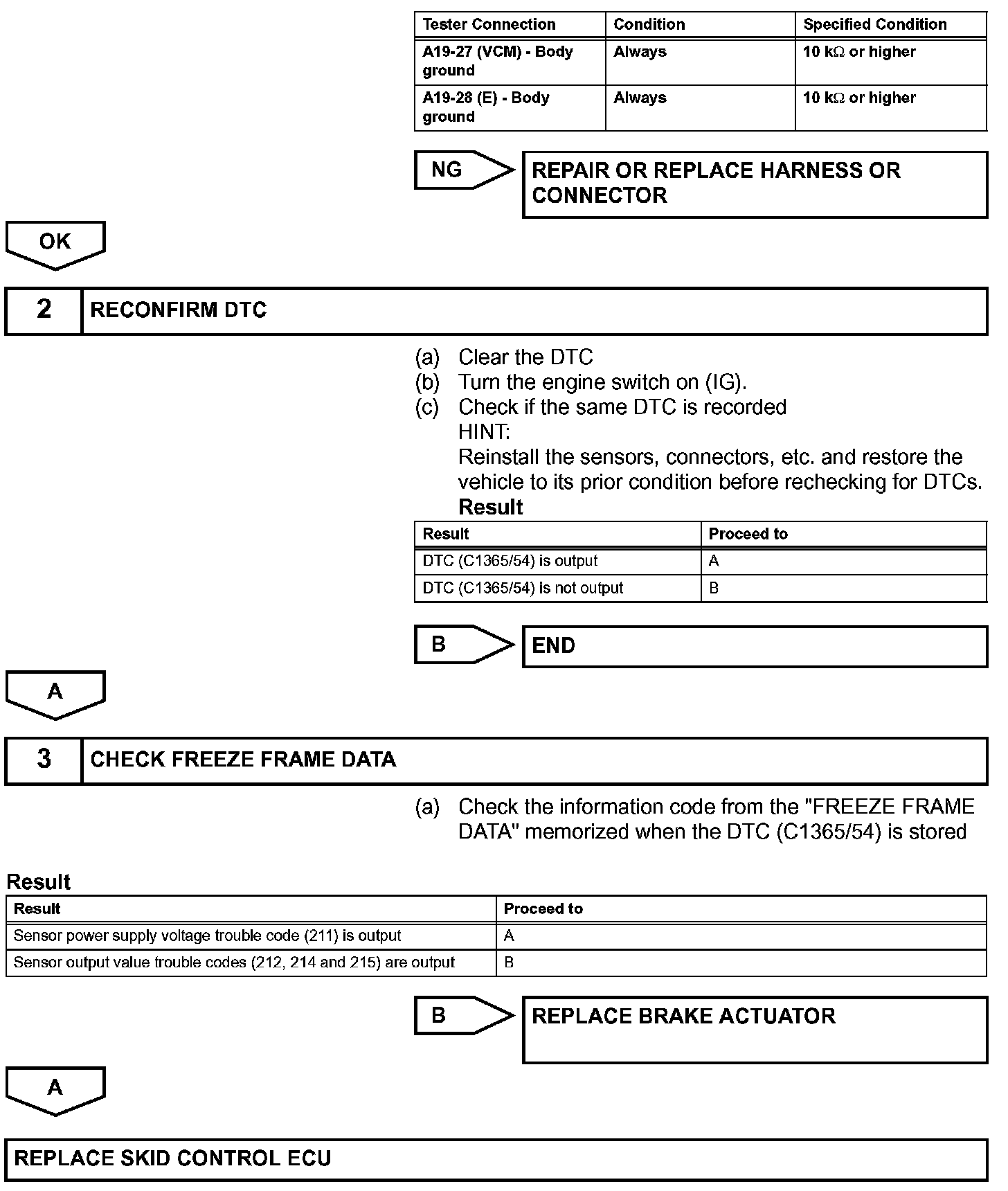

Step 1(Continued)-3:

INSPECTION PROCEDURE

NOTE: When replacing the skid control ECU or brake actuator, perform initialization of linear solenoid valve and calibration. Initialization
