B2656

DTC B2656 Upper Lumbar Adjustment Sensor Malfunction

DESCRIPTION
When the position control ECU does not receive a sensor signal despite forward or backward movement of seat by power seat motor operation, this DTC is output.

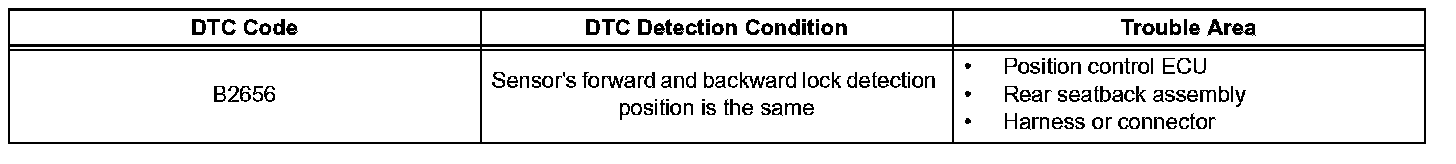

DTC Detection Condition:

WIRING DIAGRAM

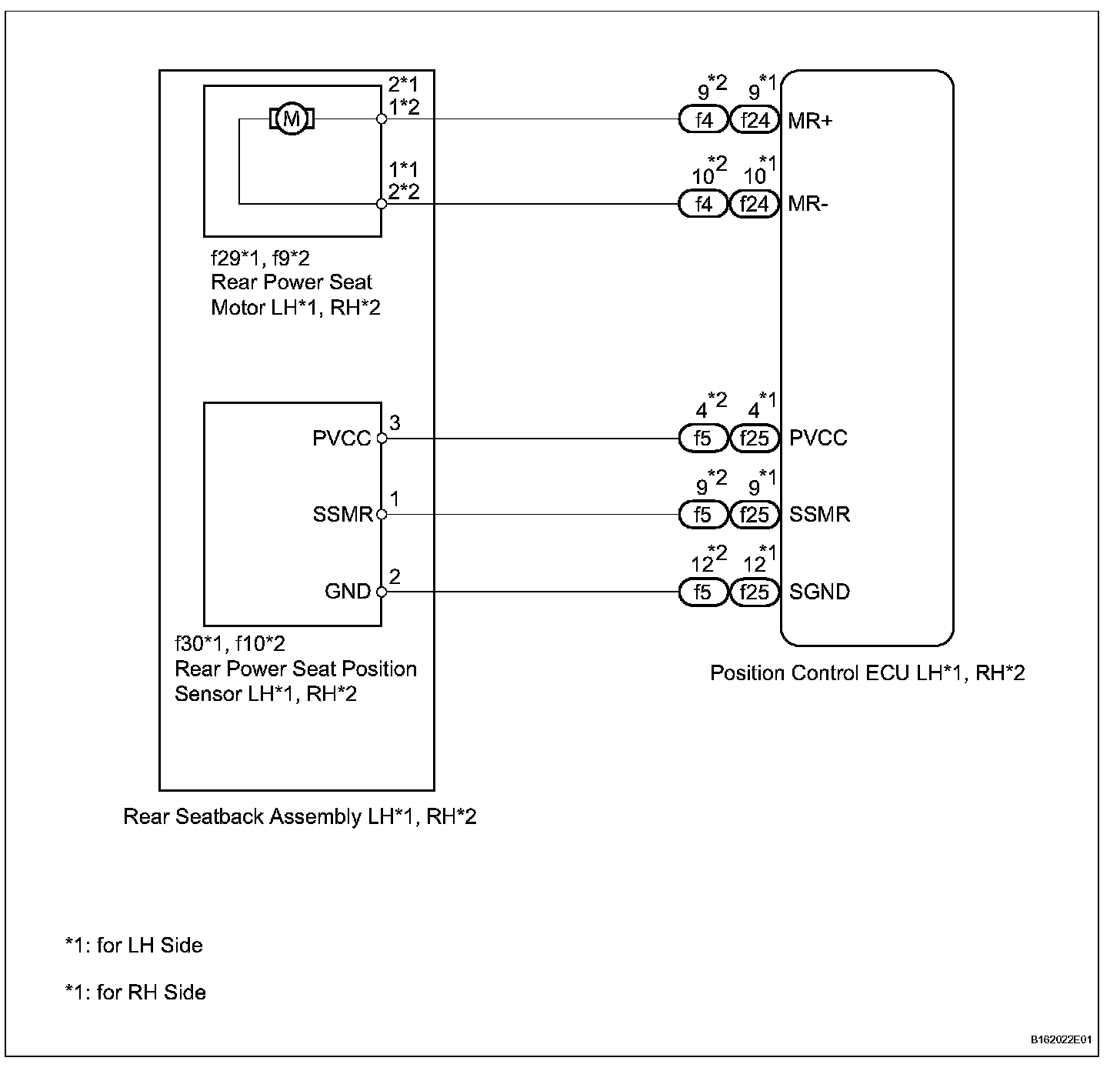

Wiring Diagram:

INSPECTION PROCEDURE

Step 1 - 2:

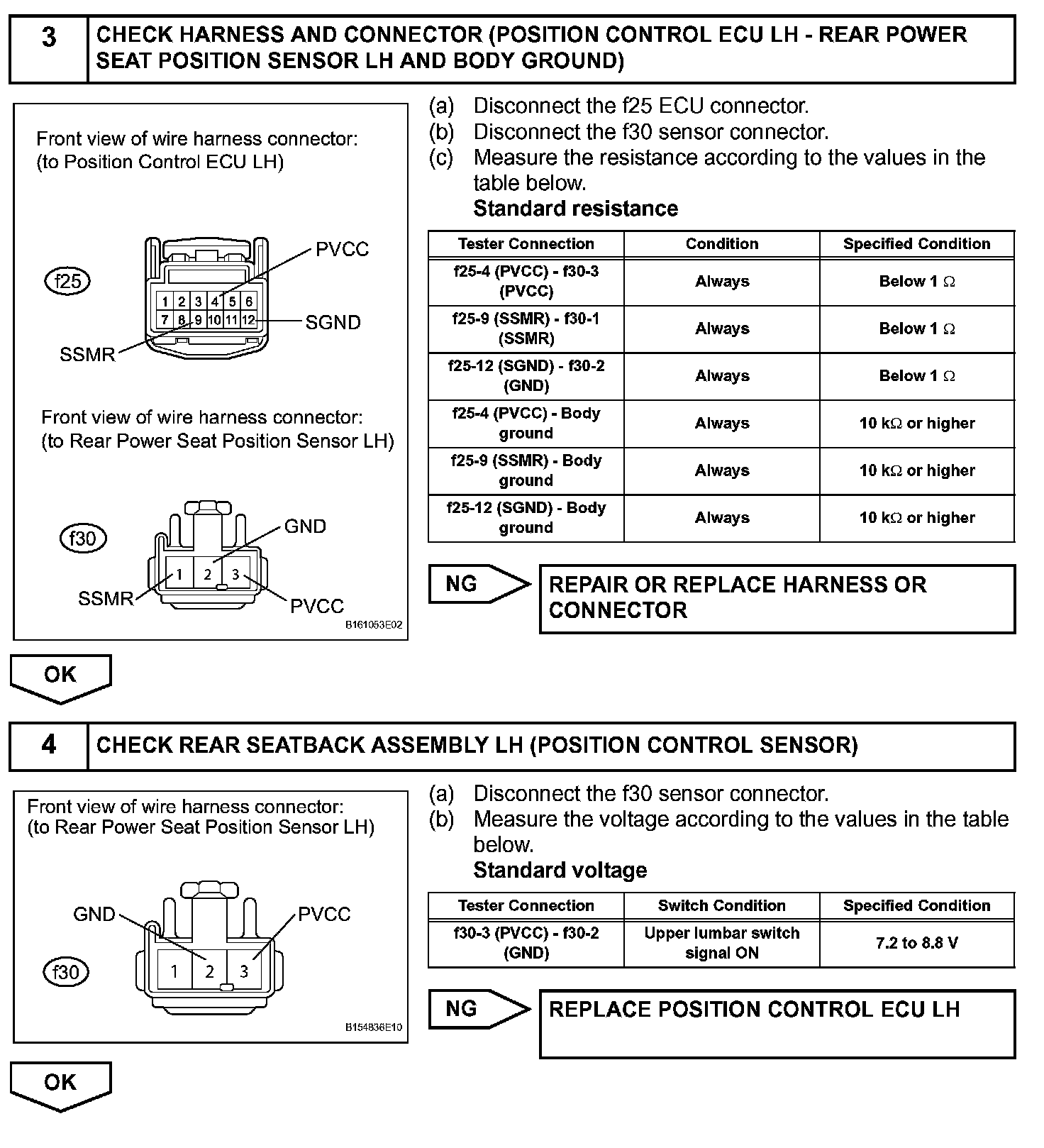

Step 3 - 4:

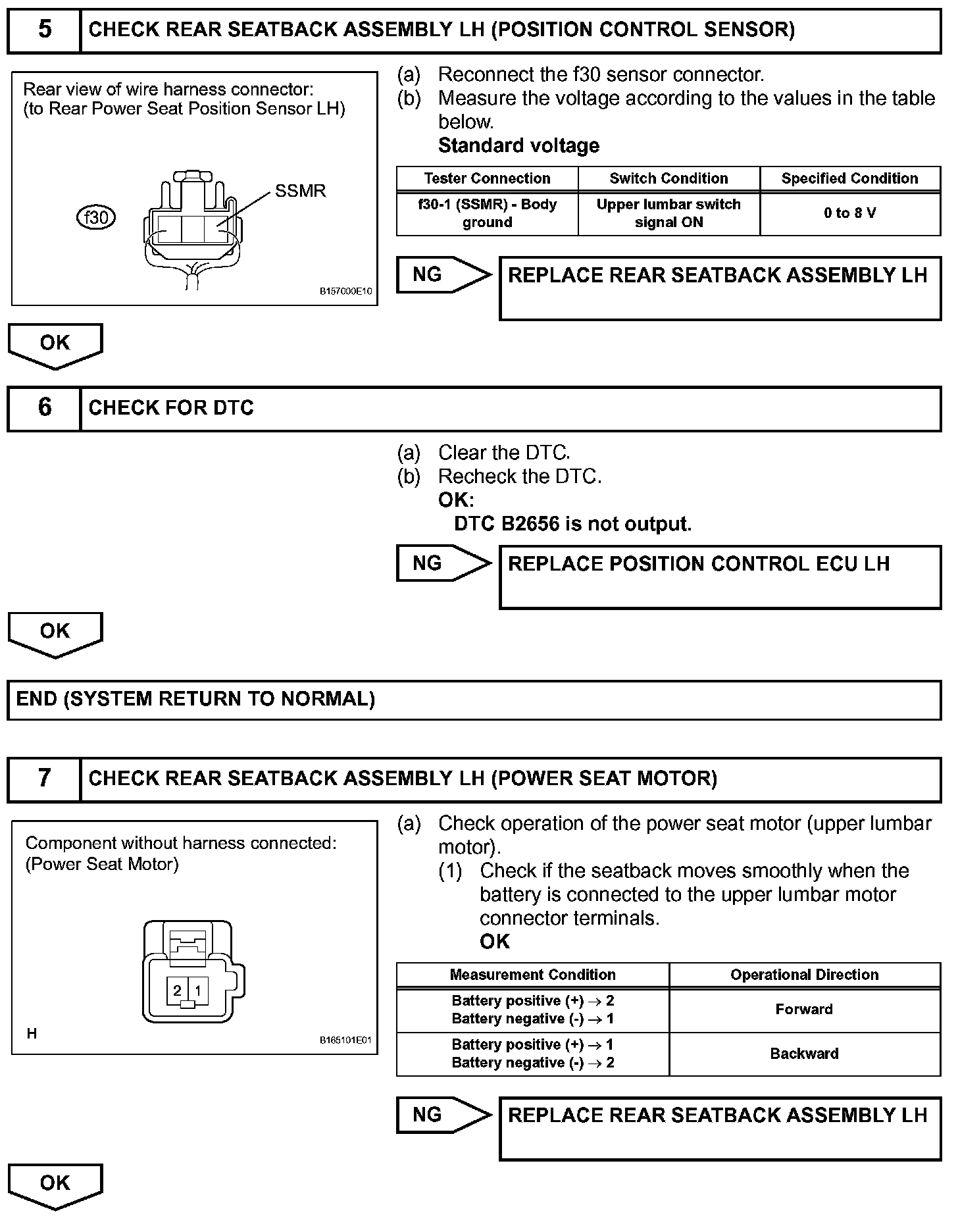

Step 5 - 7:

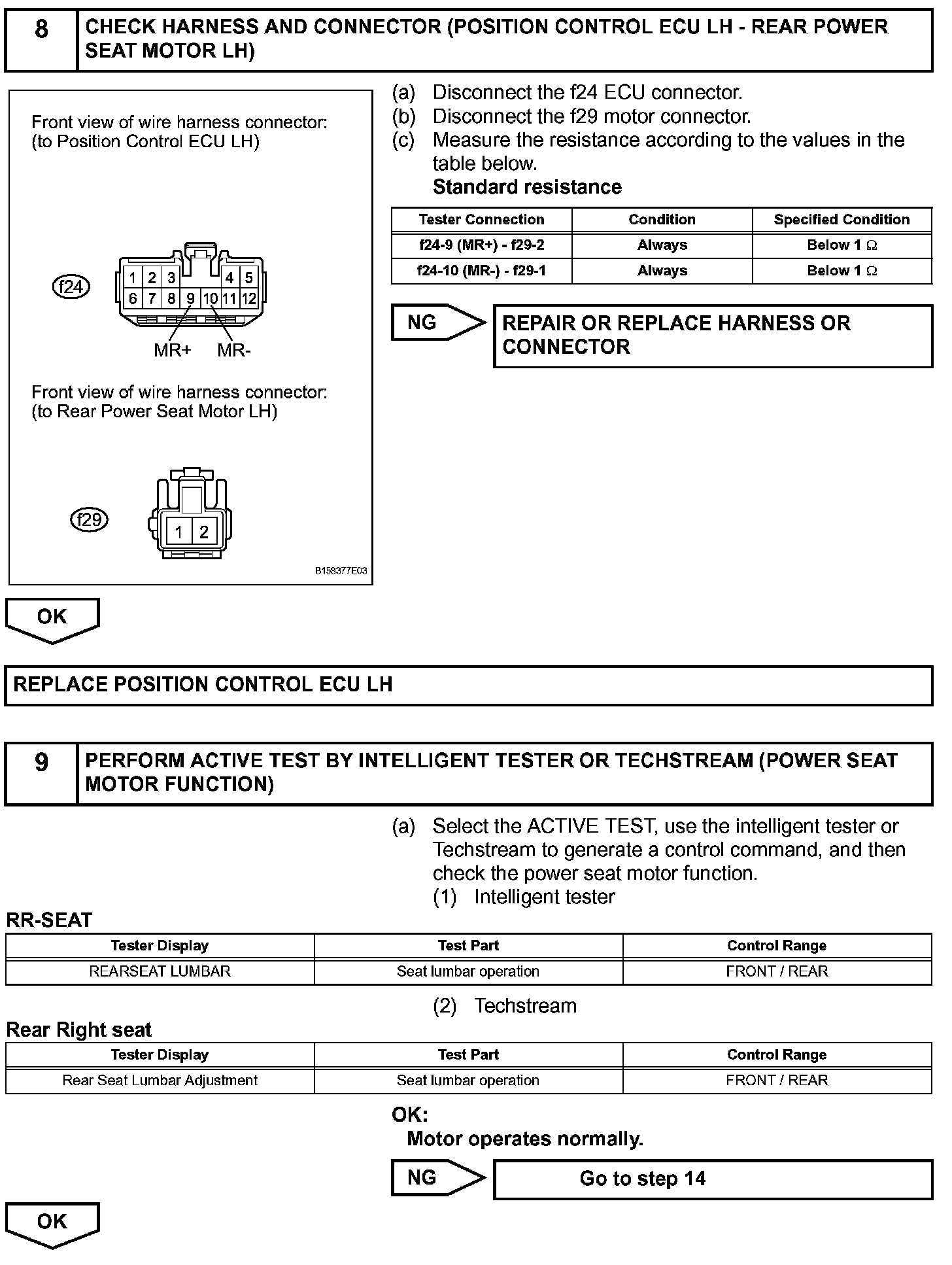

Step 8 - 9:

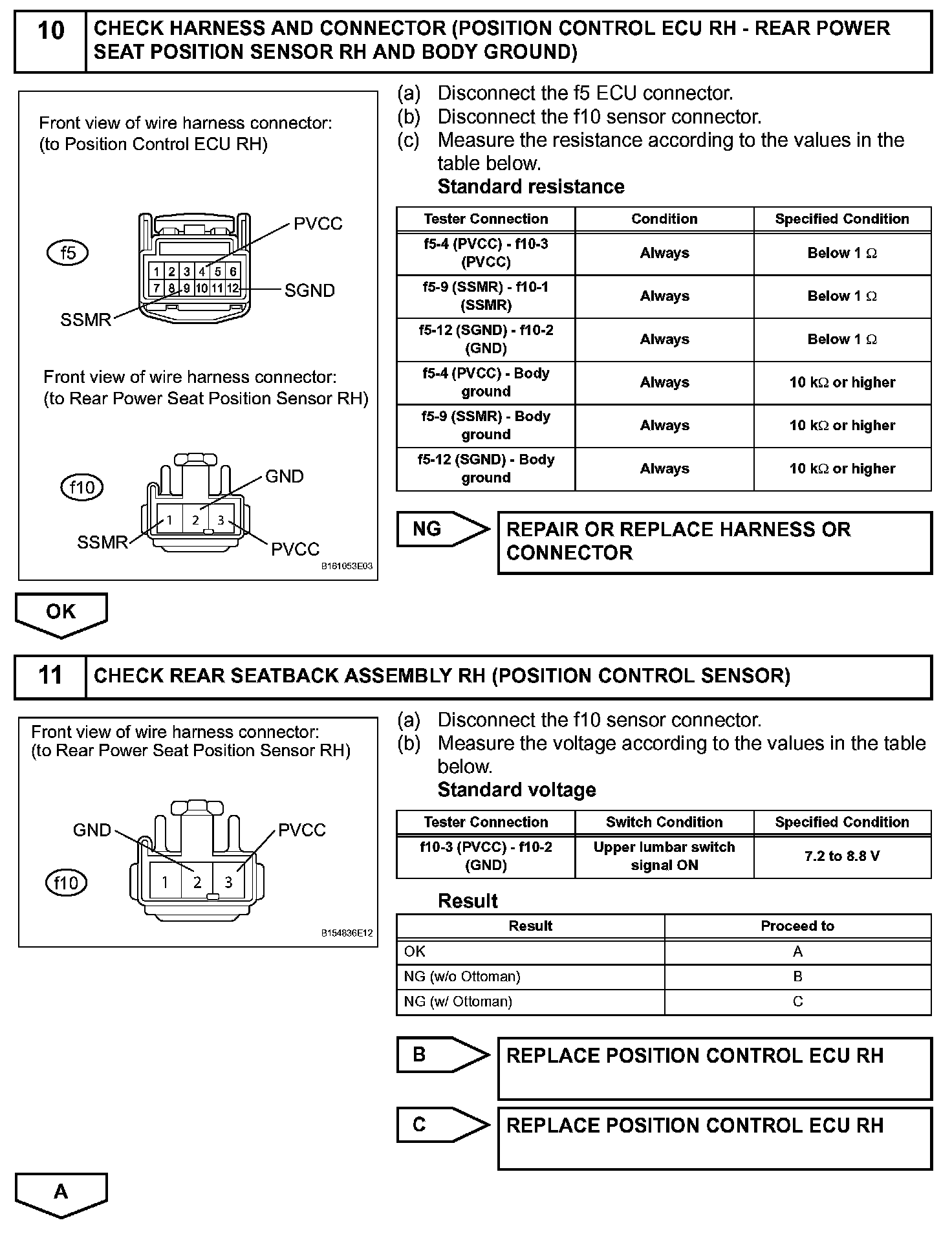

Step 10 - 11:

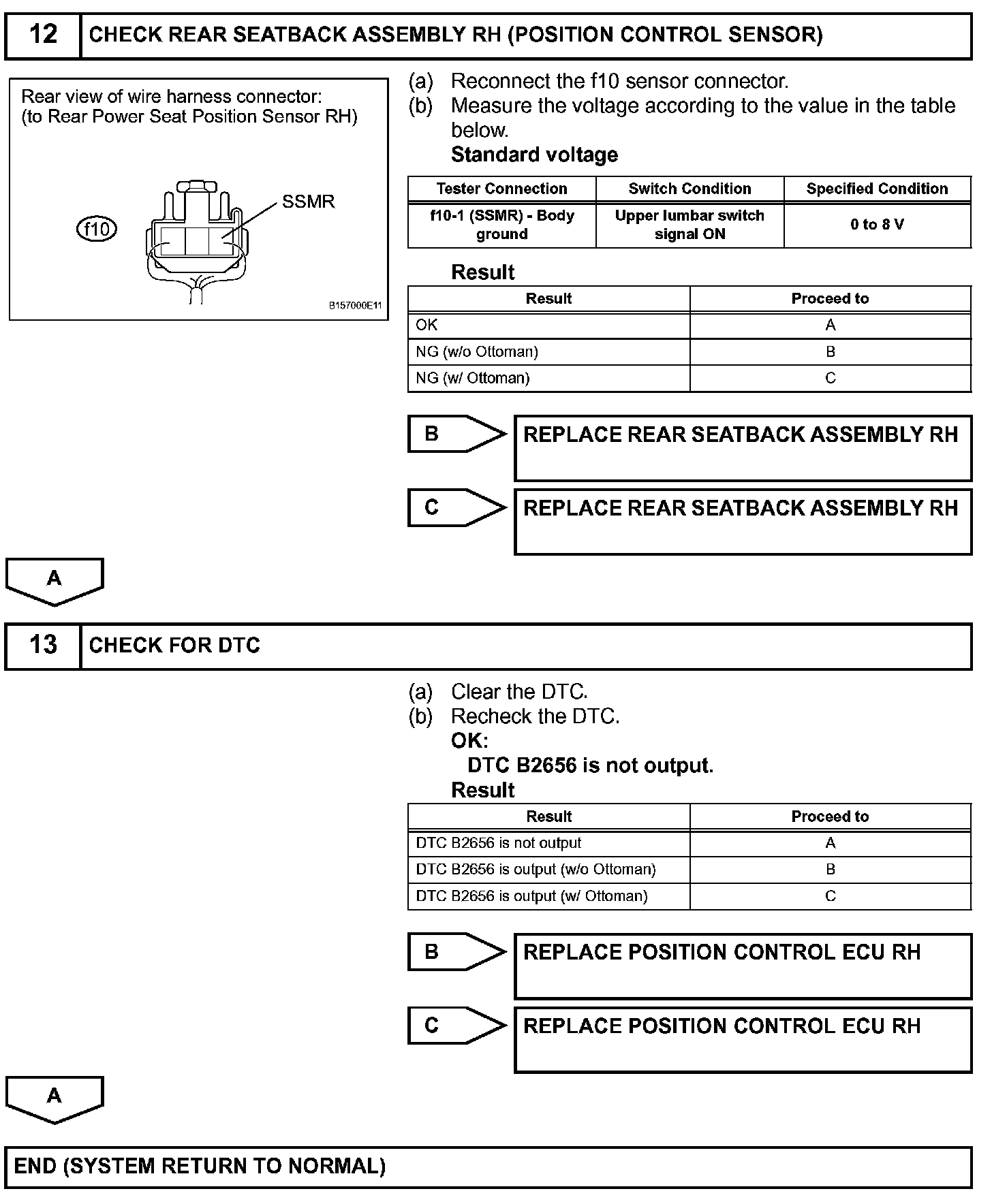

Step 12 - 13:

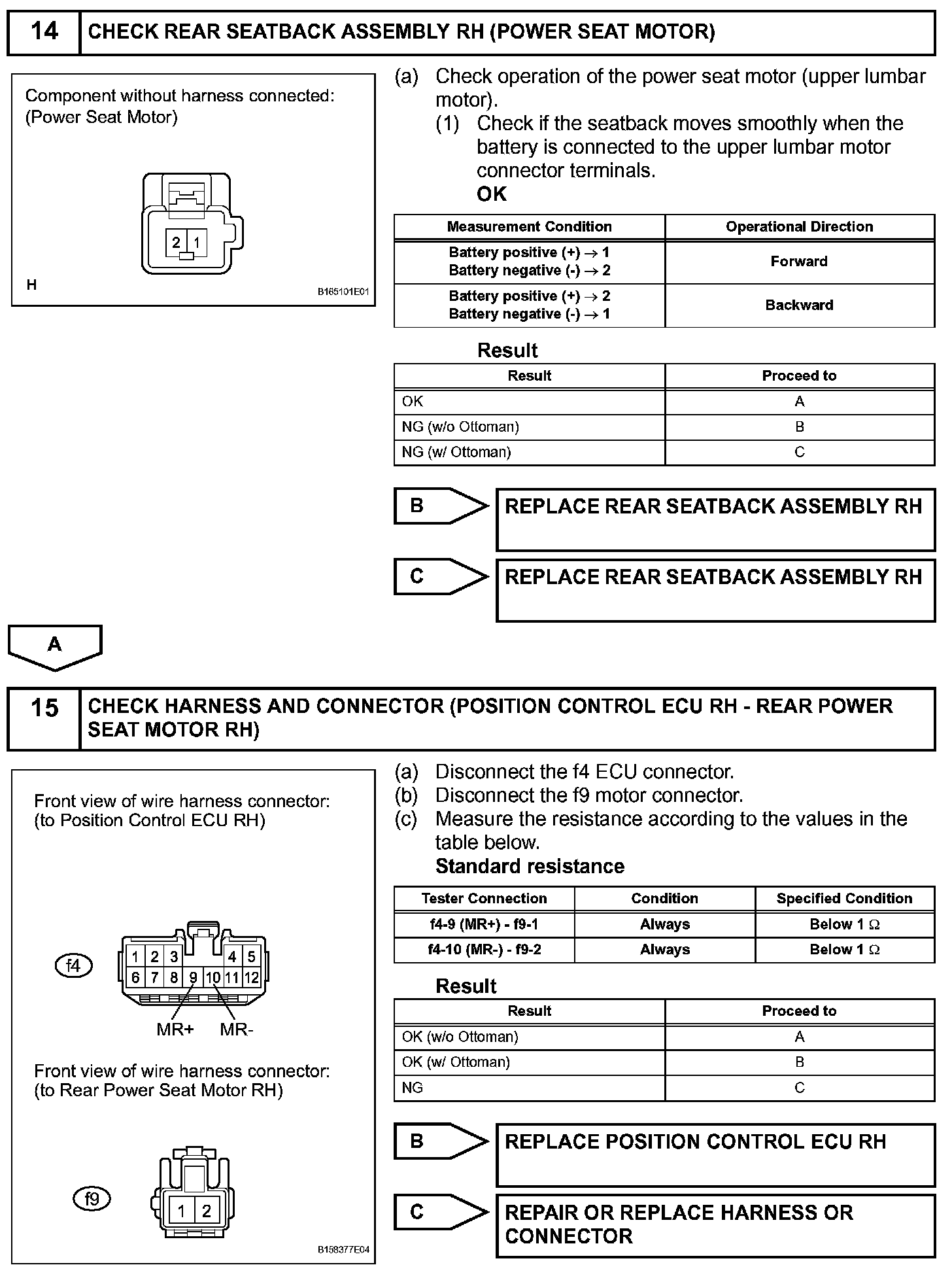

Step 14 - 15:

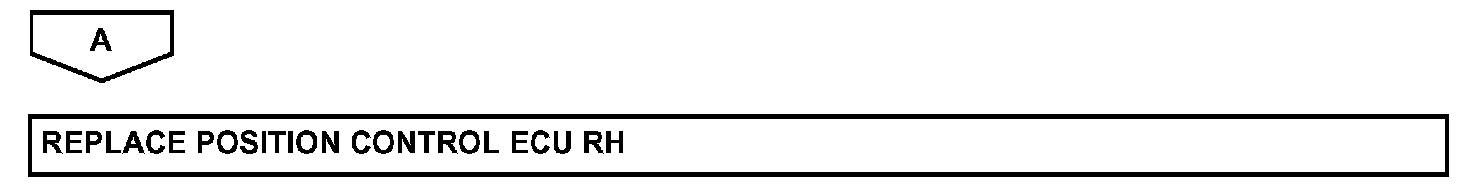

Step 15(Continued):
