Rear Power Seat Control System

DTC B2654 Headrest Sensor Malfunction

DESCRIPTION
When the position control ECU does not receive a sensor signal despite forward or backward movement of seat by power seat motor operation, this DTC is output.

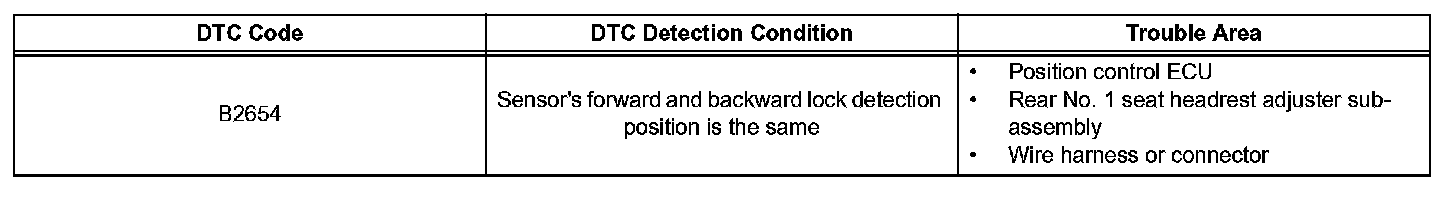

DTC Detection Condition:

WIRING DIAGRAM

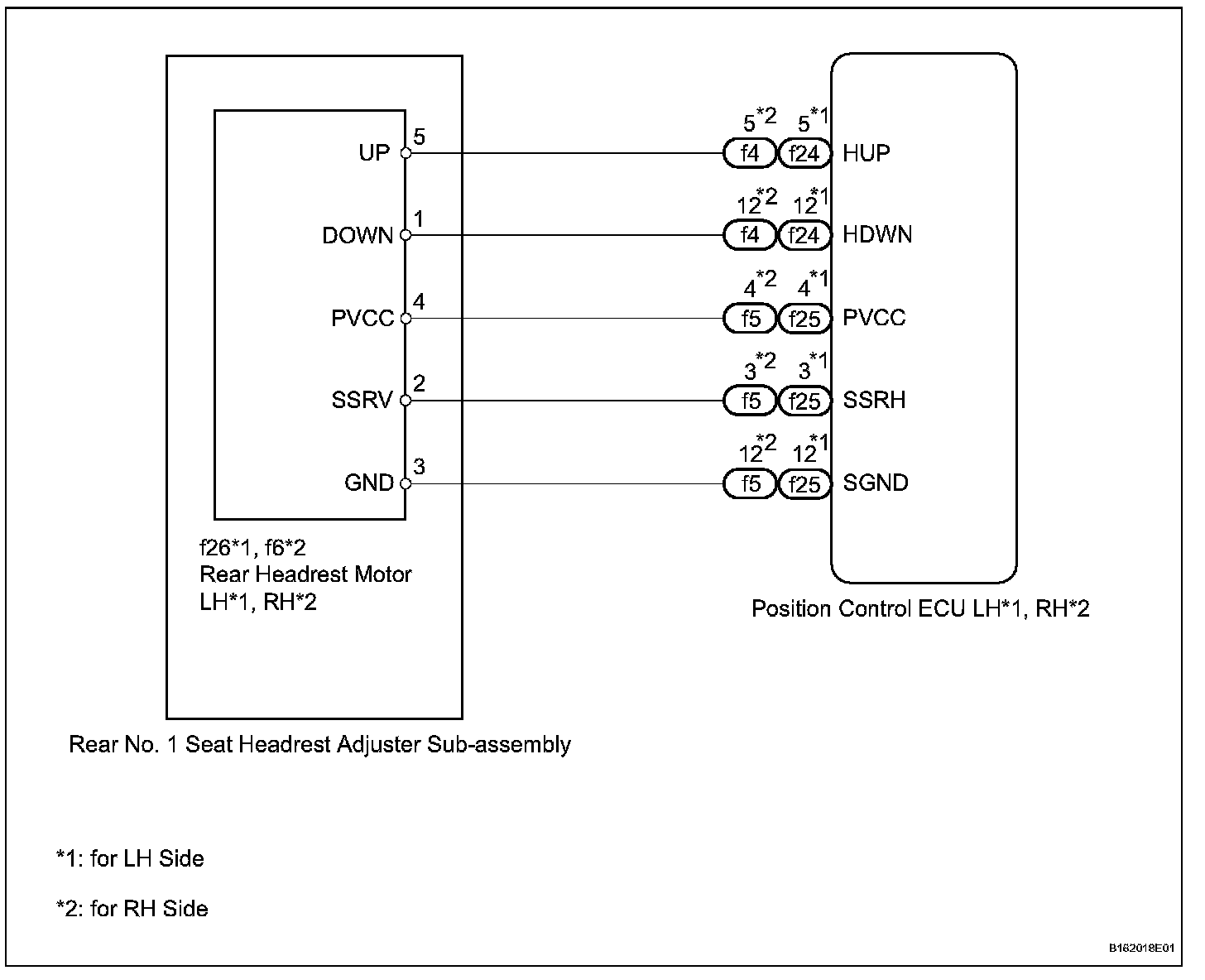

Wiring Diagram:

INSPECTION PROCEDURE

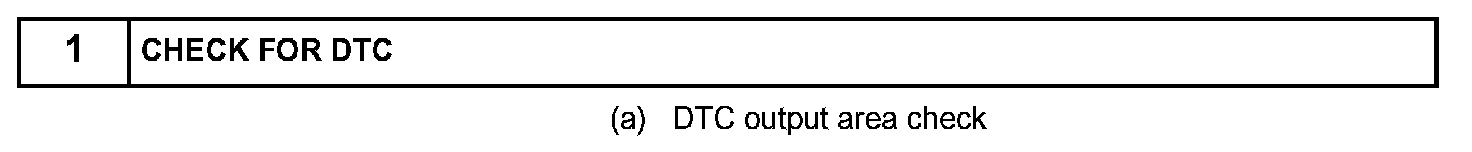

Step 1:

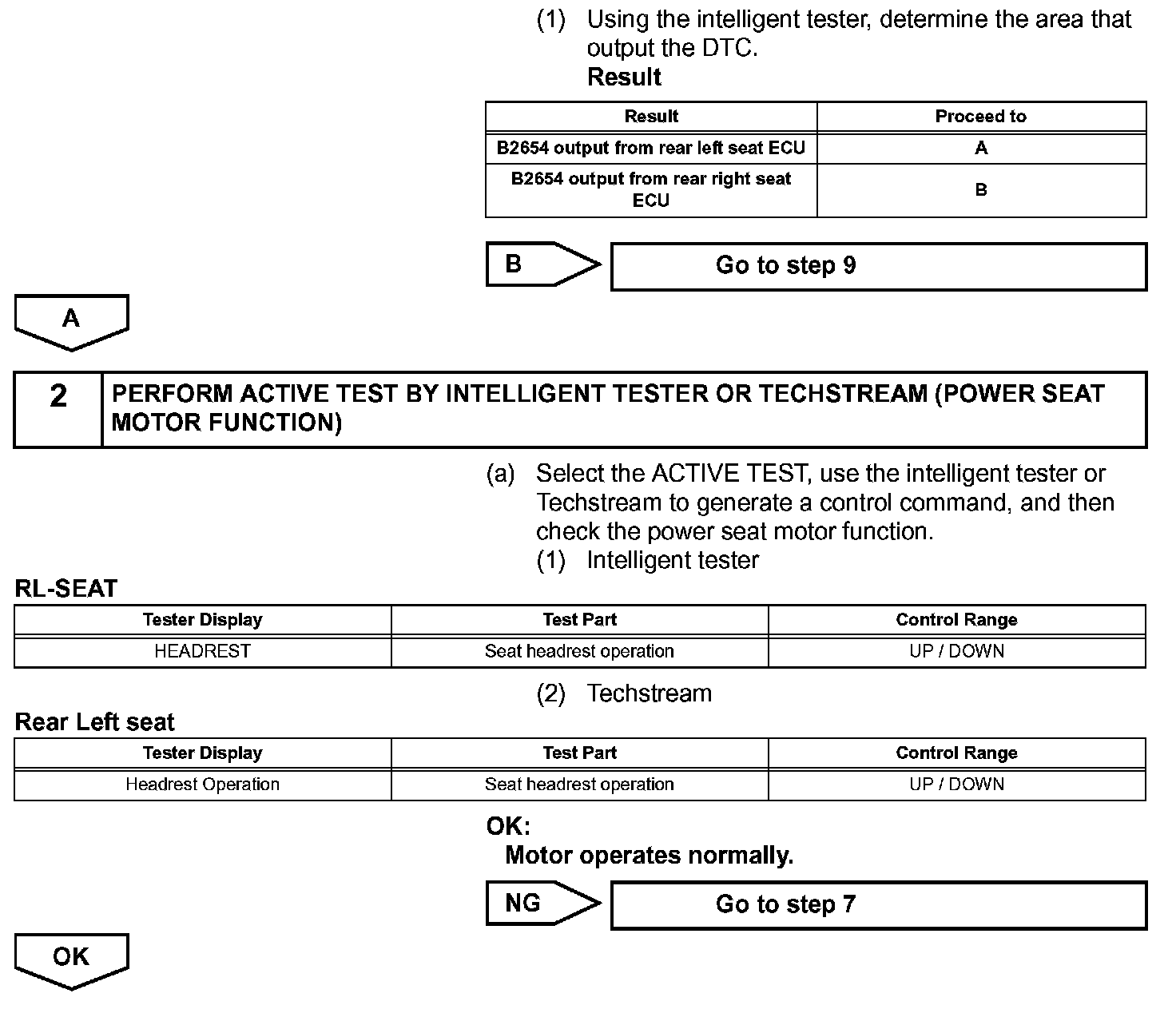

Step 1(Continued) - 2:

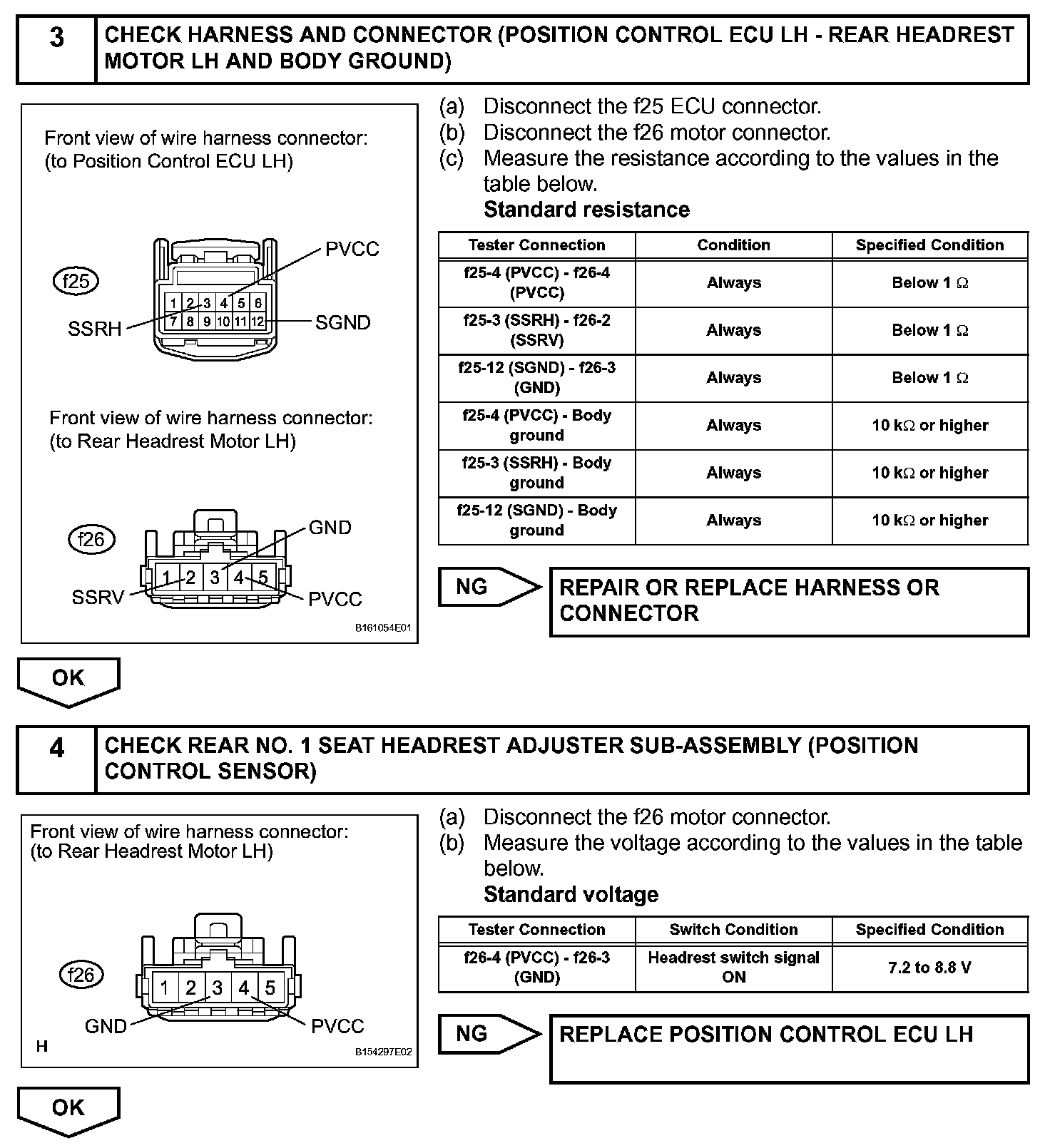

Step 3 - 4:

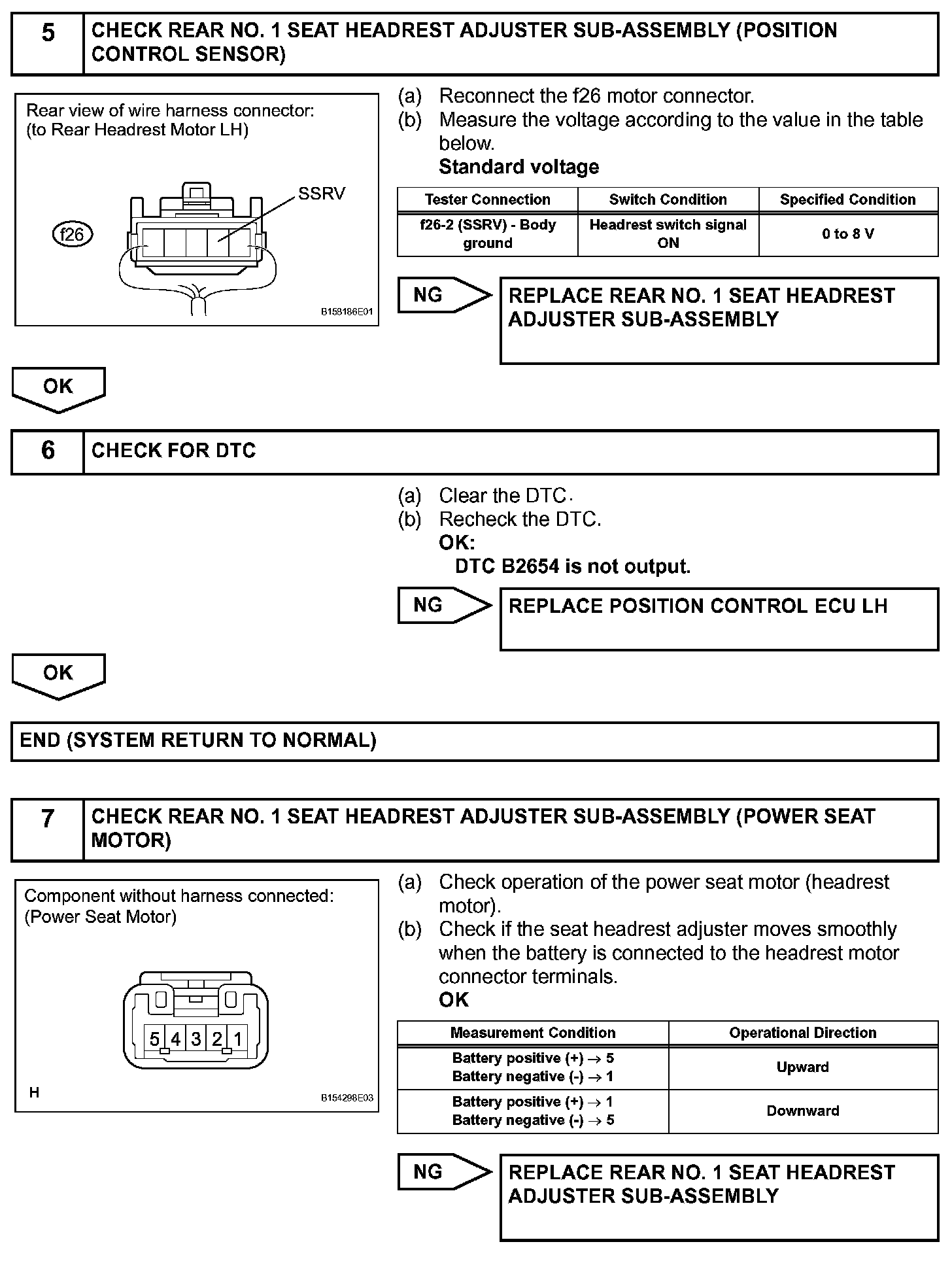

Step 5 - 7:

Step 7(Continued) - 9:

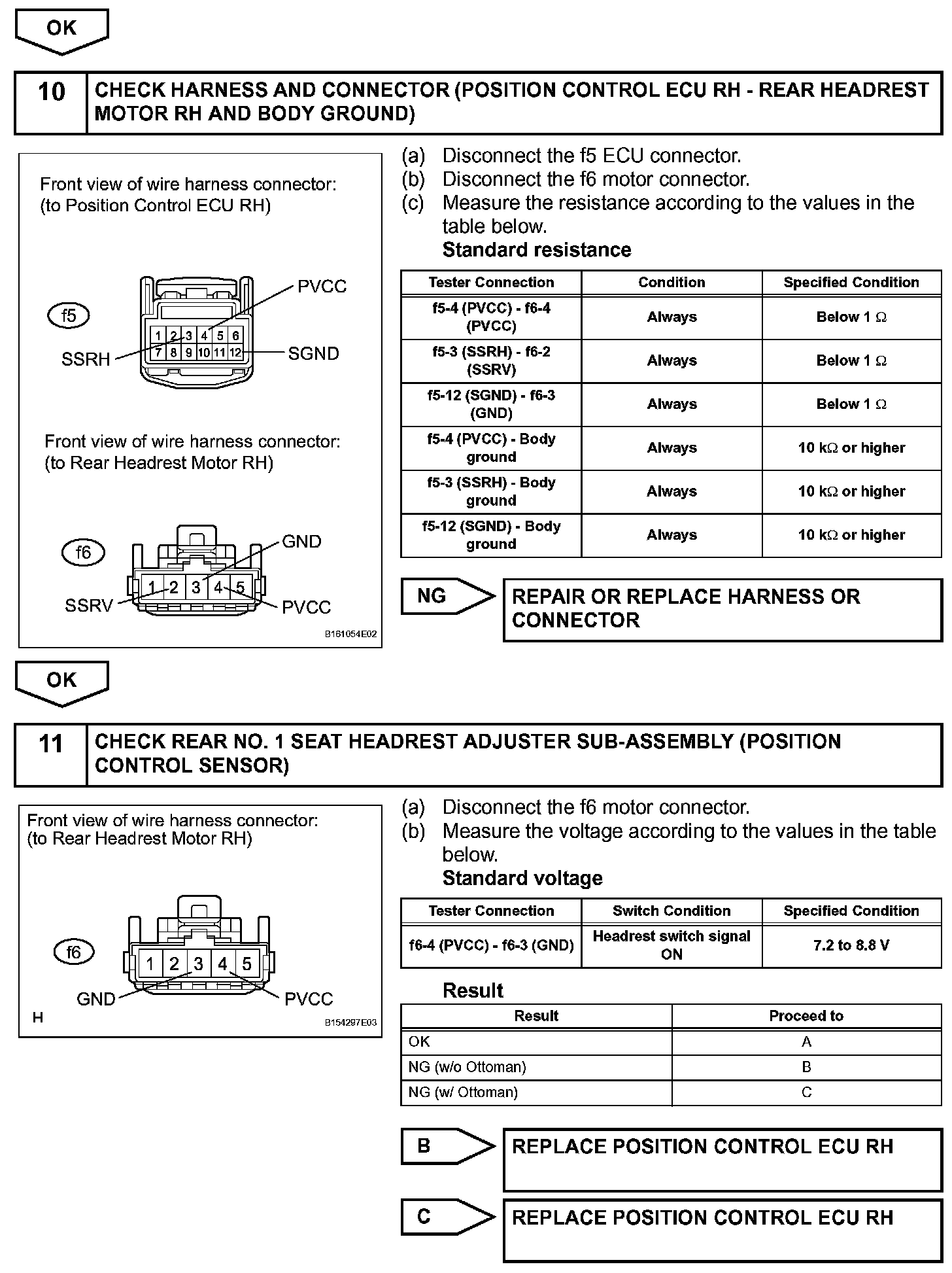

Step 9(Continued) - 11:

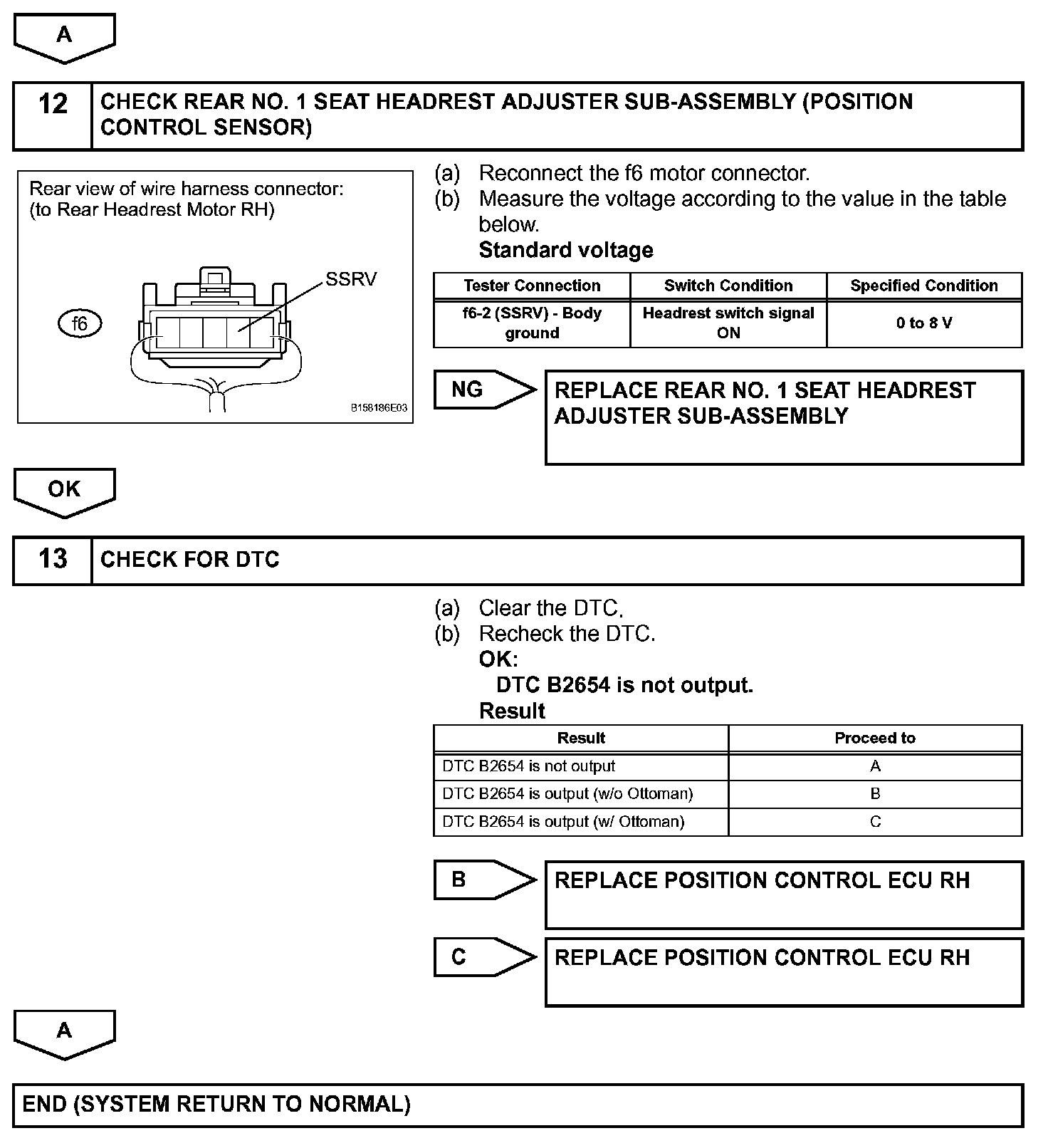

Step 11(Continued) - 13:

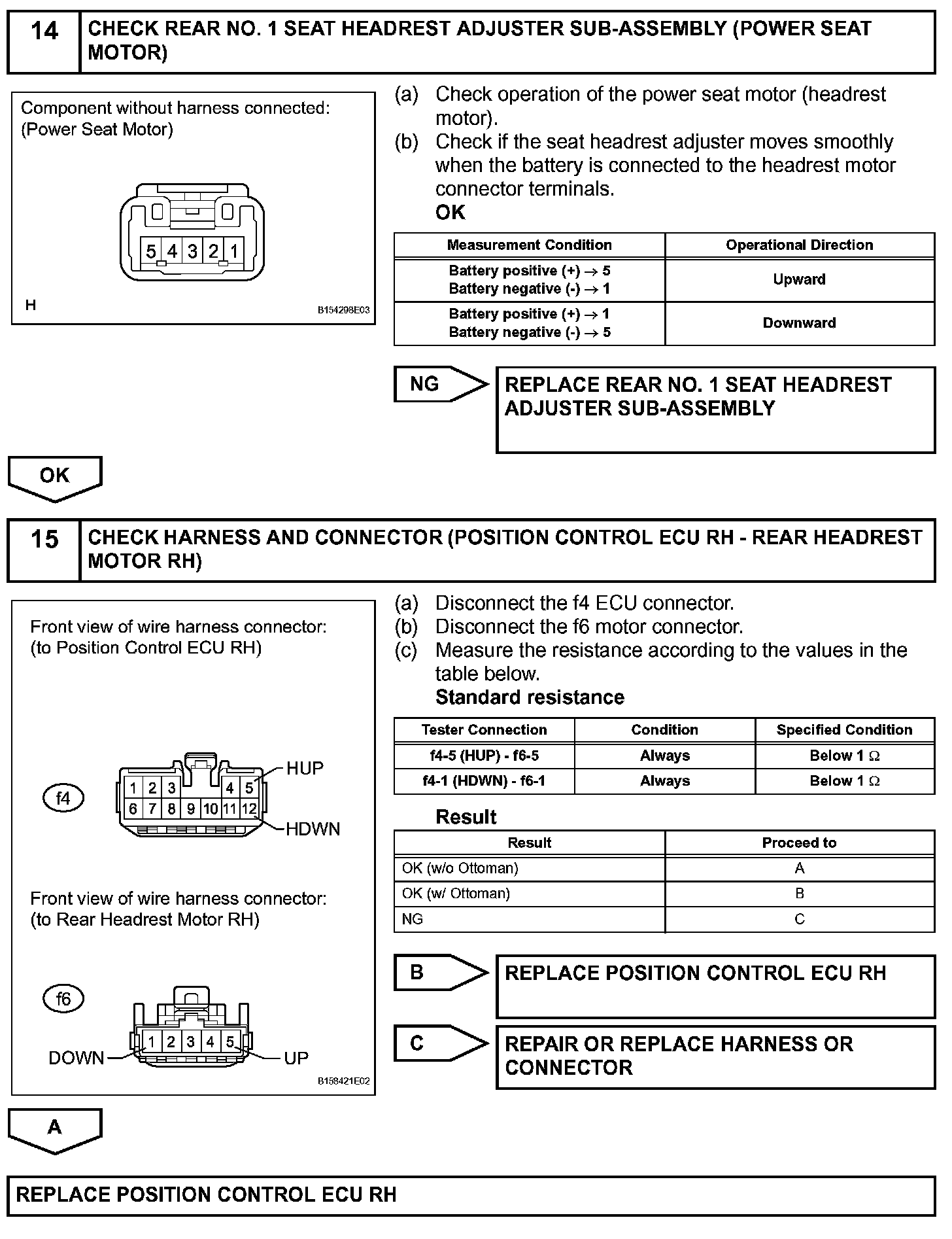

Step 14 - 15:
