Front Power Seat Control System

DTC B2654 Headrest Sensor Malfunction

DESCRIPTION
When the front power seat switch (seat ECU) does not receive a sensor signal despite forward or backward movement of seat by power seat motor operation, this DTC is output.

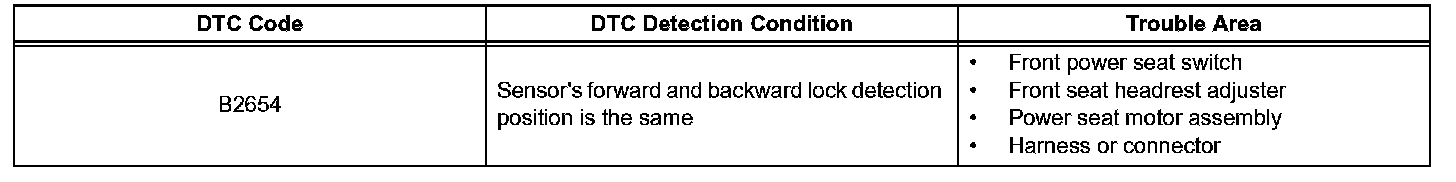

DTC Detection Condition:

WIRING DIAGRAM

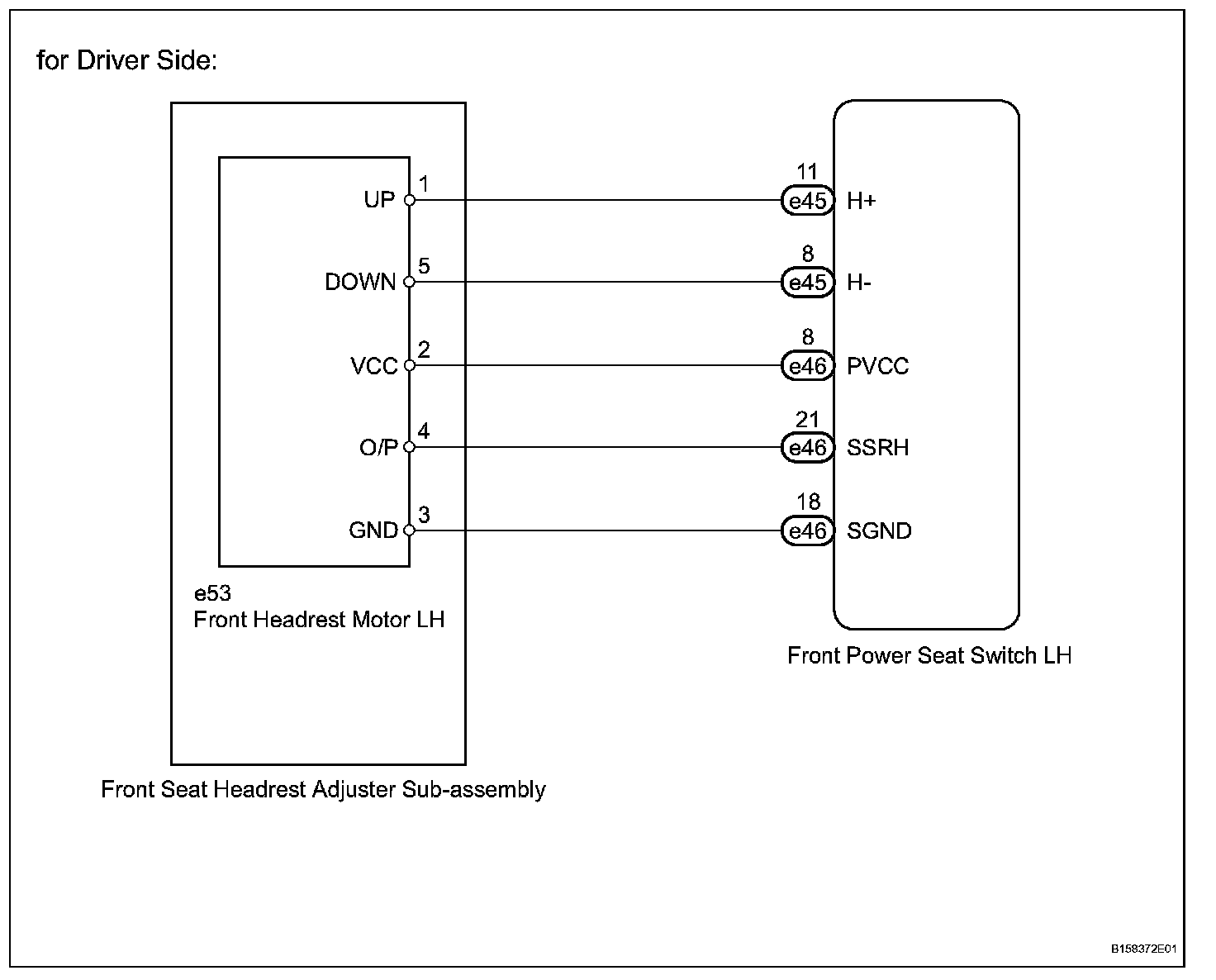

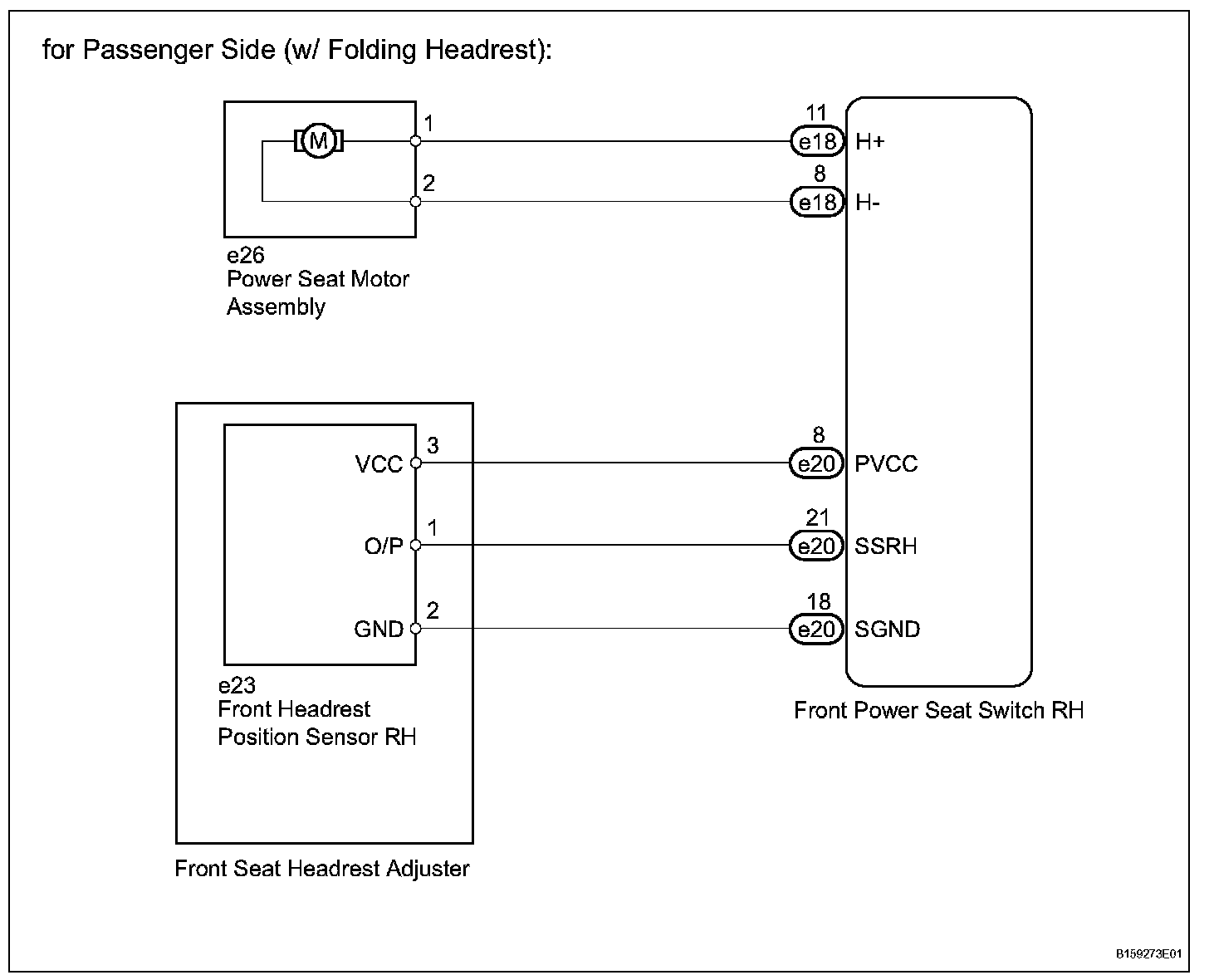

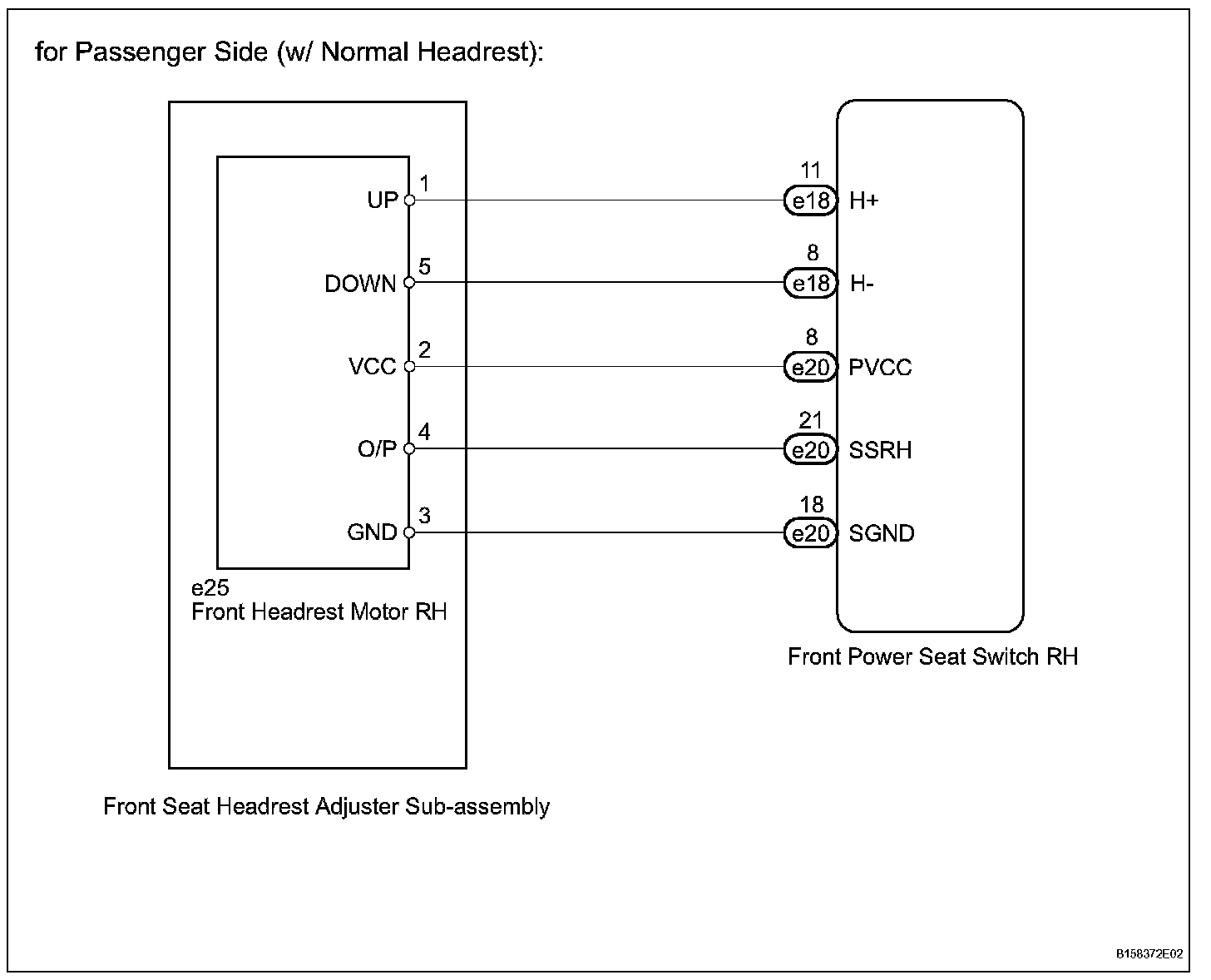

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

INSPECTION PROCEDURE

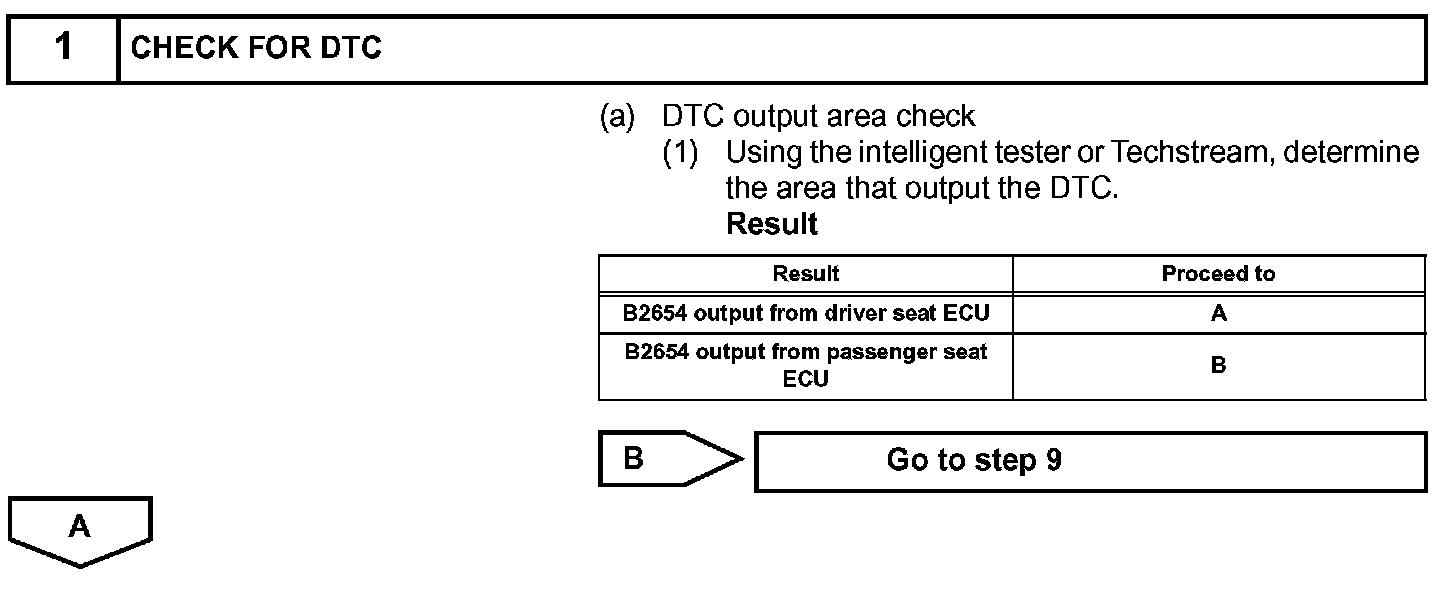

Step 1:

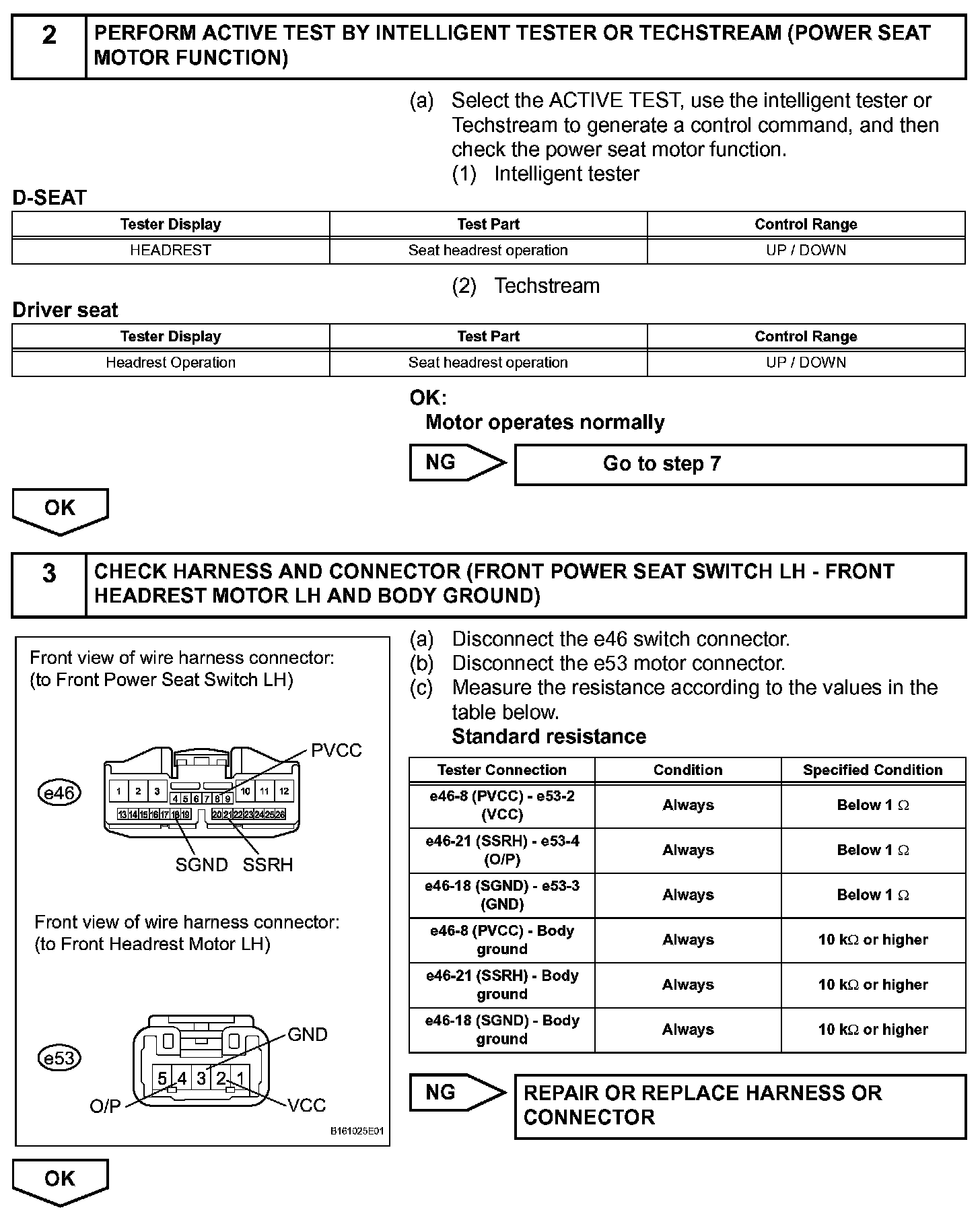

Step 2 - 3:

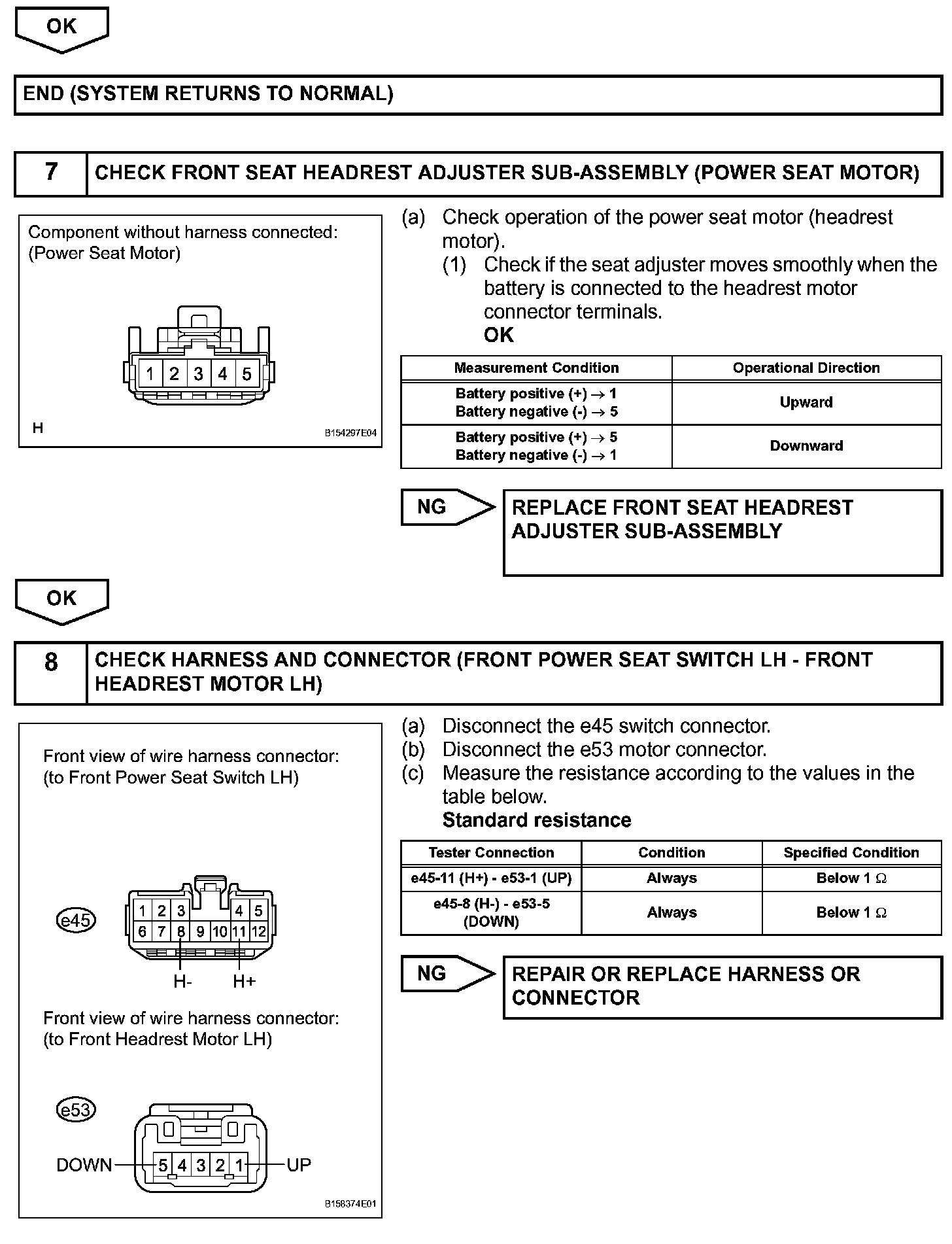

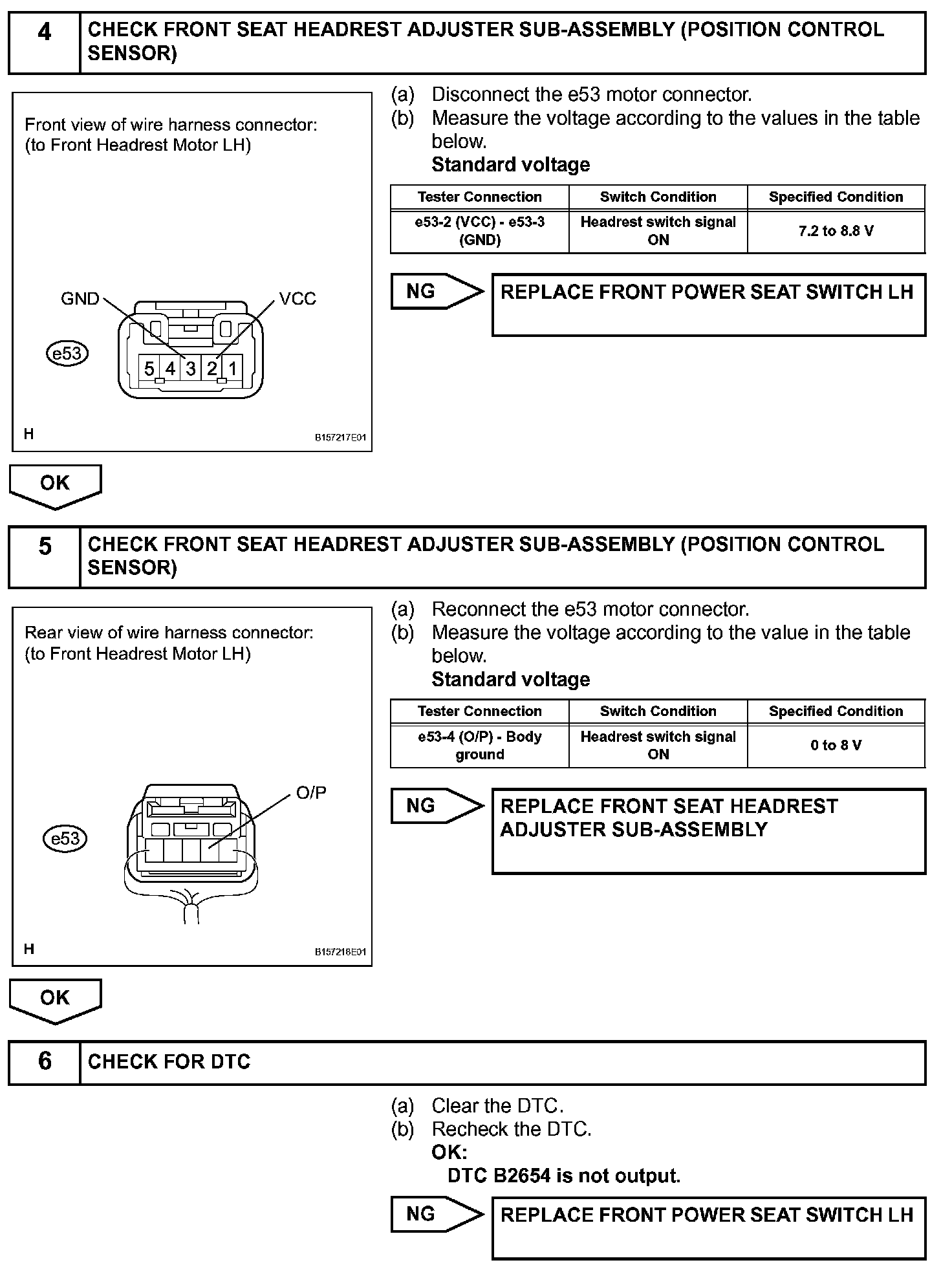

Step 4 - 6:

Step 6(Continued) - 8:

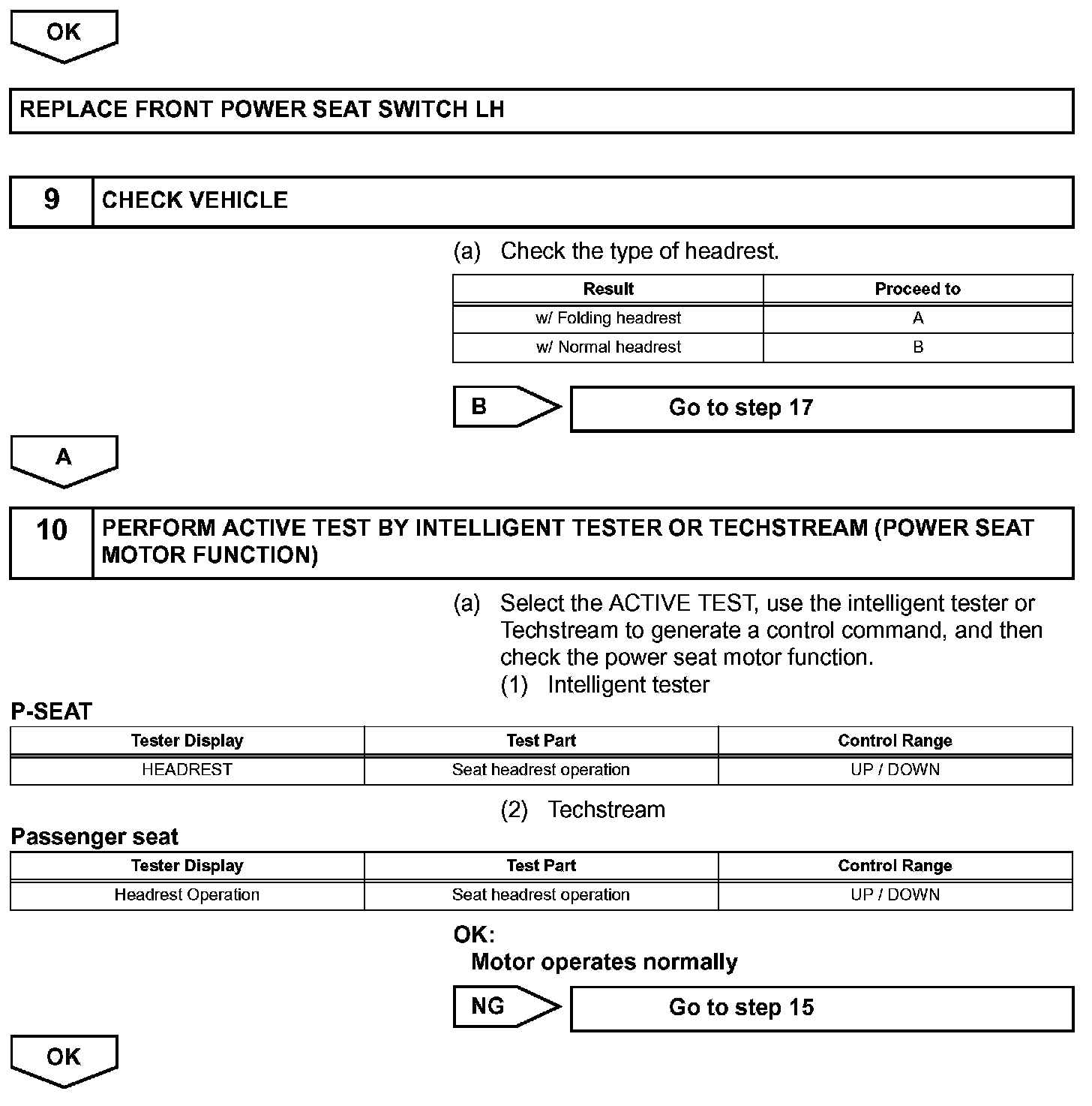

Step 8(Continued) - 10:

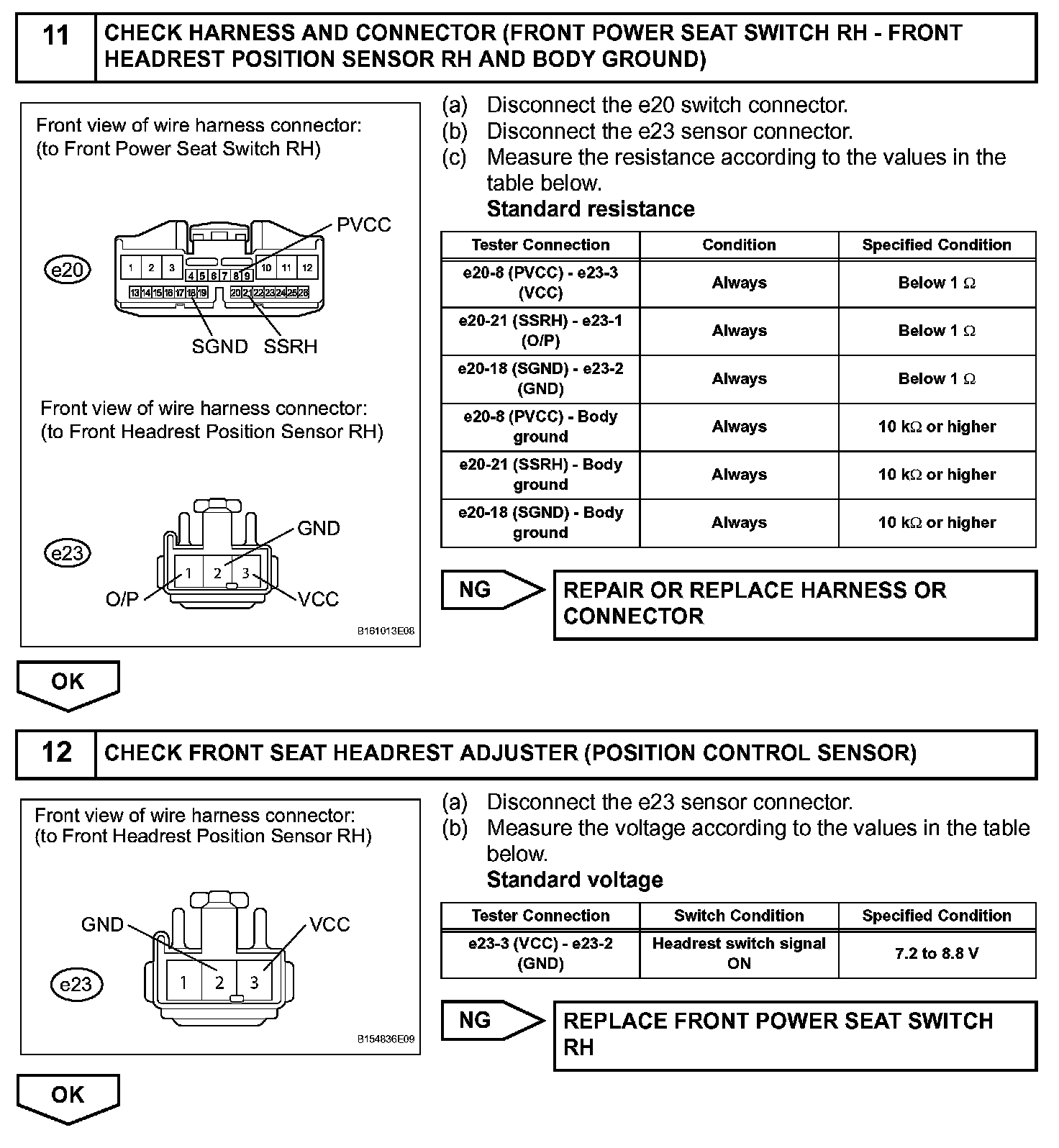

Step 11 - 12:

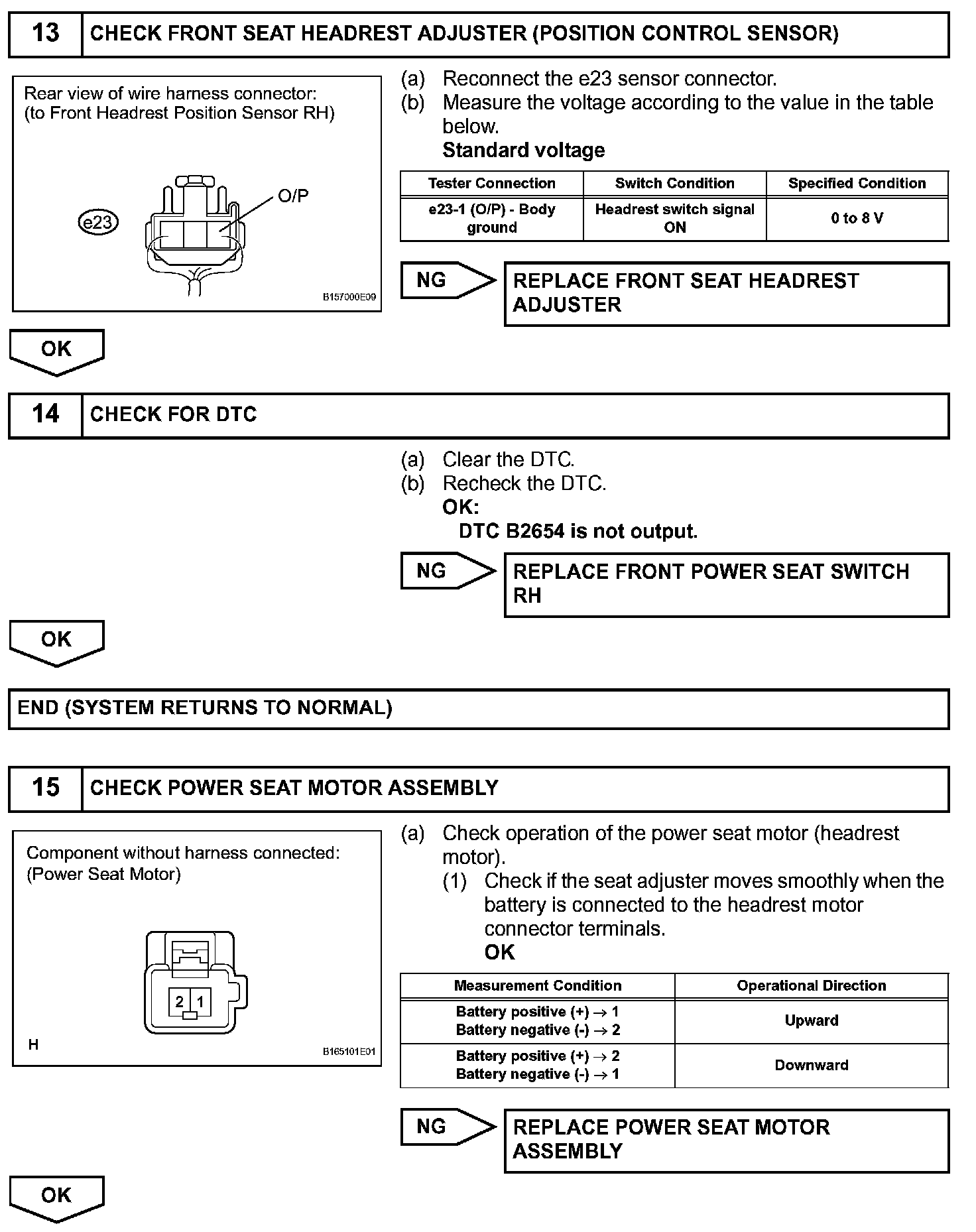

Step 13 - 15:

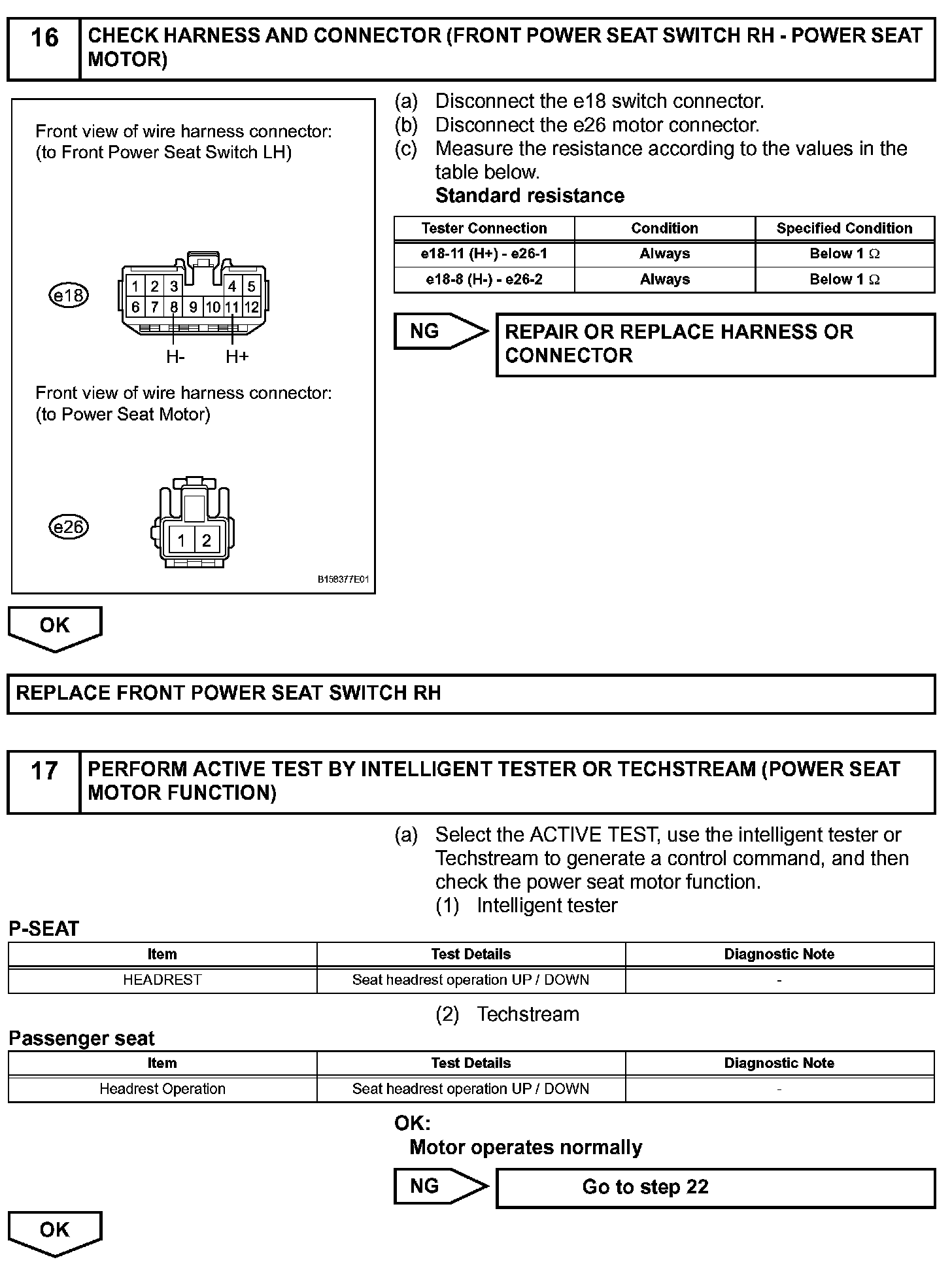

Step 16 - 17:

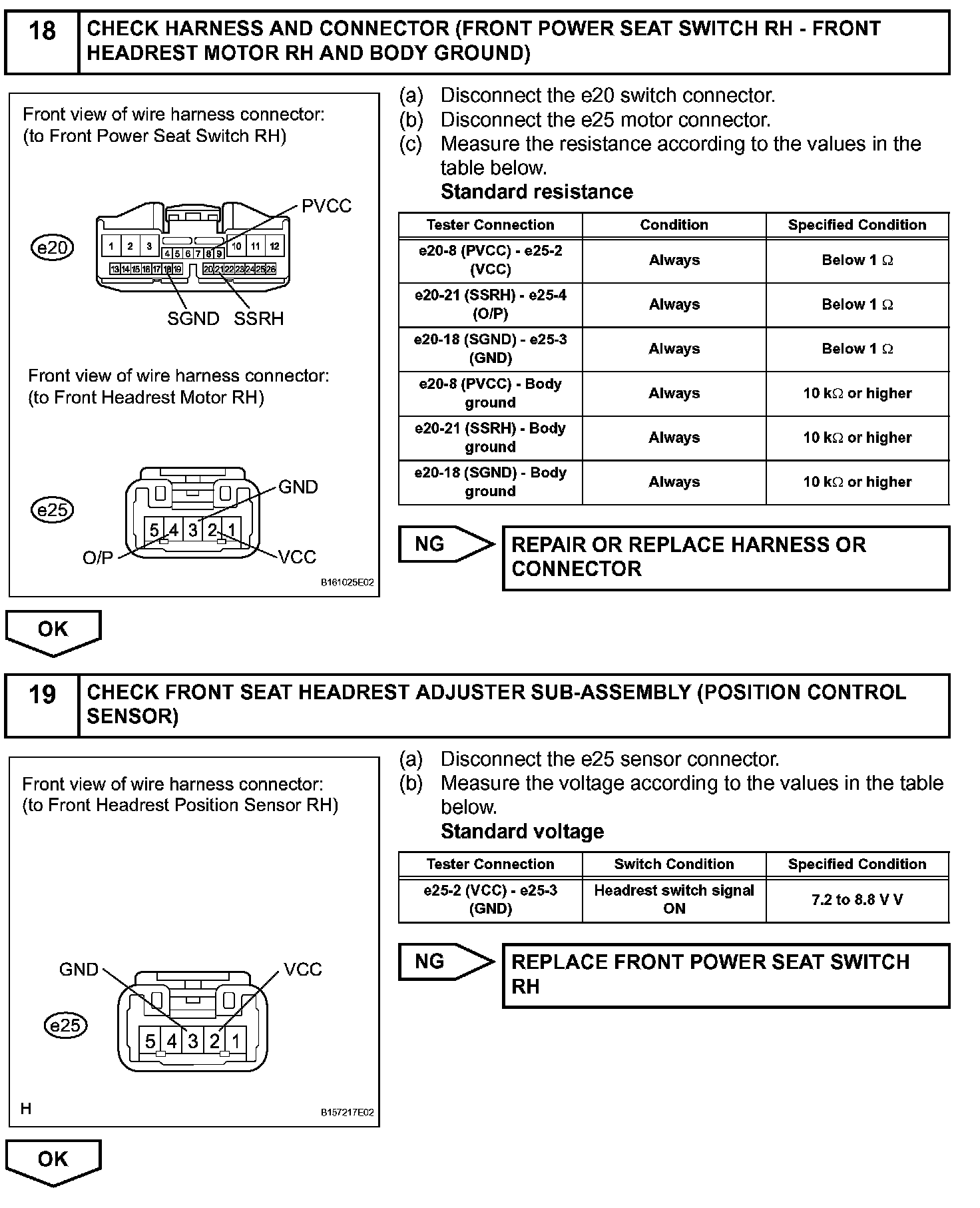

Step 18 - 19:

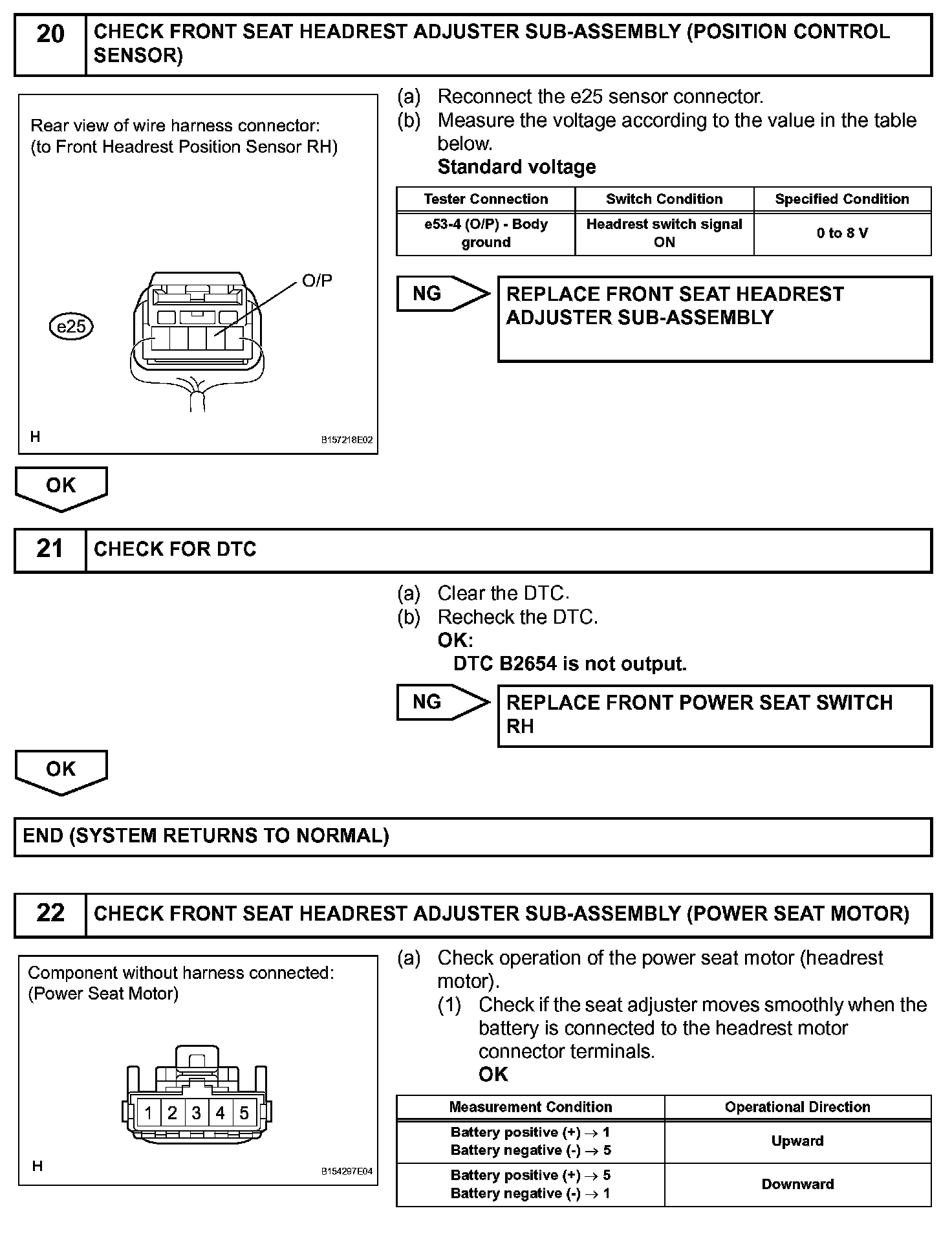

Step 20 - 22:

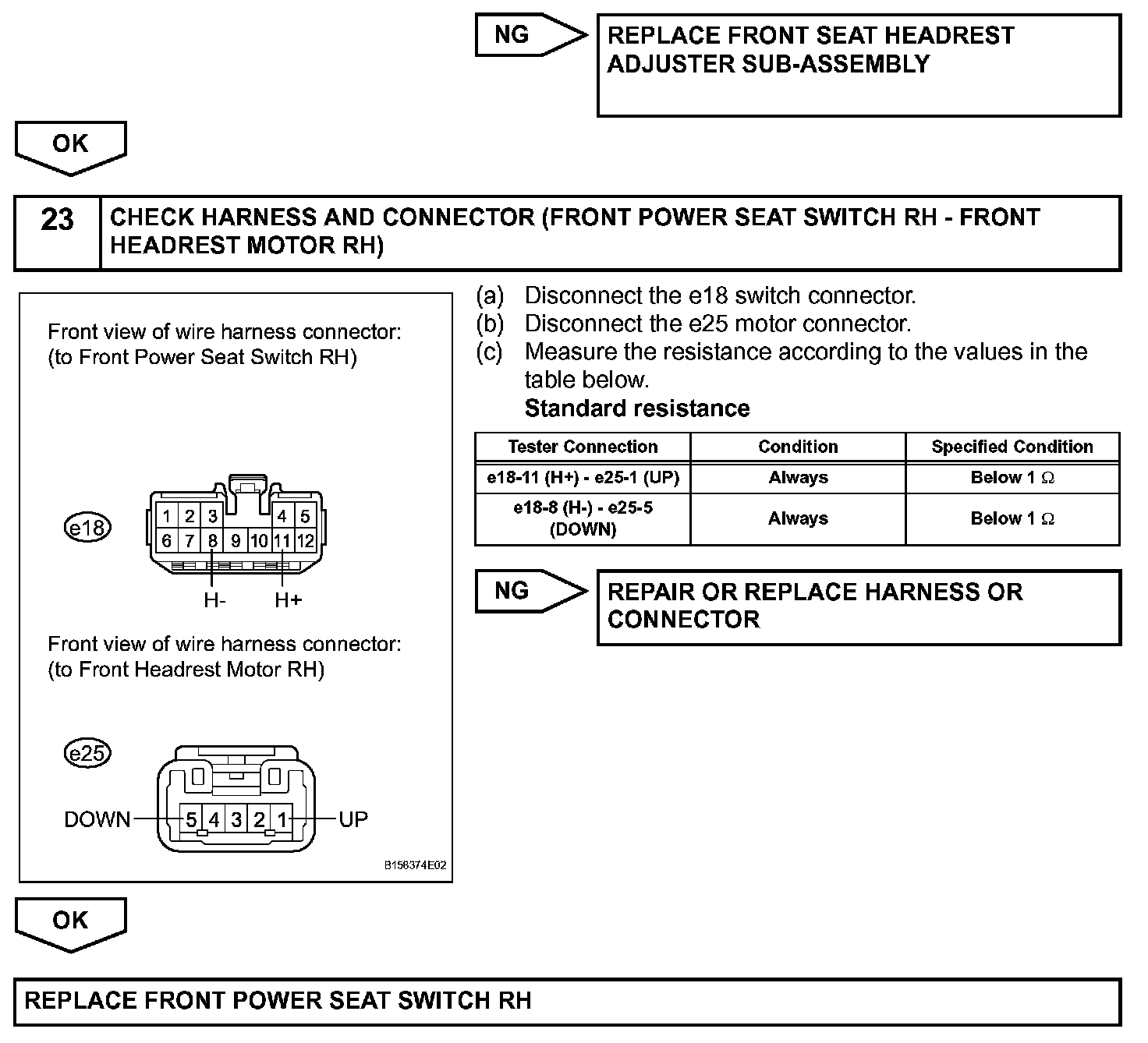

Step 22(Continued) - 23:
