Rear Power Seat Control System
DTC B2651 Reclining Sensor MalfunctionDESCRIPTION
When the position control ECU does not receive a sensor signal despite forward or backward movement of seat by power seat motor operation, this DTC is output.

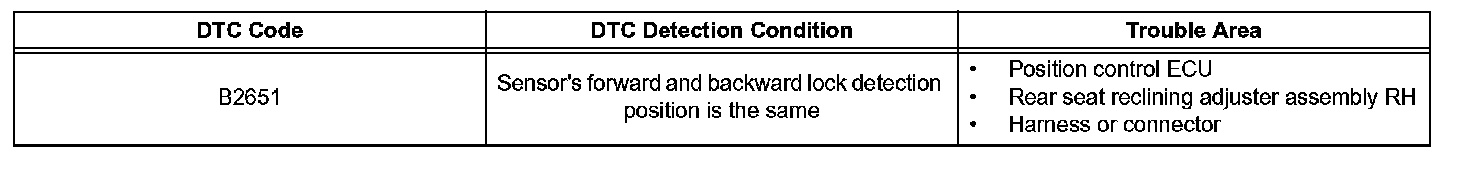

DTC Detection Condition:
WIRING DIAGRAM
Wiring Diagram:
INSPECTION PROCEDURE

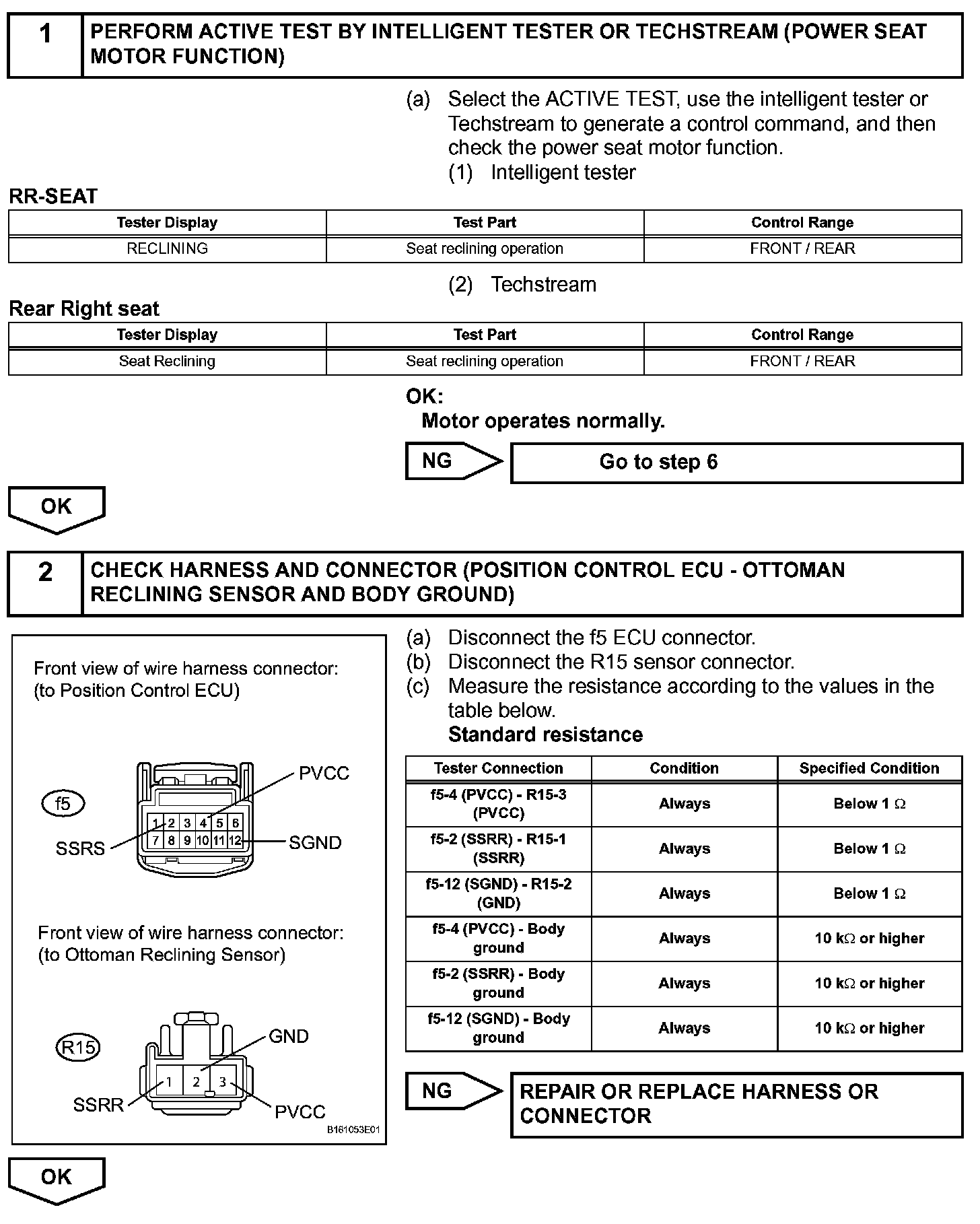

Step 1 - 2:

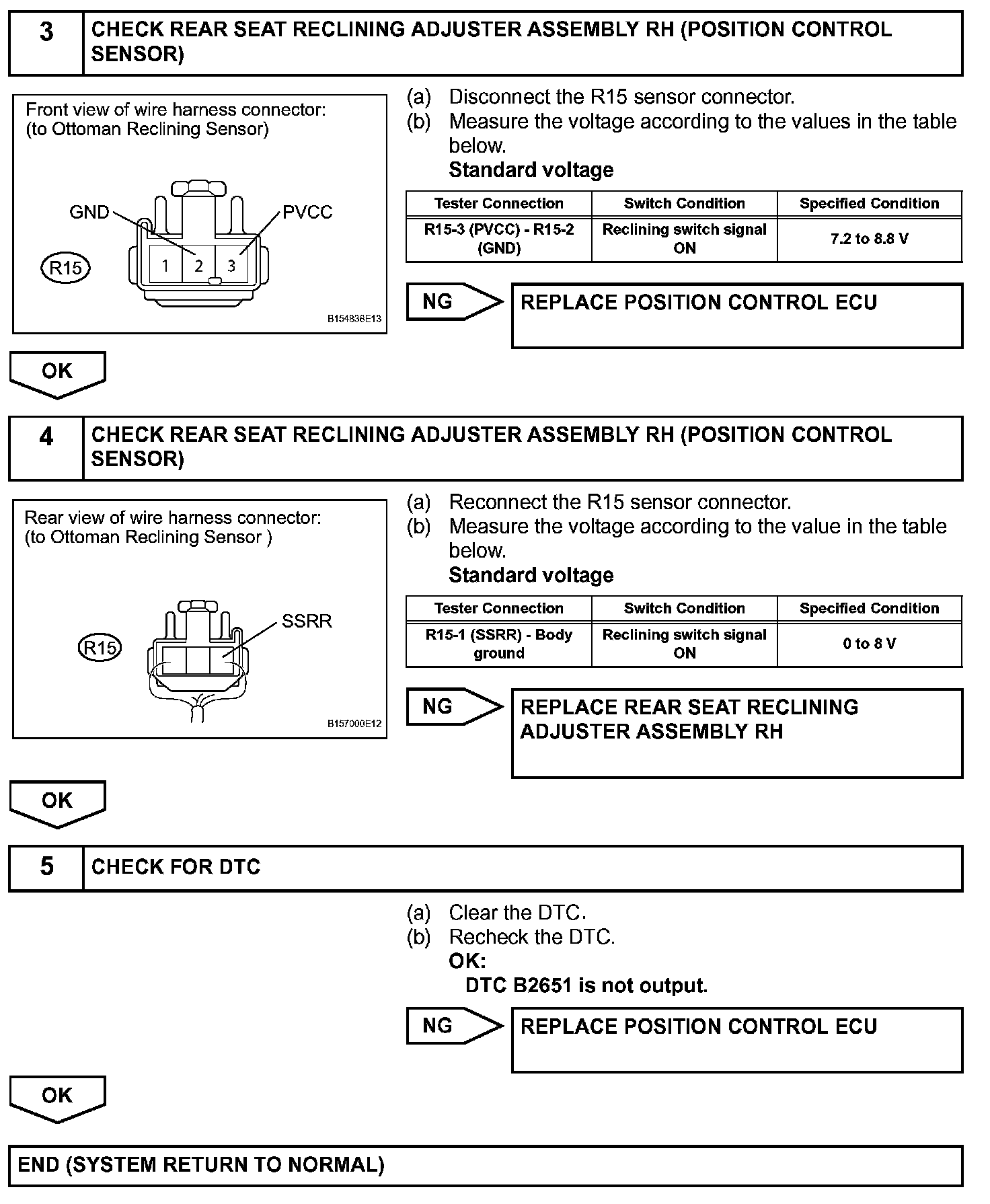

Step 3 - 5:

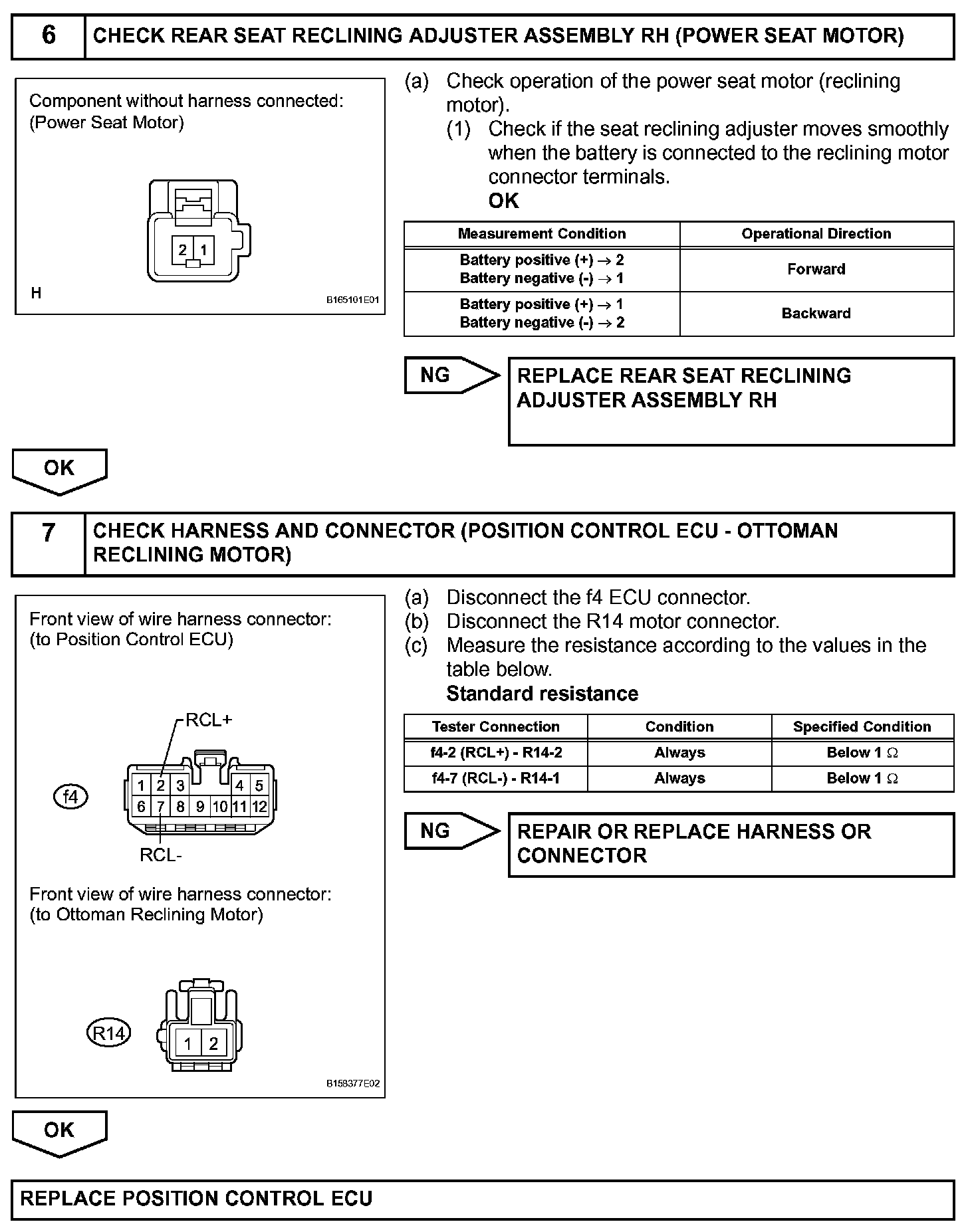

Step 6 - 7:
