Front Power Seat Control System

DTC B2651 Reclining Sensor Malfunction

DESCRIPTION
When the front power seat switch (seat ECU) does not receive a sensor signal despite forward or backward movement of seat by power seat motor operation, this DTC is output.

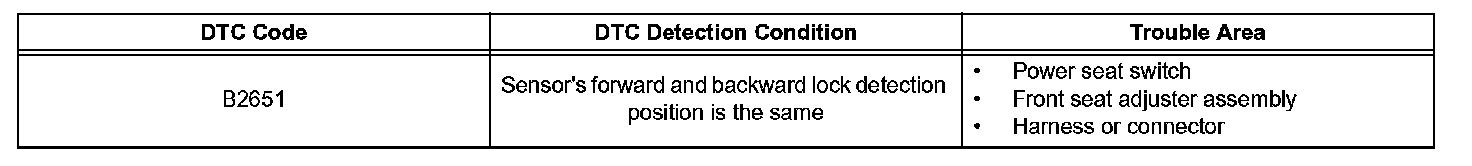

DTC Detection Condition:

WIRING DIAGRAM

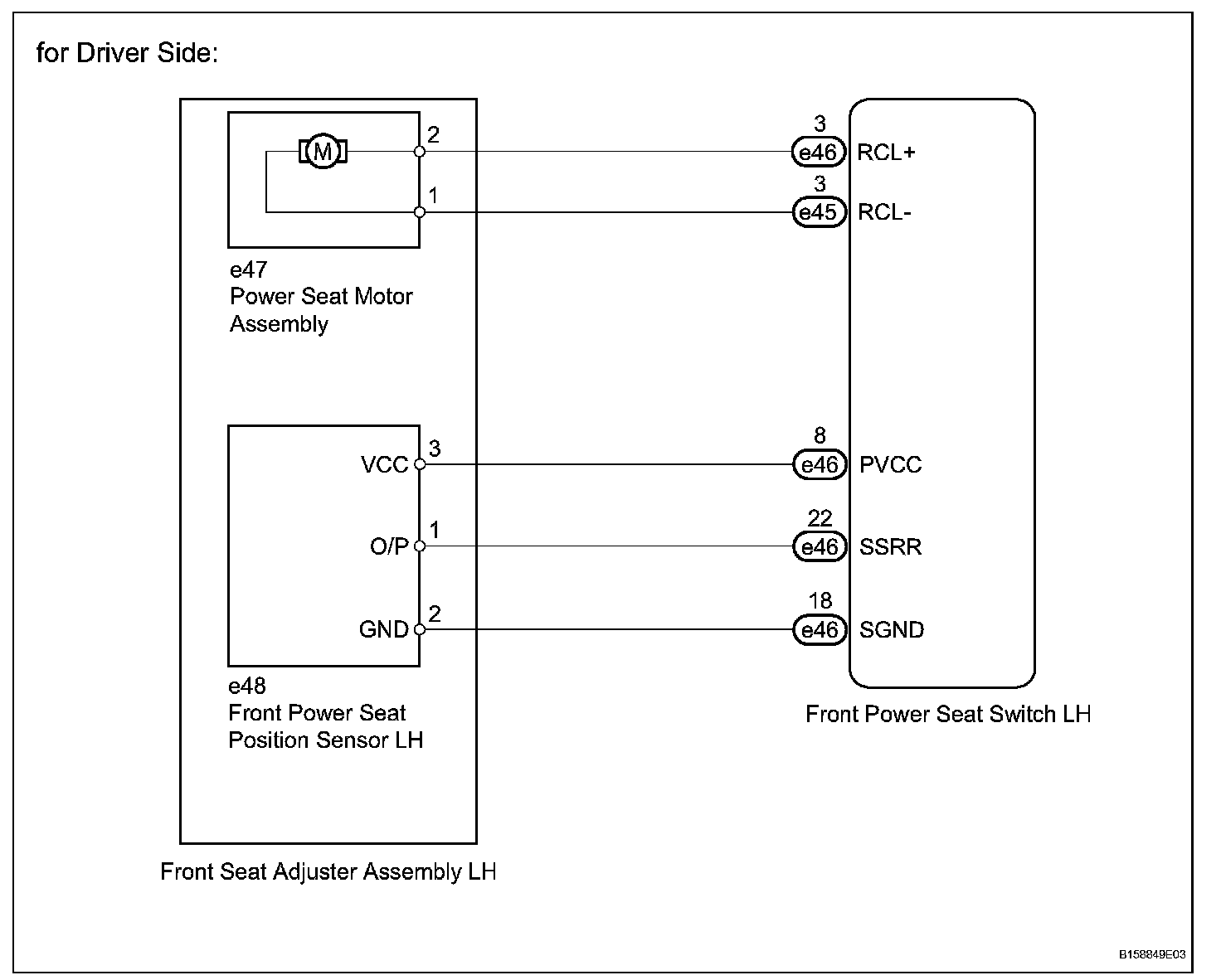

Wiring Diagram (Part 1):

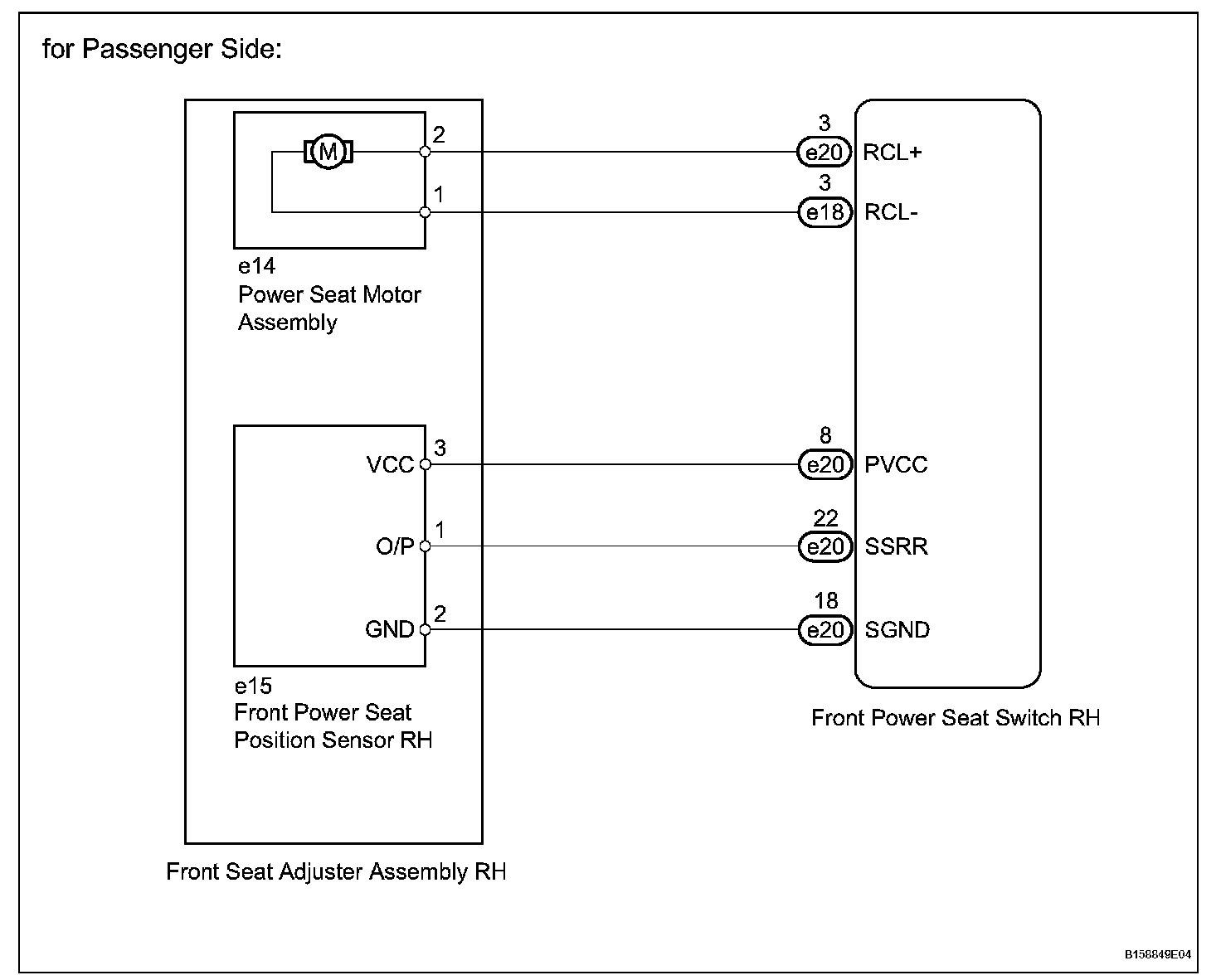

Wiring Diagram (Part 2):

INSPECTION PROCEDURE

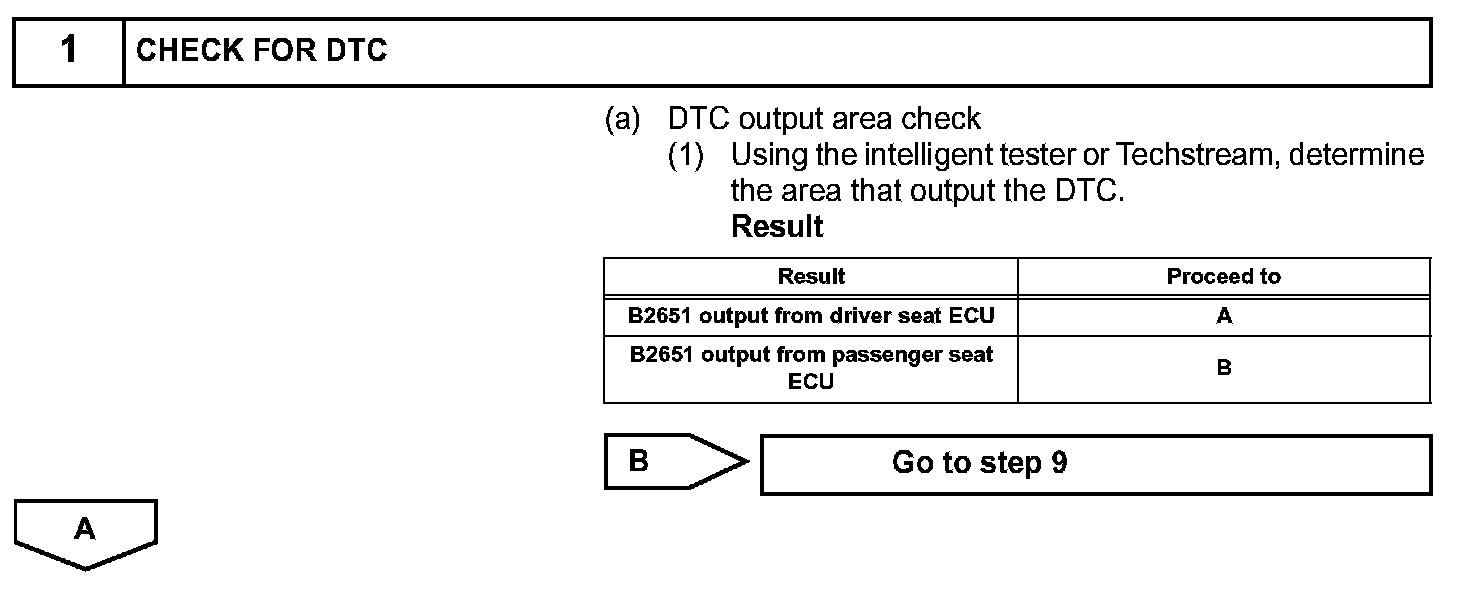

Step 1:

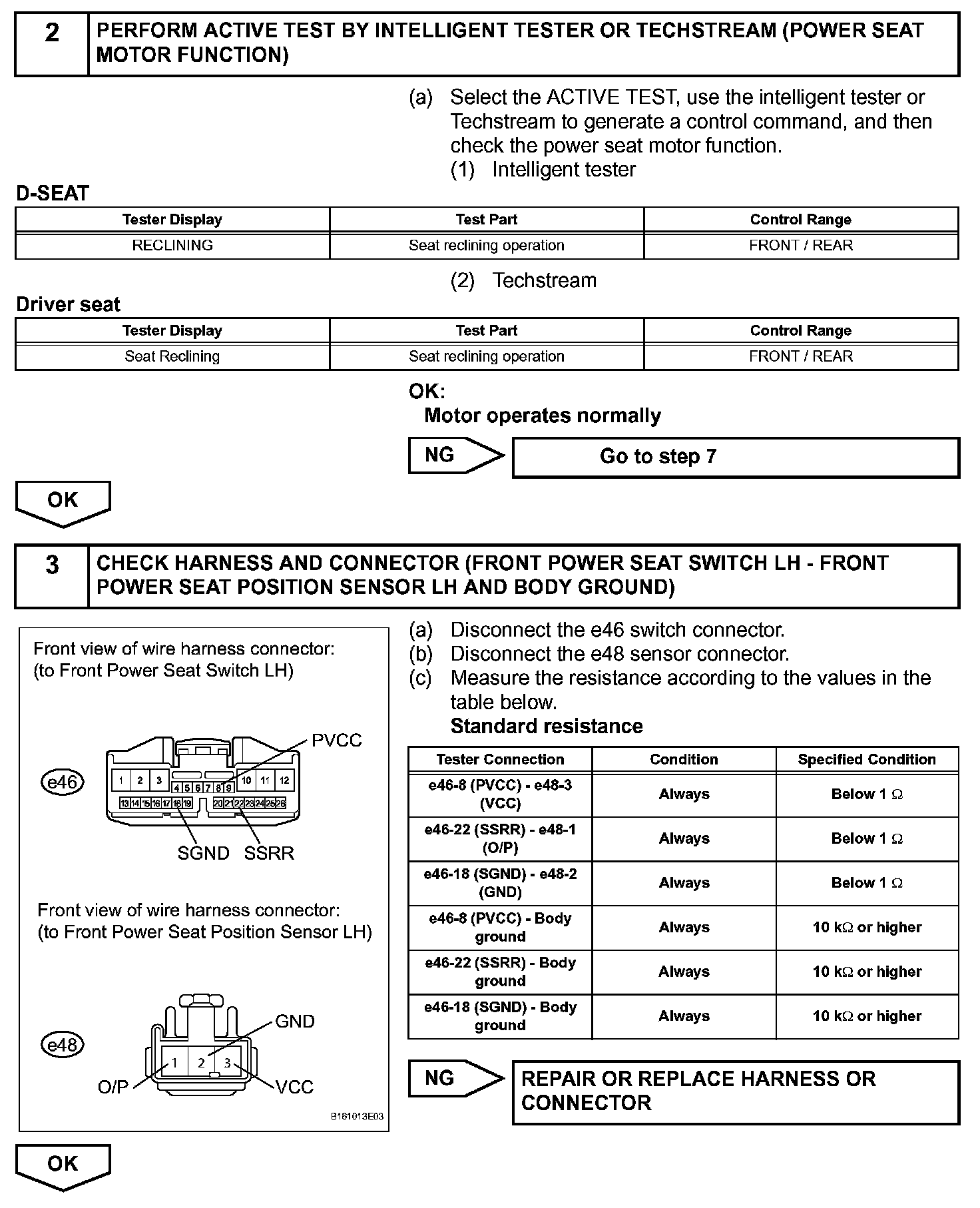

Step 2 - 3:

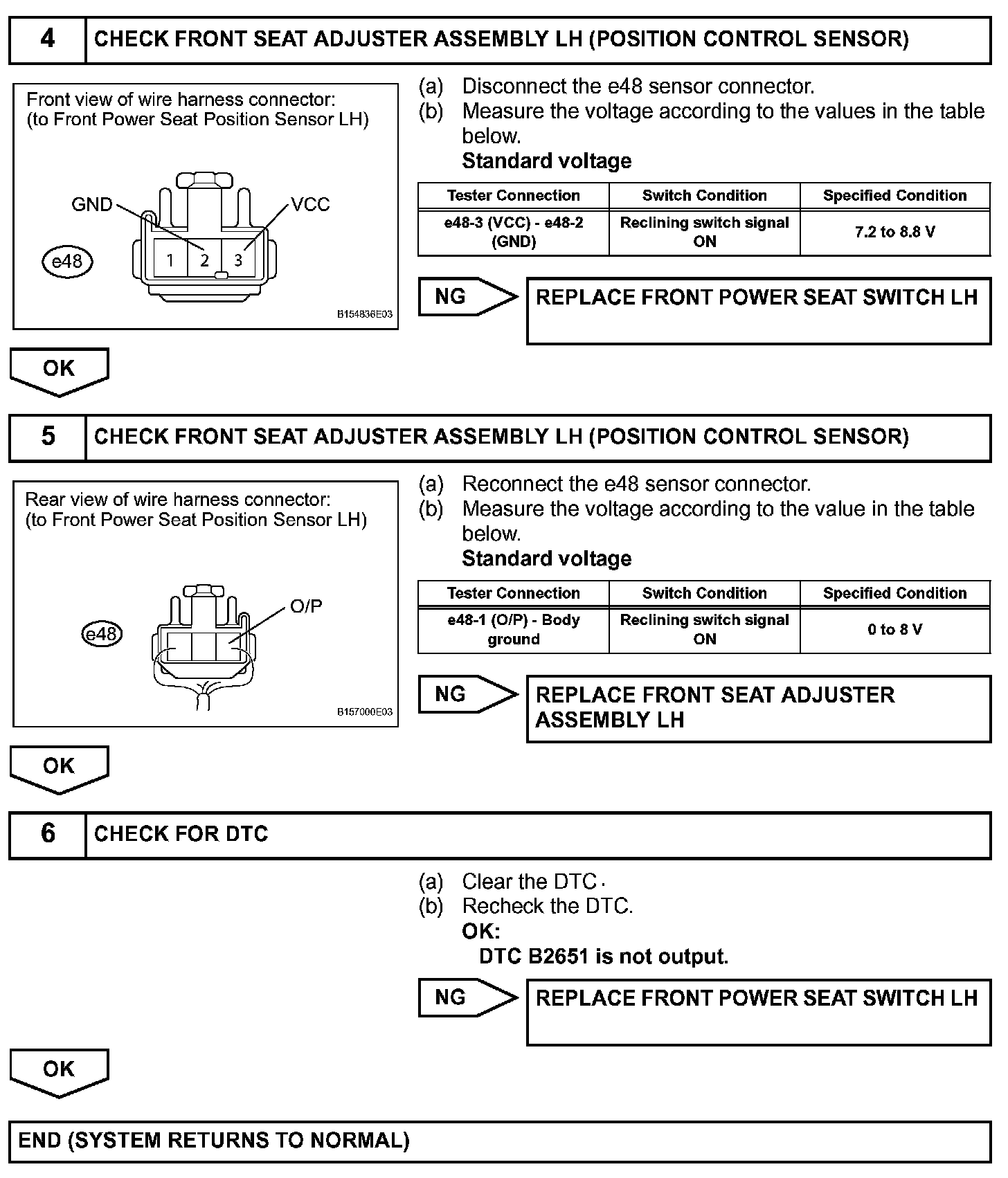

Step 4 - 6:

Step 7 - 8:

Step 8(Continued) - 10:

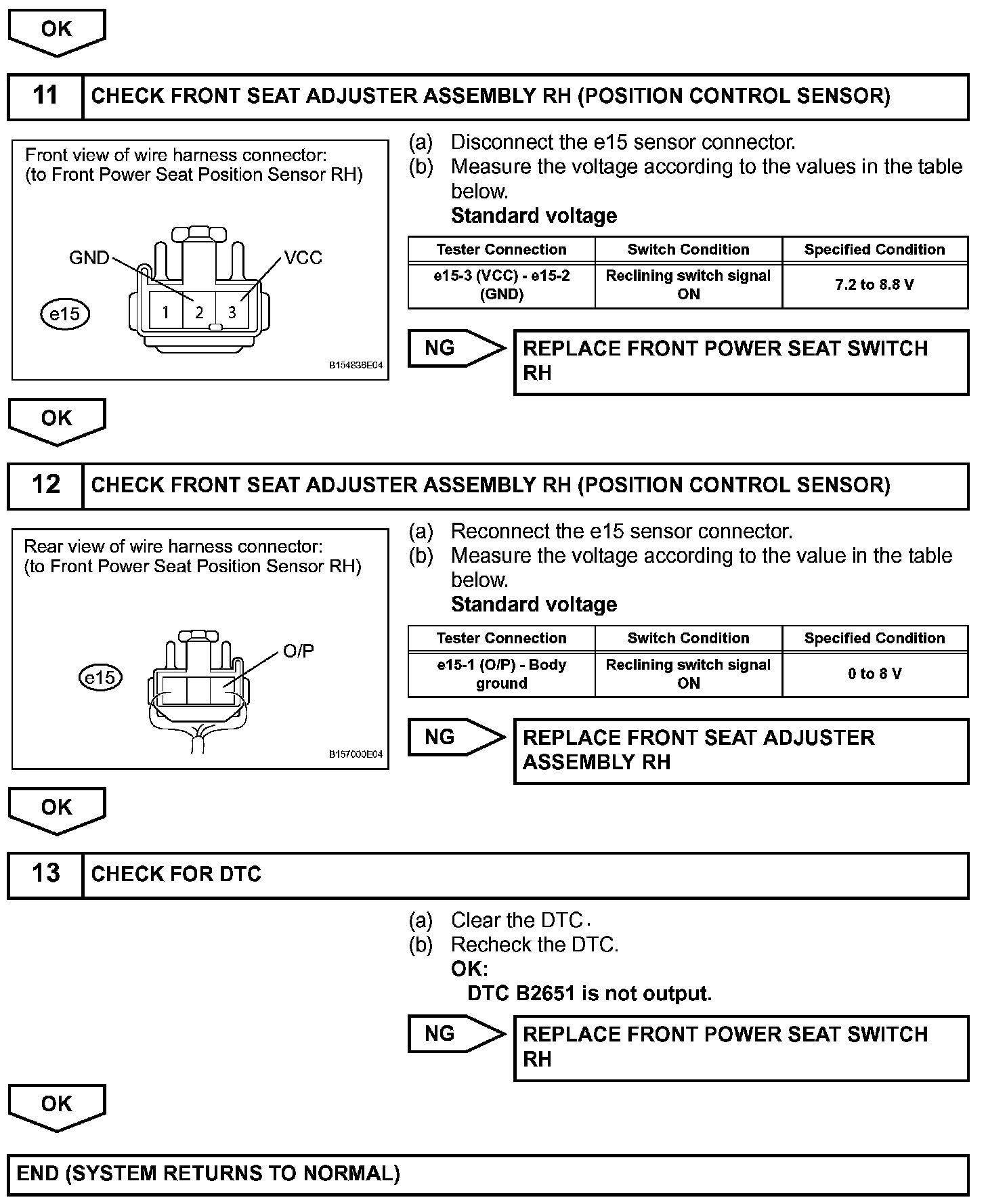

Step 10(Continued) - 13:

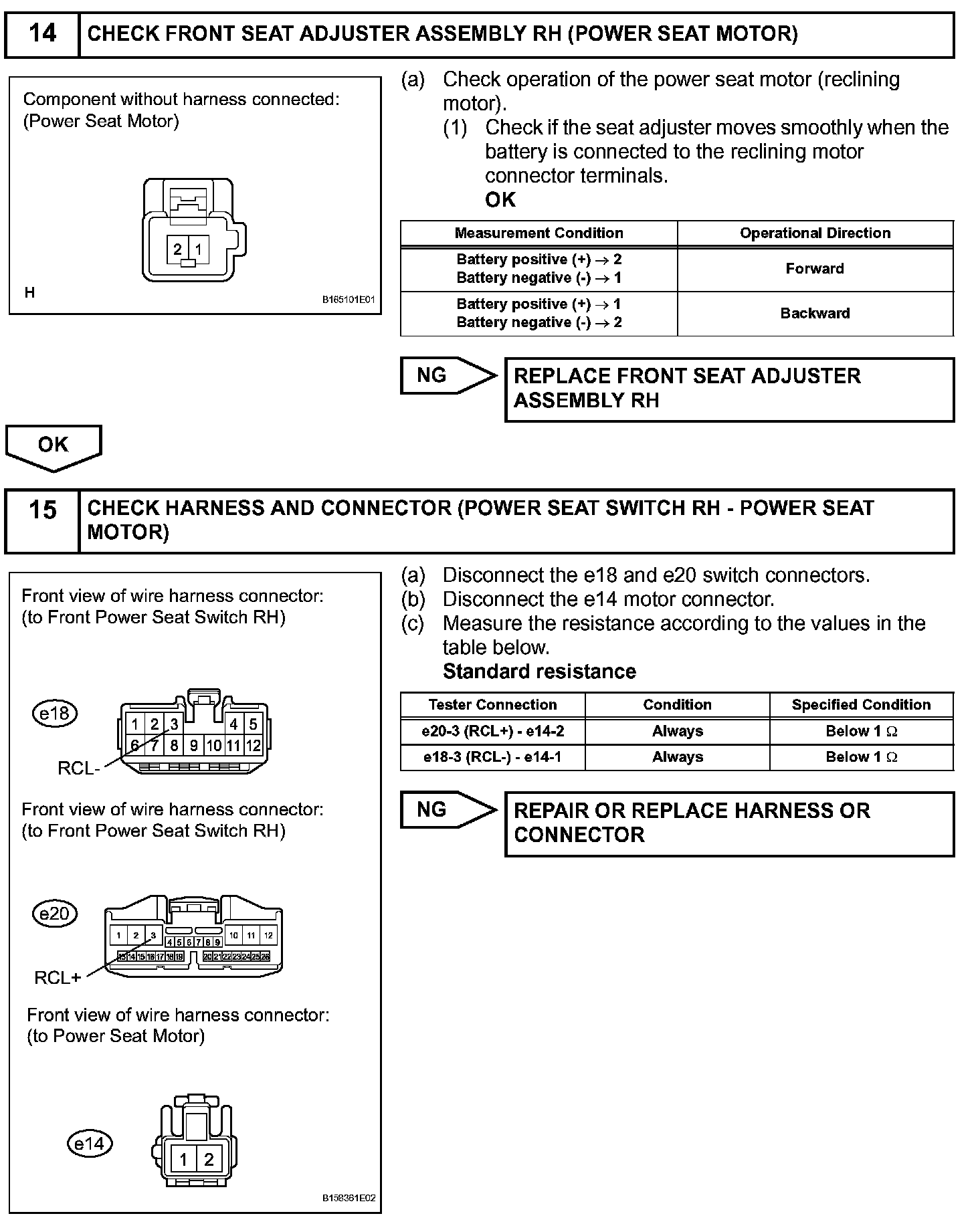

Step 14 - 15:

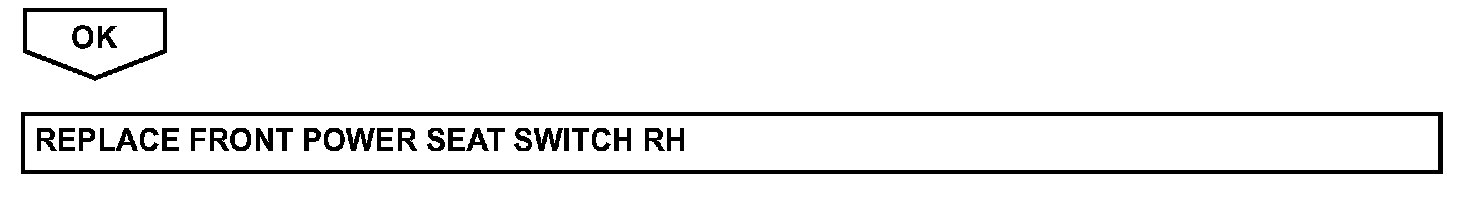

Step 15(Continued):
