B2417

DTC B2417 Headlight Beam Level Control Motor LH Malfunction
DTC B2418 Headlight Beam Level Control Motor RH Malfunction

DESCRIPTION

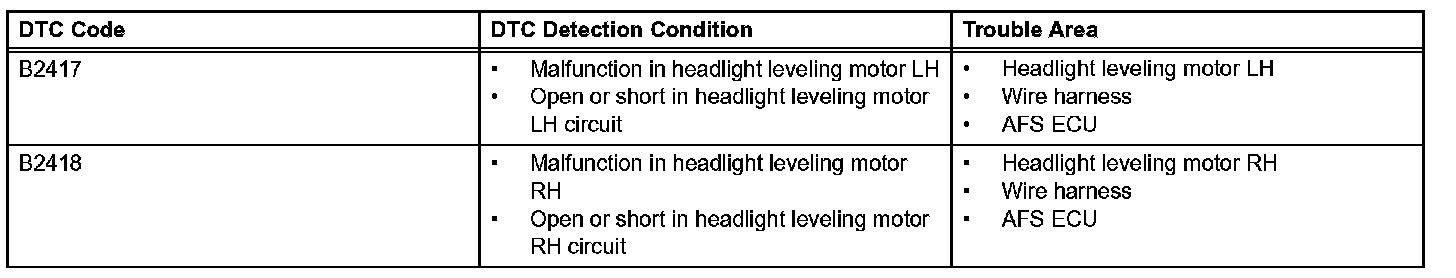

DTC Detection Condition:

The headlight leveling motor receives a signal from the AFS ECU to operate. The AFS ECU receives a signal indicating the operating conditions of the headlight leveling motor.

HINT: Perform a visual check of the headlight leveling motor before replacing it.

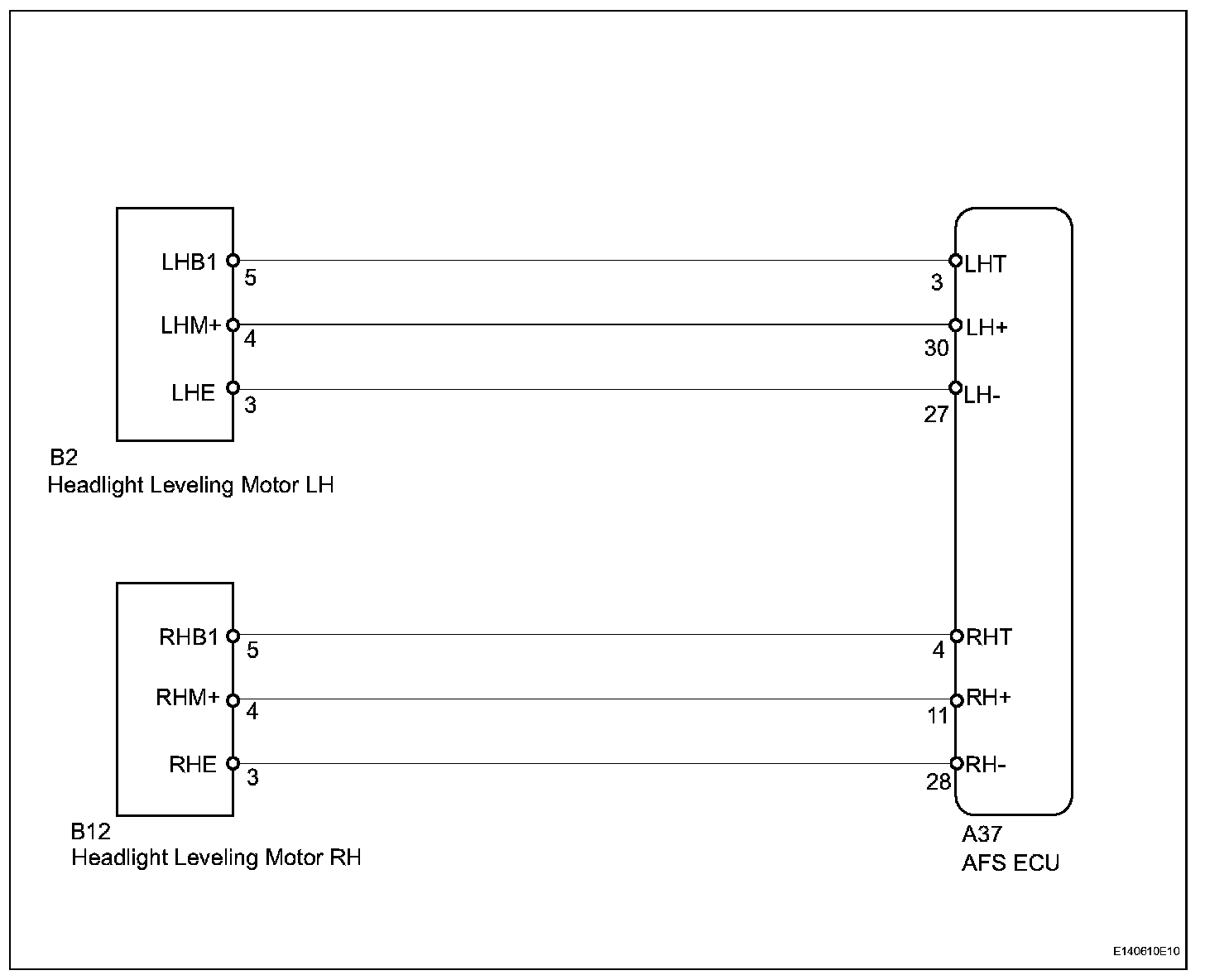

Wiring Diagram:

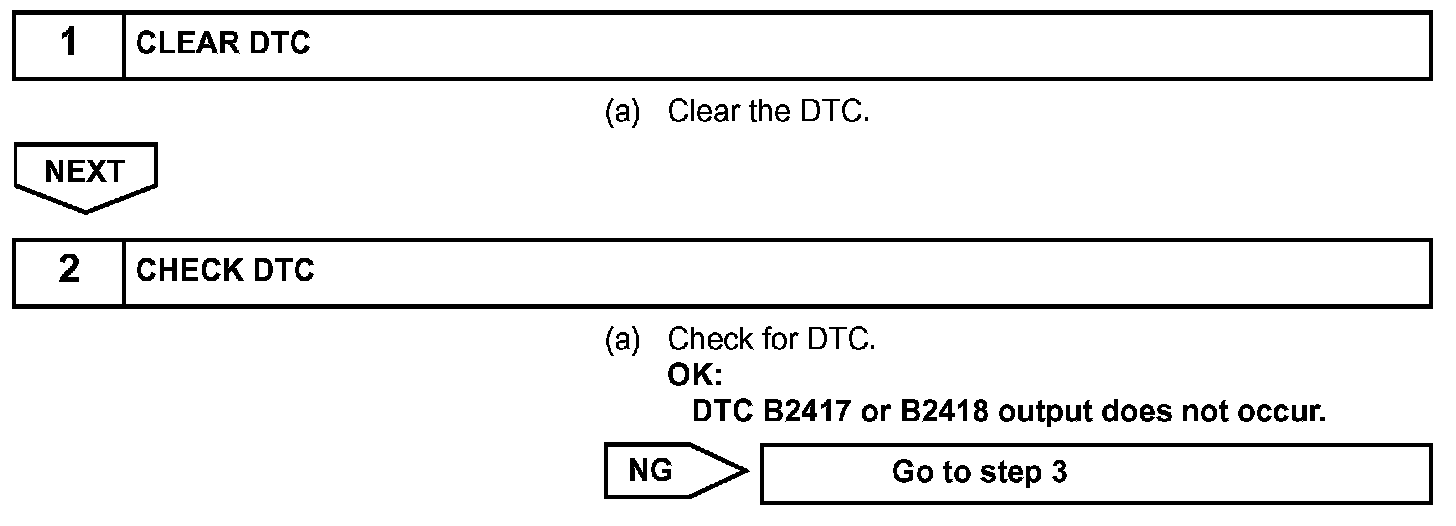

Step 1-2:

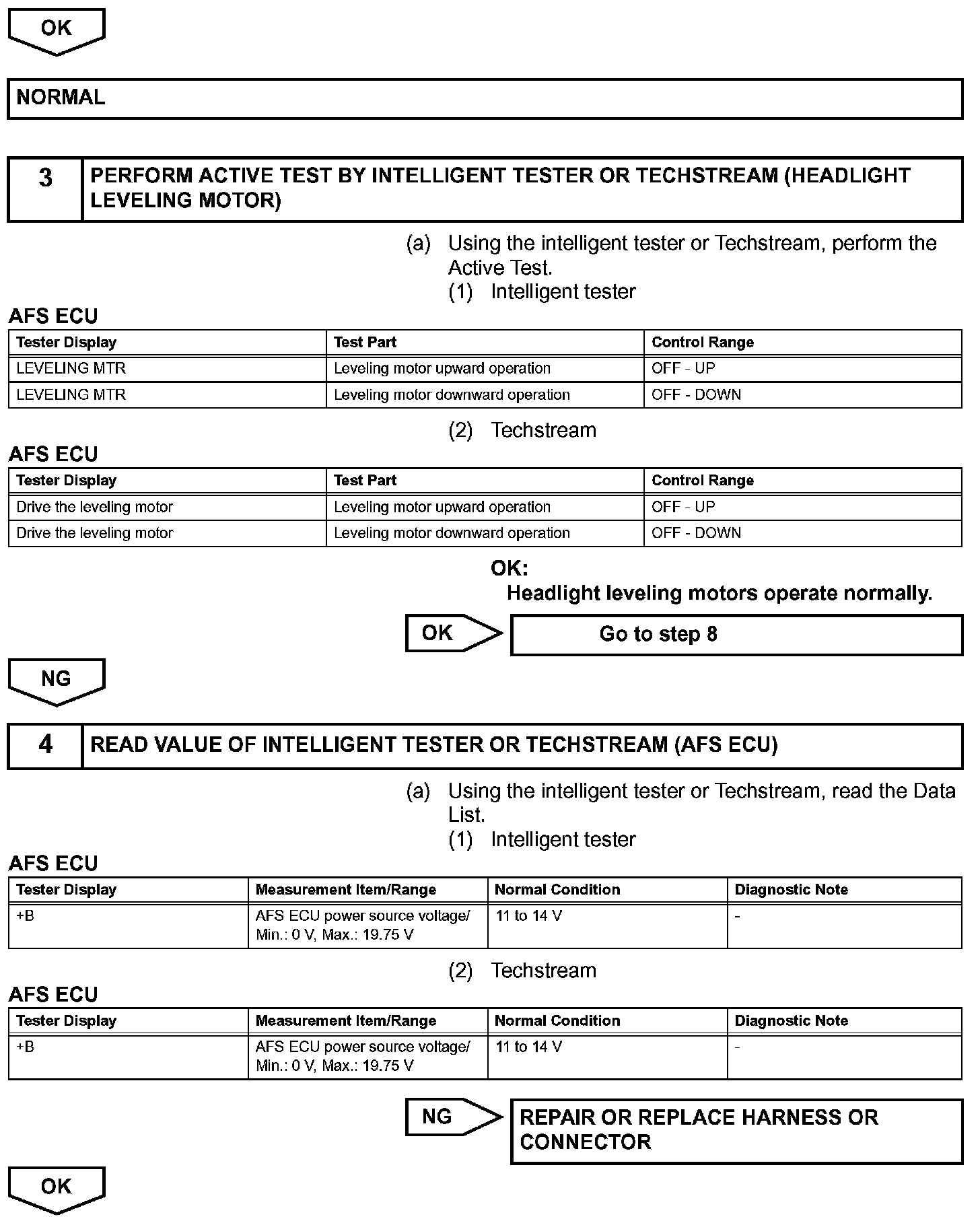

Step 2 (Continued)-4:

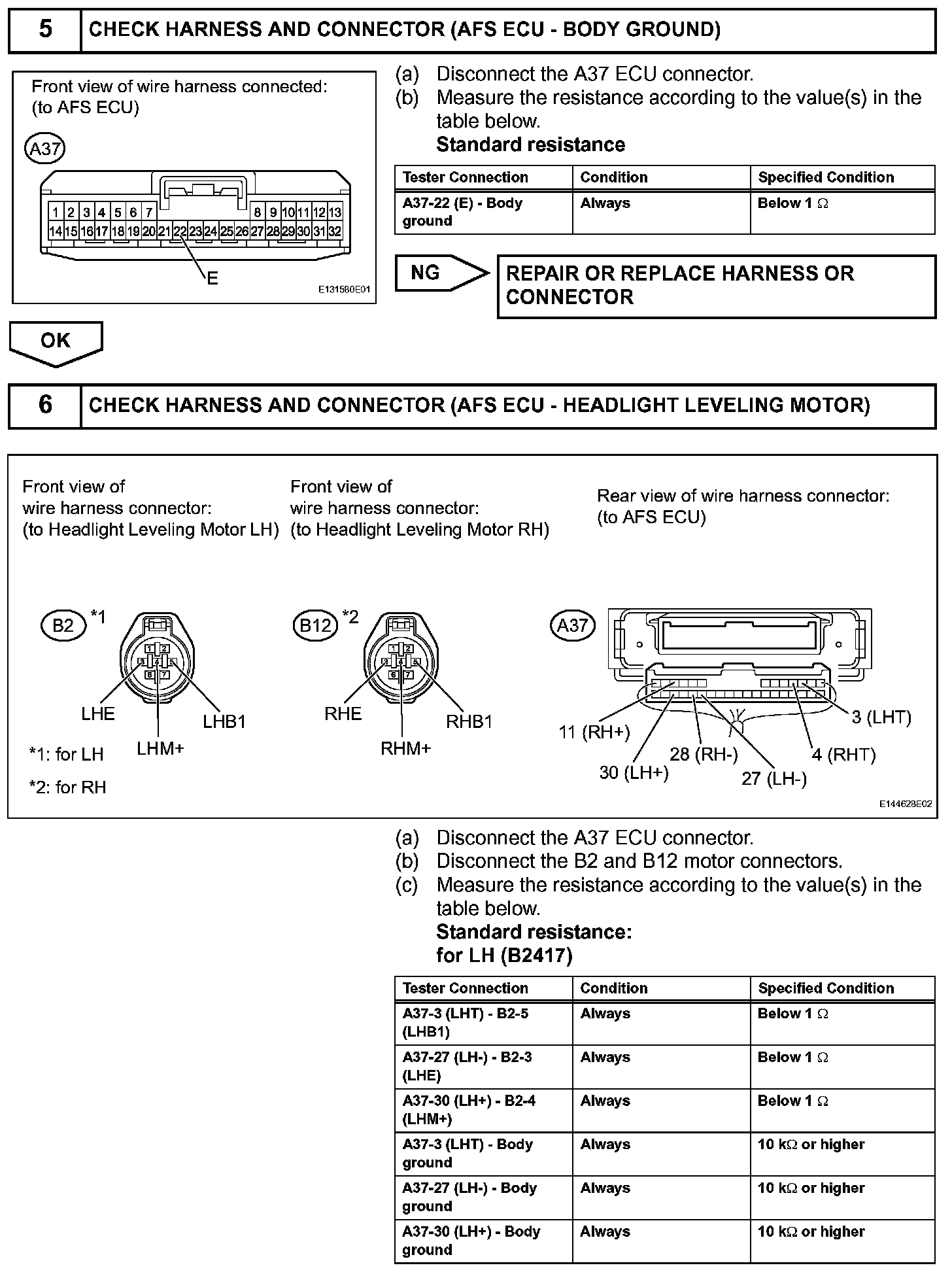

Step 5-6:

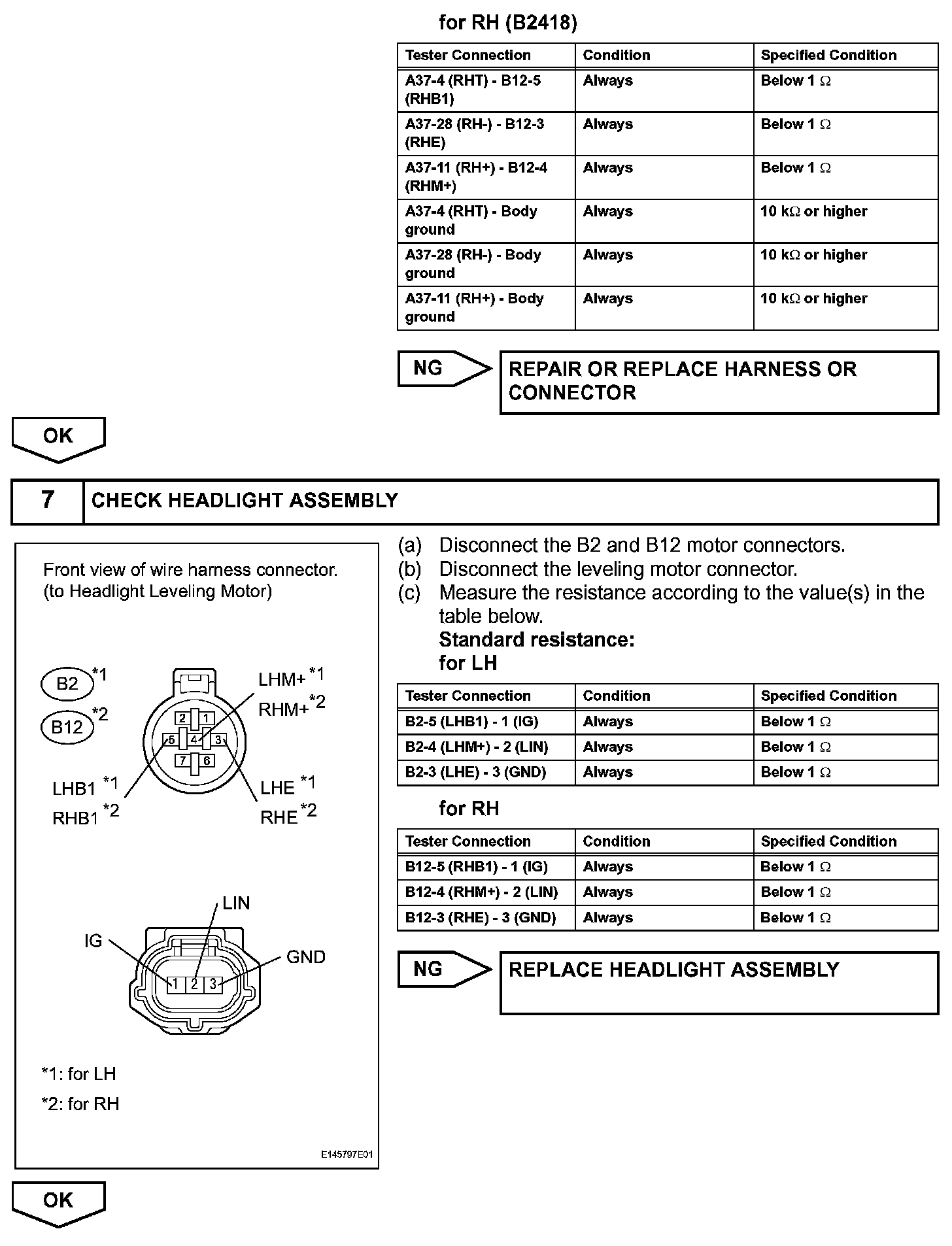

Step 6 (Continued)-7:

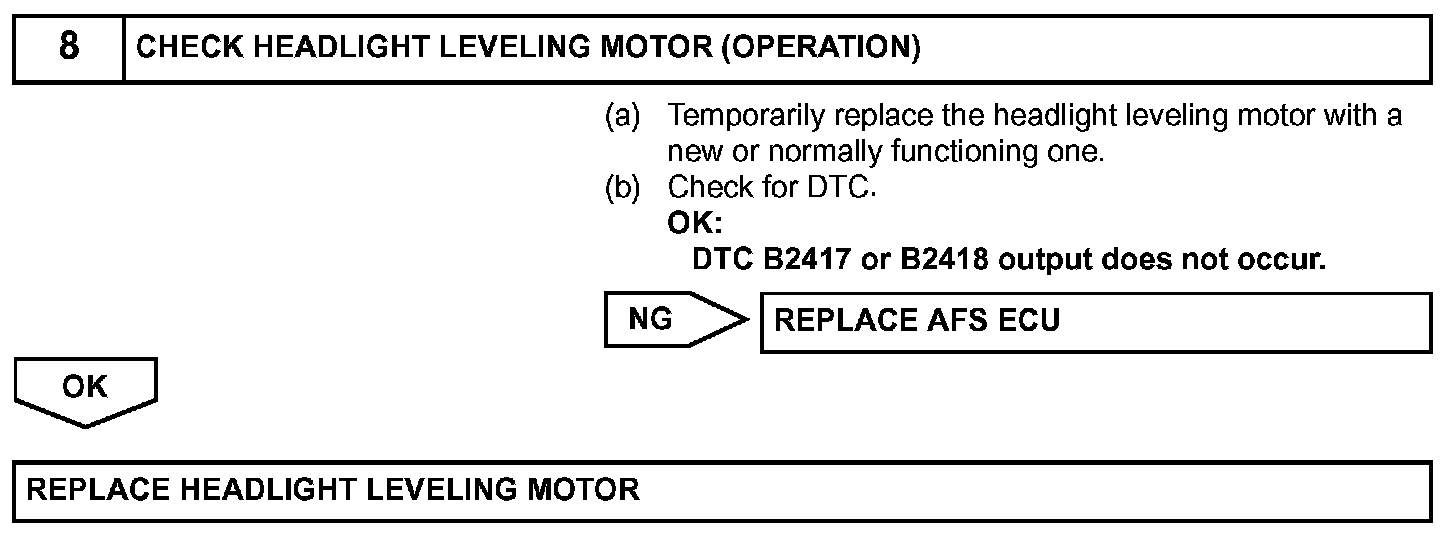

Step 8:

INSPECTION PROCEDURE
