B2414

DTC B2414 Steering Position Sensor Malfunction

DESCRIPTION

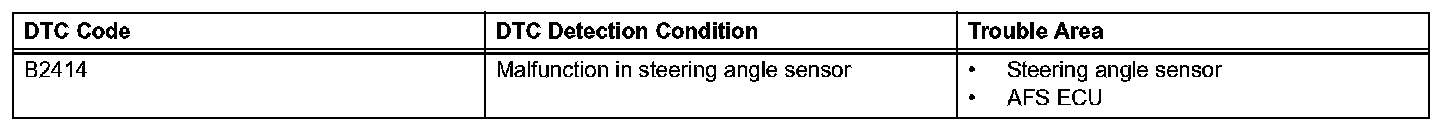

DTC Detection Condition:

The AFS ECU receives signals indicating the swerve-angle from the steering angle sensor using CAN communication.

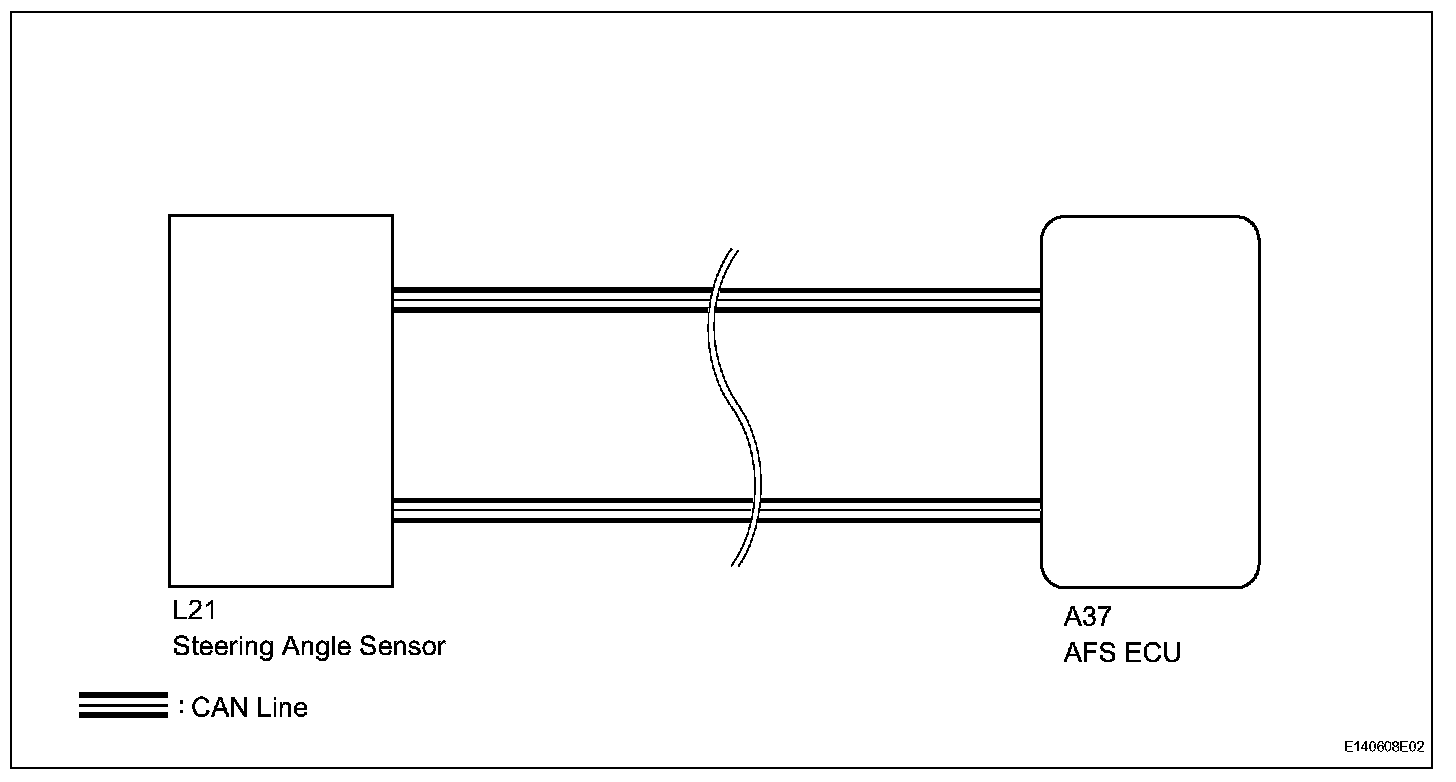

Wiring Diagram:

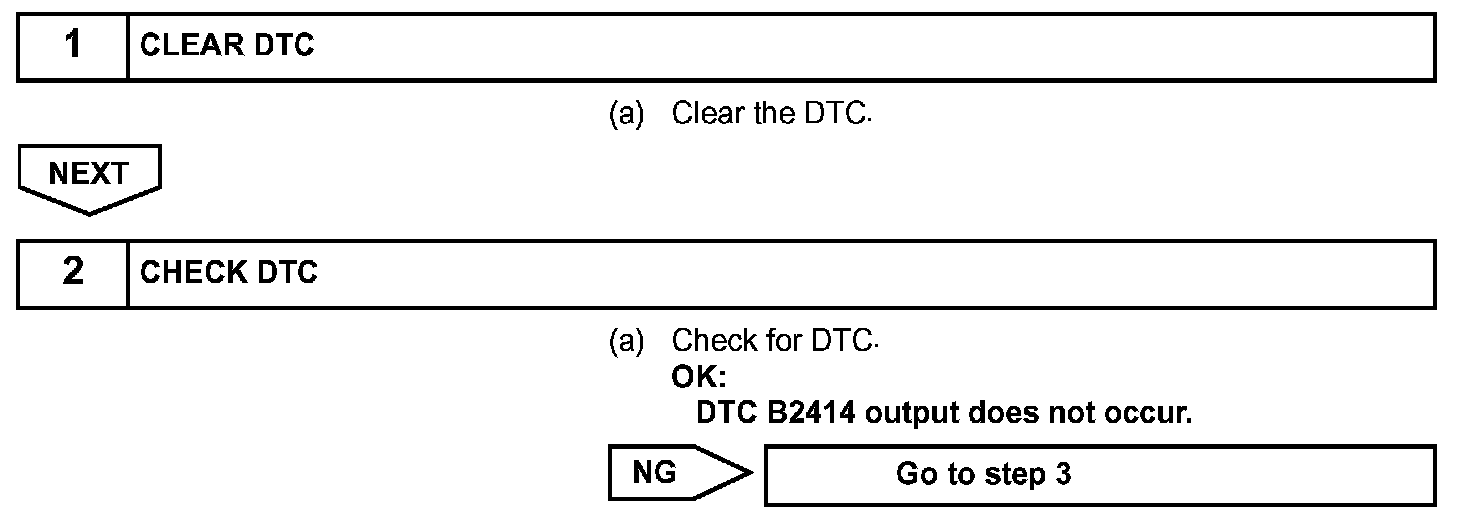

Step 1-2:

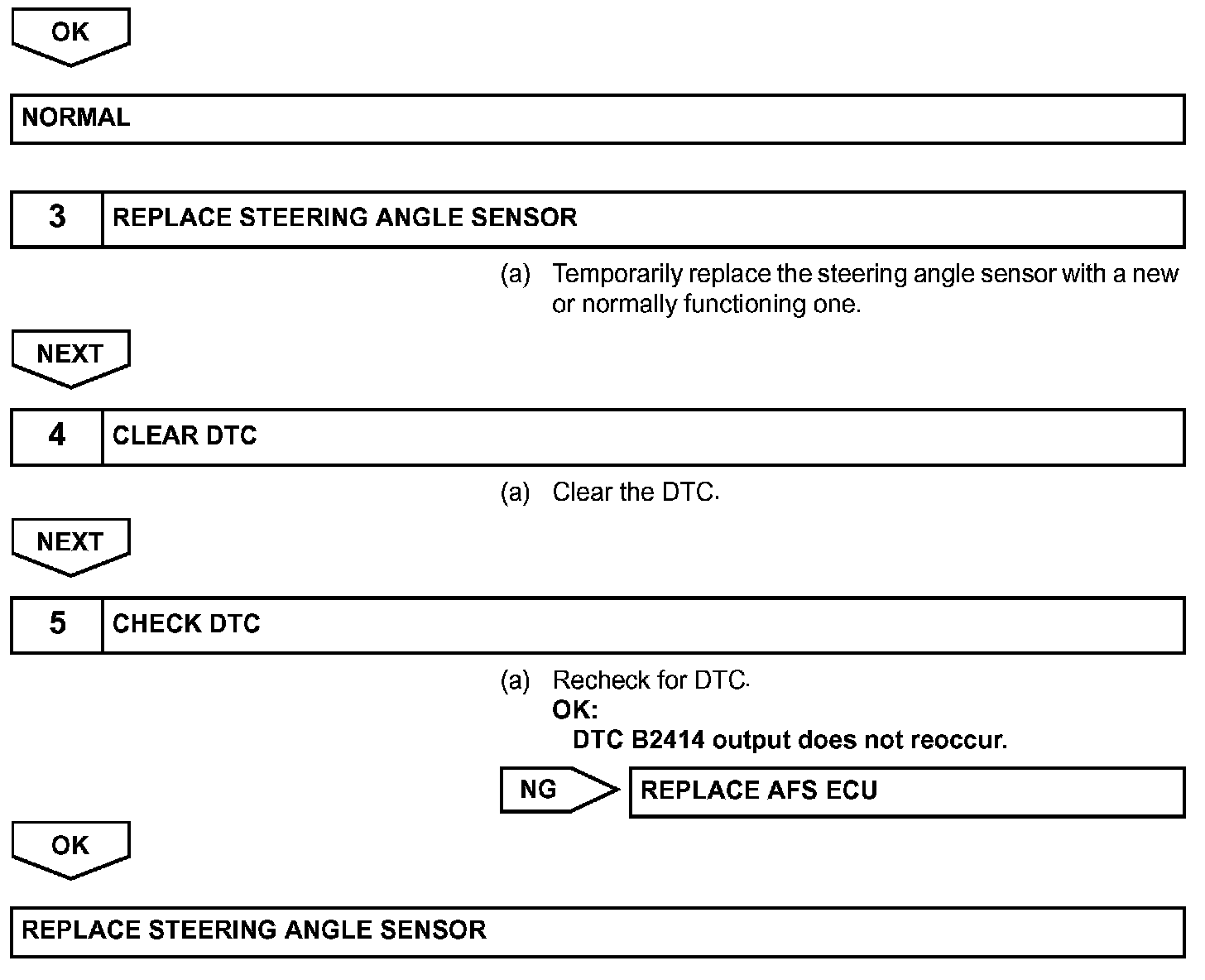

Step 2 (Continued)-5:

INSPECTION PROCEDURE

NOTE: First perform the communication function inspections in HOW TO PROCEED WITH TROUBLESHOOTING to confirm that there are no CAN communication malfunctions before troubleshooting this symptom.
