B2324

DTC B2324 Rear Door LH ECU Communication Stop

DESCRIPTION

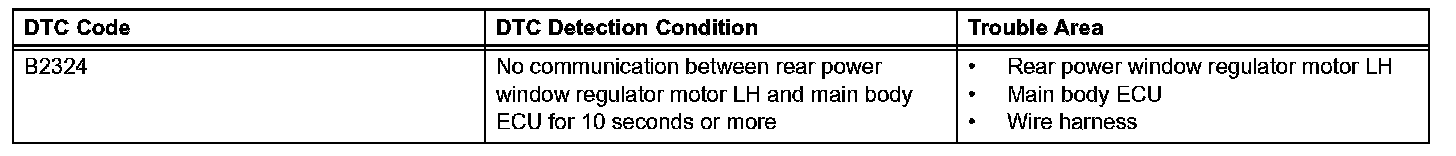

DTC Detection Condition:

This DTC is output when LIN communication between the rear power window regulator motor LH and main body ECU stops for 10 seconds or more.

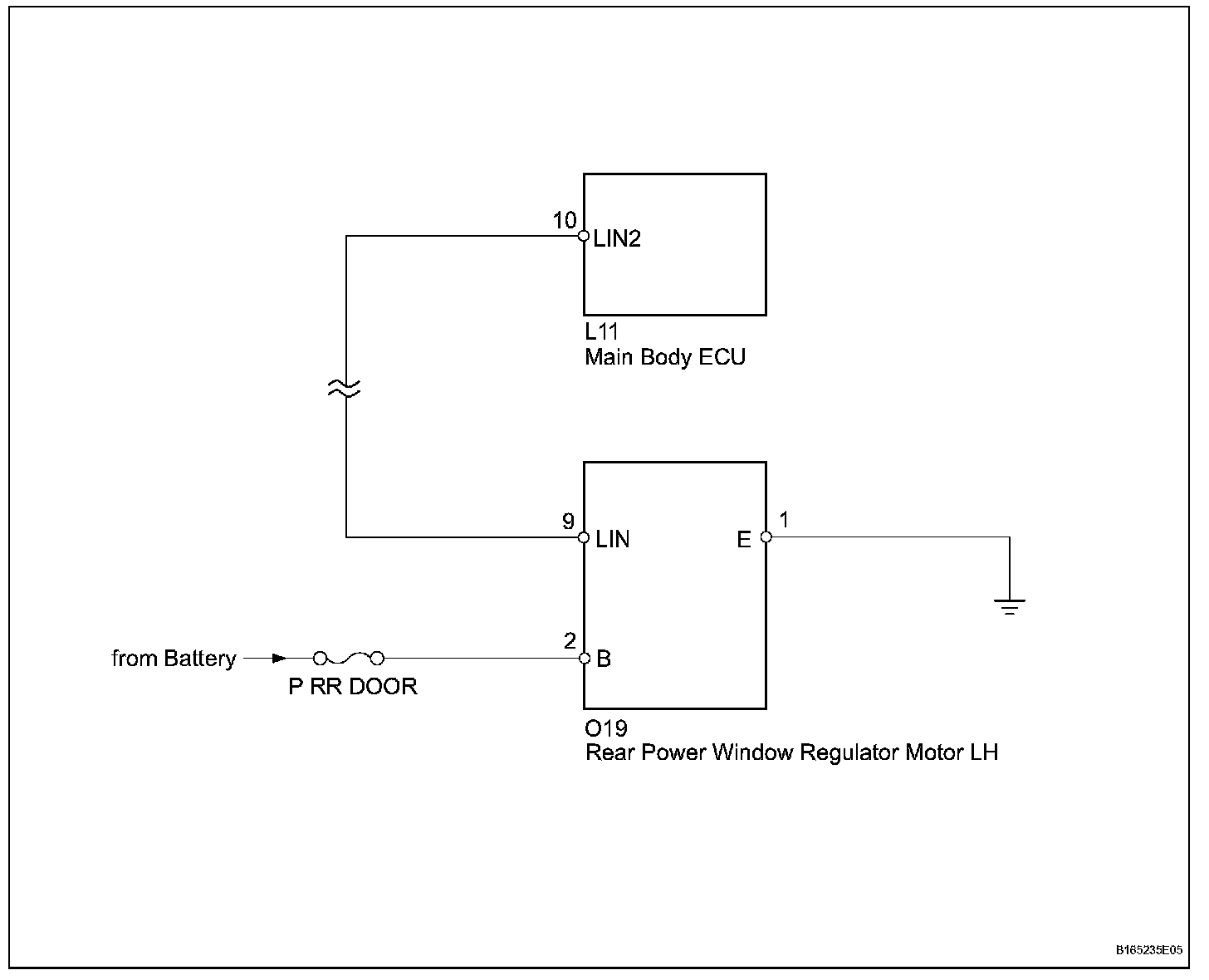

Wiring Diagram:

Step 1-3:

Step 3 (Continued)-6:

Step 6 (Continued):

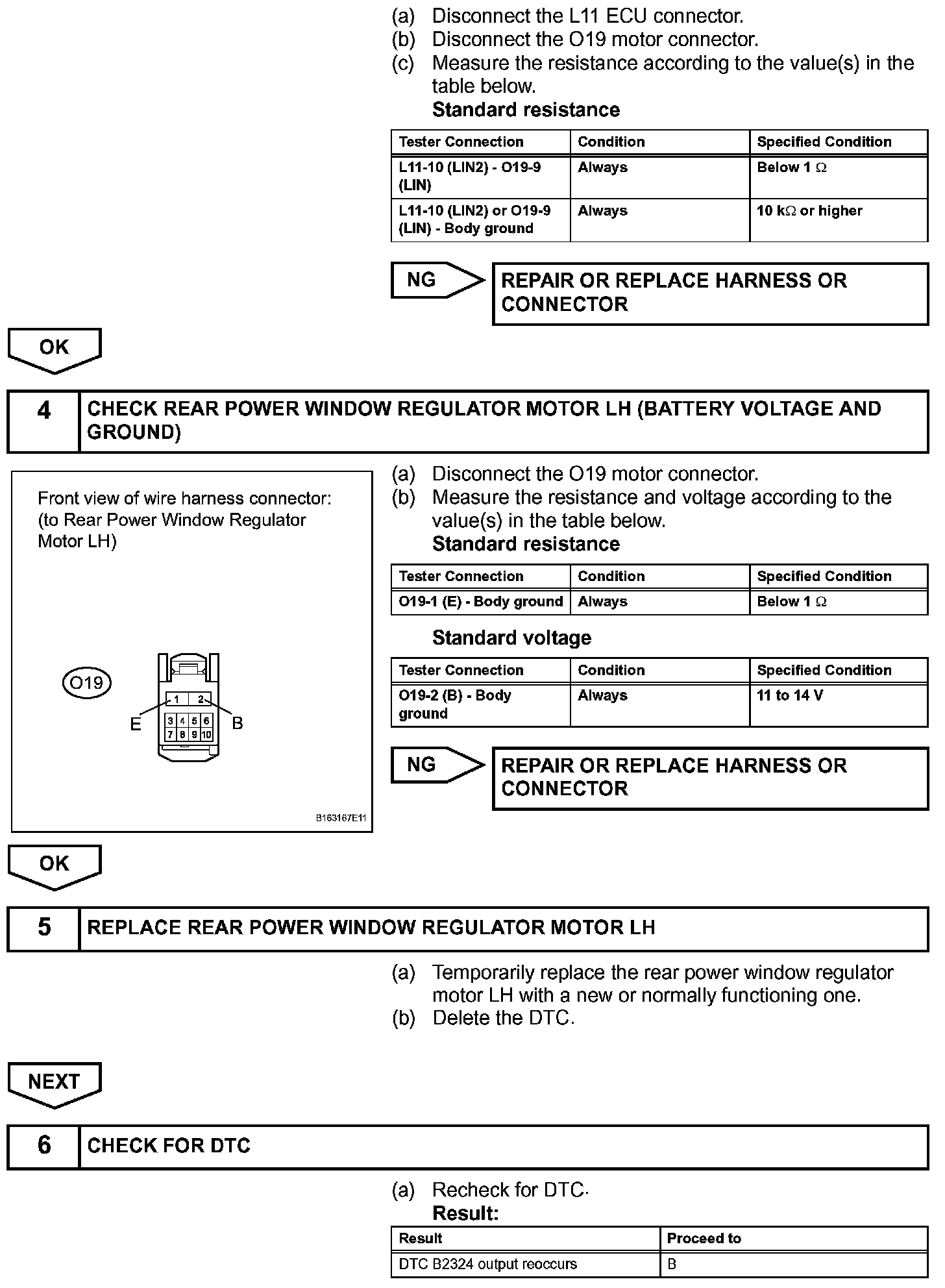

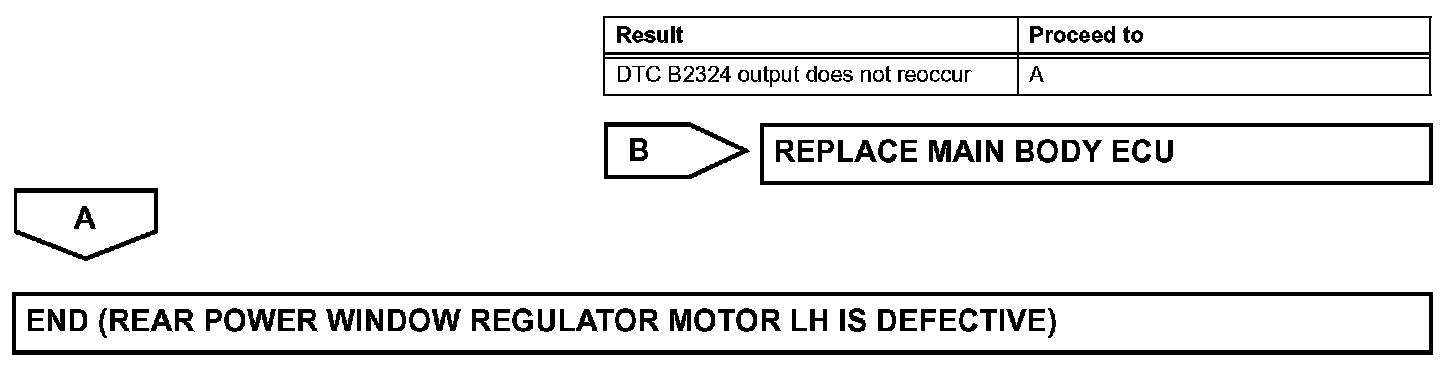

INSPECTION PROCEDURE

NOTE: When using the intelligent tester (with CAN VIM) or Techstream with the engine switch off to troubleshoot:
Connect the intelligent tester (with CAN VIM) or Techstream to the vehicle, and turn a courtesy switch on and off at 1.5 second intervals until communication between the tester and vehicle begins.

HINT: DTC B2325 is output when the communication between all of the following components and main body ECU stops.
