B22AE

DTC B22AE Open in Alternator Charge Line

DESCRIPTION

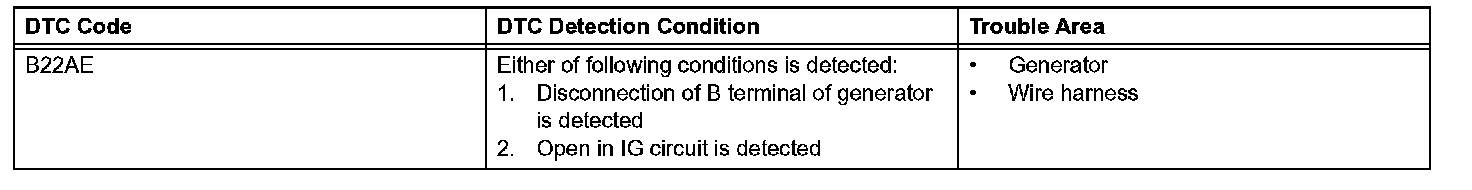

DTC Detection Condition:

The electric power control ECU receives the ECM's generator control signal, compares the value with the battery current and battery voltage signals, and detects generator charging line malfunctions.

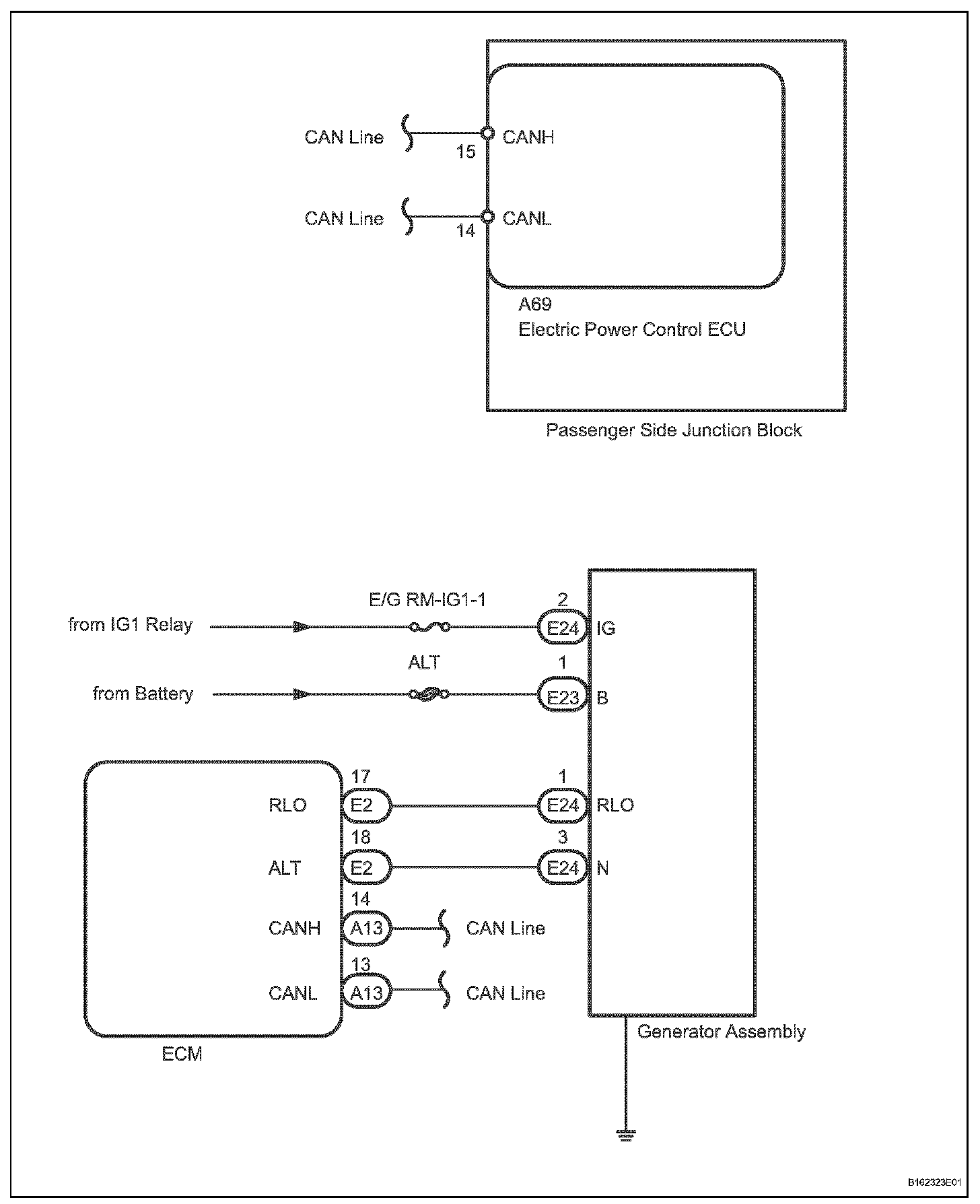

Wiring Diagram:

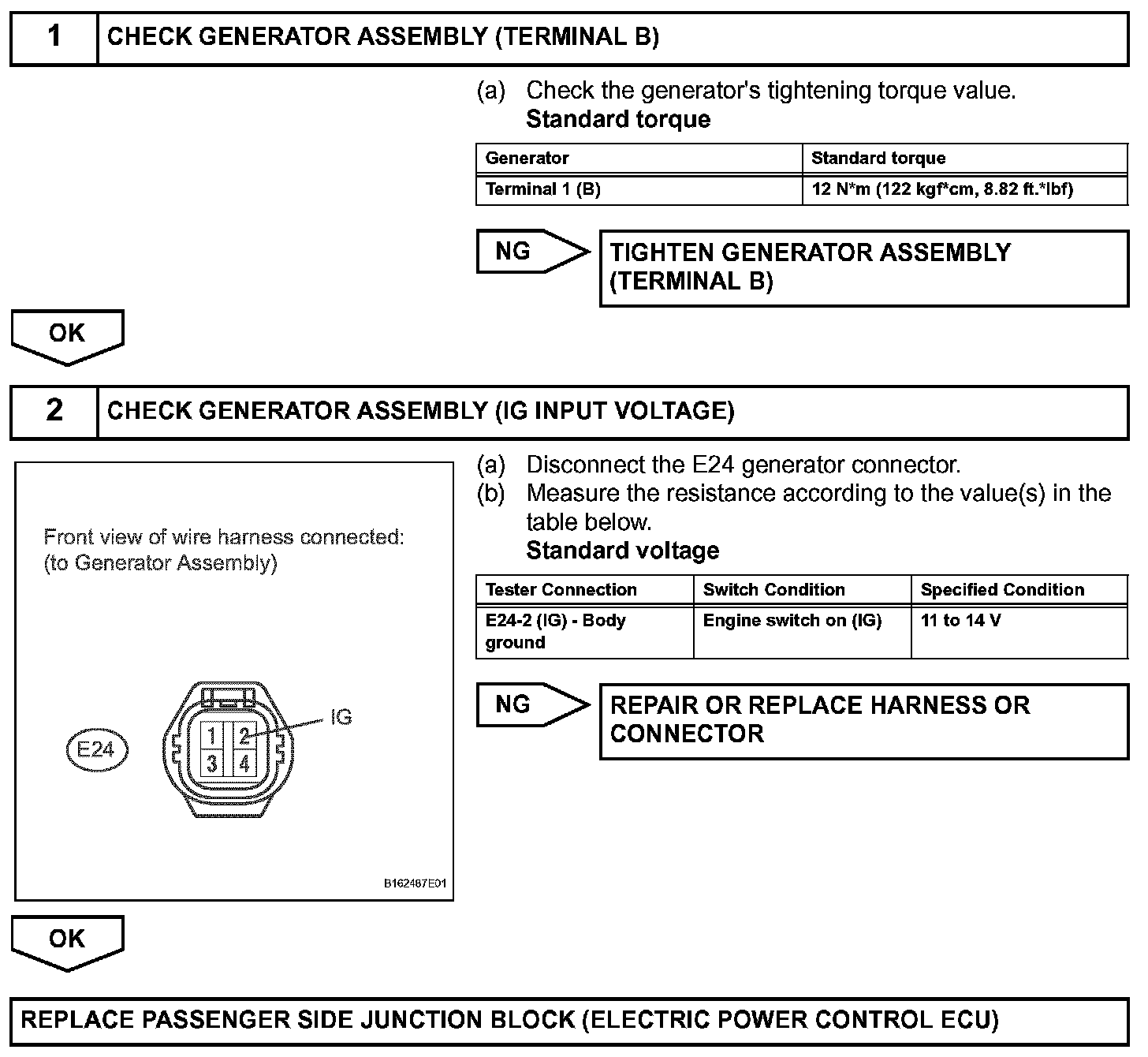

Step 1-2:

INSPECTION PROCEDURE
