B22AC

DTC B22AC Alternator Stop Power Generation
DTC B22AD No Control for Power Generation of Alternator

DESCRIPTION

DTC Detection Condition:

The electric power control ECU receives the ECM's generator control signal, compares the value with the battery current and battery voltage signals, and detects generator generation malfunctions.

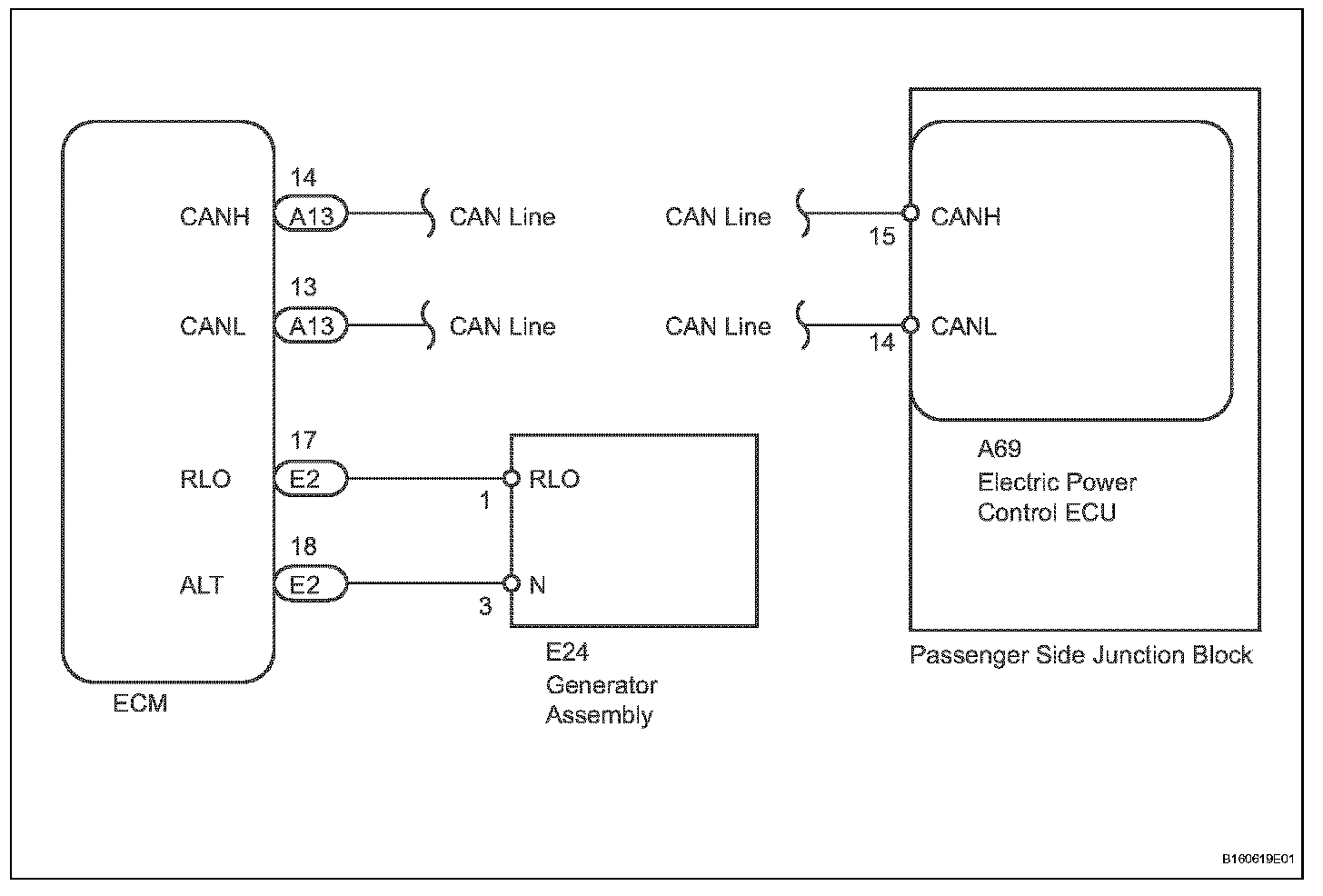

Wiring Diagram:

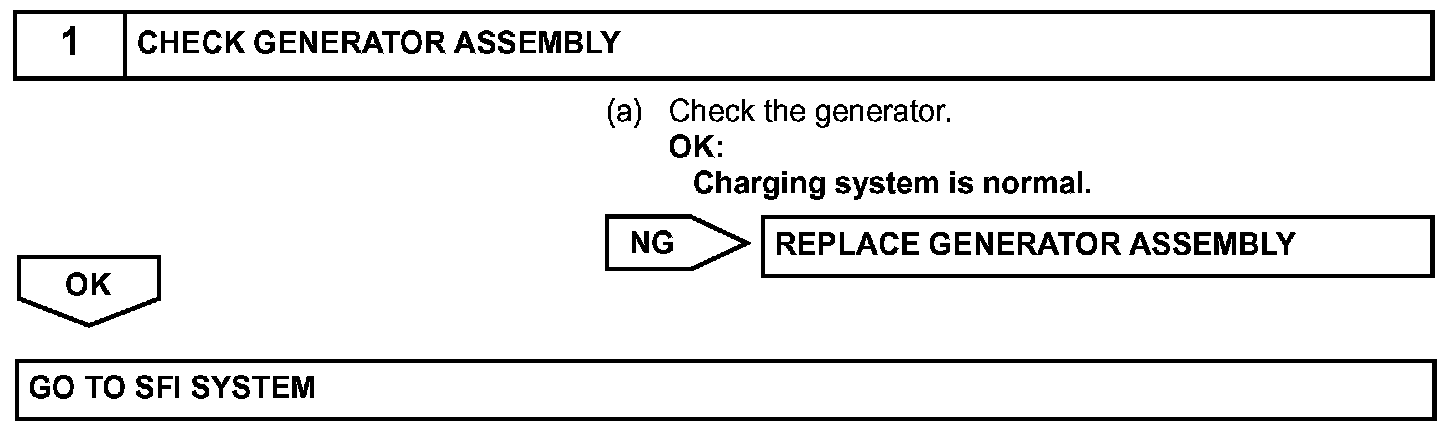

Step 1:

INSPECTION PROCEDURE
