B22AB

DTC B22AB Open in Starter Switch Terminal

DESCRIPTION

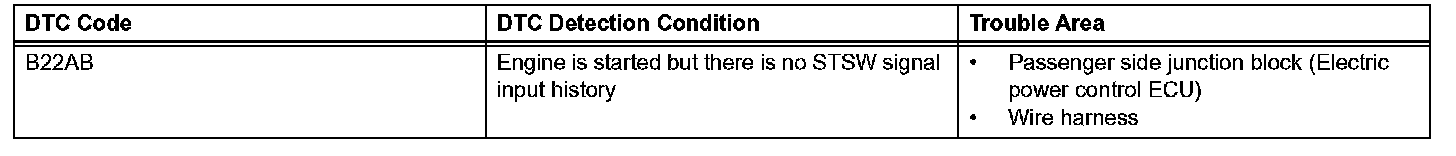

DTC Detection Condition:

The electric power control ECU inputs the STSW signal, and detects when the engine is started.

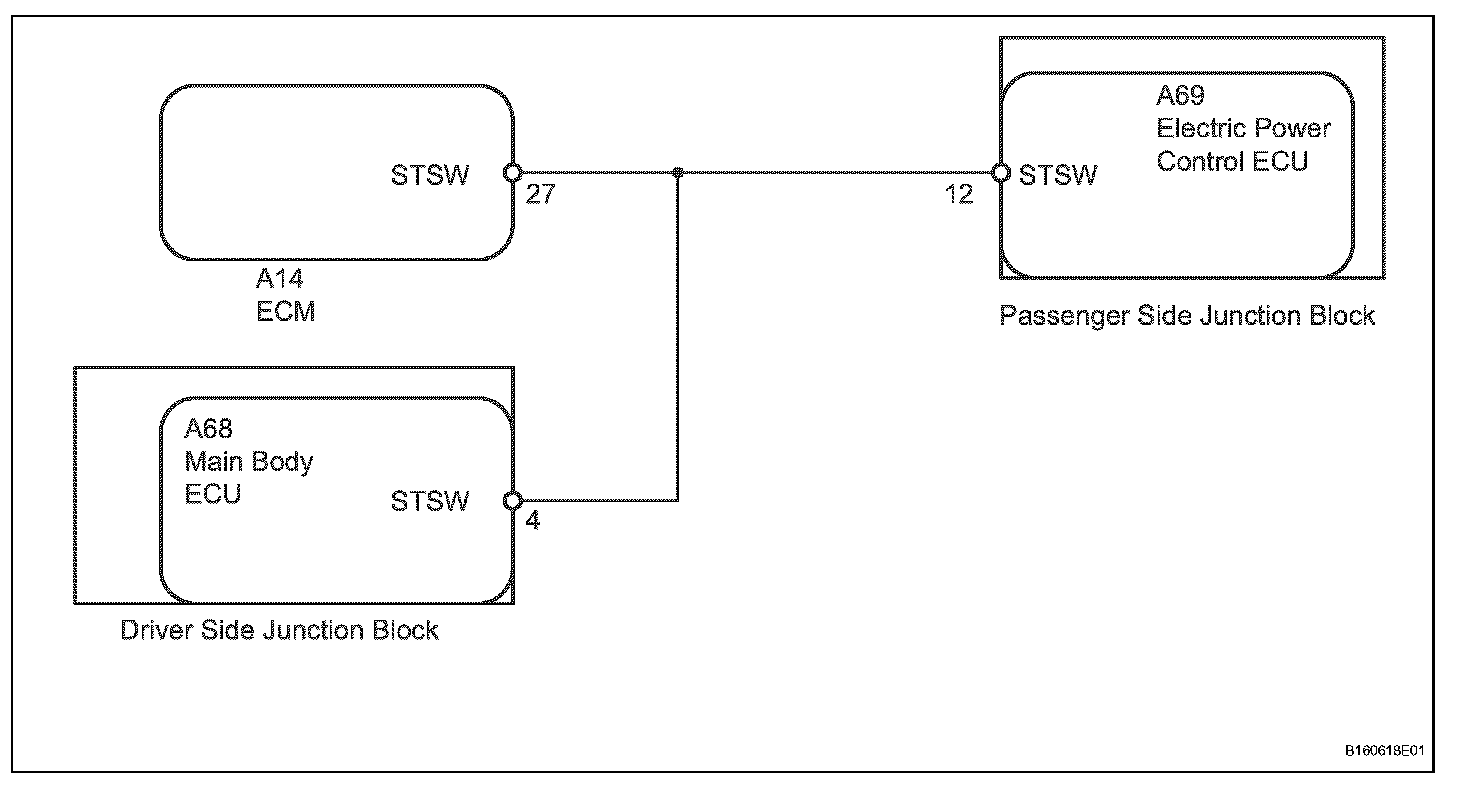

Wiring Diagram:

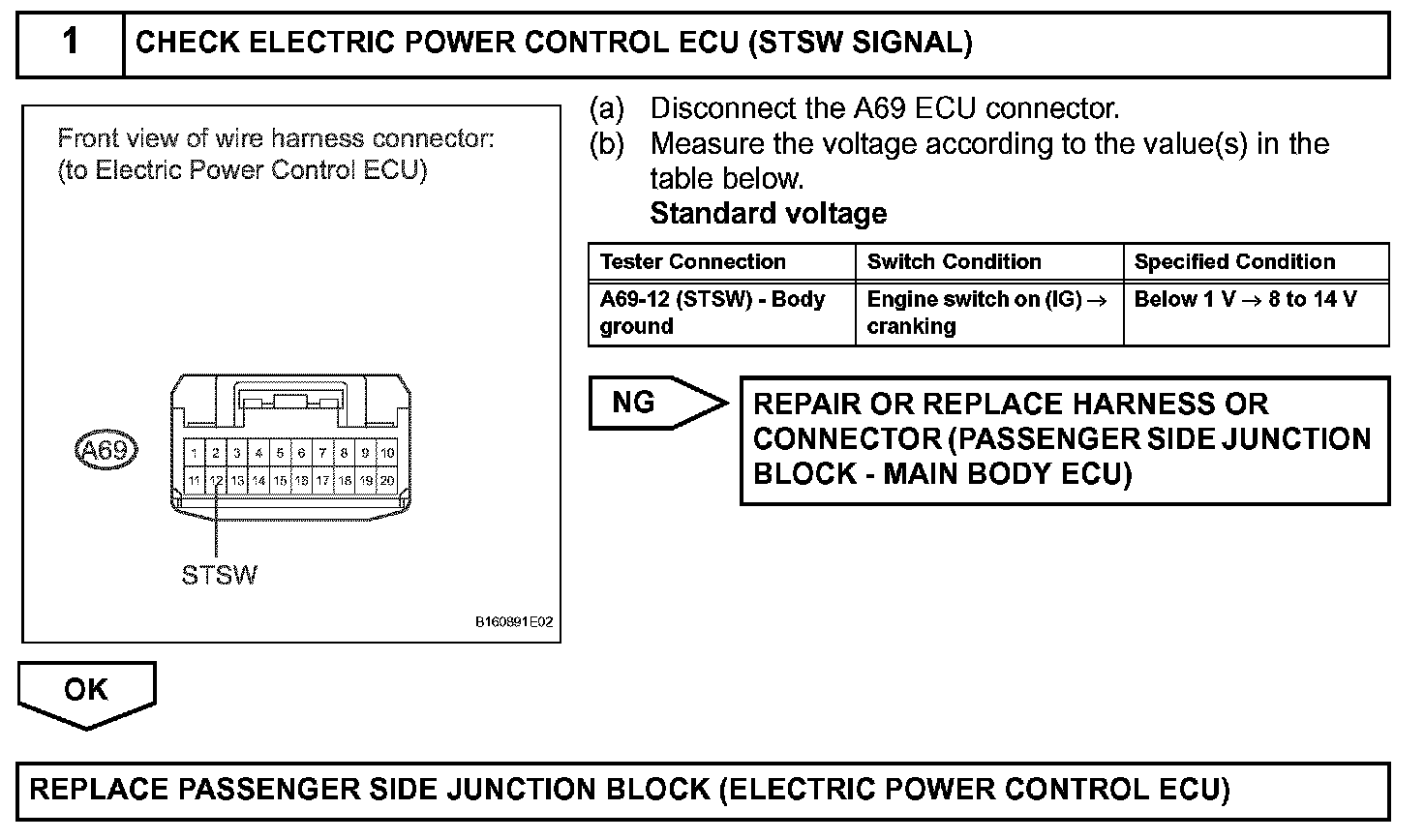

Step 1:

INSPECTION PROCEDURE
