B22A8

DTC B22A8 VB Terminal Voltage

DESCRIPTION

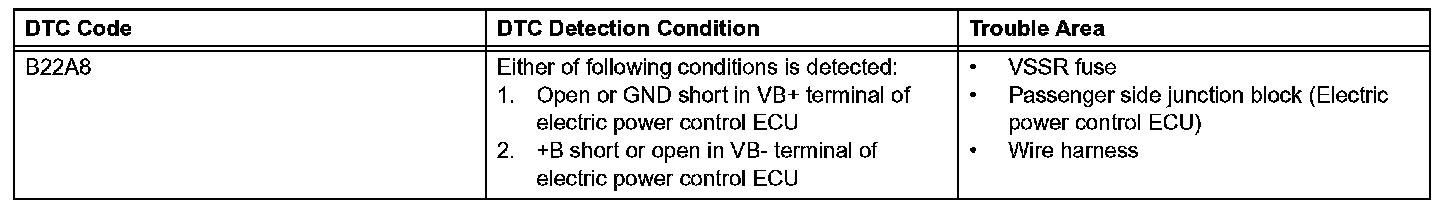

DTC Detection Condition:

The electric power control ECU inputs the battery voltage. The electric power control ECU receives several signals and detects the battery condition, and performs load control and generator control.

Wiring Diagram:

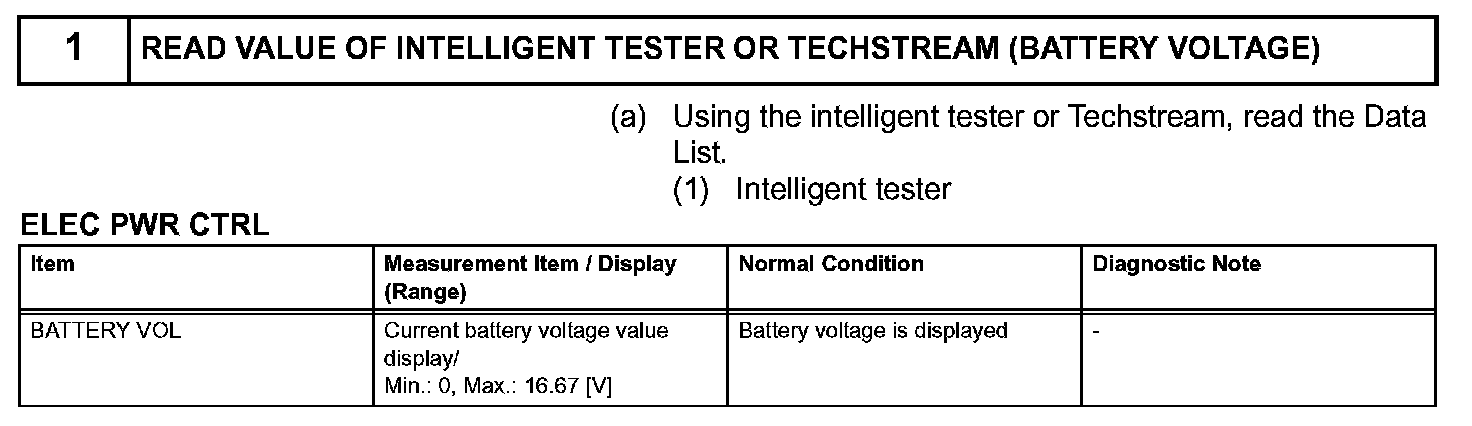

Step 1:

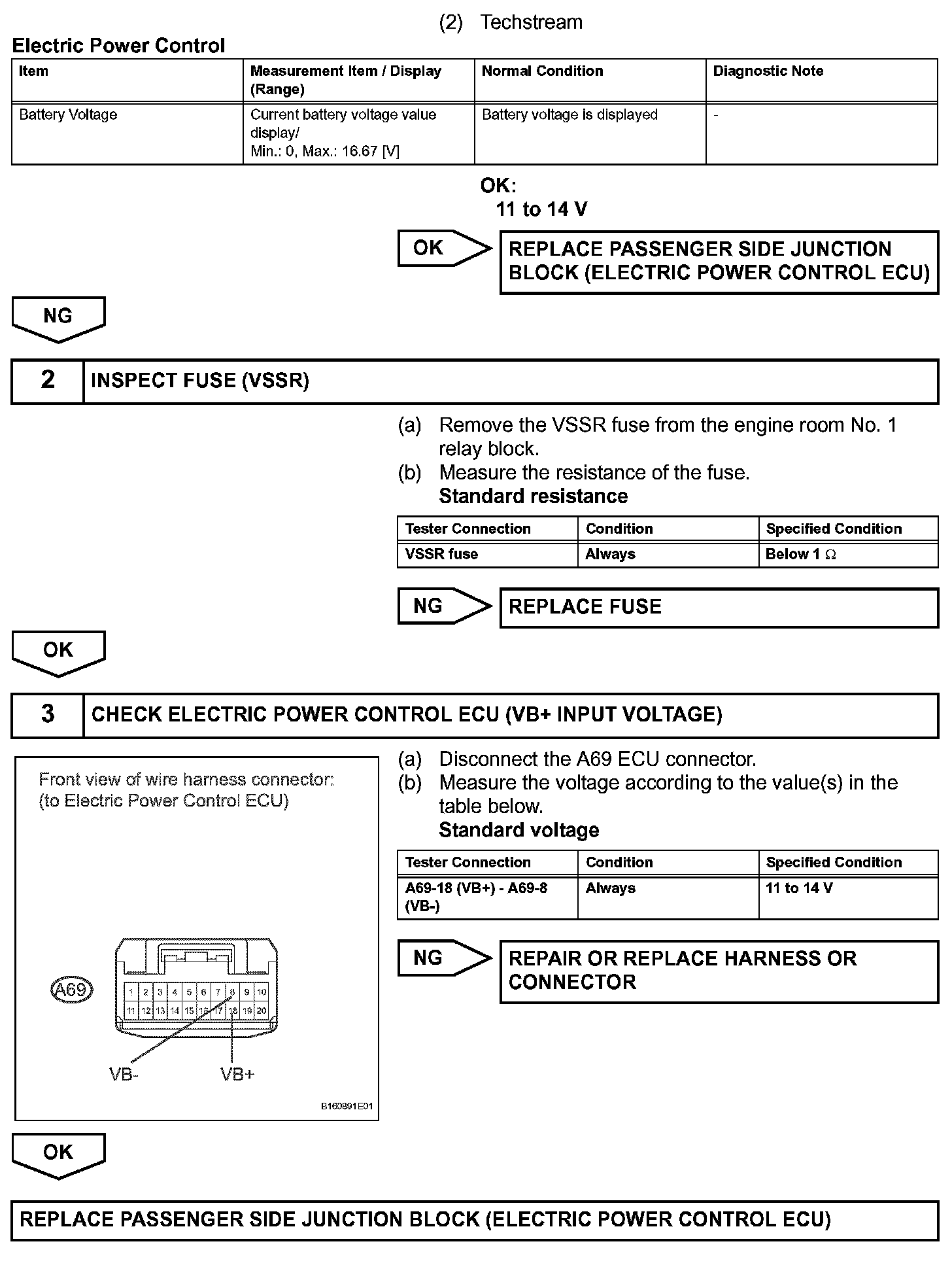

Step 1 (Continued)-3:

INSPECTION PROCEDURE
