B22A6

DTC B22A6 THB Terminal Voltage Low

DESCRIPTION

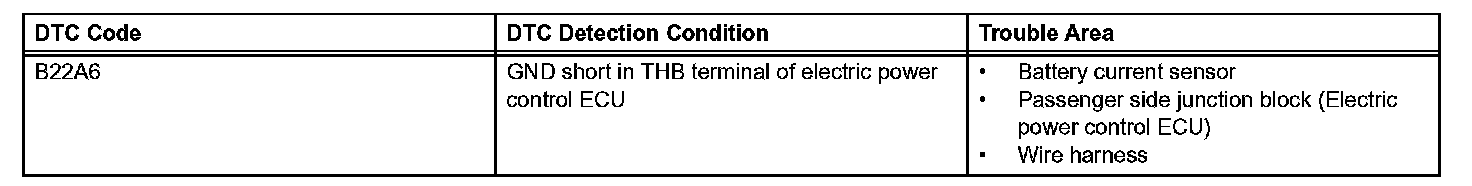

DTC Detection Condition:

The battery temperature sensor inside the current sensor detects changes in temperature as resistance values. In other words, when the temperature increases, the voltage decreases.

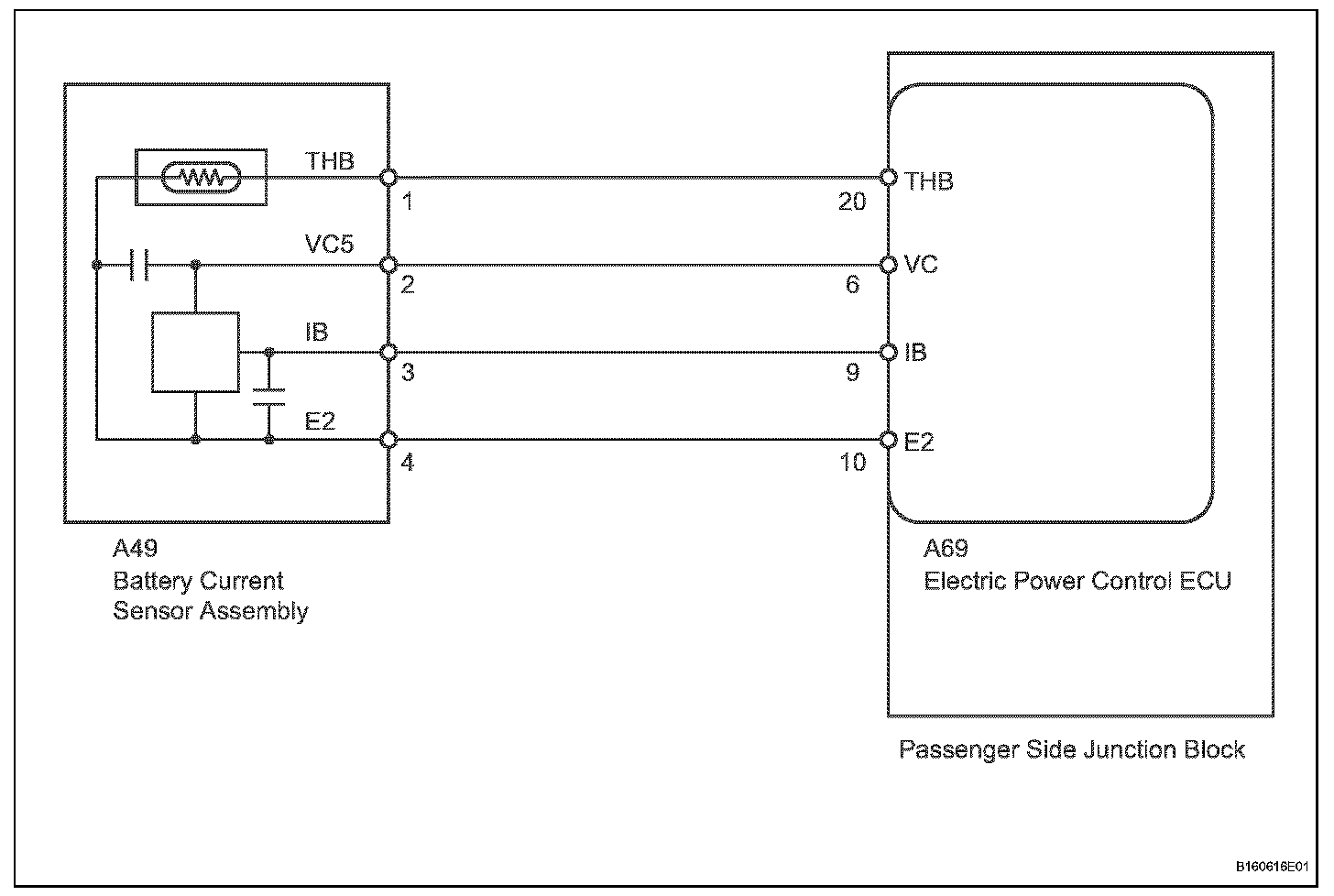

Wiring Diagram:

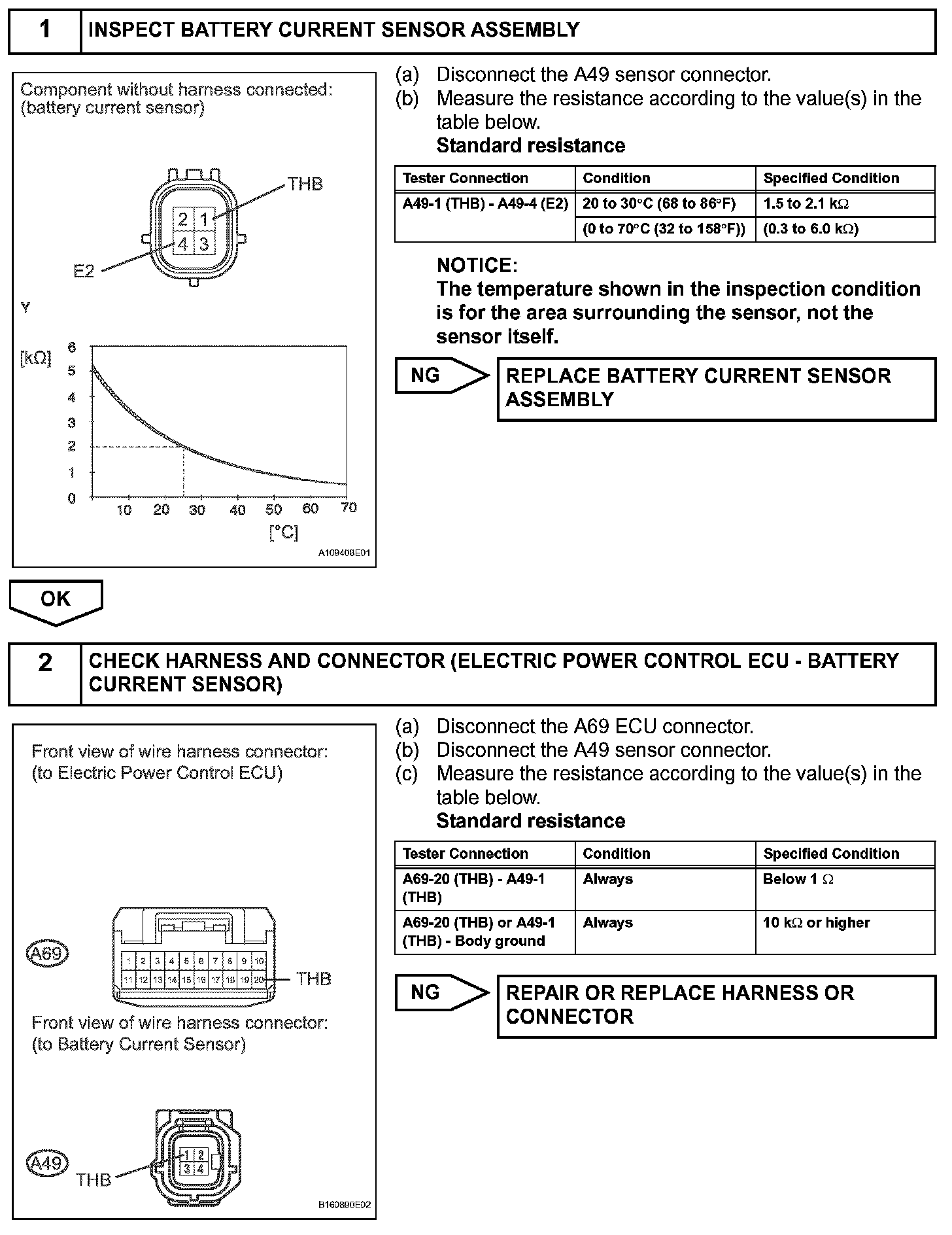

Step 1-2:

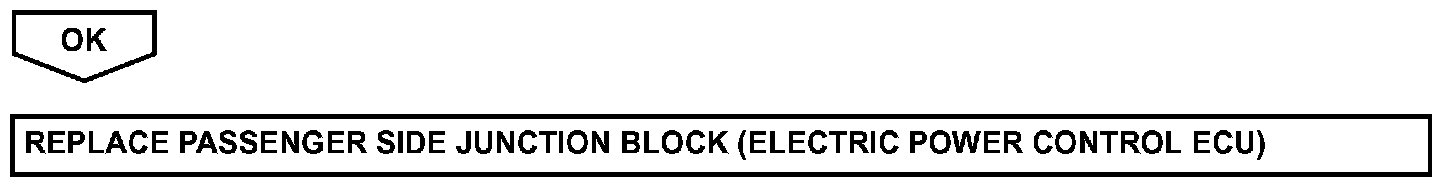

Step 2 (Continued):

INSPECTION PROCEDURE
