B22A1

DTC B22A1 Battery Current Sensor

DESCRIPTION

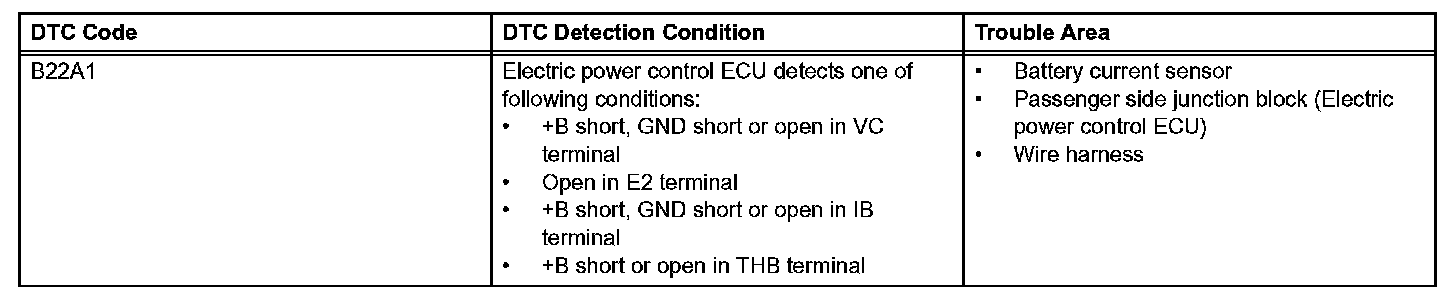

DTC Detection Condition:

The battery current sensor converts current to voltage, and outputs the value to the electric power control ECU. The electric power control ECU detects the battery condition, and performs load control and generator control.

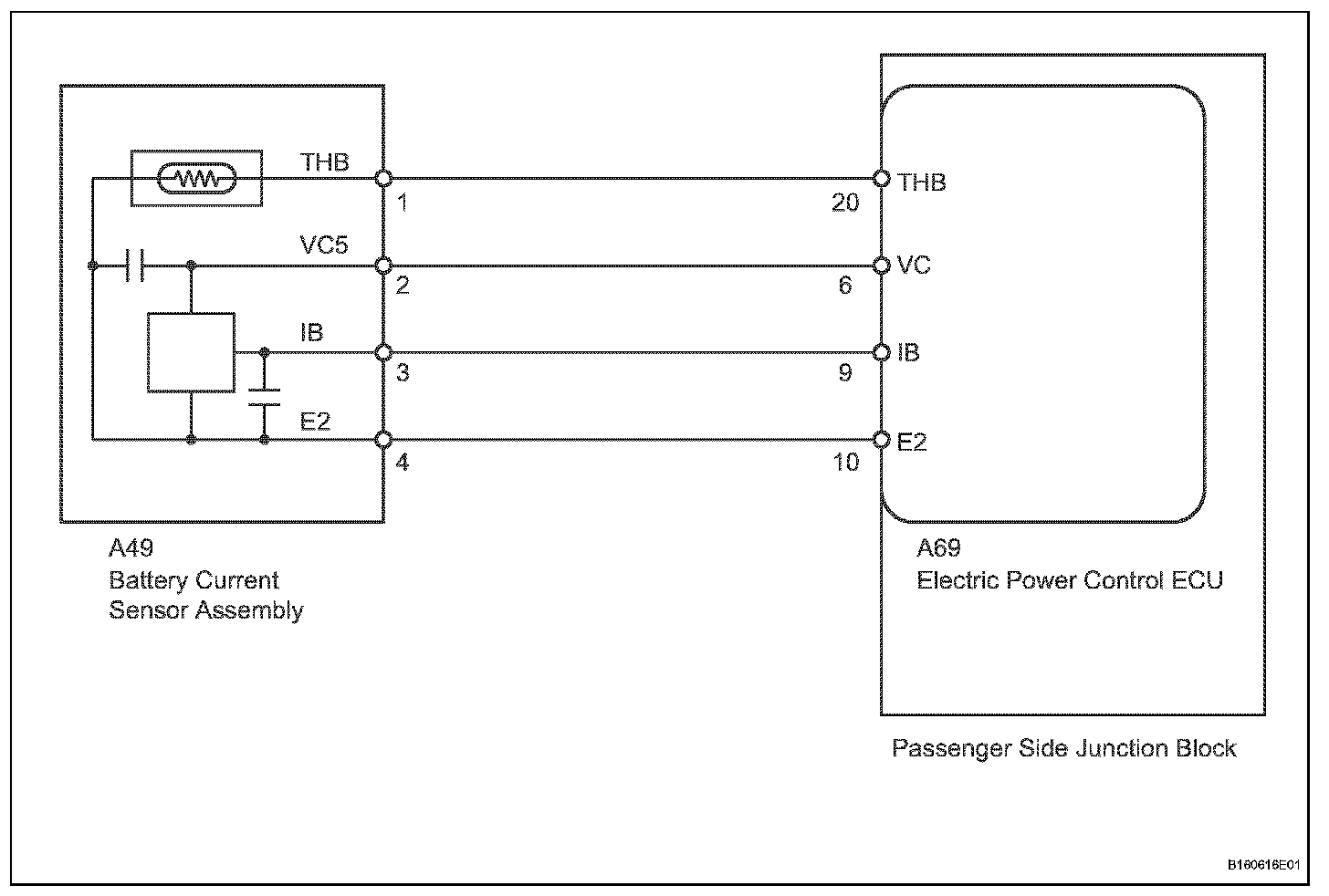

Wiring Diagram:

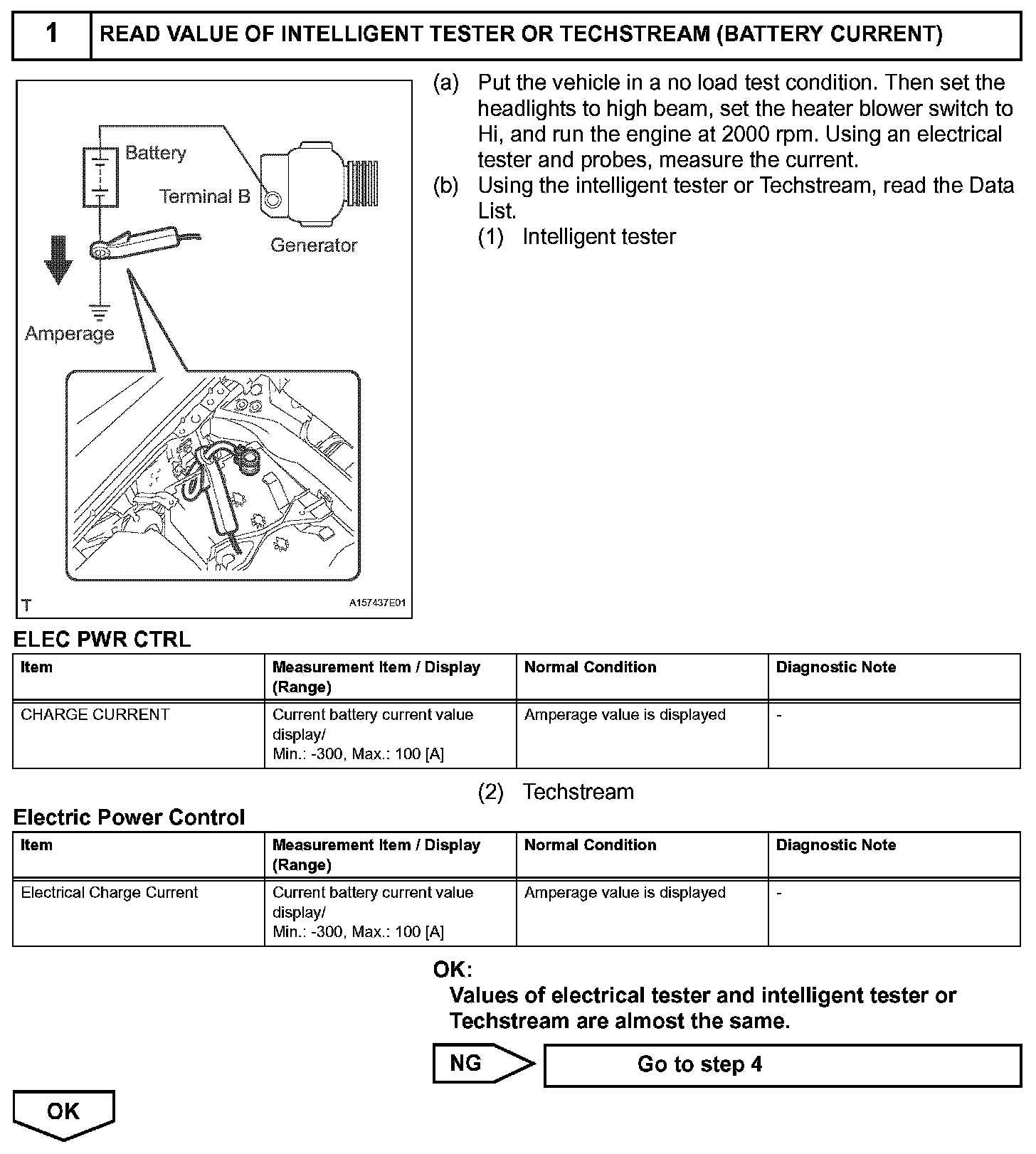

Step 1:

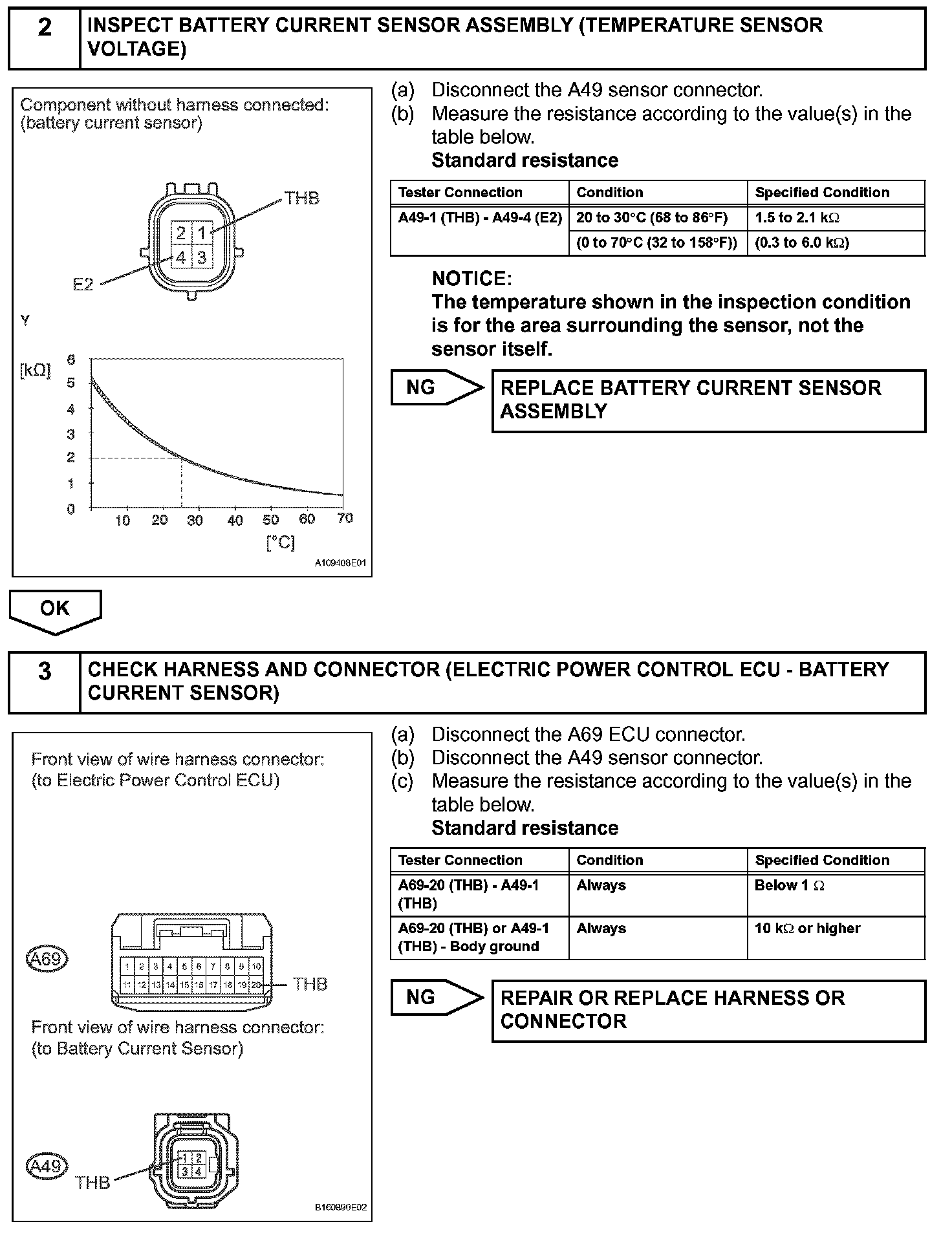

Step 2-3:

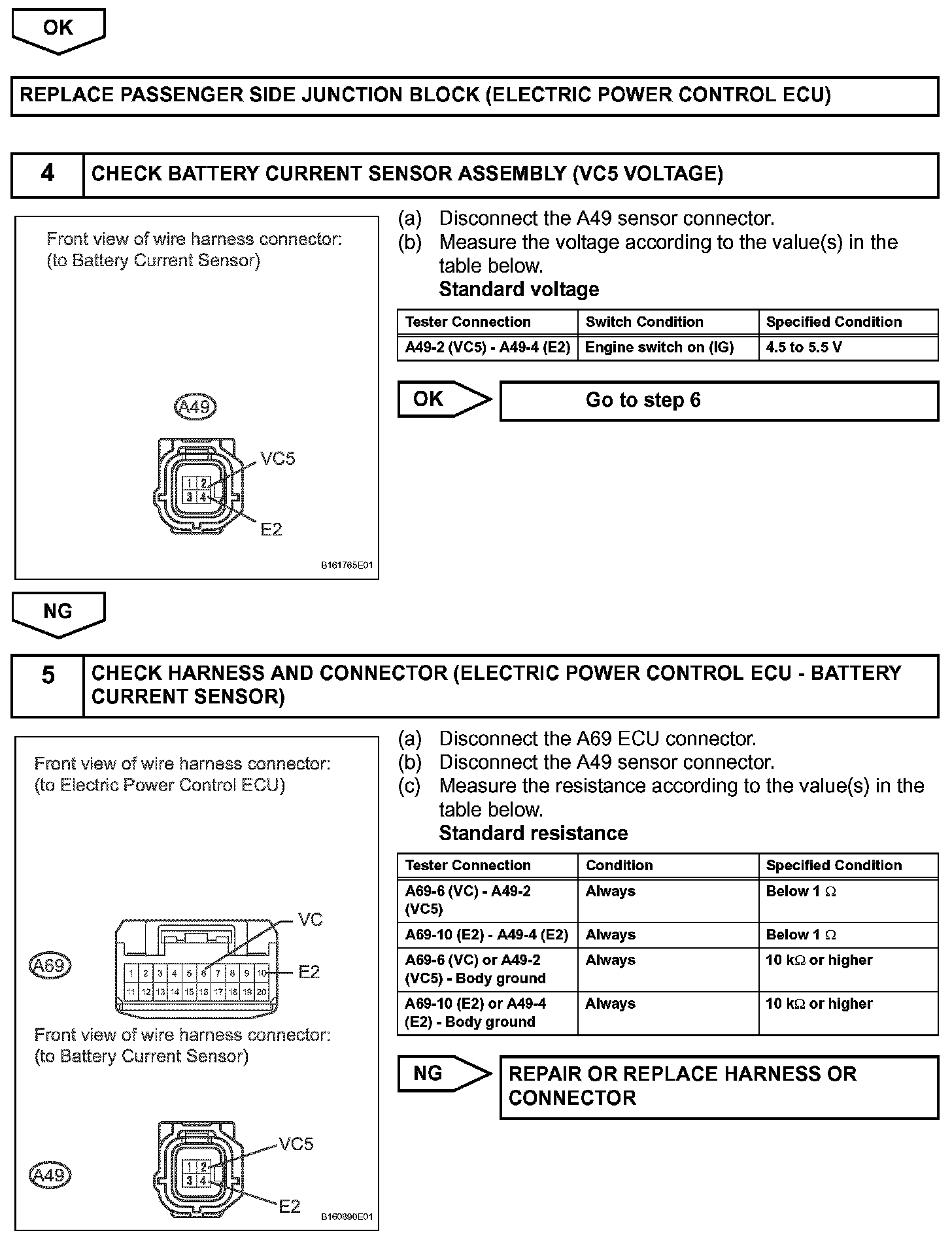

Step 3 (Continued)-5:

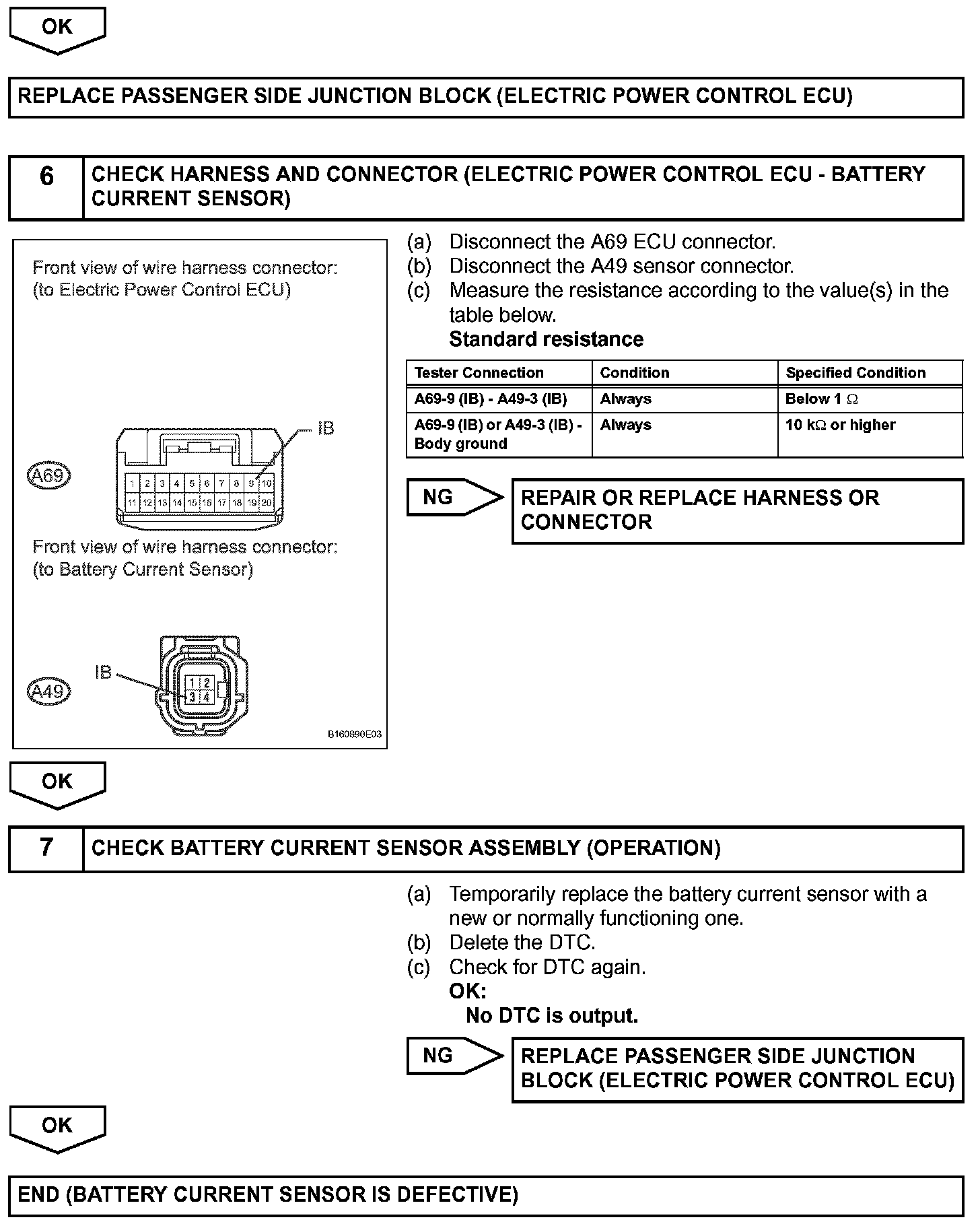

Step 5 (Continued)-7:

INSPECTION PROCEDURE
