B2286

DTC B2286 Runnable Signal Malfunction

DESCRIPTION

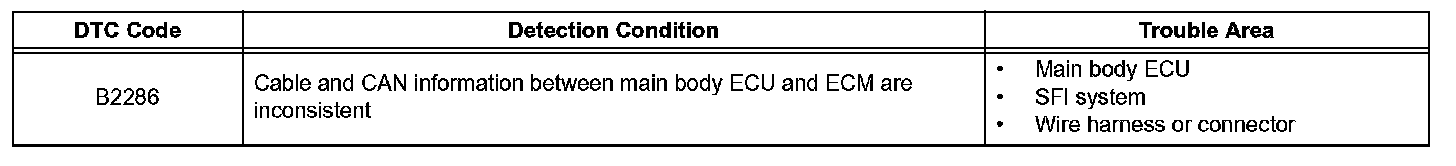

Detection Condition:

The main body ECU and the ECM are connected by a cable and the CAN communication line. If the cable information and CAN information are inconsistent, this DTC is output.

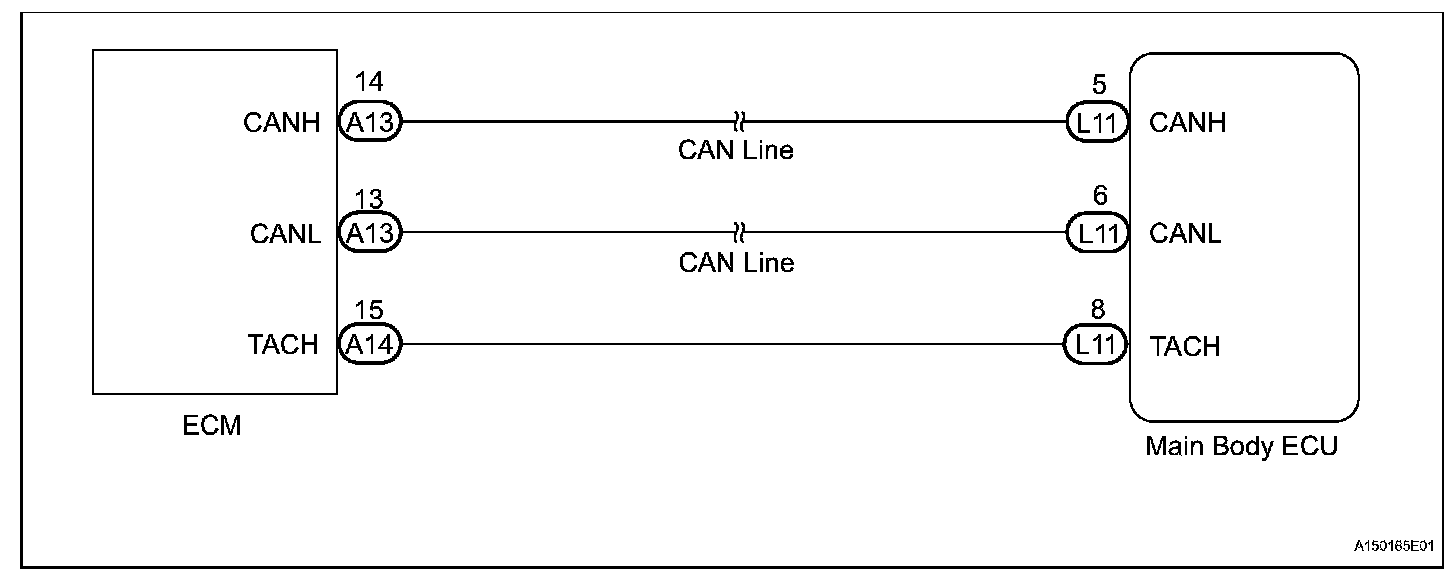

Wiring Diagram:

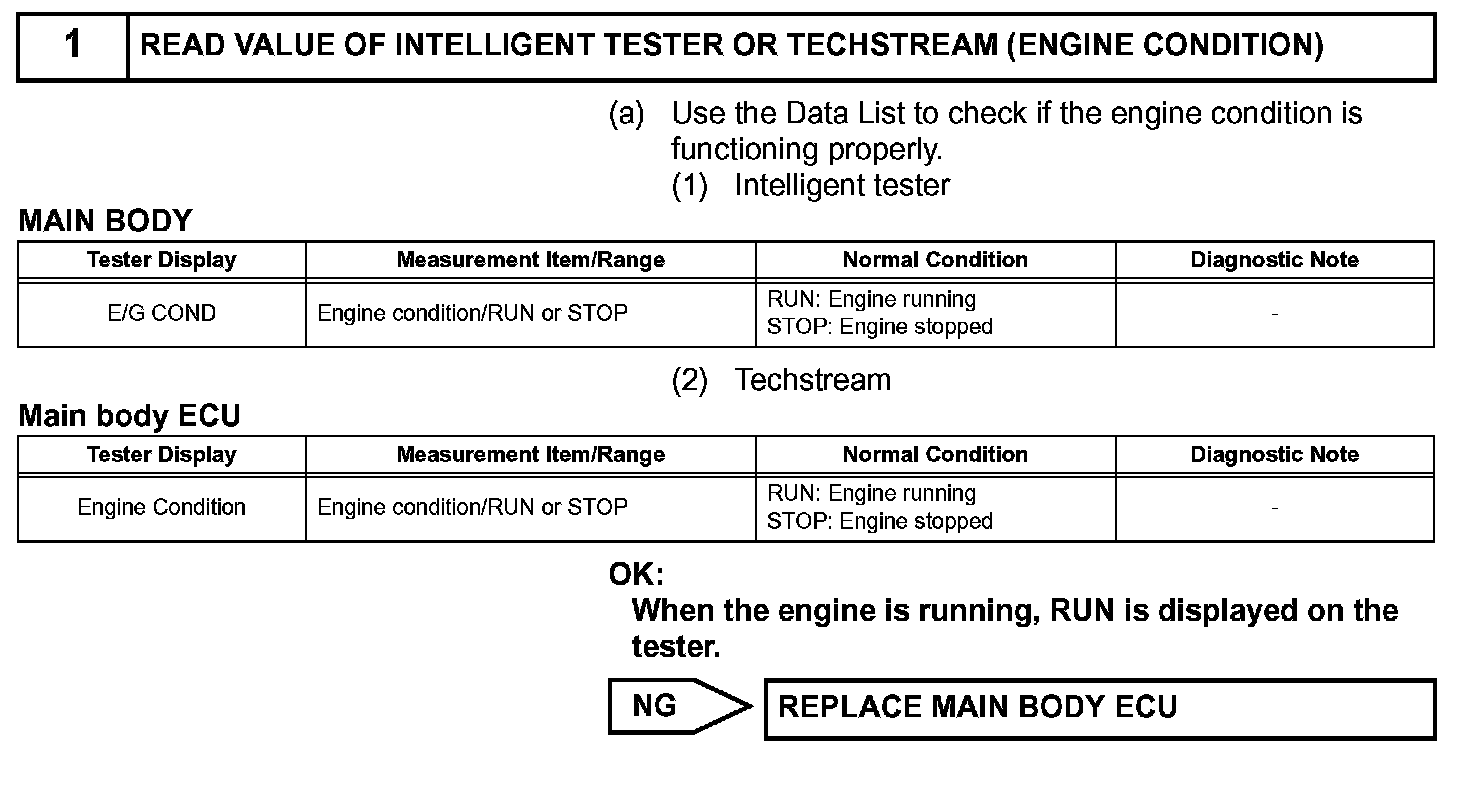

Step 1:

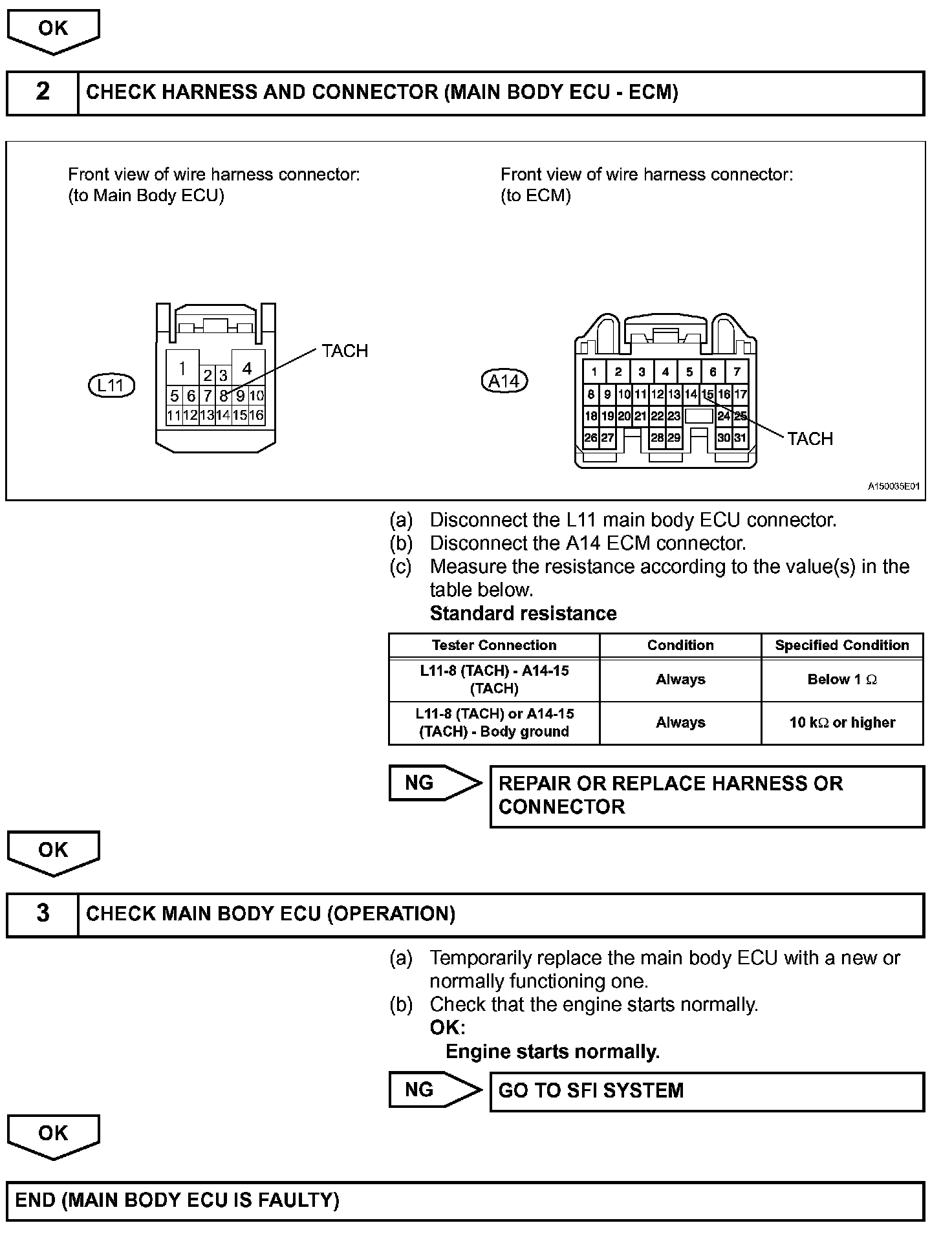

Step 1 (Continued)-3:

INSPECTION PROCEDURE
