B2276

DTC B2276 ACCR Signal Circuit Malfunction

DESCRIPTION

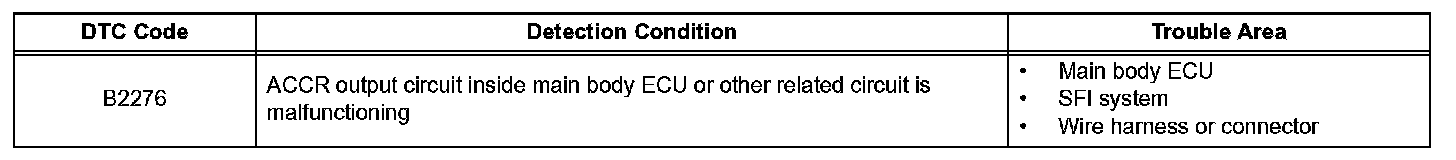

Detection Condition:

This DTC is output when a malfunction is detected in the ACCR signal output by the main body ECU.

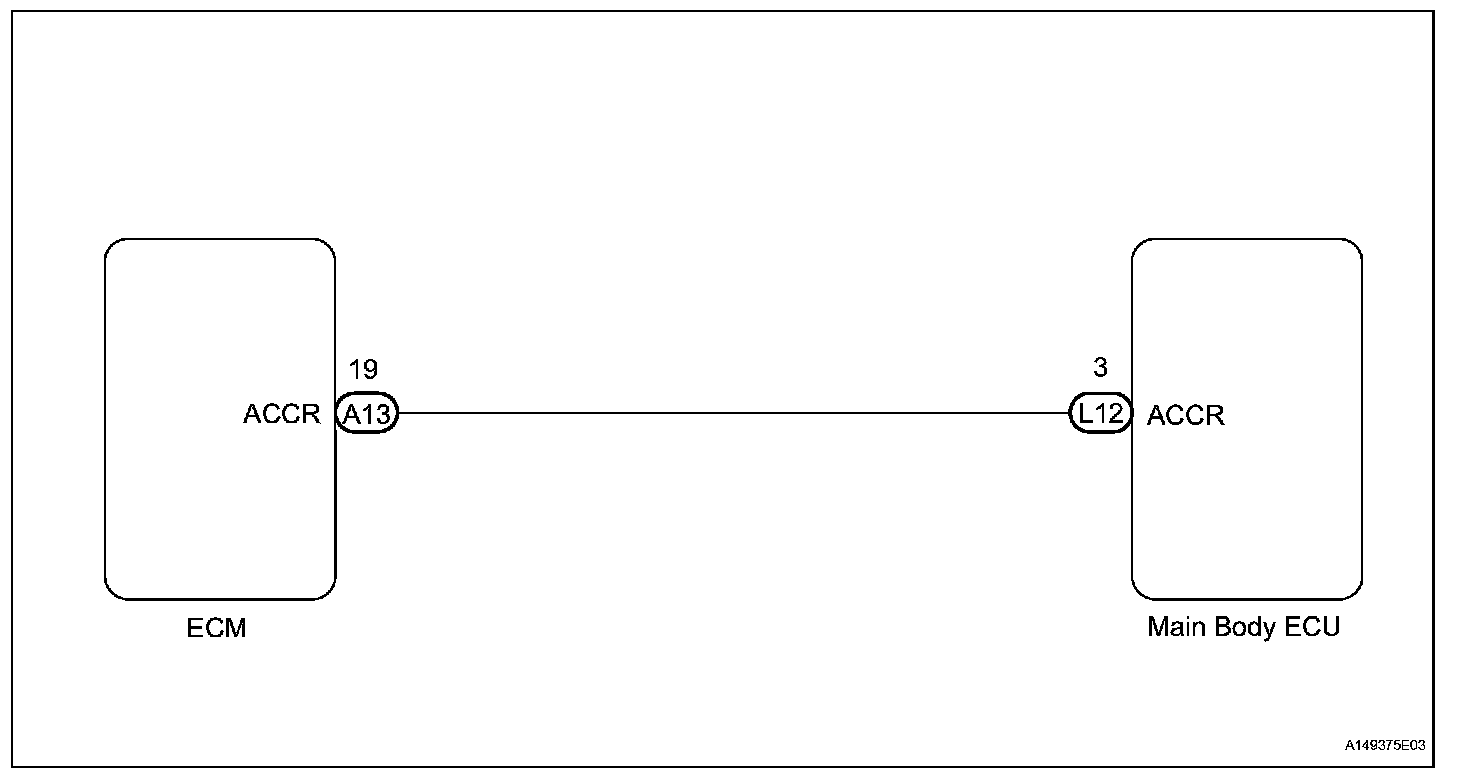

Wiring Diagram:

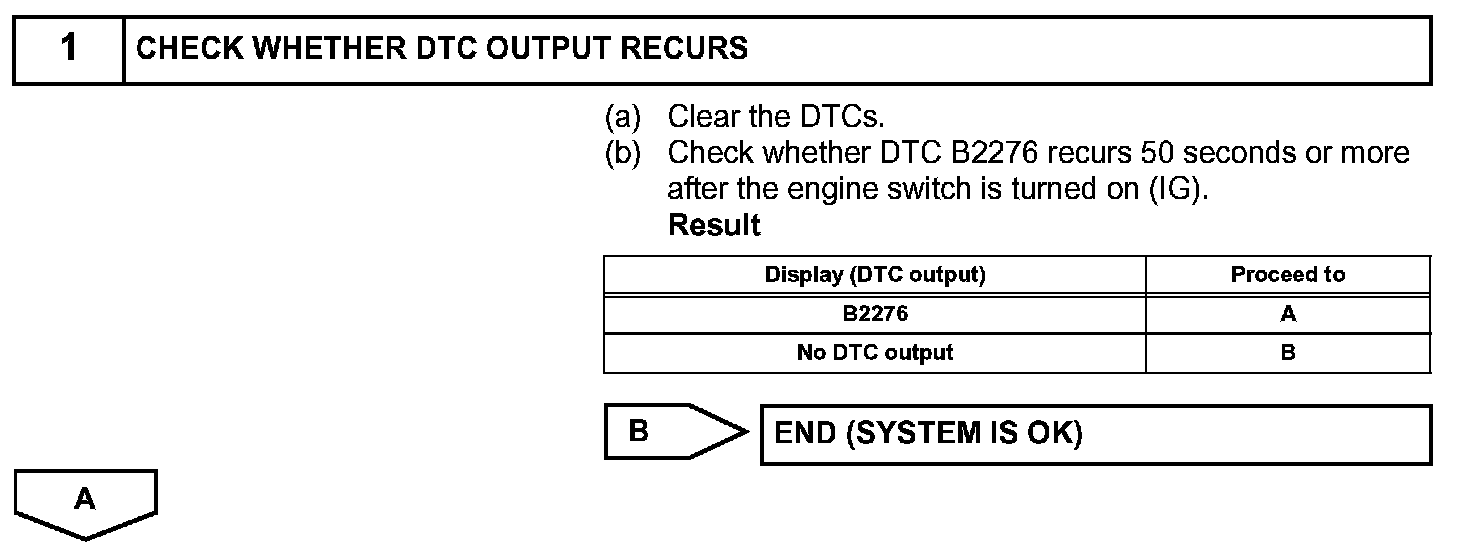

Step 1:

Step 2-3:

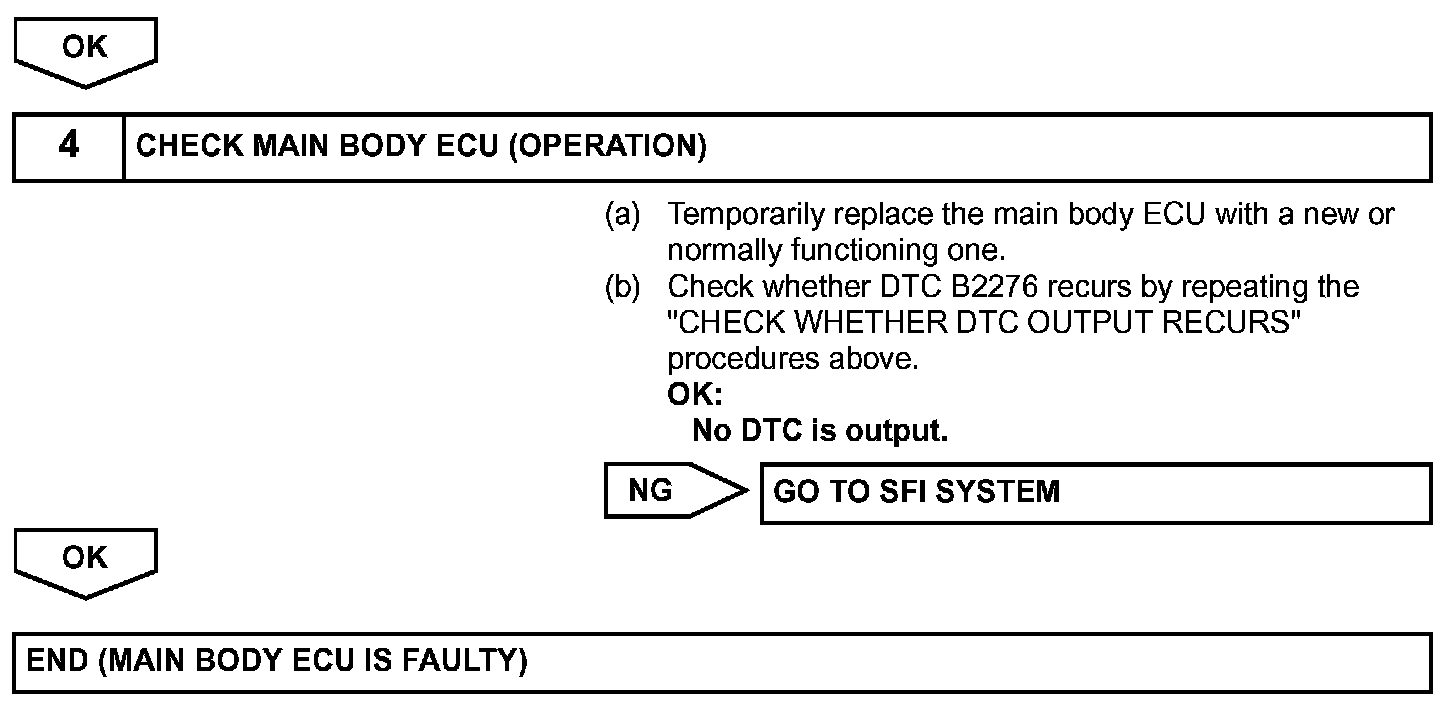

Step 3 (Continued)-4:

INSPECTION PROCEDURE
