DTC B2272 Ignition 1 Monitor Malfunction

DESCRIPTION

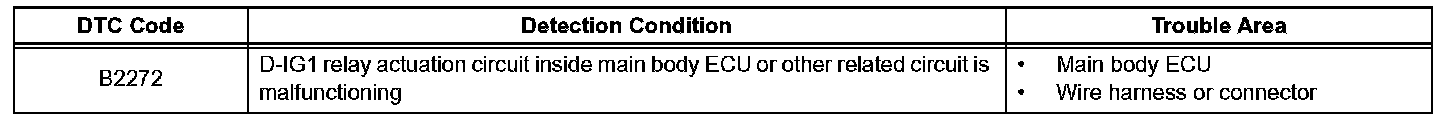

Detection Condition:

This DTC is output when a malfunction occurs in the IG1D output circuit, which is between the D-IG1 relay actuation circuit inside the main body ECU and the D-IG1 relay.

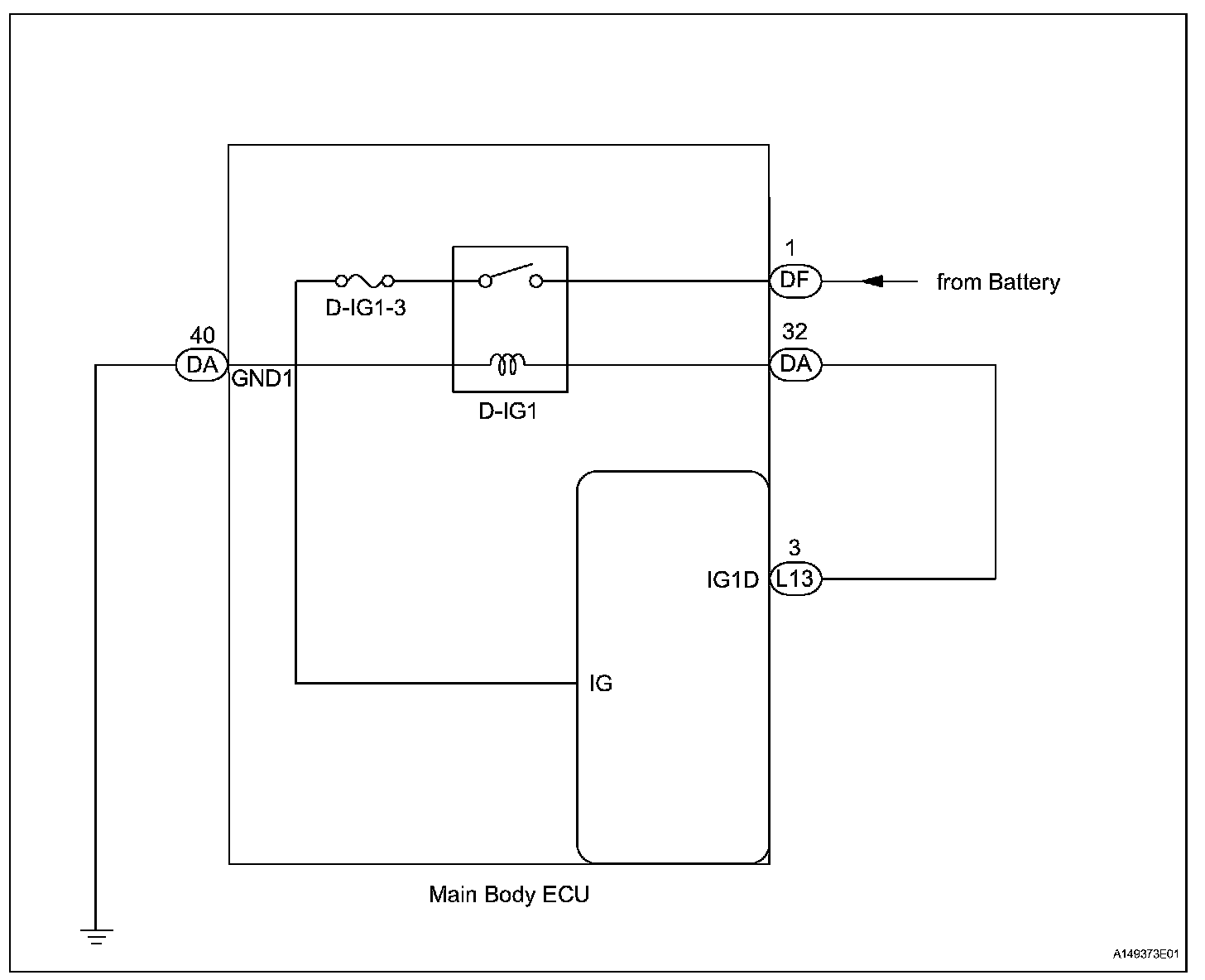

Wiring Diagram:

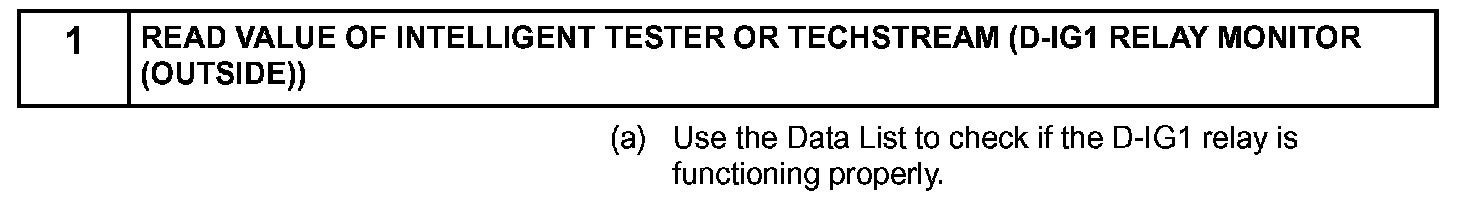

Step 1:

Step 1 (Continued)-3:

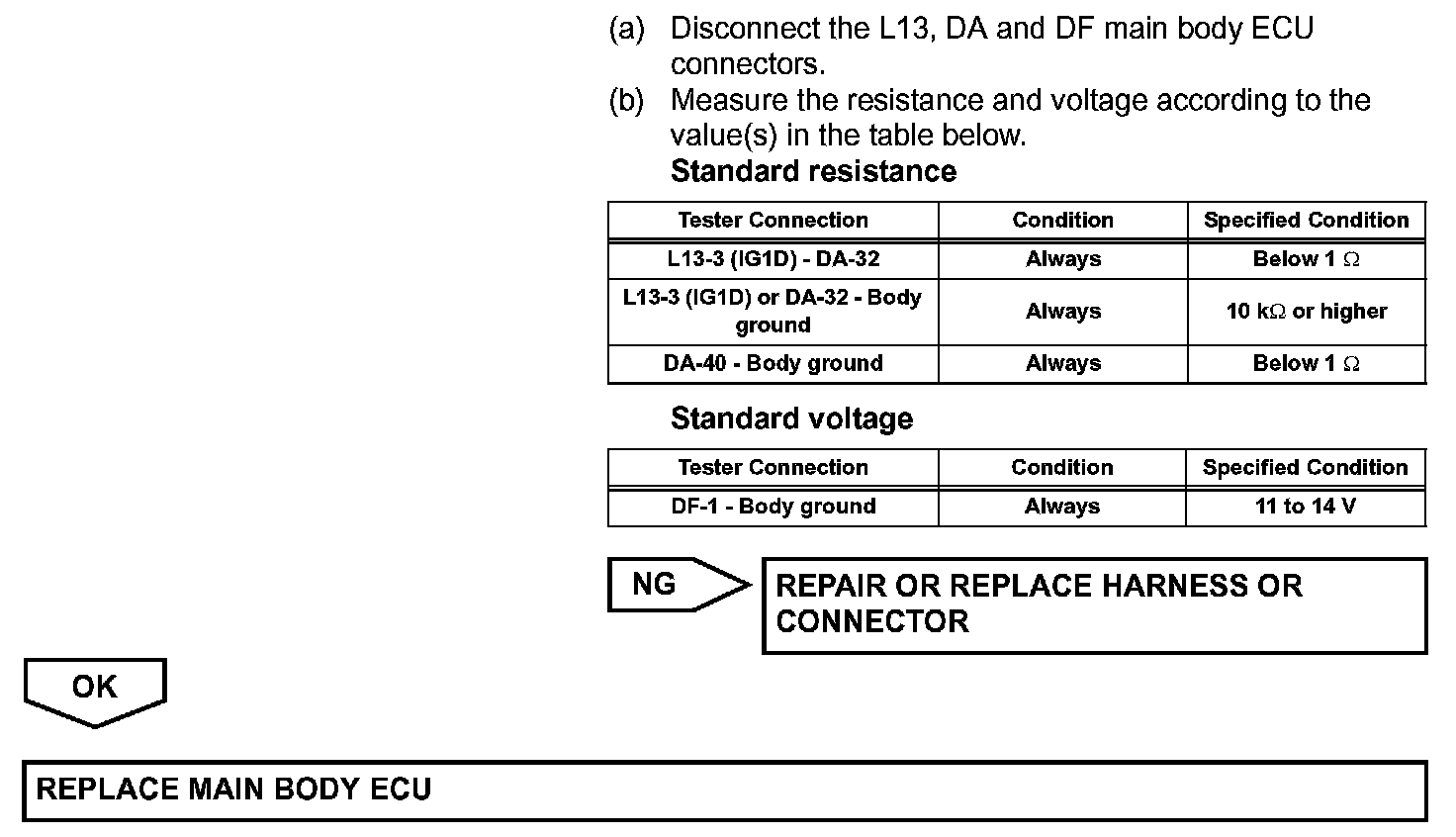

Step 3 (Continued):

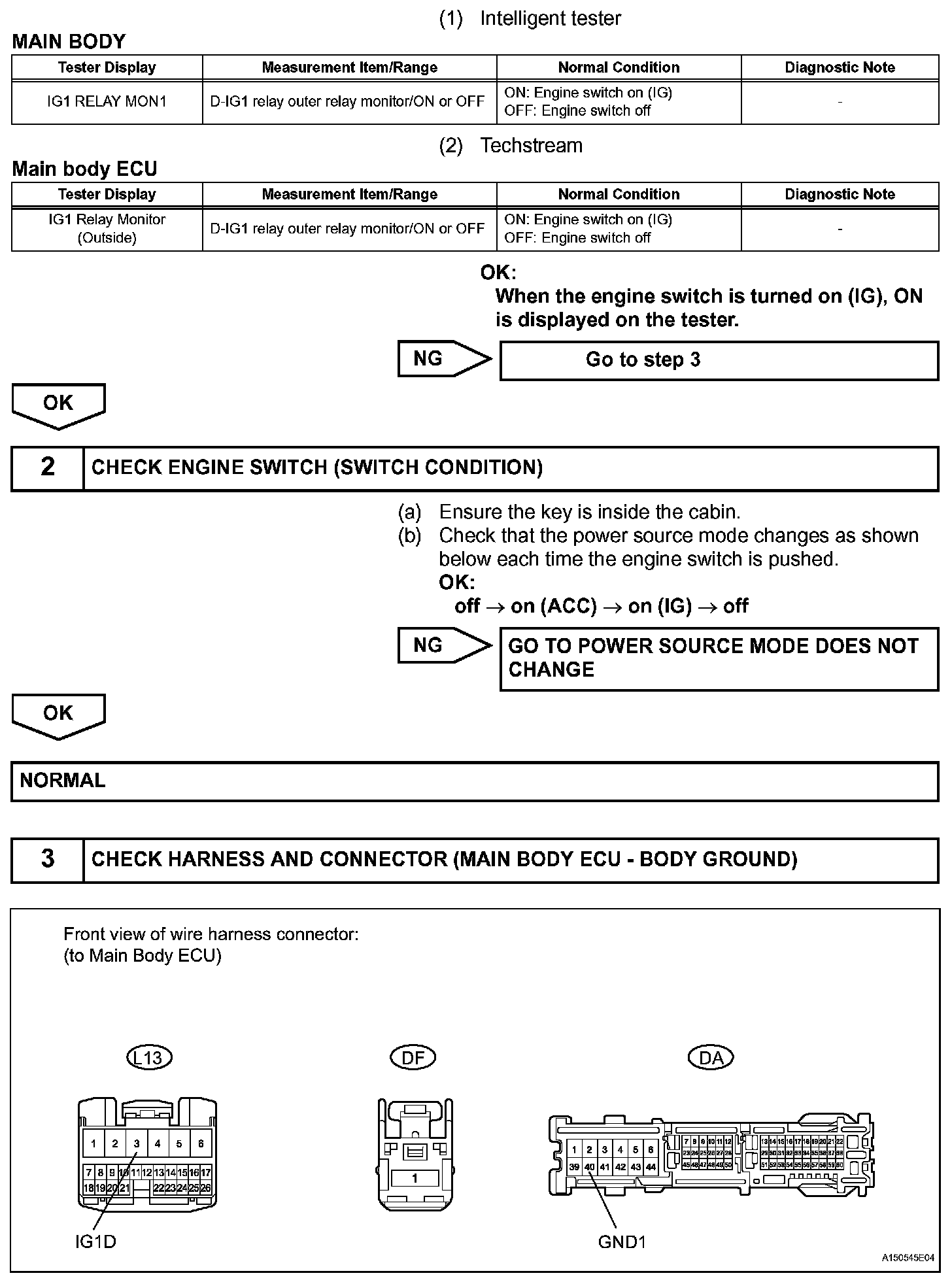

INSPECTION PROCEDURE
