Power Trunk Lid System

DTC B2250 Back Door Closer Operation Malfunction

DESCRIPTION
- "Back door" refers to the luggage compartment door.
- DTC B2250 is output when there is a malfunction in the closer motor position switch, courtesy switch, or pawl switch of the luggage compartment door closer assembly.

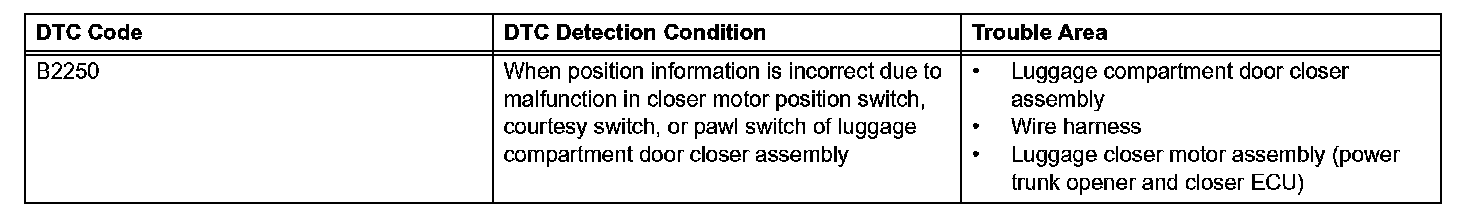

DTC Detection Condition:

WIRING DIAGRAM

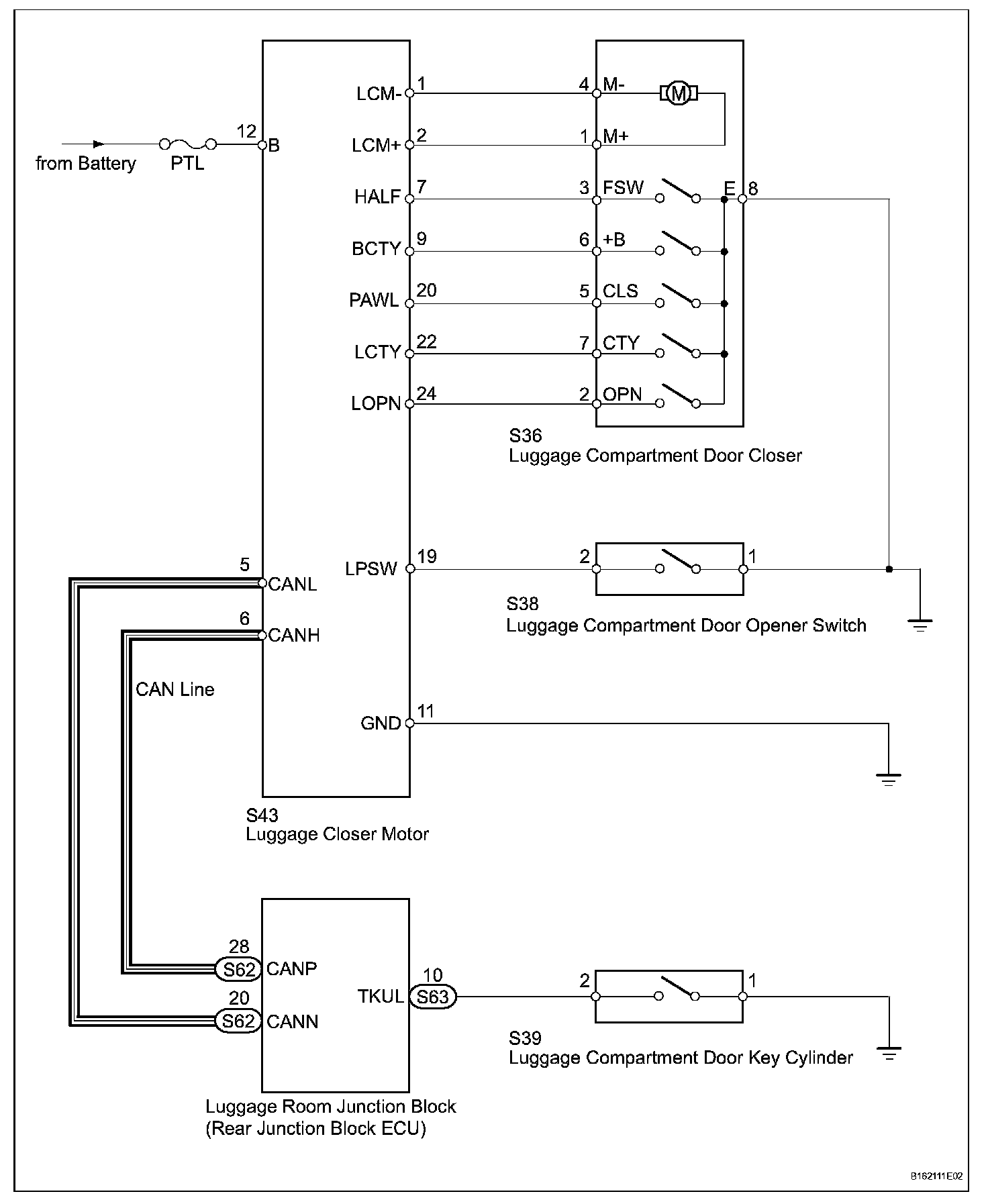

Wiring Diagram:

INSPECTION PROCEDURE

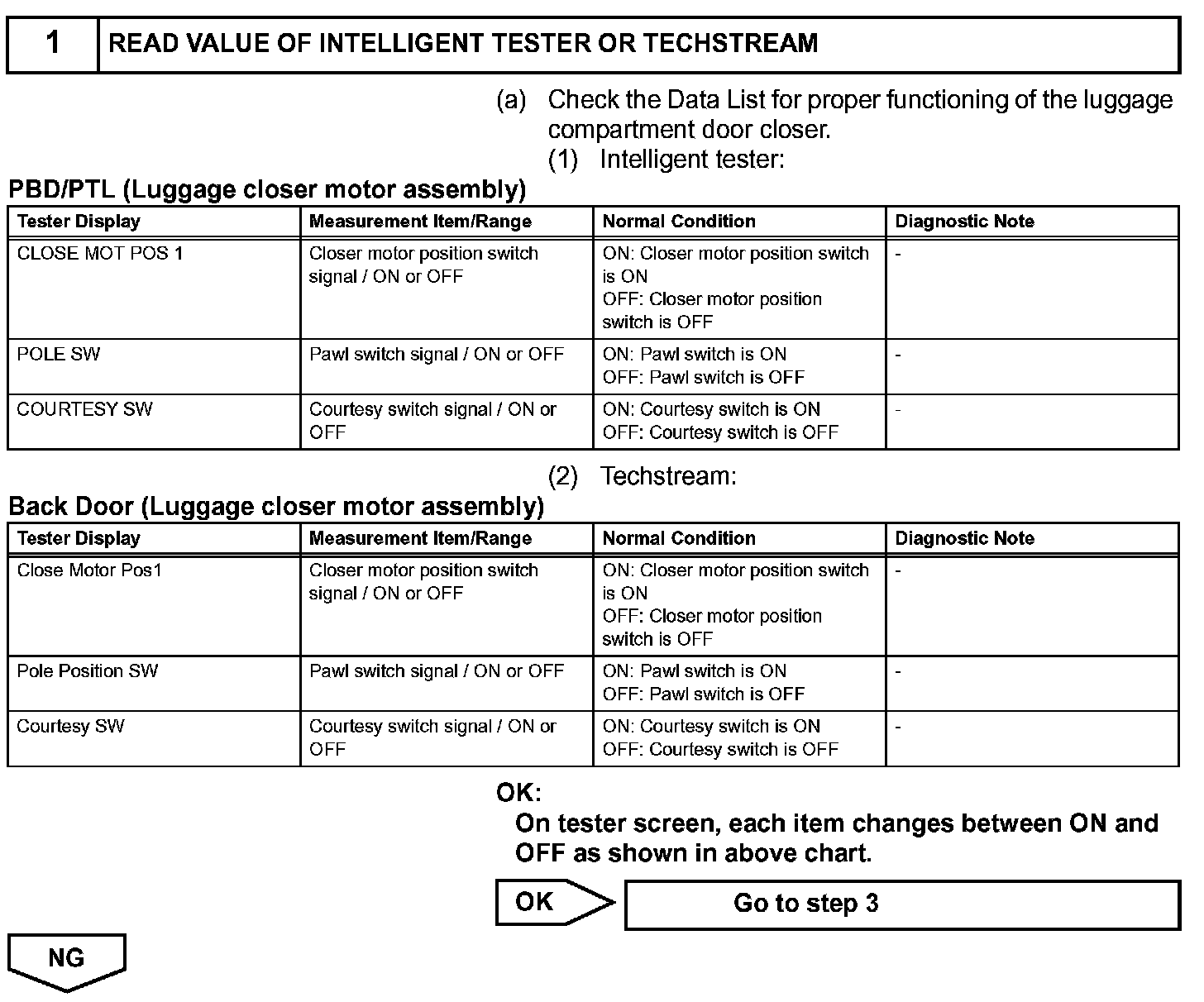

Step 1:

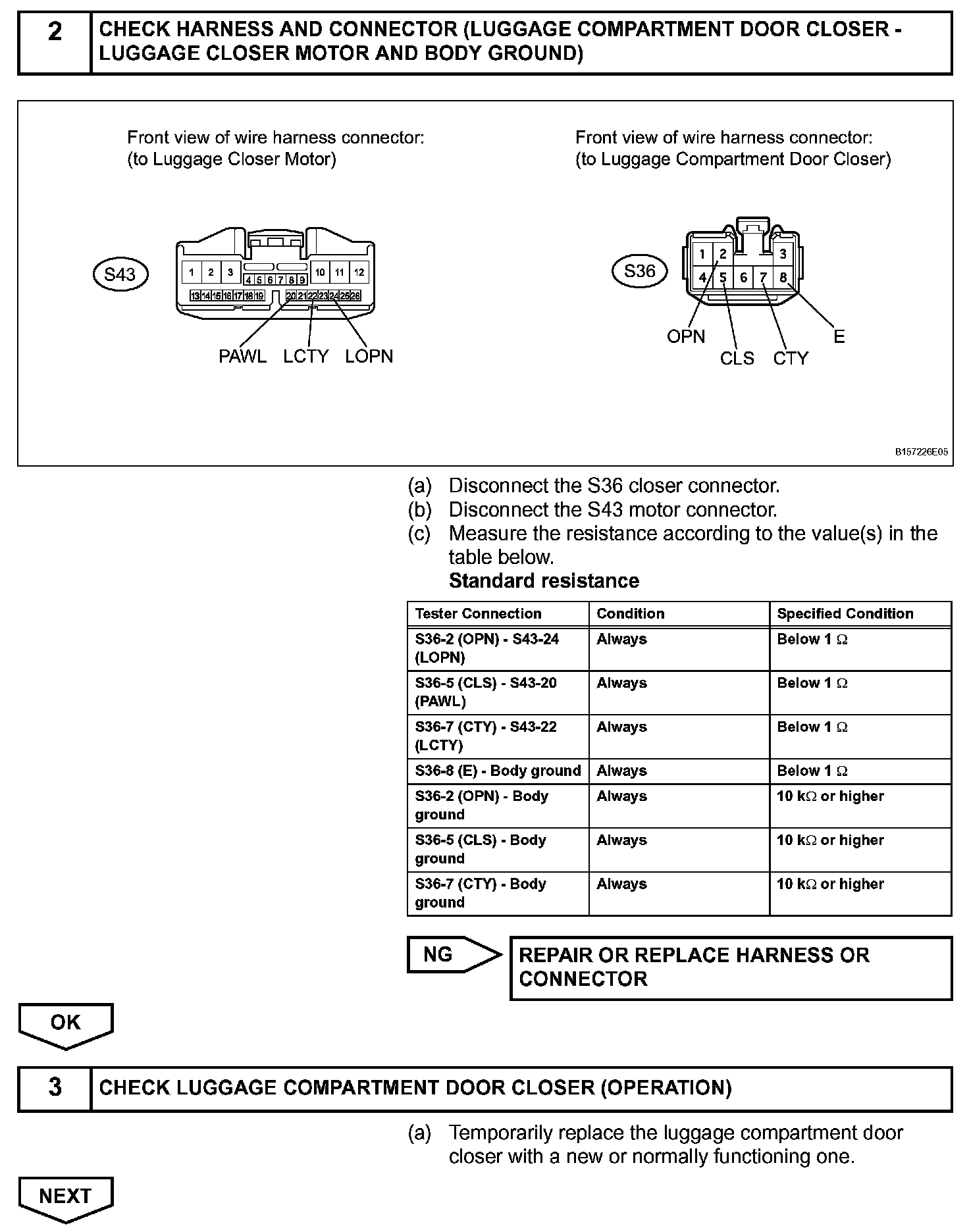

Step 2 - 3:

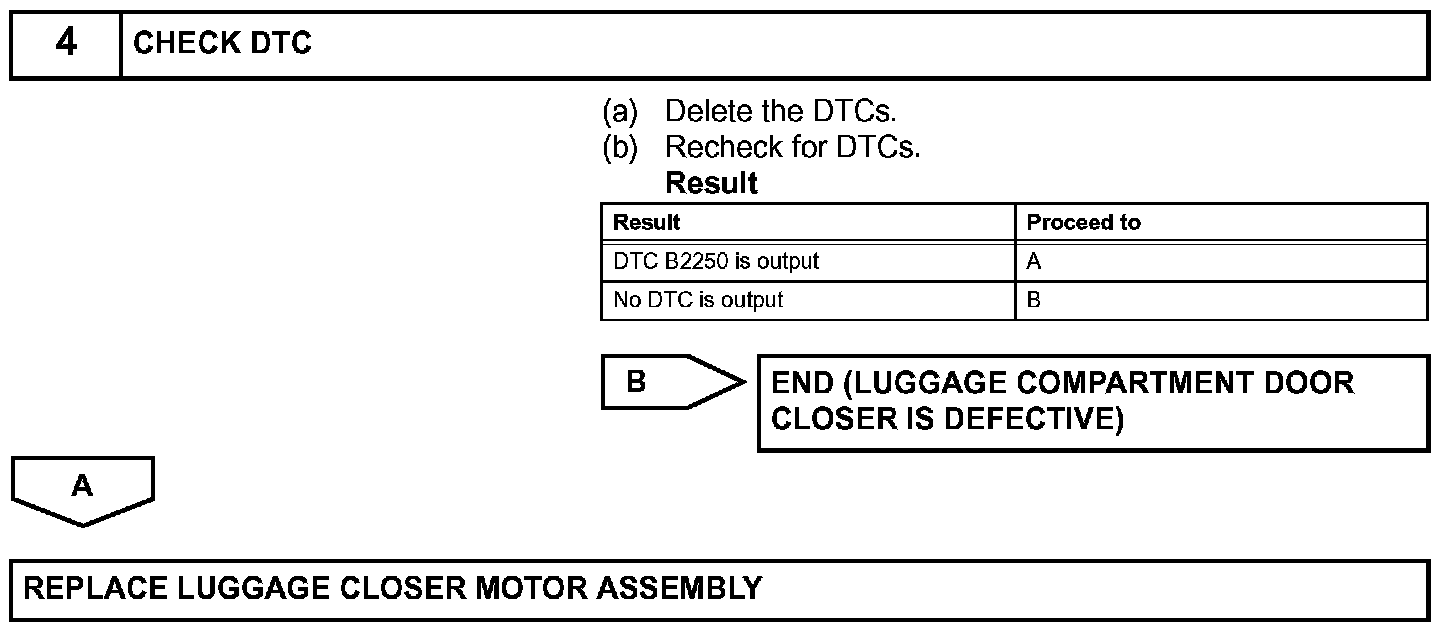

Step 4:
