B2222

DTC B2222 PBD Pulse Sensor Malfunction
DTC B2225 Back Door Motor Clutch Malfunction

DESCRIPTION
- "PBD" refers to the power trunk opener and closer.
- DTC B2222 is output in the following situations: 1) When the pulse sensor of the luggage closer motor assembly has a malfunction and a normal waveform is not input into the pulse sensor during the power trunk lid operation, or 2) When there is a malfunction in the power trunk opener and closer activation power supply.

DTC Detection Condition:

- "Back door" refers to the luggage compartment door.
- DTC B2225 is output when there is malfunction in clutch of luggage closer motor assembly, or when there is a malfunction in the power trunk opener and closer activation power supply.

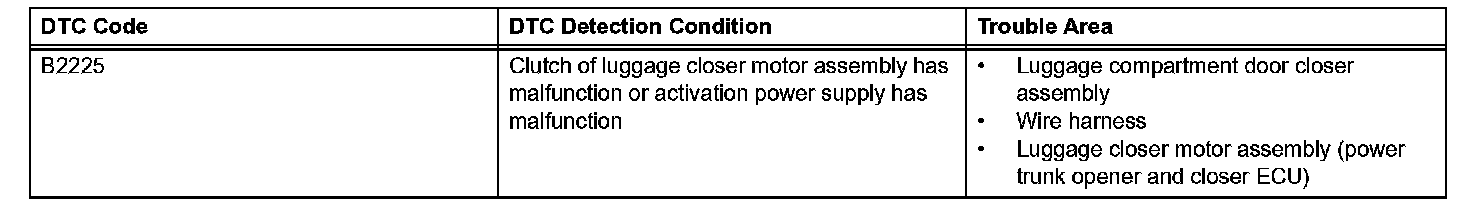

DTC Detection Condition:

INSPECTION PROCEDURE

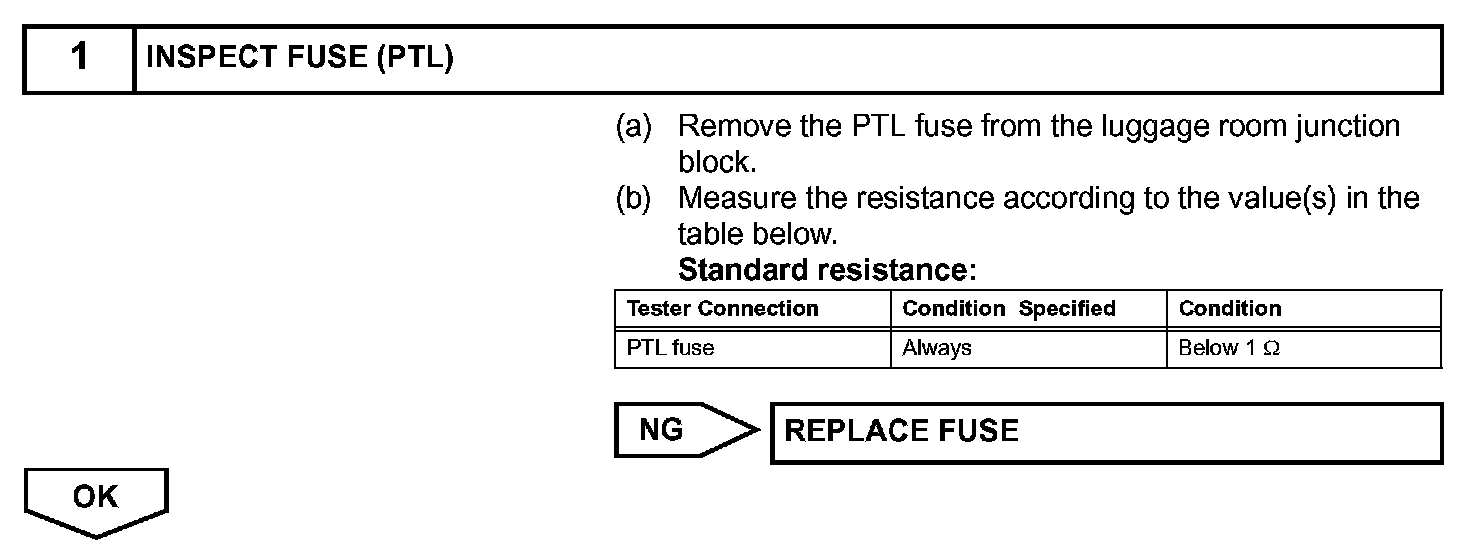

Step 1:

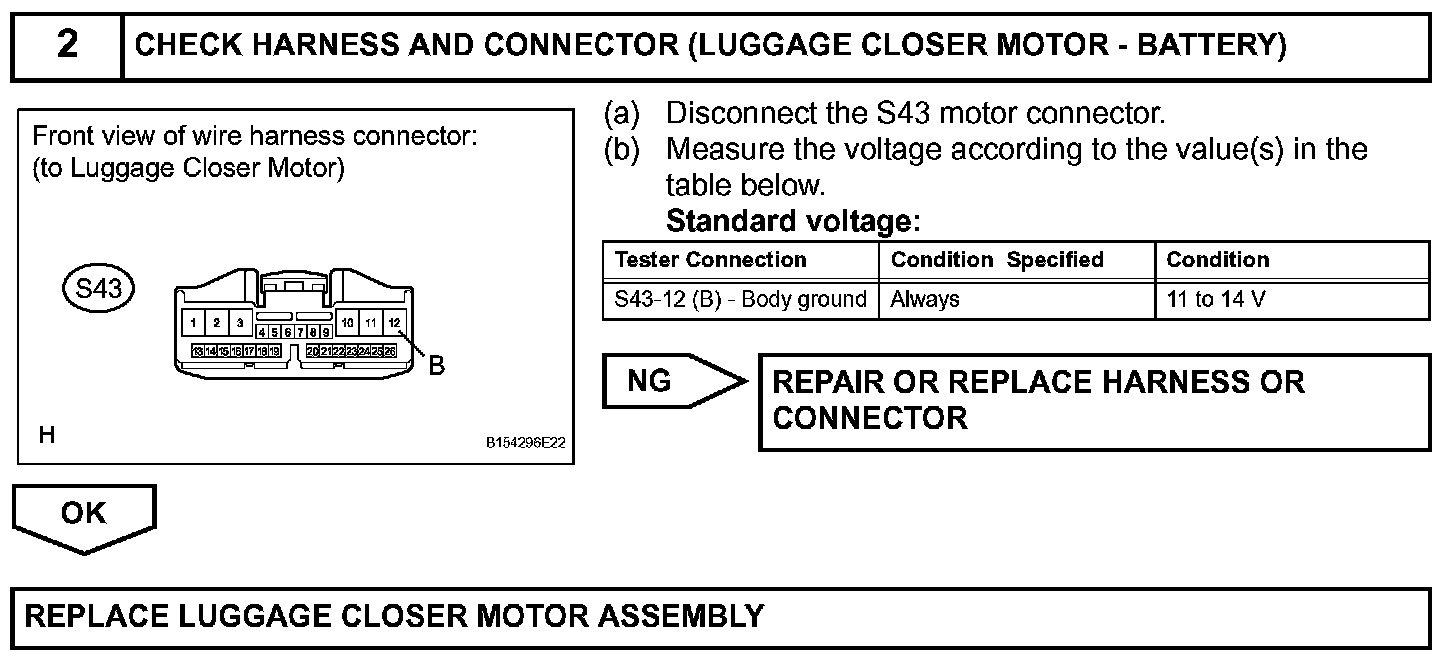

Step 2:
