B2007

DTC B2002 Open in Seat Belt Motor RH Circuit
DTC B2007 Open in Seat Belt Motor LH Circuit

DESCRIPTION

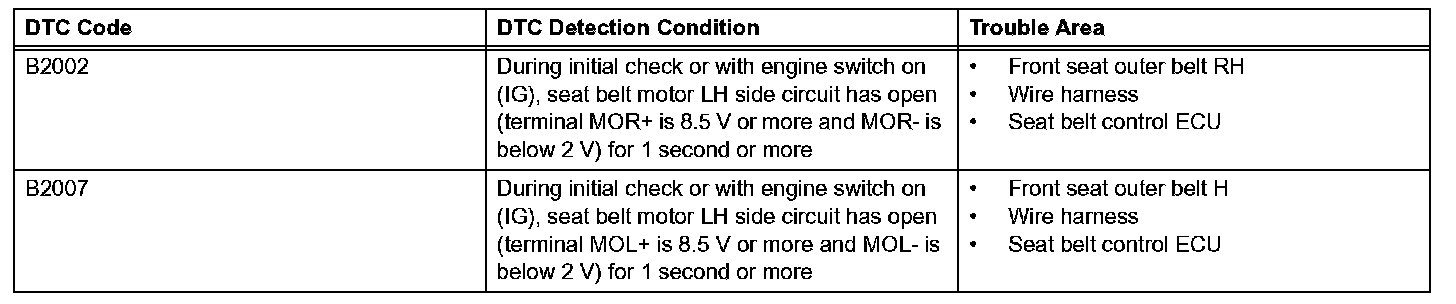

DTC Detection Condition:

The seat belt control ECU receives collision information from the driving support ECU and skid control ECU via CAN communication, and tightens the seat belt by operating the motor inside the front seat outer belt assembly.

When DTC B2002 is detected, DTCs B2026 and B2027 will not be detected.

When DTC B2007 is detected, DTCs B2031, and B2032 will not be detected.

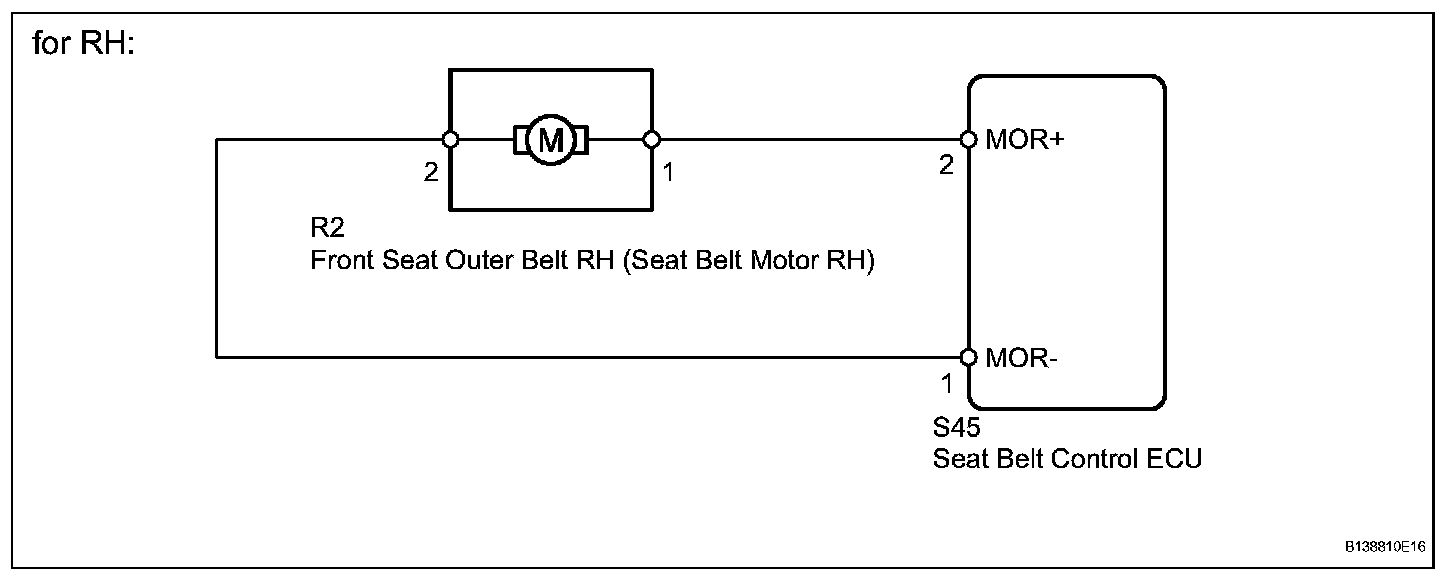

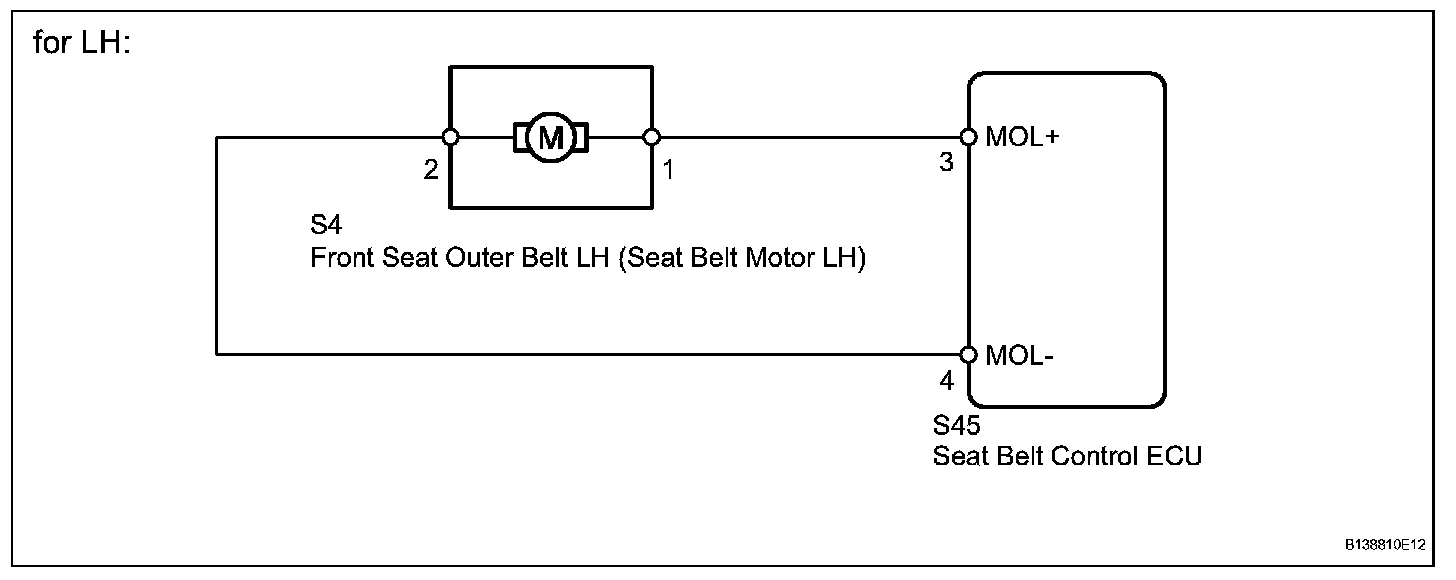

Wiring Diagram:

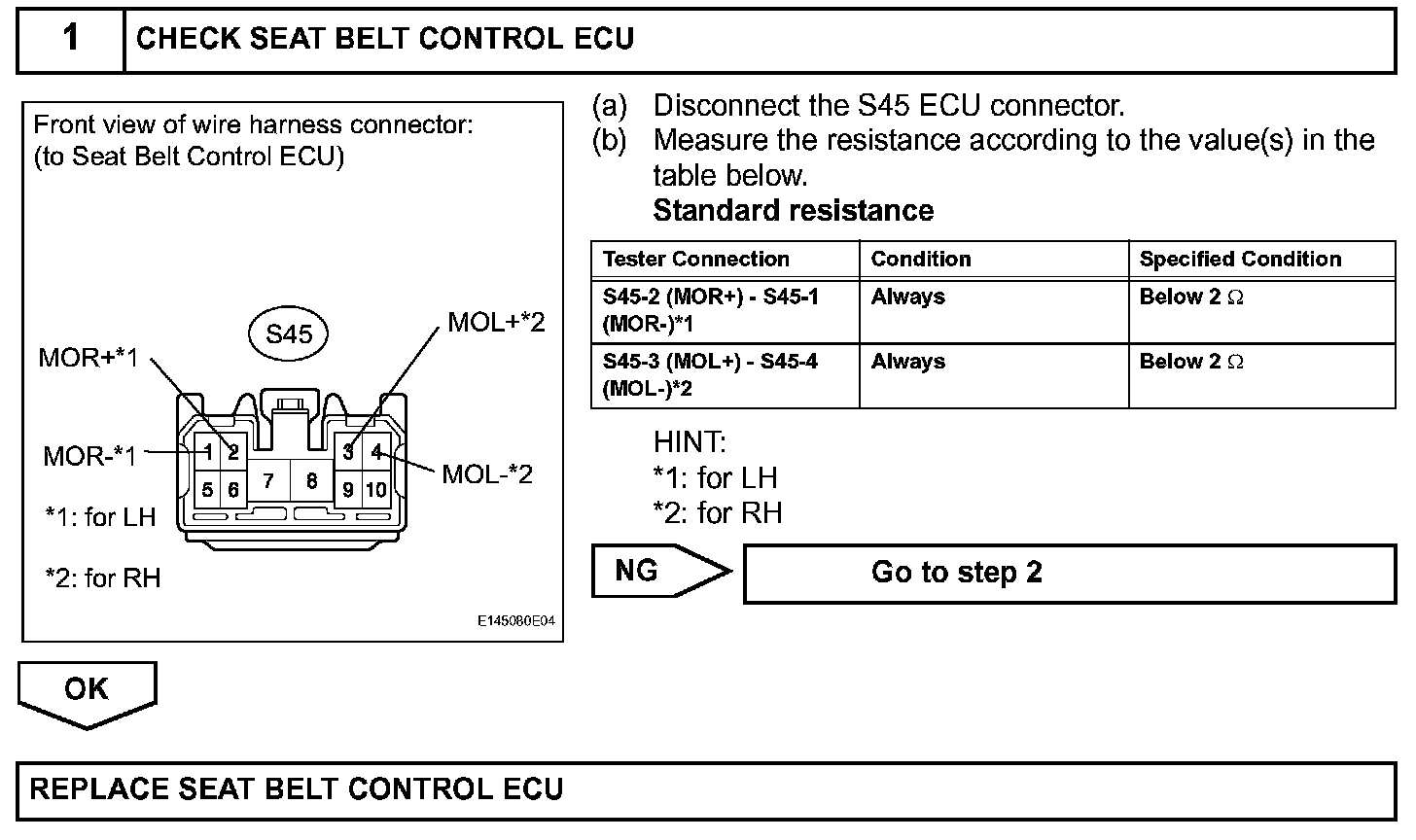

Step 1:

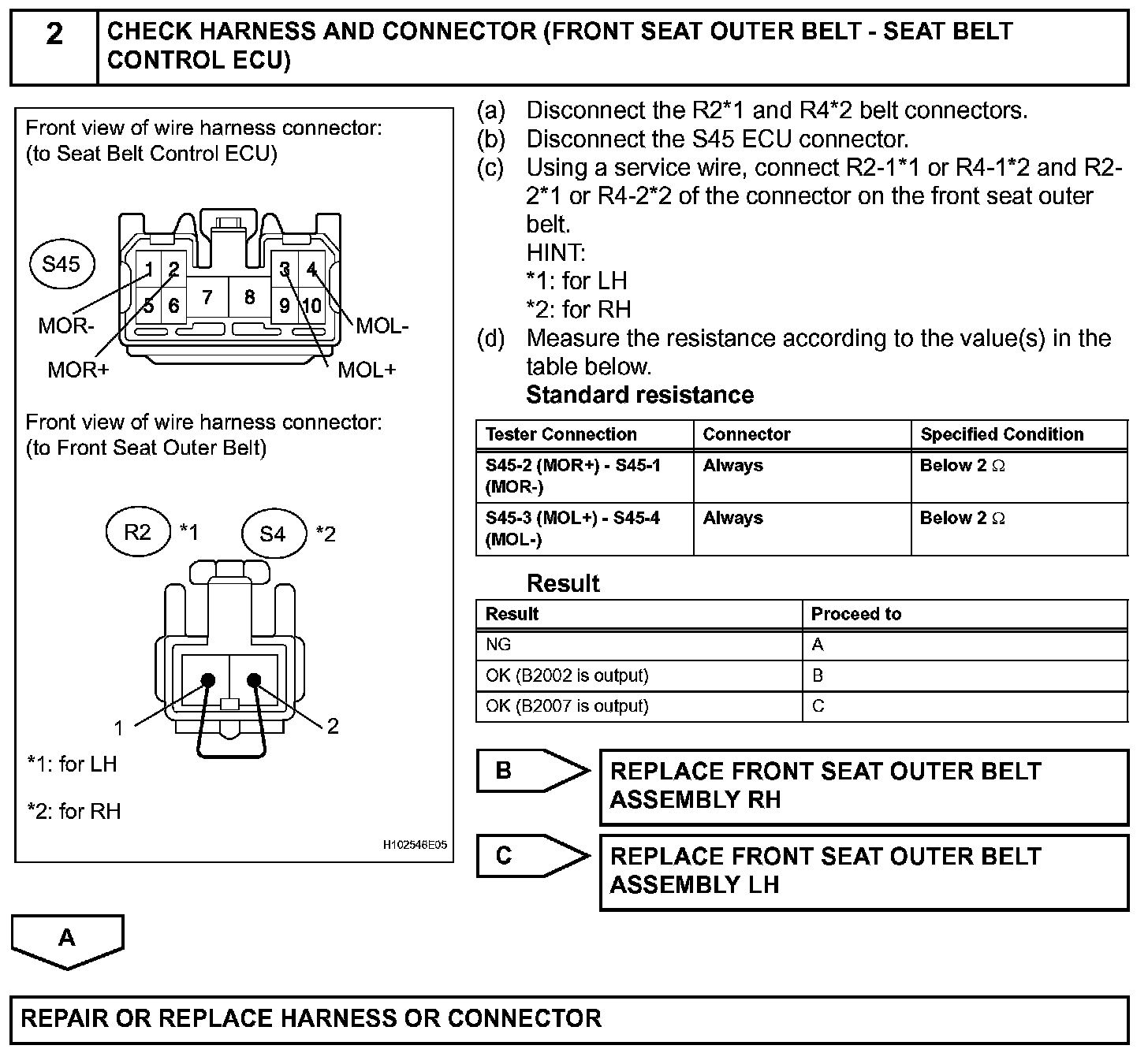

Step 2:

INSPECTION PROCEDURE

CAUTION: The pretensioner is built into the front seat outer belt assembly. Be sure to follow the correct inspection procedure, as failure to follow the correct procedure (such as inspection of incorrect connectors) may activate the pretensioner.
