B1830

DTC B1830/57 Short in Curtain Shield Squib RH Circuit

DESCRIPTION

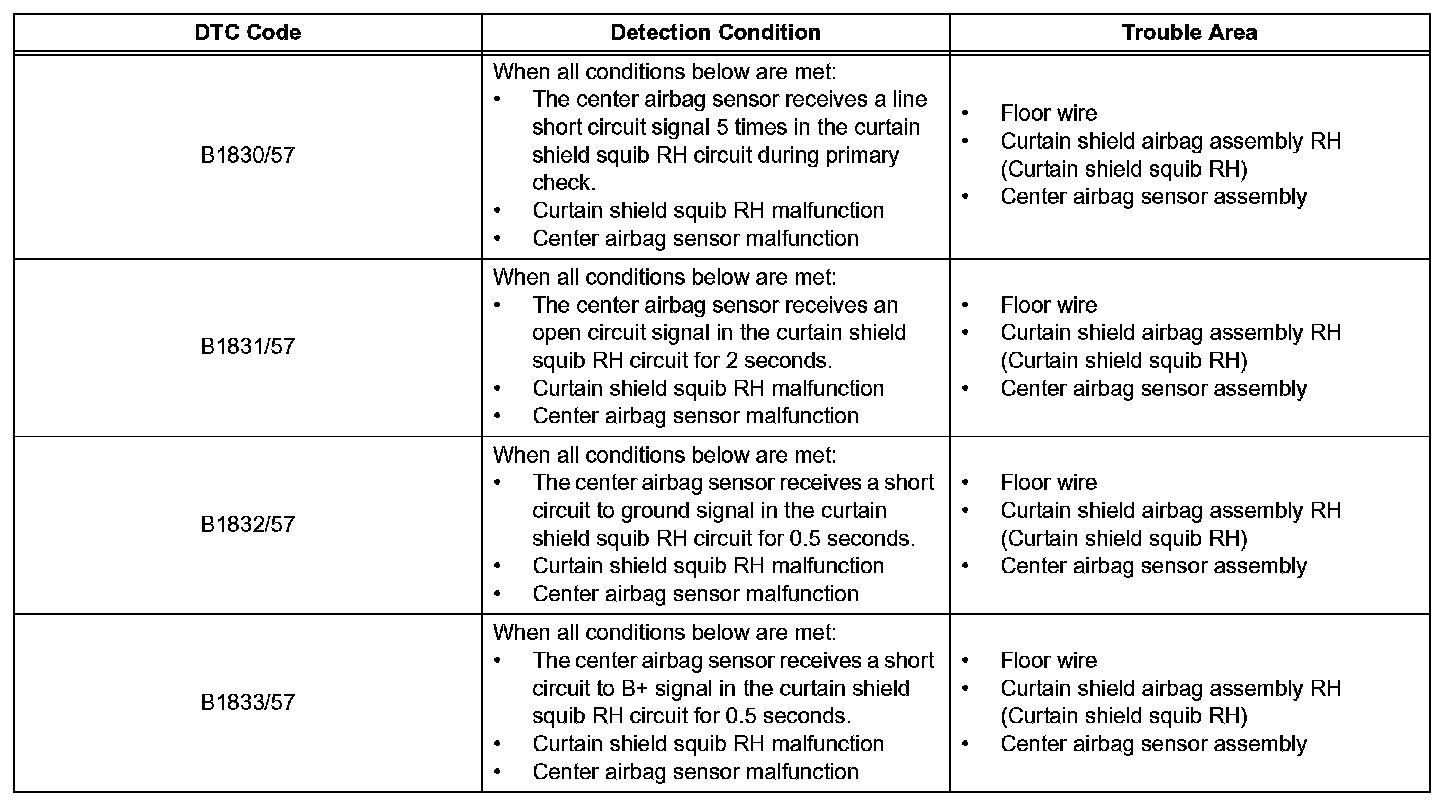

Detection Condition:

The curtain shield squib RH circuit consists of the center airbag sensor and the curtain shield airbag RH.

The circuit instructs the SRS to deploy when deployment conditions are met.

These DTCs are recorded when a malfunction is detected in the curtain shield squib RH circuit.

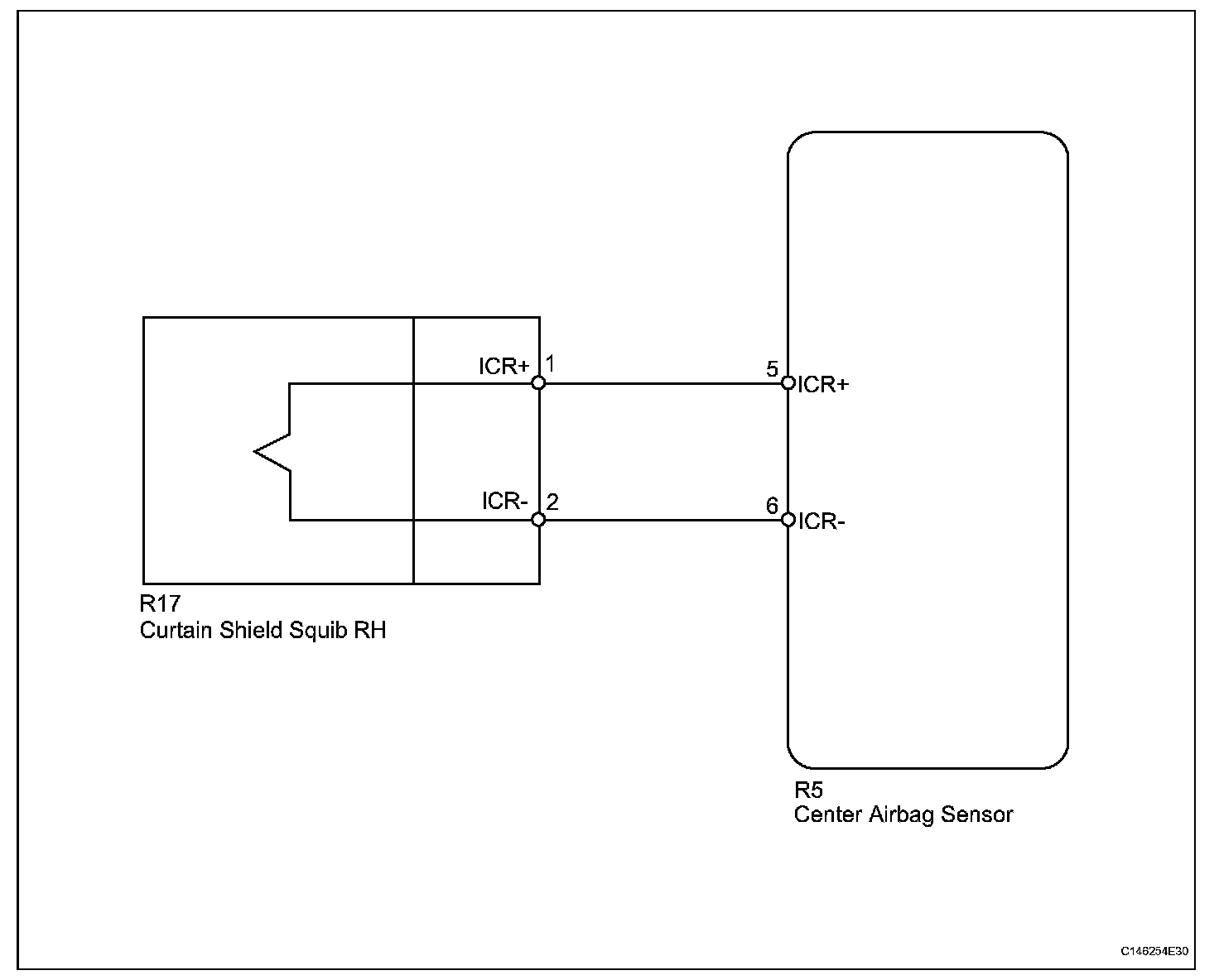

Wiring Diagram:

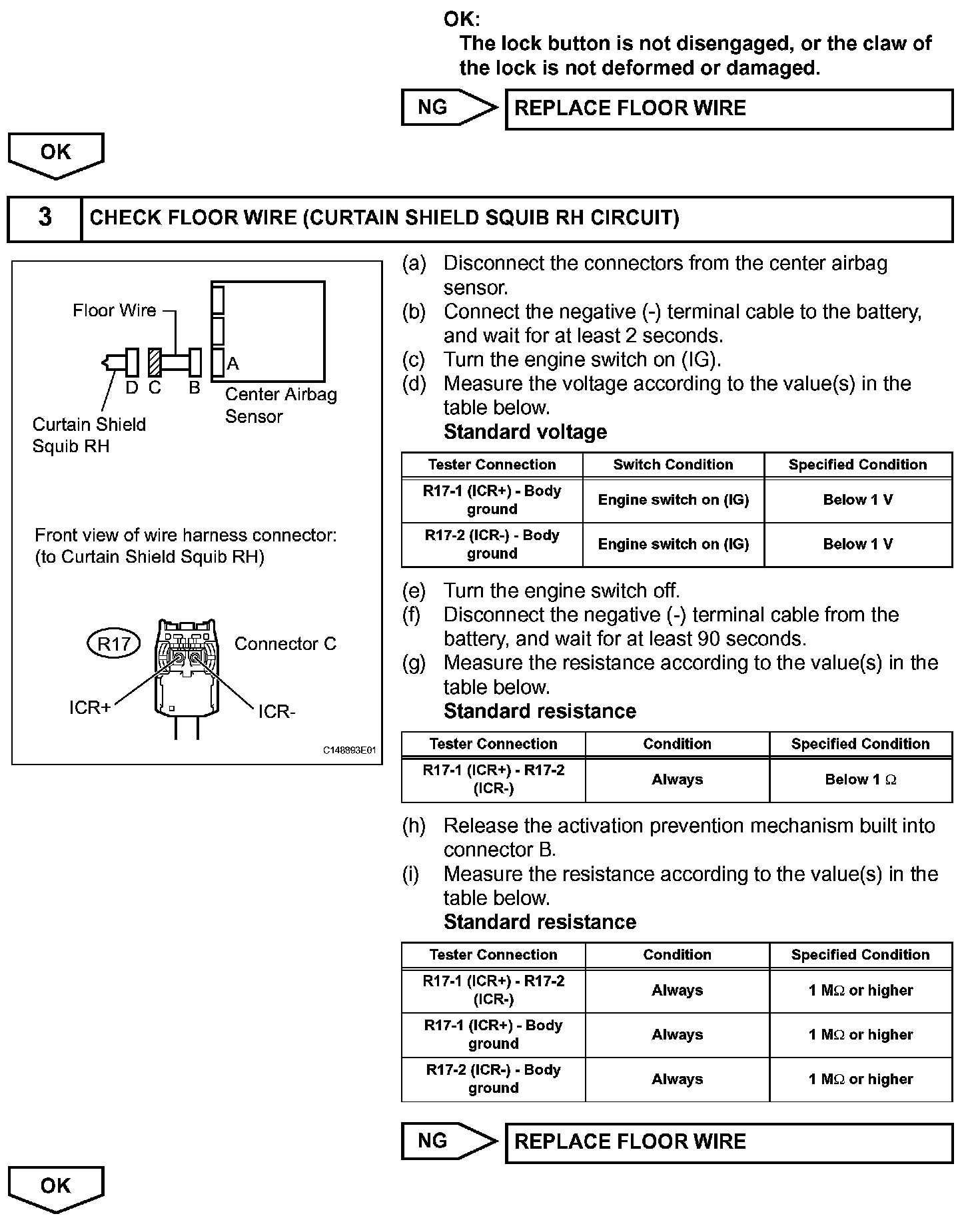

Step 1-2:

Step 2 (Continued)-3:

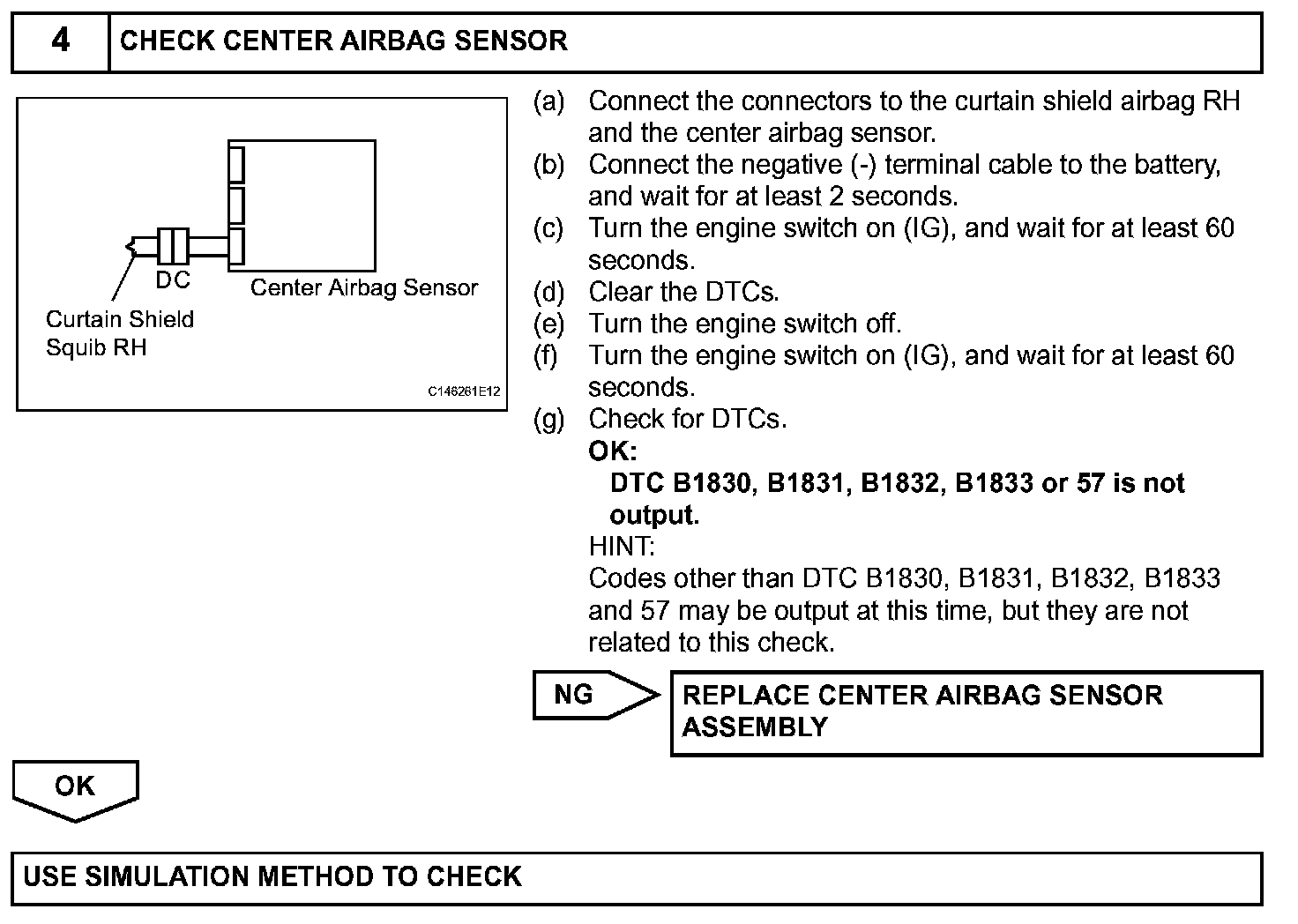

Step 4:

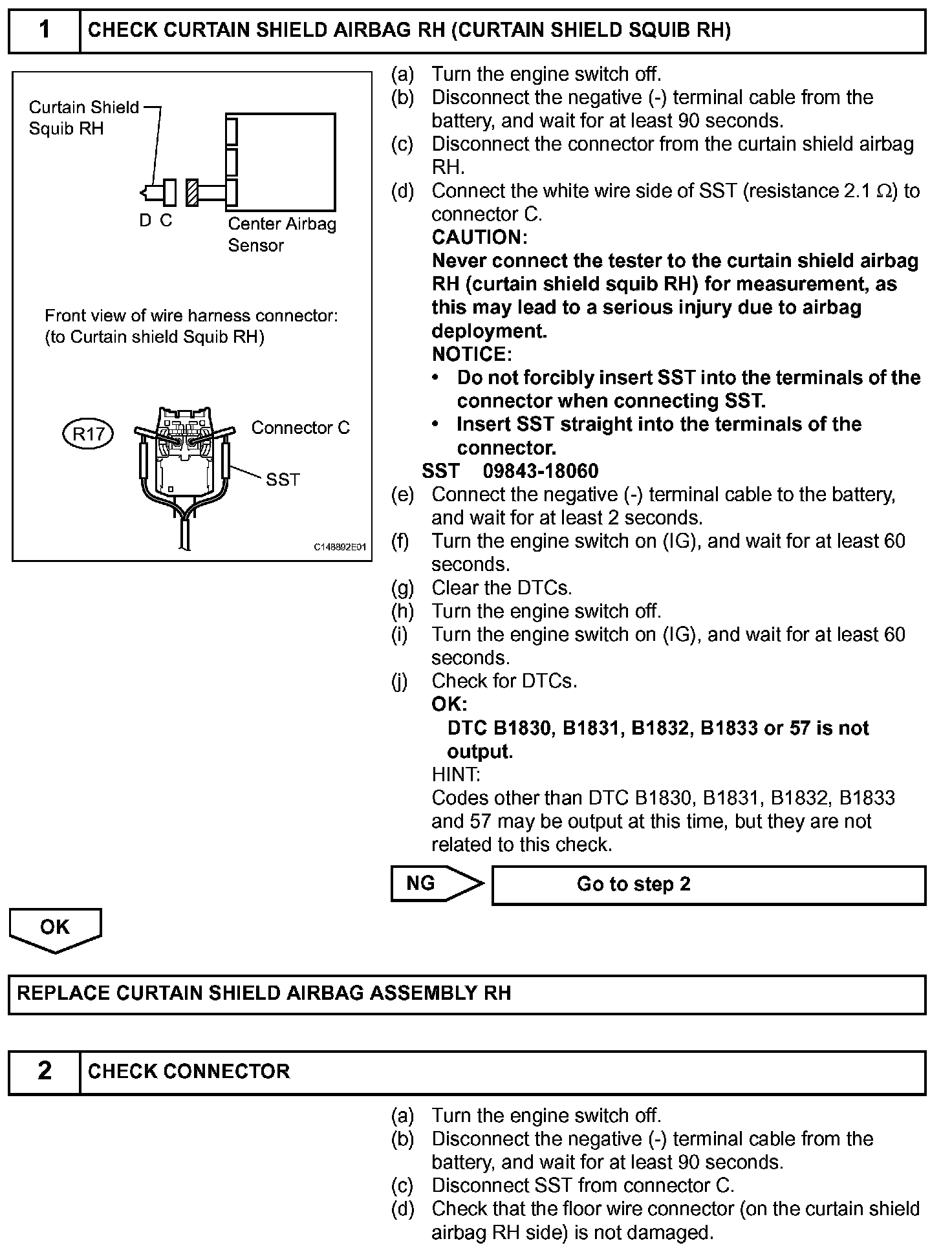

INSPECTION PROCEDURE

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

HINT:
- Perform the simulation method by selecting "check mode" (signal check) with the intelligent tester or Techstream.
- After selecting "check mode" (signal check), perform the simulation method by wiggling each connector of the airbag system or driving the vehicle on various types of roads.
