B1660

DTC B1660/43 Passenger Airbag ON / OFF Indicator Circuit Malfunction

DESCRIPTION

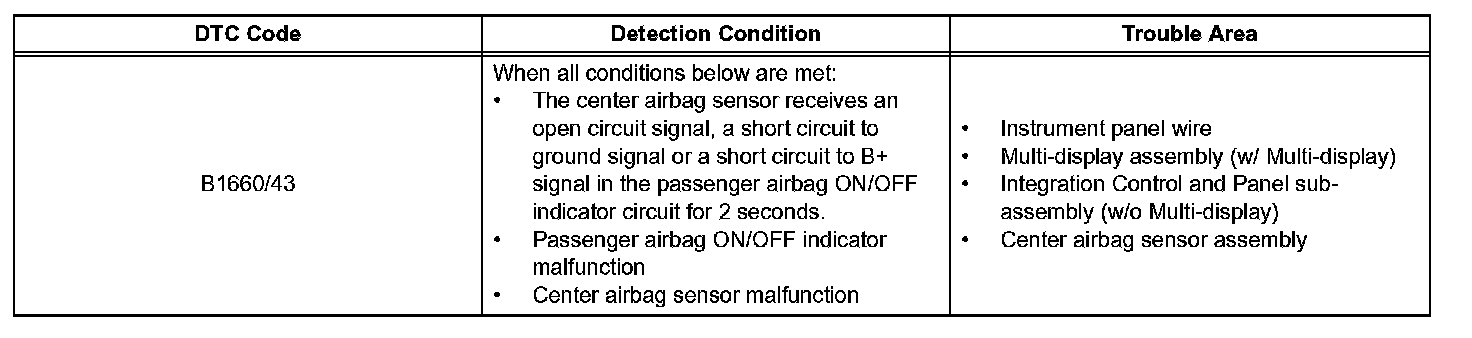

Detection Condition:

The passenger airbag ON/OFF indicator circuit consists of the center airbag sensor and the passenger airbag ON/OFF indicator.

The passenger airbag ON/OFF indicator indicates the operation condition of the front passenger airbag, front passenger side knee airbag, front seat side airbag RH and front seat outer belt RH.

DTC B1660/43 is recorded when a malfunction is detected in the passenger airbag ON/OFF indicator circuit.

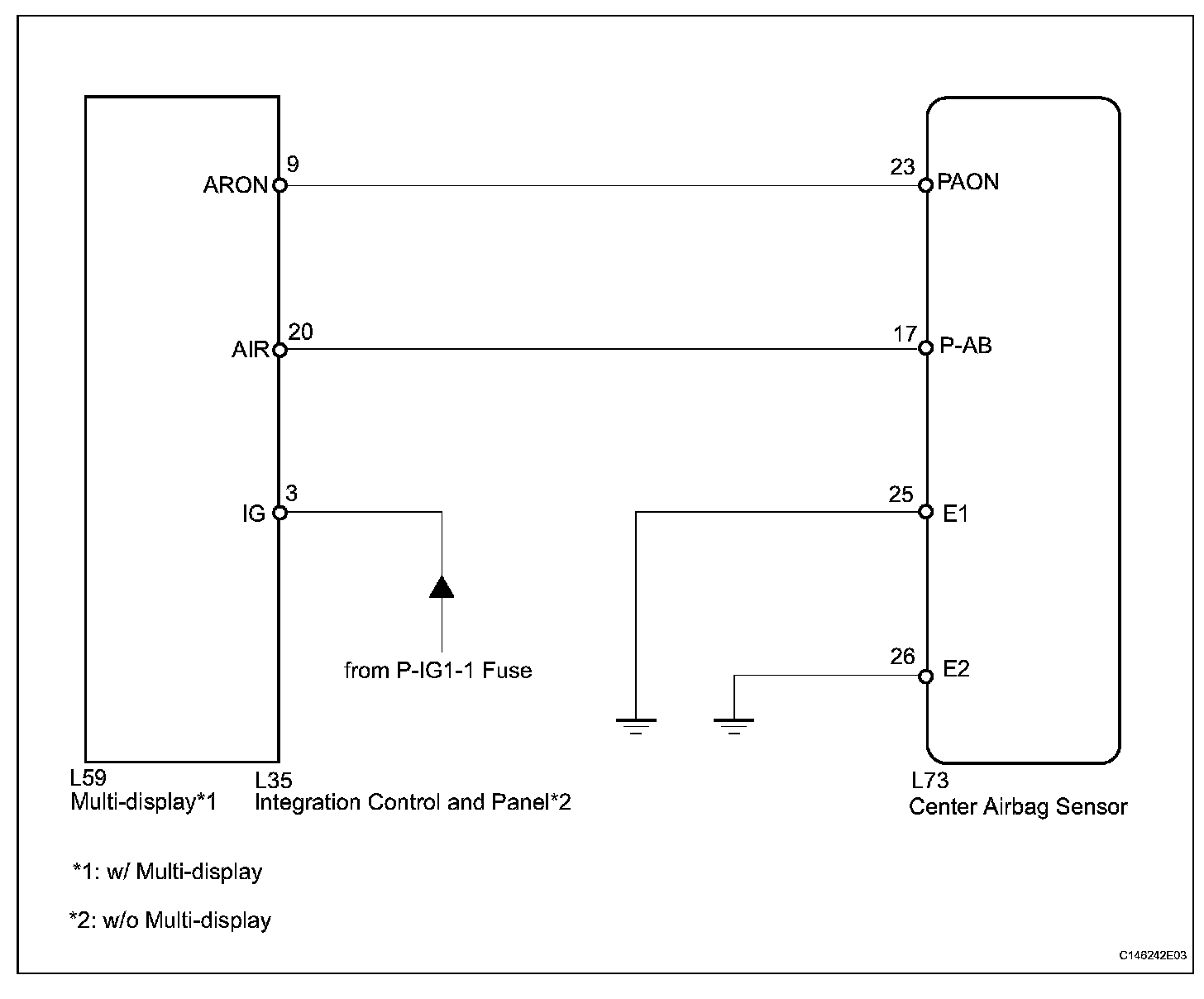

Wiring Diagram:

Step 1:

Step 1 (Continued)-2:

Step 3-4:

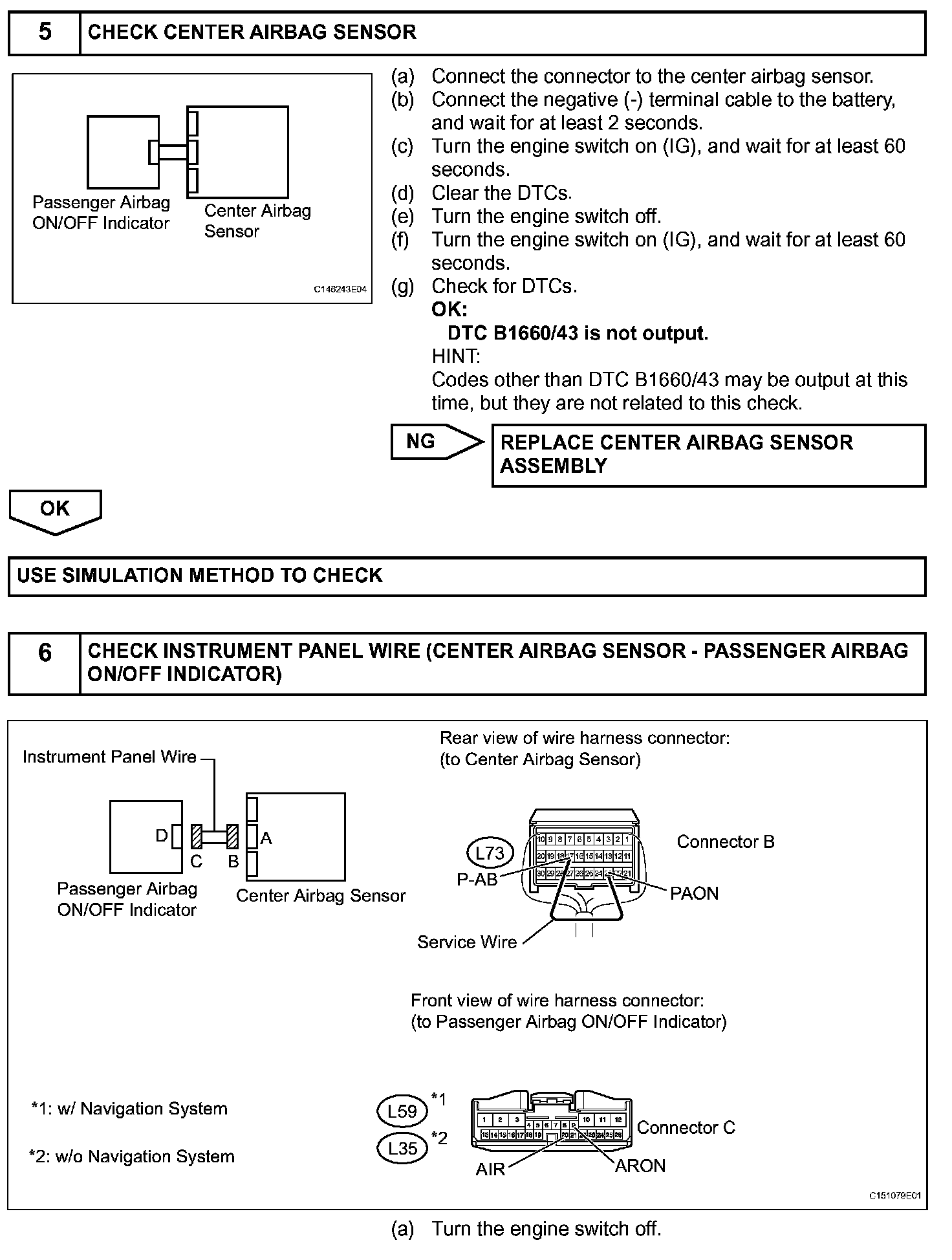

Step 5-6:

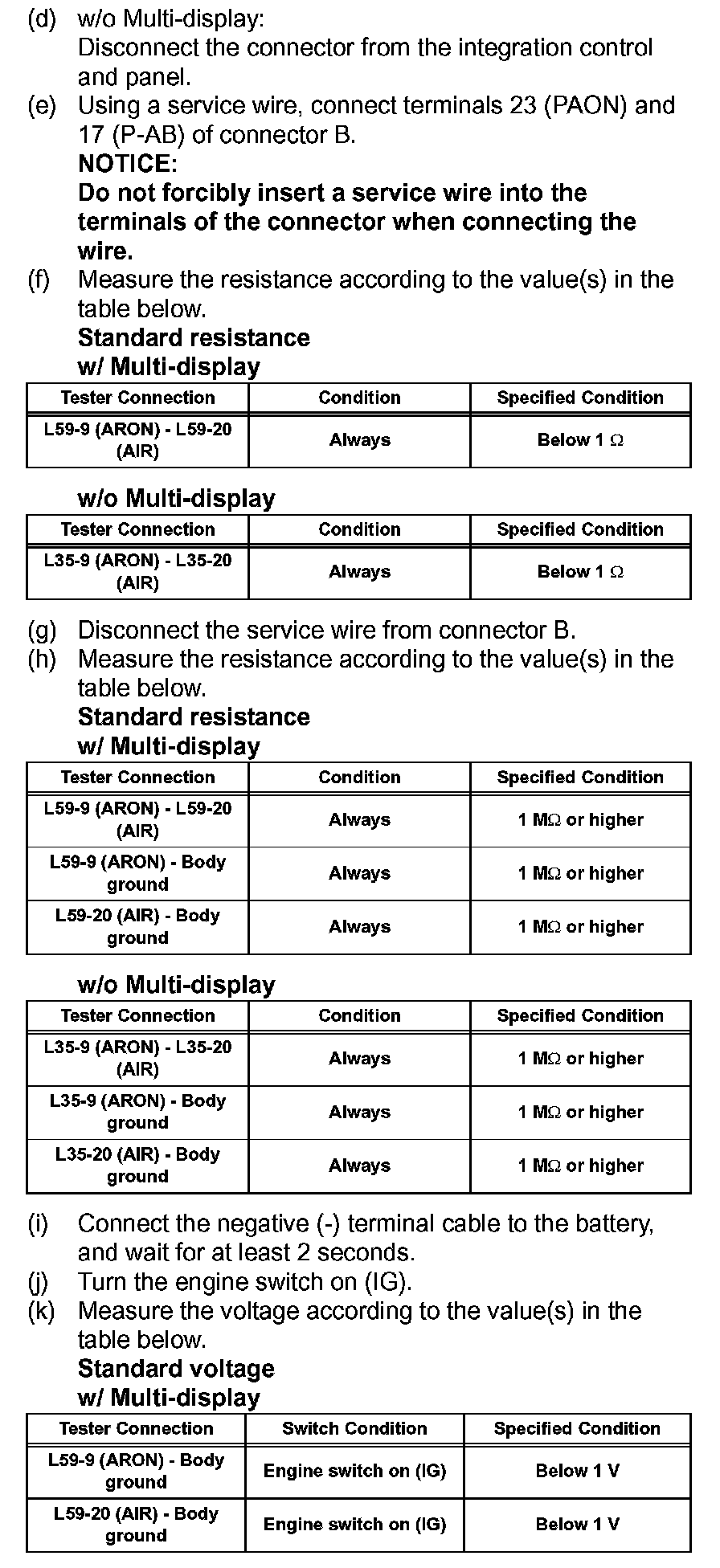

Step 6 (Continued):

Step 6 (Continued)-7:

Step 8-9:

Step 9 (Continued):

Step 9 (Continued)-10:

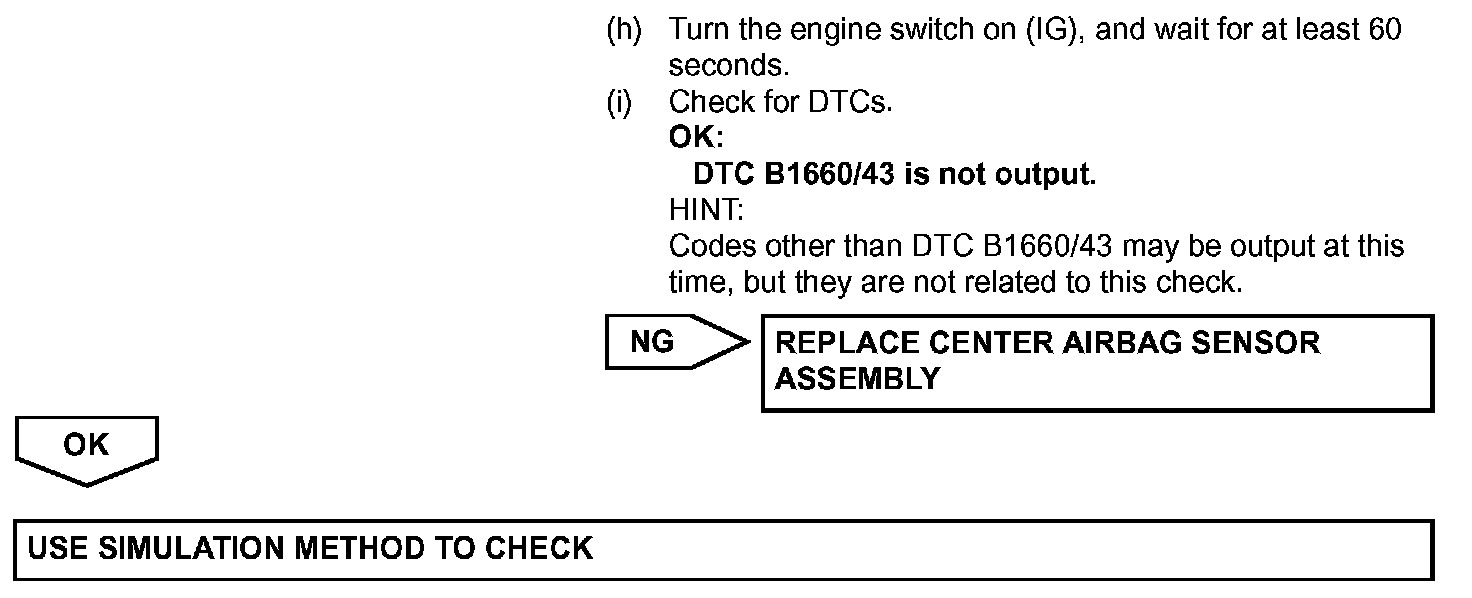

Step 11-12:

Step 12 (Continued):

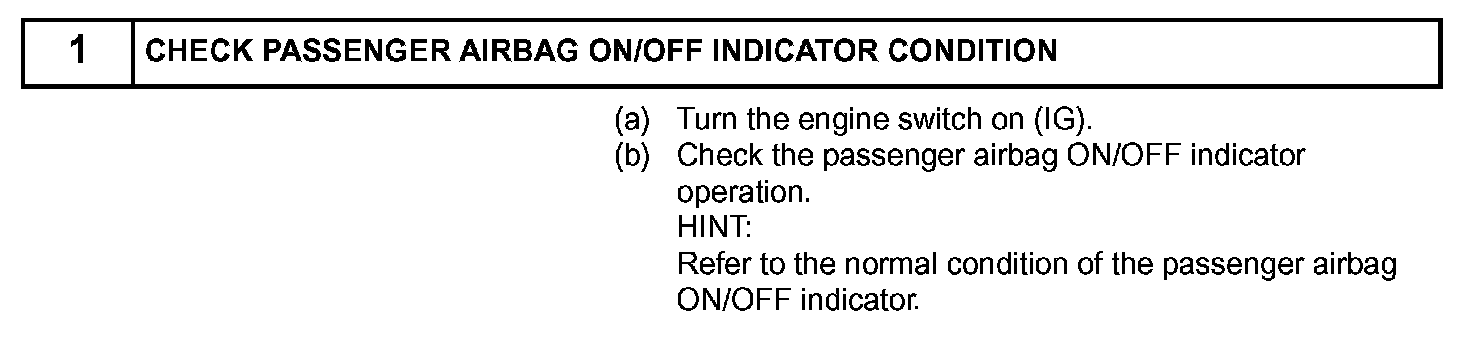

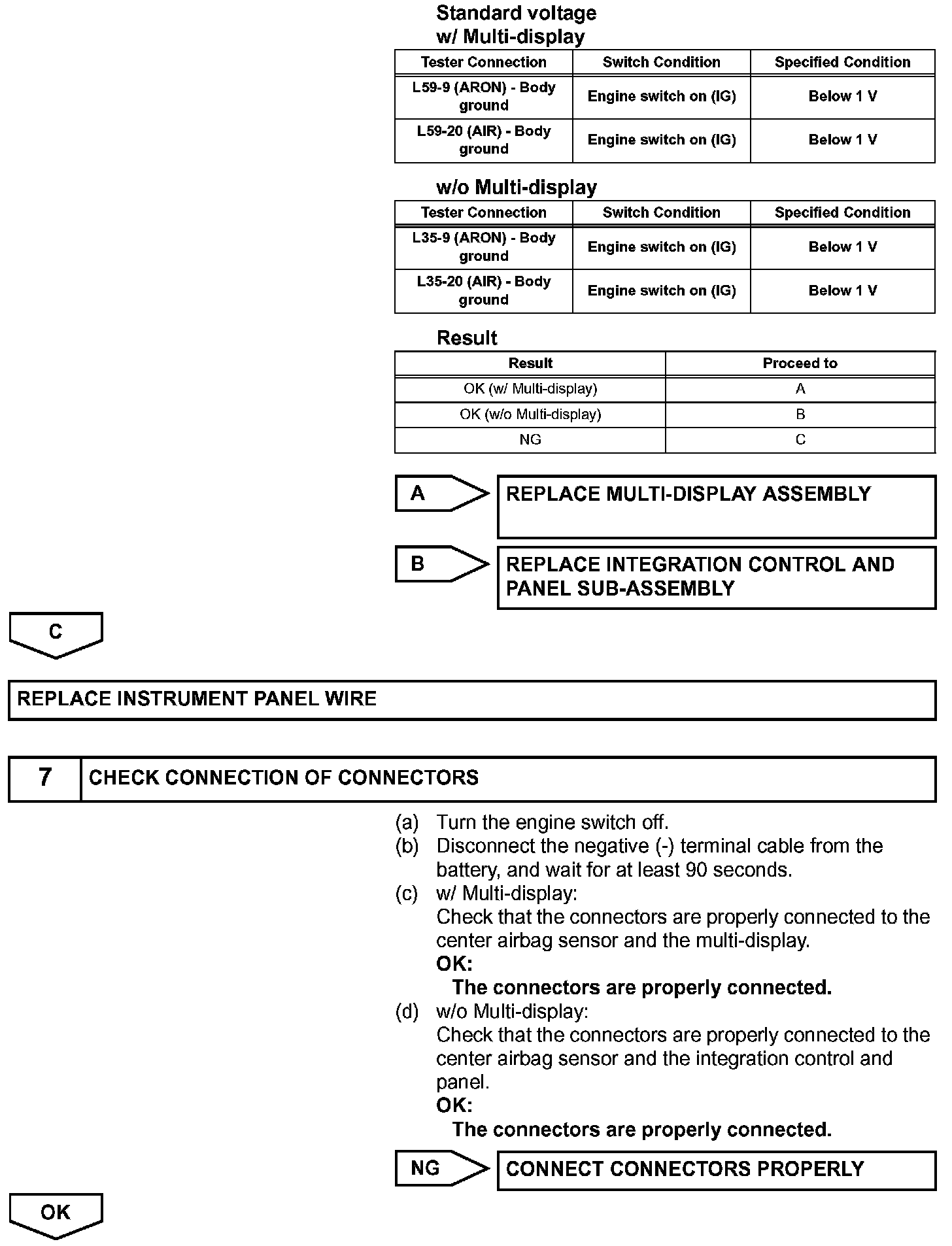

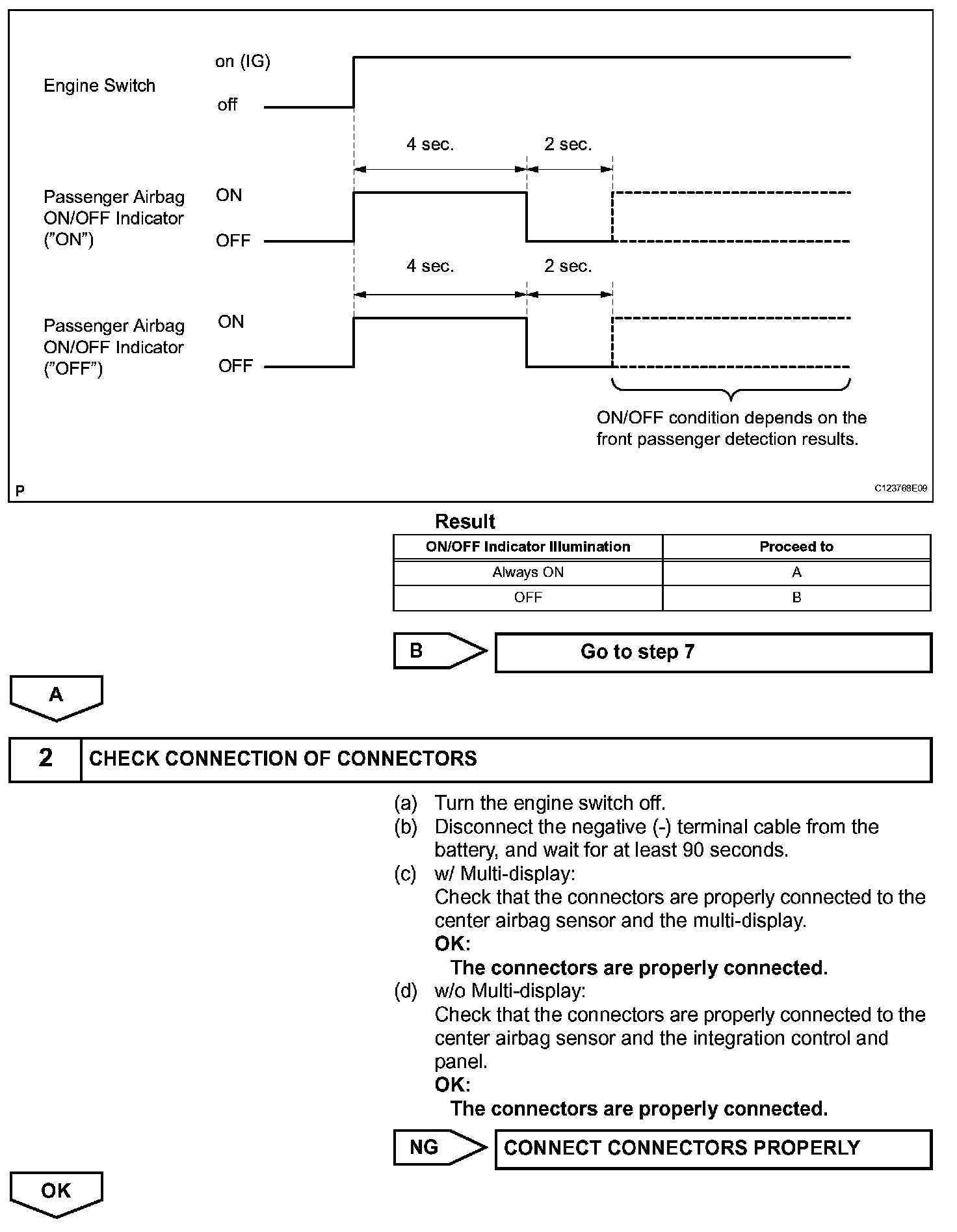

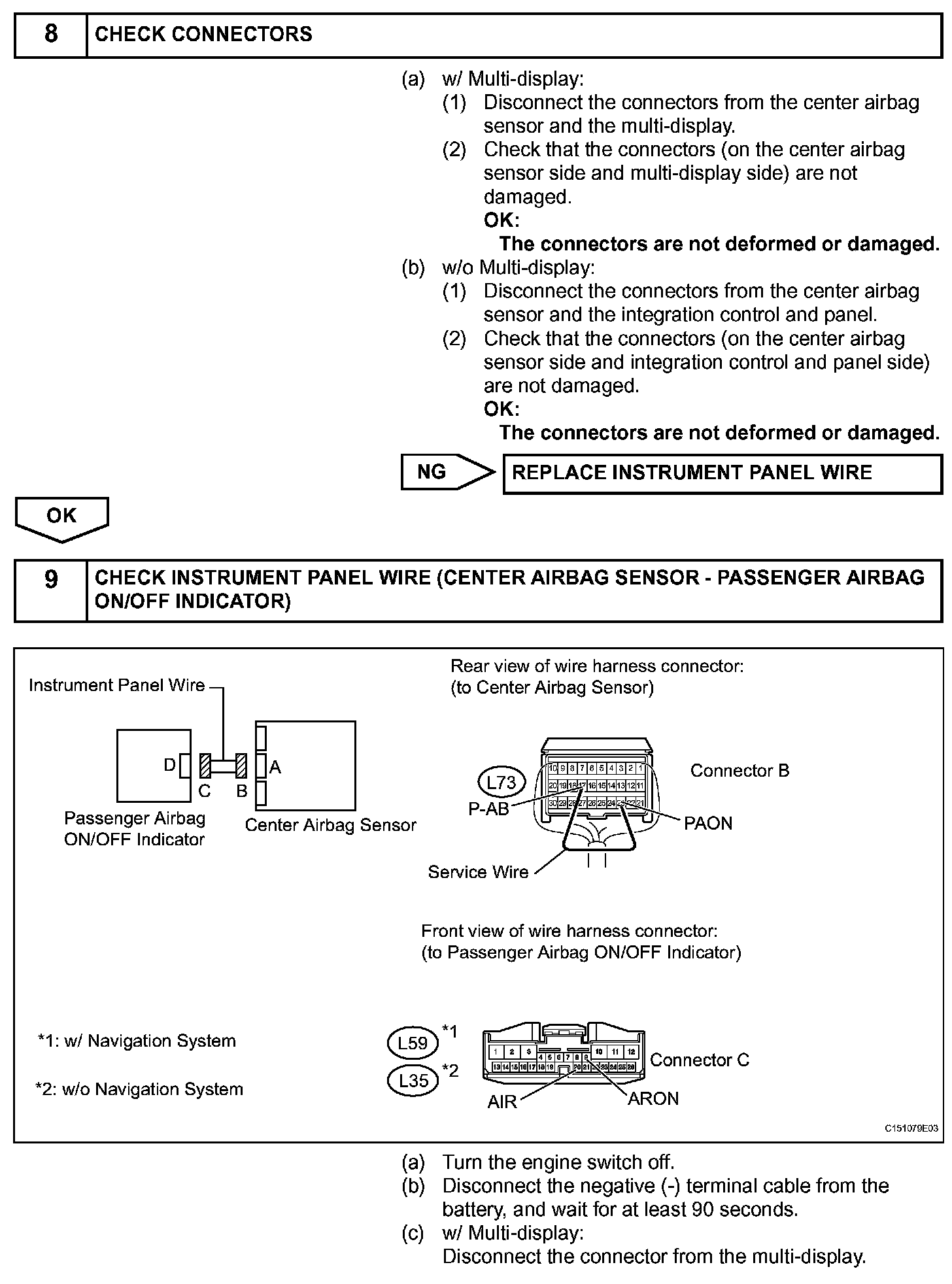

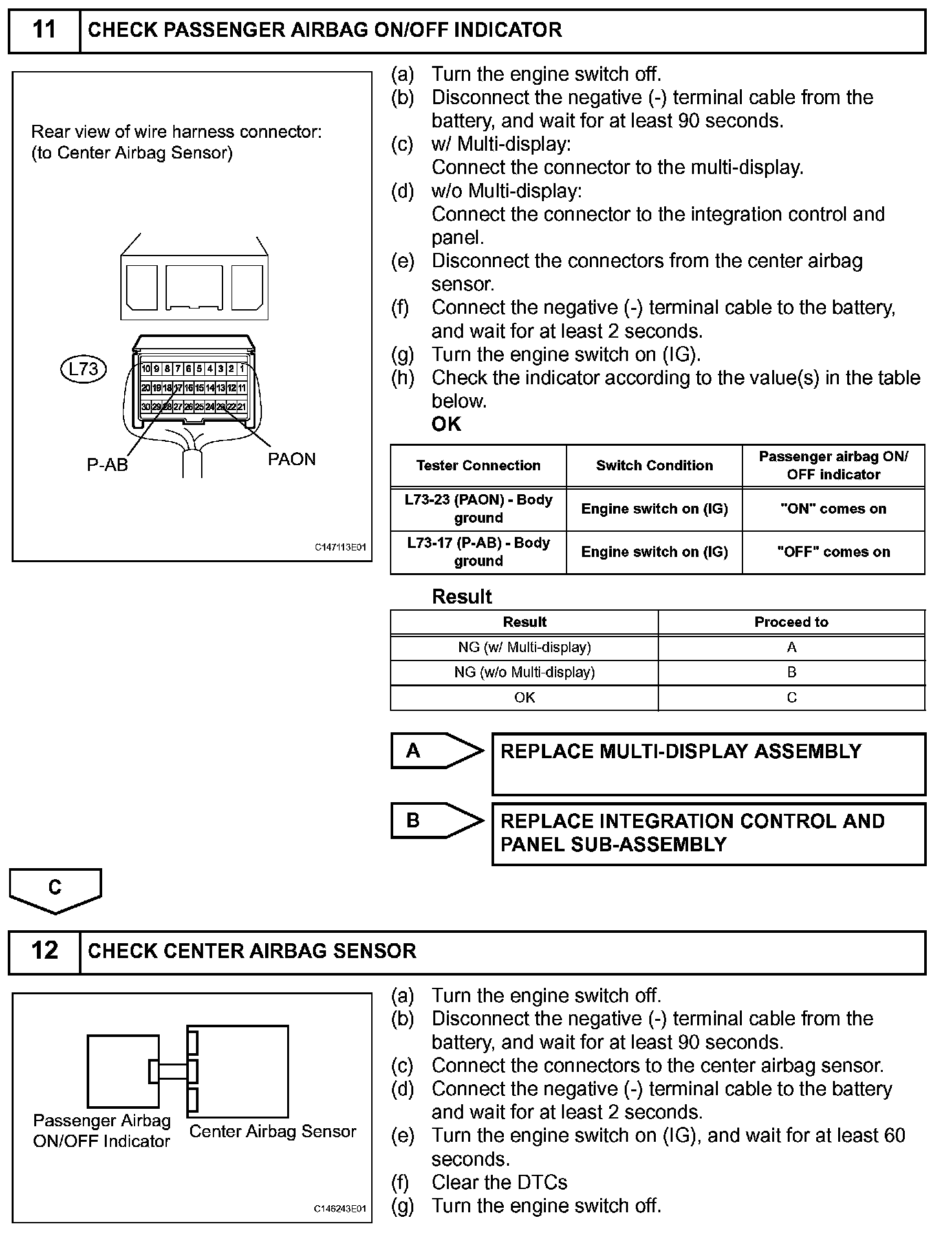

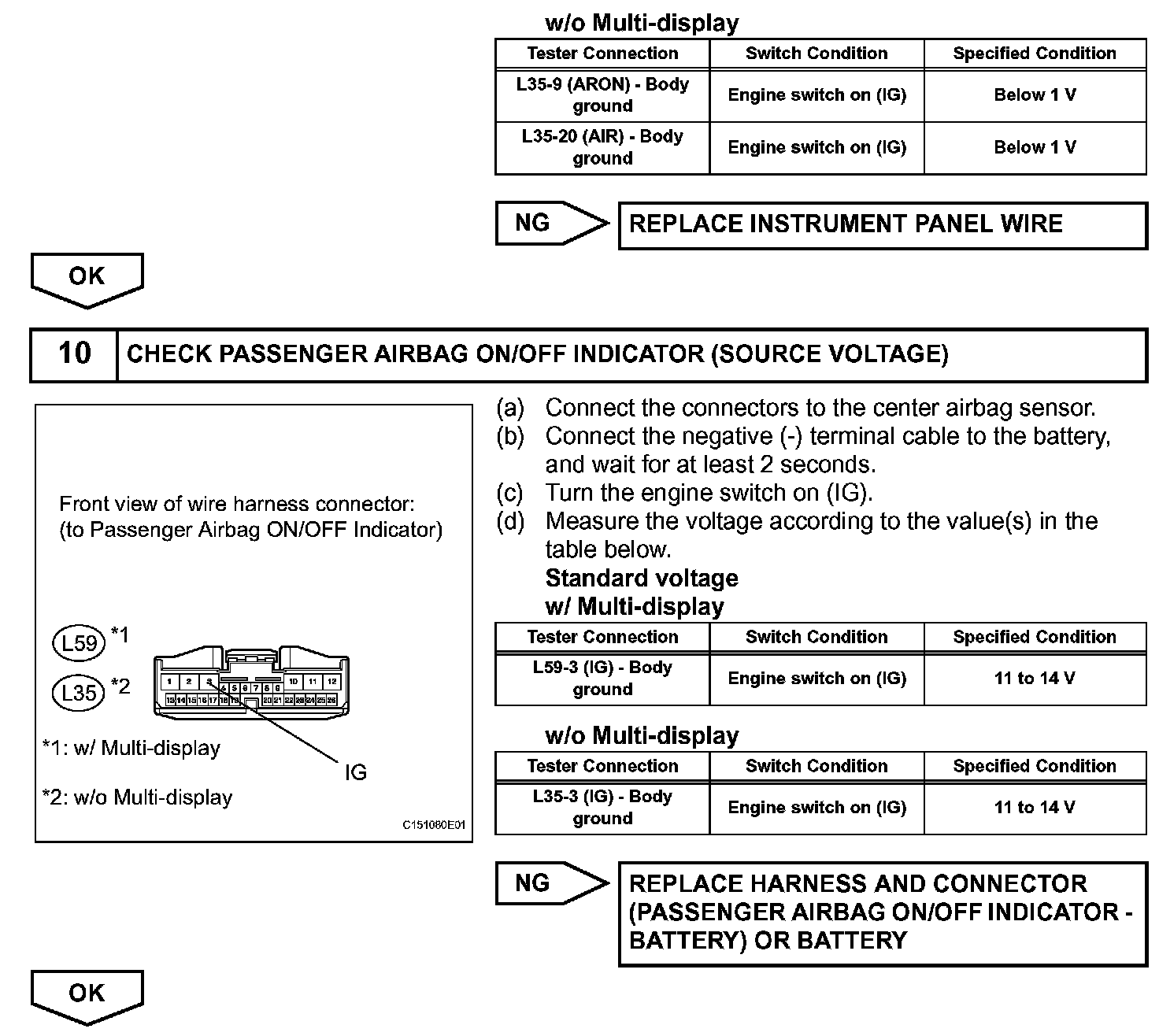

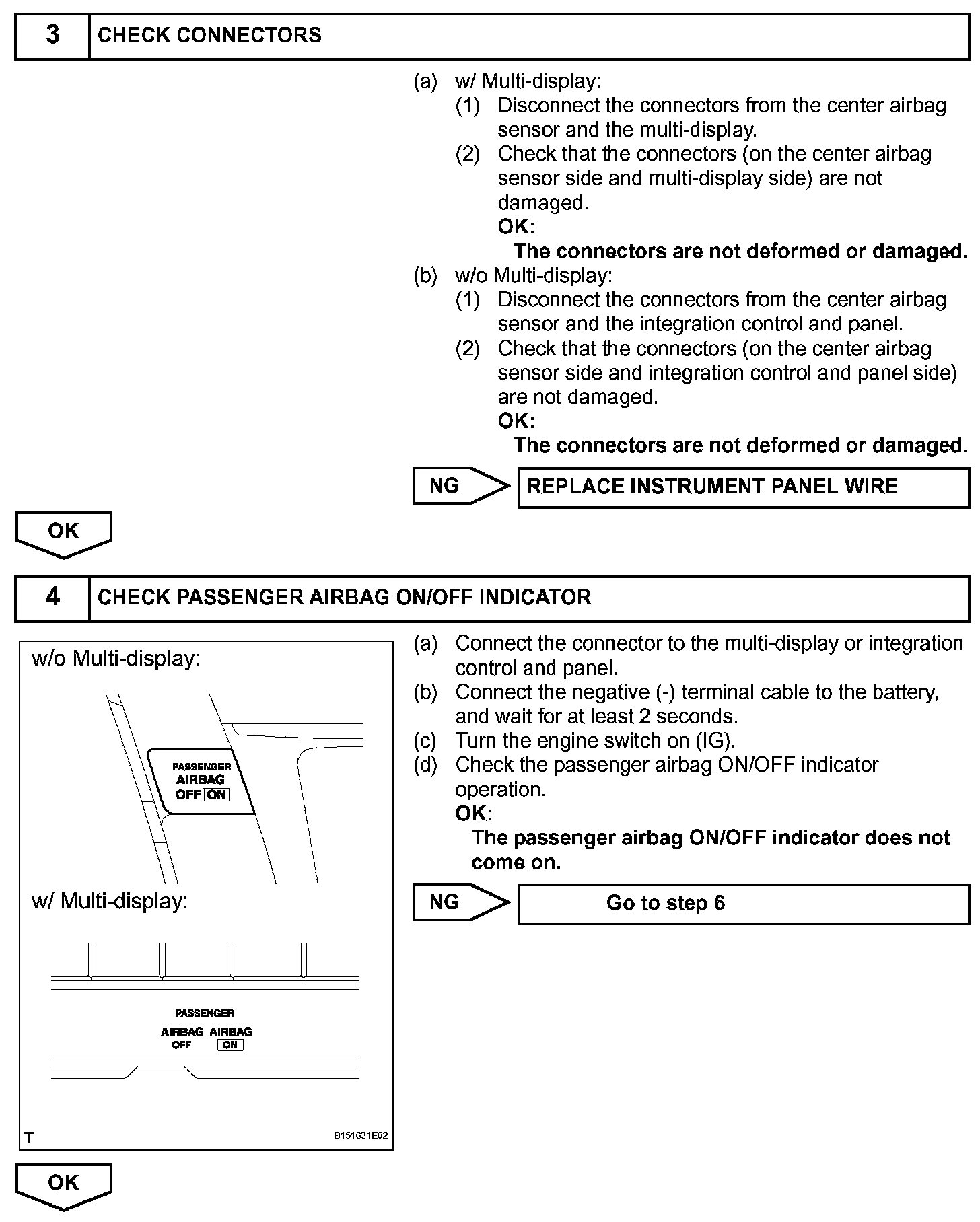

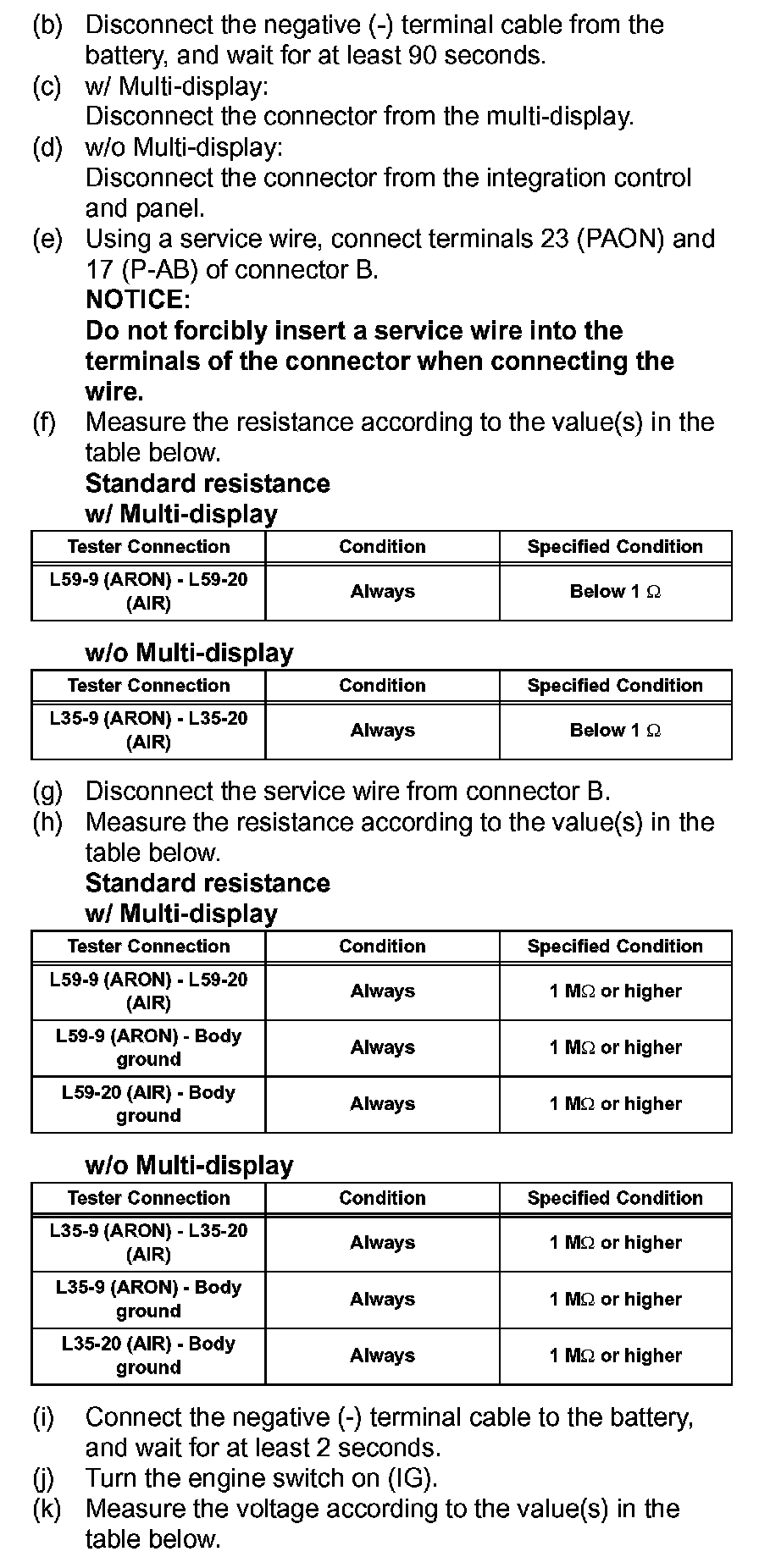

INSPECTION PROCEDURE

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
