B1653

DTC B1653/35 Seat Position Airbag Sensor Circuit Malfunction

DESCRIPTION

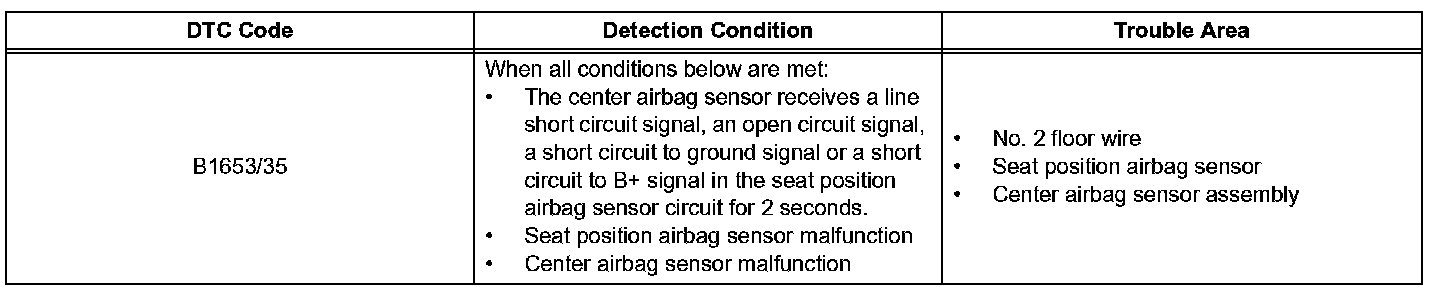

Detection Condition:

The seat position airbag sensor circuit consists of the center airbag sensor and the seat position airbag sensor.

DTC B1653/35 is recorded when a malfunction is detected in the seat position airbag sensor circuit.

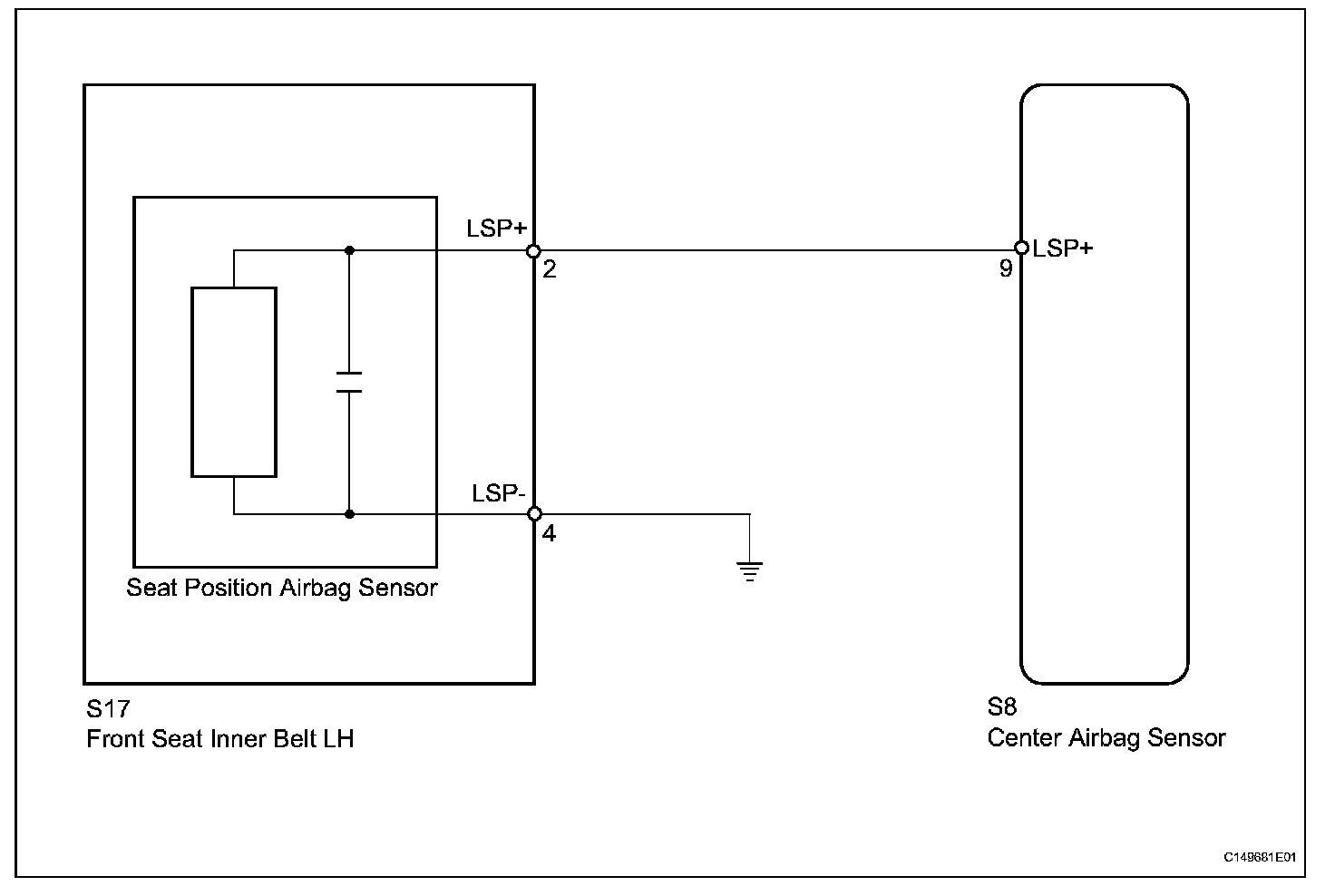

Wiring Diagram:

Step 1-3:

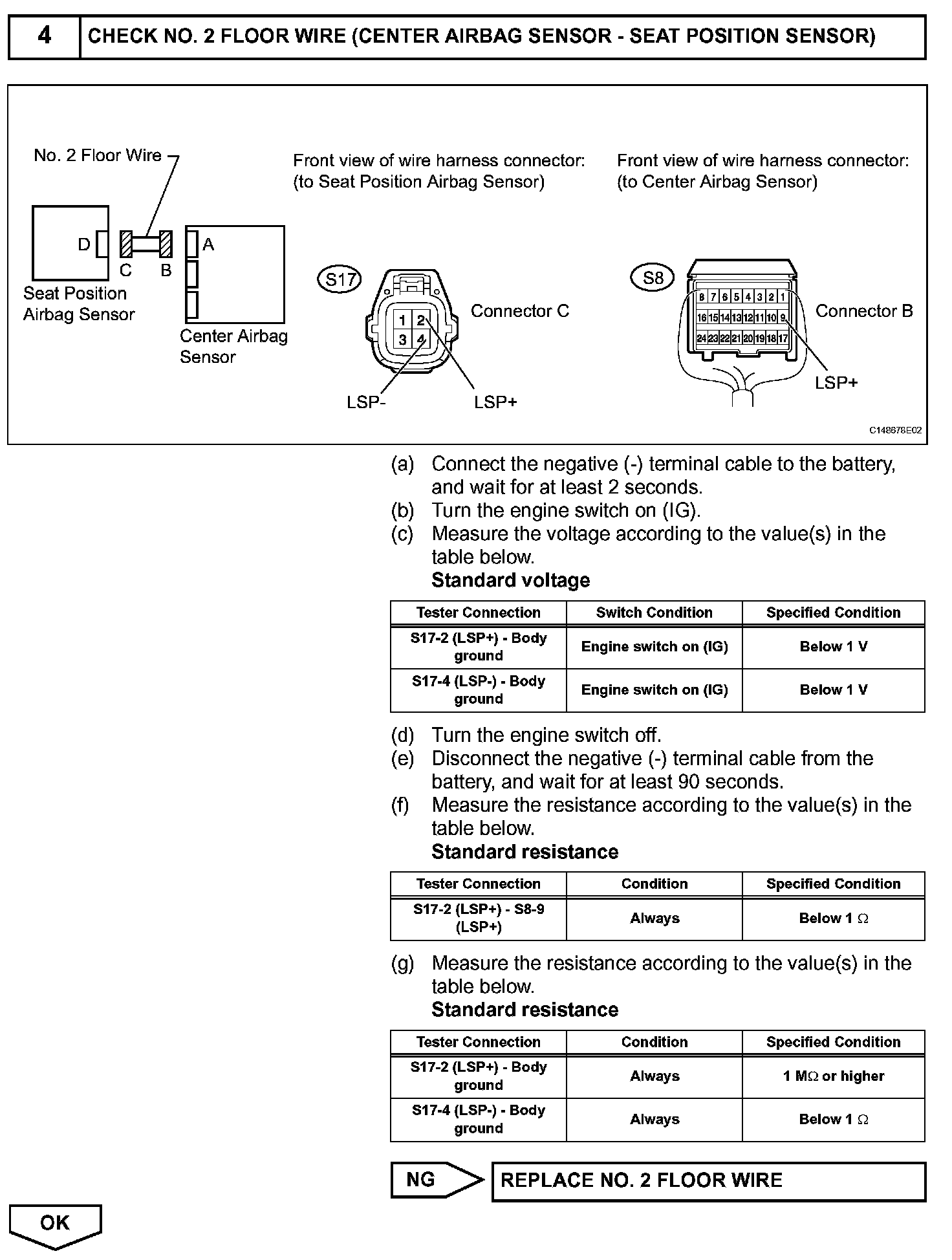

Step 4:

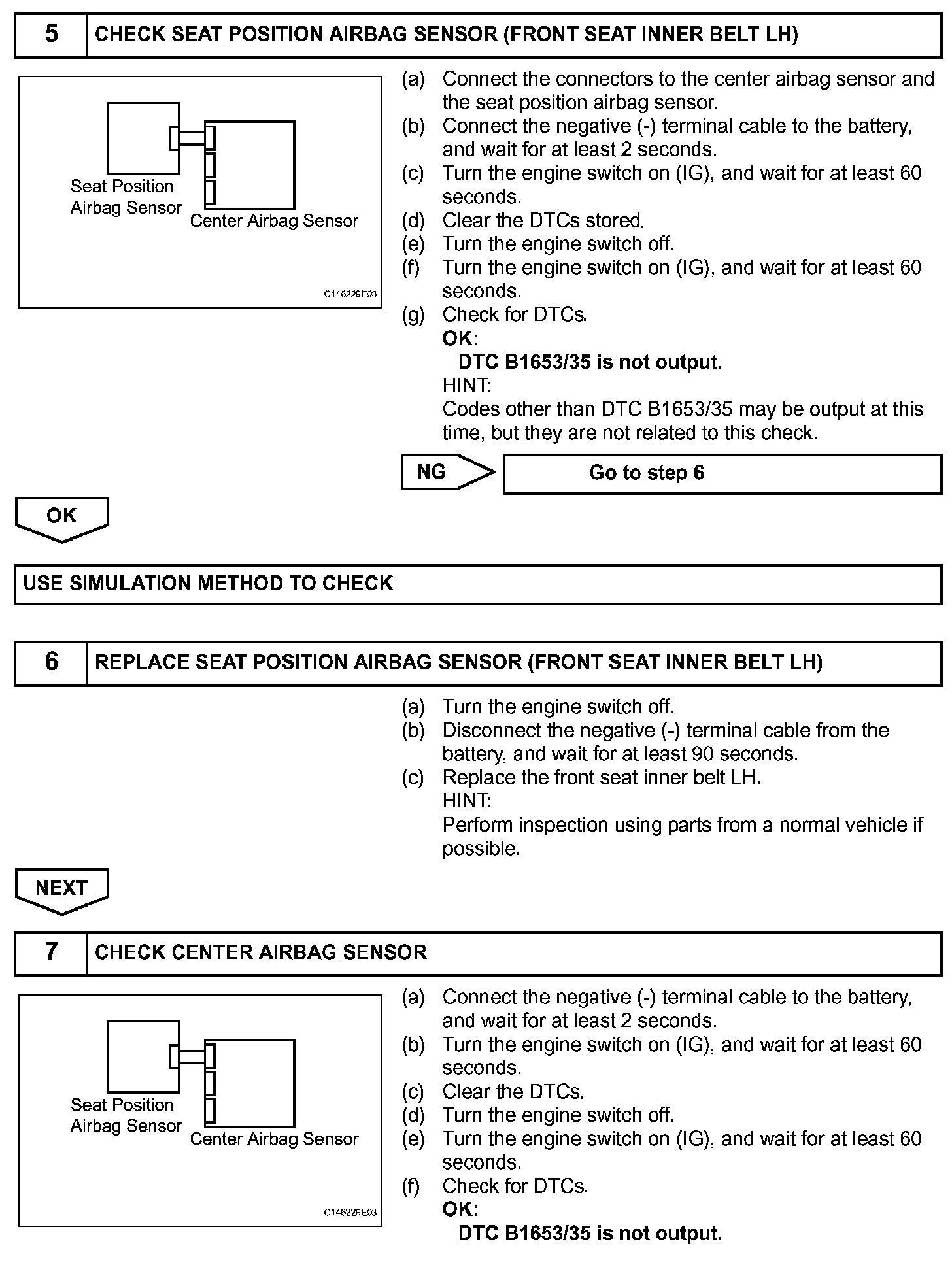

Step 5-7:

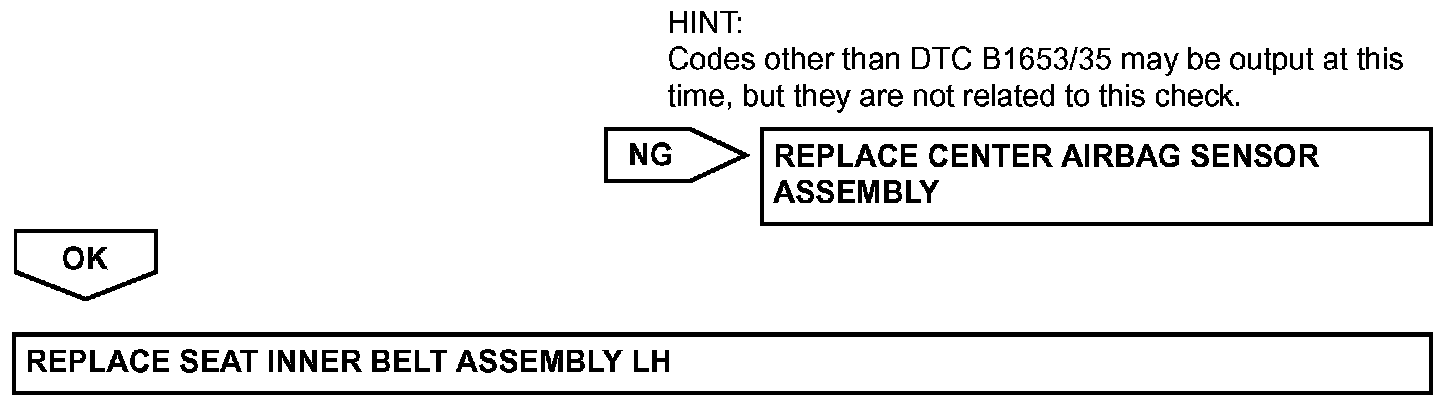

Step 7 (Continued):

INSPECTION PROCEDURE

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
