Seat Heater System
DTC B14F5 Overcurrent Detected in Seat HeaterDESCRIPTION
The seat climate control ECU stops outputs to the seat climate control controller if a short, etc. in the seat heater, wire harness or ECU interior circuit causes overcurrent.

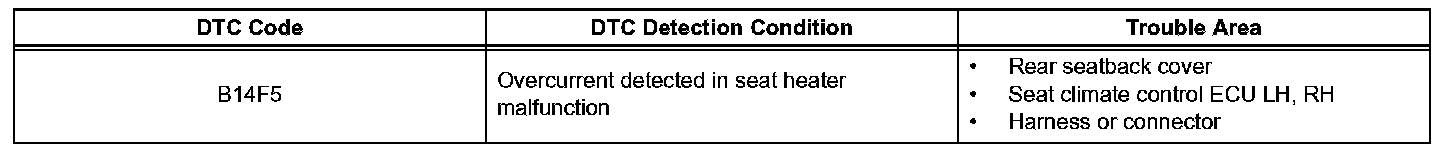

DTC Detection Condition:
WIRING DIAGRAM

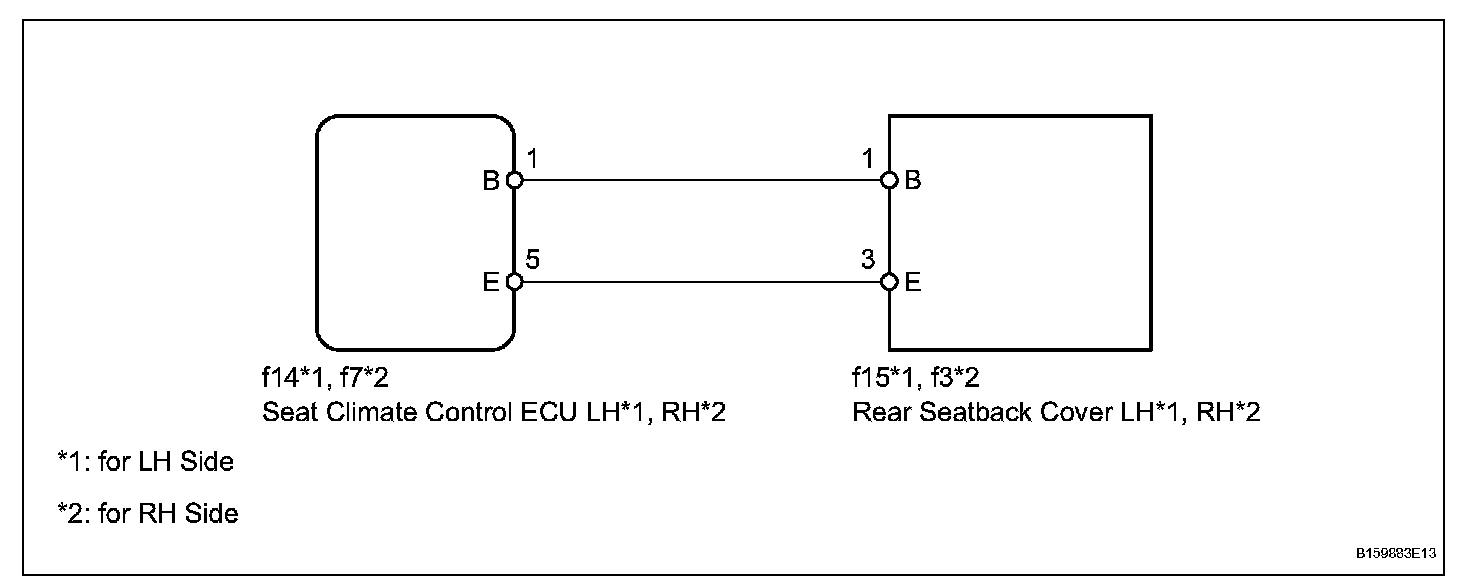

Wiring Diagram:
INSPECTION PROCEDURE

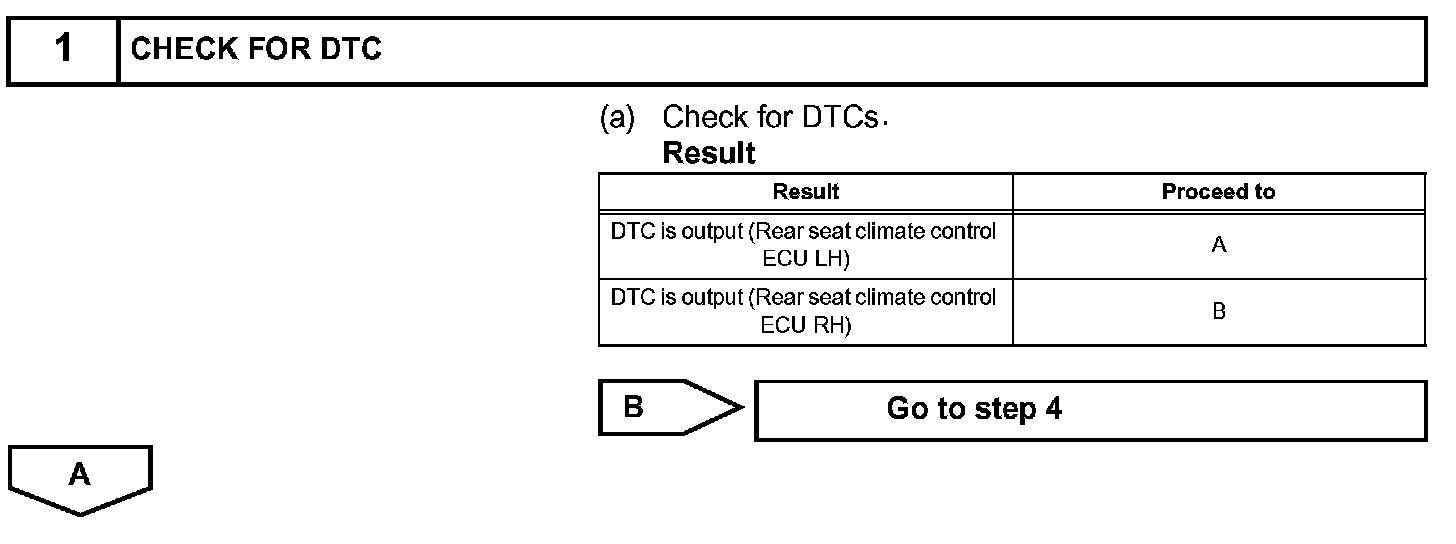

Step 1:

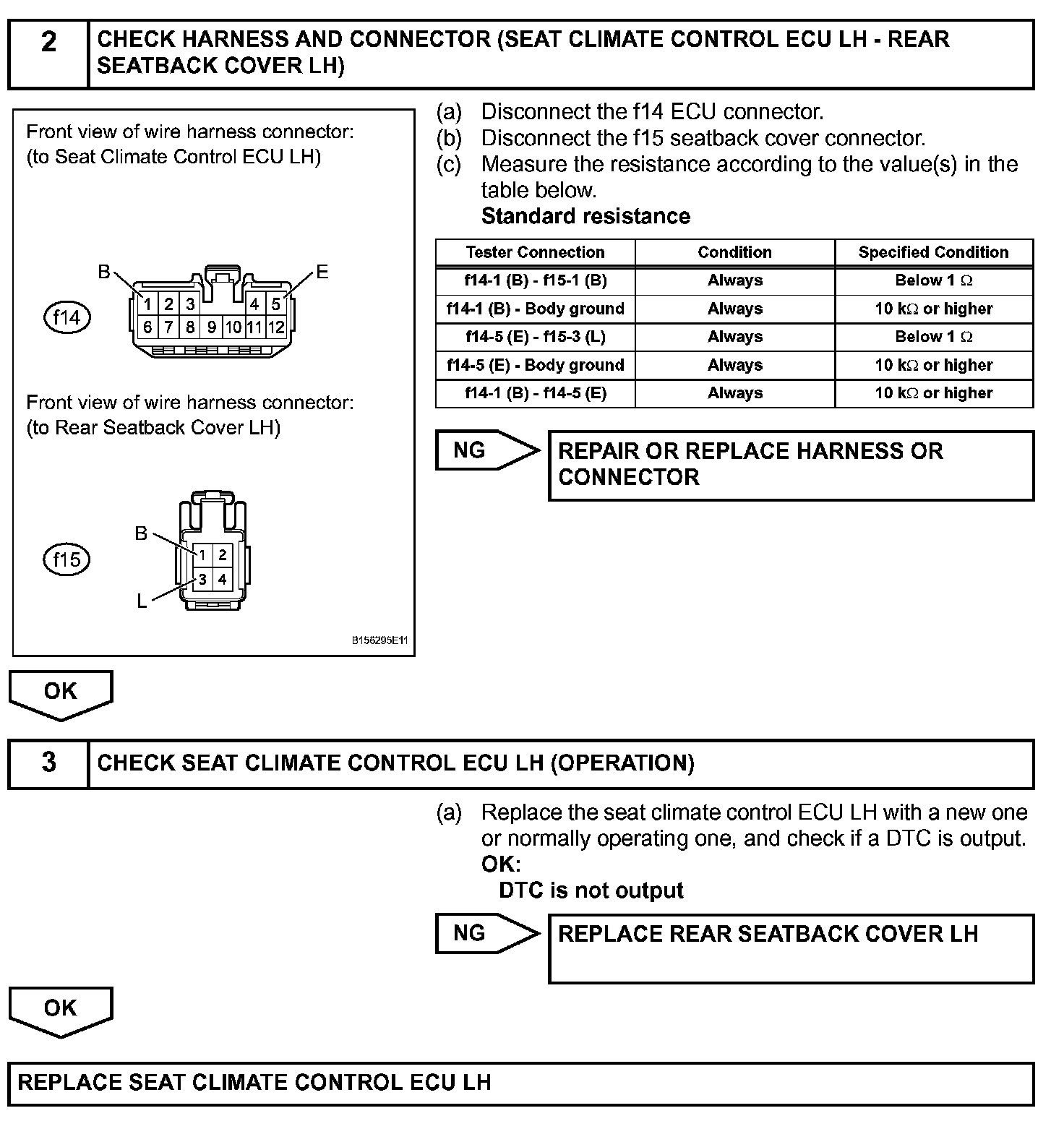

Step 2 - 3:

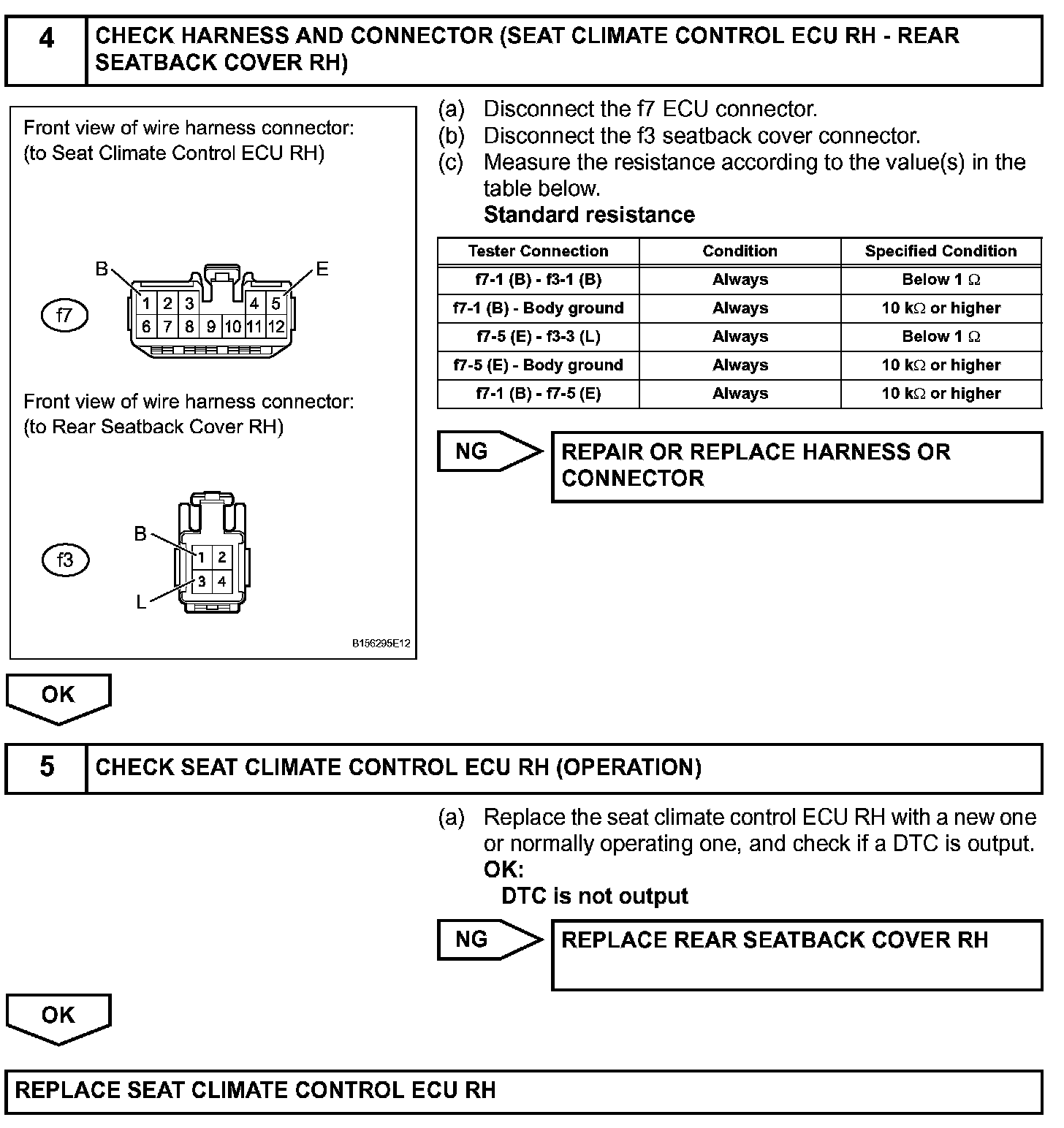

Step 4 - 5:
